Used Fitting Drill Machine for sale (67,686)

Condition: used, Year of construction: 1983, machine/vehicle number: 18071, Ref. No. 25393 Technical Data: - Drilling capacity in steel ST 60: 28 mm - Maximum drilling capacity in steel ST 60: 32 mm - Drill spindle taper: MT 3 - Drill spindle stroke: 180 mm - Drill spindle speeds steplessly adjustable: - Range 1: 130 – 480 rpm - Range 2: 480 – 1750 rpm - 3 feeds: 0.1; 0.2; 0.3 mm/rev - Throat depth: 290 mm - Maximum distance table - drill spindle: 620 mm - Table with 2 T-slots: 450 x 450 mm - Height adjustable by rack-and-pinion and handwheel - Separate coolant unit - Drive: 400 V / 0.9 / 1.3 kW - Space requirement approx.: W 660 x H 1900 x D 700 mm Kjdpoy En I Hofx Ai Rodr - Weight approx.: 280 kg

Year of construction: 1968, condition: good (used), machine/vehicle number: 12314, Offer 22326 Technical data: Kjdskt Nqqjpfx Ai Redr - Drilling capacity in steel ST 60: 35 mm - Drilling capacity in steel ST 60: 40 mm - Drill spindle connection: MK 4 - Drill spindle stroke: 170 mm - Overhang: 345 mm - Rotary table with 2 T-slots: 550 mm - Max. distance table – drill spindle: 650 mm - Max. distance base plate – drill spindle: 1000 mm - Feeds: 0.09 - 0.16 - 0.28 mm/rev - Variable speed AZ gearbox with gear shift - Continuously adjustable drill spindle speeds: 40 - 720 rpm - Right/left rotation - Drive: 400 V / 2.5 kW - Lighting - Coolant system - Space requirement: approx. W 750 x H 1950 x D 1000 mm - Weight: approx. 700 kg

Condition: used, Year of construction: 1998, Second-hand machine Year of manufacture: 1998 This machine can be used to drill corner joints, transom windows and olive joints in loose or compressed timber frames The scanning is carried out at the rebate, the 8 stops for corner bearings and transom windows, as well as for the rebate timber and transom, are automatically engaged once the timber is positioned. The machine features an automatic programme sequence with electric control for the drilling motors, activated by a safety foot pedal Pneumatic connection R 1/4 5–6 bar Extraction velocity 25 m/sec. Extraction nozzle diameter: 120 mm Electrical connection: 0.75 kW Dimensions: 2950 x 650 x 1100 mm Availability: at short notice Storage location: Flörsheim Kdsdjzk Nzpopfx Ai Rer

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Drilling / Milling Machine KNUTH MARK SUPER SV Year of construction: 2021 Travel X: 560 mm Travel Y: 190 mm Travel Z: 400 mm Spindle: CM4 Spindle exit: 120 mm Spindle speed: from 75 to 2500 RPM Table size: 800 x 240 mm Tilting head Ksdpfx Aijzqtc Rj Redr Scale 3 axes Electronic speed variator Automatic head up/down Automatic X axe travel Manual Y axe travel Supplied with many accessories: Boring heads, clamps holders, etc (see photos) Voltage: 380 V Length: 1400 mm Depth: 1200 mm Height: 2000 mm Weight: approx 500 KG

Condition: good (used), Nagel Citoborma 280B Paper Drill This machine is 100% functional. It is one of the newest models. The drill table is adjustable in all directions (sides, front/back). It has stops for setting the drilling spacing. The installed table is an enlarged version. Additionally, the paper drill has an automatic table lock that releases after each cycle. Excellent condition. Solid construction – weight 76 kg. 380V power supply Two drilling heads with adjustable spacing from 45-120 mm. Kdodpfx Aiezt H Nve Rjr Drill diameter 2-20 mm. Stack height 60 mm. The machine has been serviced. Includes drills and tools, a new cutting stick, and an instruction manual.

Condition: used, Year of construction: 1970, Technical details: bore stroke: 170 mm Kdjdpfxezgcx He Ai Rer total power requirement: 3,5 kW dimensions of the machine ca.: 0,75 x 1,10 m

Condition: ready for operation (used), DONAU DR 23 - High-speed radial drilling machine - Drilling capacity / steel approx. 28 mm - Arm length 700 mm - Morse taper MK 3 - Speed range 70-1550 rpm (gearbox) - Automatic feeds 0.075-0.3 mm - Thread cutting device - Drilling depth approx. 130 mm - Hydraulic clamping - Documentation Dimensions: L x W x H 2 x 1.7 x 1.9 meters / Weight 1900 kg Kdedpfoy Uv Tvjx Ai Rer Subject to errors and omissions.

Condition: good (used), PK Dacice drilling machine Type: VS20A Bed: 355 x 280 mm Speed max: 2800 RPM Spindle: 40 mm Kjdpfx Aiomw Uffs Redr Coolant pump Machine height: 197 cm

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 072-003, workpiece weight (max.): 300 kg, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, total height: 1,940 mm, total length: 1,340 mm, total width: 900 mm, type of input current: three-phase, overall weight: 910 kg, table length: 400 mm, table height: 300 mm, input voltage: 400 V, tank capacity: 20 l, input frequency: 50 Hz, input current: 30 A, Equipment: documentation/manual, Comes with accessories: set of pliers ranging from 1mm to 4mm. Kjdpfxozr D Dne Ai Rsdr

Condition: new, Year of construction: 2023, machine/vehicle number: 320542/B, functionality: fully functional, number of axes: 3, controller manufacturer: TPA, CNC Drilling and Milling Machine Manufacturer: Vitap Type: K3 New machine Through-feed processing, workpiece machining from below, and automatic workpiece return to the operator Develop an individual class: - With this machine, you can perform many different milling operations in addition to grooving and drilling, from simple edge milling to milling shapes and letters. - We do not limit your creativity. Easy entry into CNC technology: - TPA makes it easy for you: Whether drilling, grooving, linear milling, contour milling, or milling letters. - The CAD software clearly displays the machining operations. - Particularly clear is the programming of the work steps on the individual workpiece sides. - You can mirror machining operations with a mouse click. - You can either enter the starting points precisely or determine them by clicking on the virtual workpiece. Vitap Bar Nesting - efficient and time-saving - This patented software produces entire corpus elements from a long workpiece. - You insert the long workpiece, and when you remove the first finished element, the machining of the next element continues directly. The DDT feed system (double dynamic transport) - 2 clamps enable uninterrupted workpiece transport. - The operator inserts the workpiece until it reaches the stop. - Both clamps then grip the workpiece and position it precisely. - During machining, both clamps communicate with each other, so that clamp 2 grips before clamp 1 releases. - This ensures a constant feed rate even during linear milling. 3 controlled axes: - X axis - DDT feed - Y axis - Drilling head travel - Z axis - Drilling - Double "0" reference: New laser generation for detecting the beginning and end of the workpiece. The program can readjust the drilling from below to achieve perfect alignment in vertical and horizontal workpieces. Kodpfx Aijzvduus Redr The laser consists of a transmitter and receiver to avoid errors with dark edge material. - Side stops with rollers, consisting of a fixed and a movable part, mechanical digital readout with automatic alignment to the 0 stop for removal of up to 3 mm on the 0 line - Constant side pressing device for precise positioning to the 0 line - Automatic 4-position tool changer - Adjustable zero point - No workpiece length limitation - Monitor LCD TFT 20" - Industrial PC - Operator interface WSC with Lister, parametric tool, and parametric setup - Graphical programming CAD TPA EDI32, basic version - USB port - Storage of all files - Macro programming - Import DXF files Technical data - Number of independent, vertical spindles: 12 - Number of independent, horizontal spindles on the X axis: (2+2) - Number of horizontal drilling spindles on the Y axis: (2+2) - 1 saw (100mm) - Electro spindle 5 kW with ISO30 taper (RPM [contact removed]) - Max. workpiece weight: 40 kg - Max. workpiece dimensions: X unlimited, Y 1250 mm, Z 50 mm - Min. workpiece dimensions: X 270, Y 150 (70op), Z 3 mm - Feed rate: 25 m/min - Spindle speed: 3600 RPM - Saw speed: 7000 RPM - Max. horizontal tool: 12mm - Max. drilling depth horizontally on the X and Y axis: 35mm - Max. drilling depth vertically: 43 mm - Max. vertical tool: 35mm - Motor: 1.7 kW - Adjustable zero point for 4-sided formatting - CE compliant Optional against additional charge

Condition: used, total length: 1,900 mm, total height: 2,150 mm, total width: 1,800 mm, Empty weight: 2.500 kg - Documentation available: Yes - CE certificate present: No - Transport dimensions: 1900mm x 1800mm x 2150mm (l x w x h) - Transport weight [kg]: 2500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Kdedpfx Aiezrxfme Rjr Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 2001, machine/vehicle number: 526/01, functionality: fully functional, operating hours: 60,000 h, input voltage: 380 V, type of input current: three-phase, feed length X-axis: 1,250 mm, Used glass drilling machine with automatic ruler. In good condition. Kdedpox Rp Rgsfx Ai Rsr

Condition: ready for operation (used), Radial Drilling Machine, Kovosvit VO 50, Used Machine Manufacturer: Kovosvit (Czech Republic) Model: VO 50 Arm length (throat depth): 1250 mm Kdsdpow Hanhofx Ai Rsr Drilling capacity in steel: max. 50 mm Drilling capacity in cast iron: max. 60 mm Spindle stroke: 310 mm Spindle taper: Morse taper MK-5 Speed range: 28–2500 RPM Feed range: 0.05–2 mm/rev Motor power: 4 kW Installed power: 6 kVA Machine dimensions (LxWxH): 3120 x 1030 x 2750 mm Weight: approx. 4200 kg

Condition: used, Vitap's smart solution for through-hole drilling and grooving with automatic return to the operator. Three controlled axes: Kodpjzutqiefx Ai Rjdr - X-axis – continuous workpiece transport via a patented belt system. - Y-axis – drilling head movement, guided by rack and pinion. - Z-axis – drilling, guided by ball screw. The fewer limitations, the greater the progress! With our machine, we do not impose any limits on workpiece length. Simple TPA programming: - You can position the holes individually. - The machining operations are displayed on a virtual workpiece. - If the workpiece dimensions change, the holes can be automatically adjusted. Office software license – Power lies in tranquility. - Perhaps you have better ideas in a quieter environment? This allows you to make better use of the flexible CAD system. - With this license, you can write programs where they are developed and discussed, in the office. Color LCD TFT 19" 5/4 screen USB port for loading programs from any office workstation 3 password-protected access levels (operator, supervisor, assistance) Technical data: - 9 vertical spindles, individually controllable - 2+2 horizontal drilling spindles in X - 1+1 horizontal drilling spindles in Y - 1 grooving saw unit (saw blade diameter 100 mm) - Max. workpiece thickness 50 mm - Max. workpiece weight 50 kg - Max. workpiece size: X unlimited, Y 920 mm, Z 50 mm - Min. workpiece size: X 270 mm, Y 150 mm, Z 10 mm - Workpiece transport speed: 25 m/min - Spindle speed 3,600 rpm - Max. horizontal drilling depth, X and Y axes 30 mm - Max. vertical drilling depth 45 mm - Max. vertical tool diameter 35 mm - Max. horizontal tool diameter 12 mm - Motor power 1.7 kW - CE standard

Condition: like new (used), Year of construction: 2025, Column Drilling Machine BOMA SB 32 - V - CE marking - Exhibition machine / Unused - Morse taper MT 3 - Infinitely variable speed control - Thread cutting device up to M16 - Spindle speeds / Infinitely variable 50-2100 rpm - Spindle stroke 135 mm Kjdeyrnm Uepfx Ai Redr - Worktable rotatable 360 degrees - Worktable size 415x375 mm - Column diameter 100 mm - Throat depth 250 mm - Distance spindle - table 850 mm - Distance spindle - base plate 1190 mm - Drill chuck - Documentation Dimensions: LxWxH 0.6x0.9x1.85 meters / Weight 280 kg Errors and omissions excepted

Condition: good (used), Year of construction: 1985, machine/vehicle number: 0125153, Offer 24280 Technical data: - Drilling capacity in steel ST 60 32 mm - Drilling capacity in steel ST 60 40 mm - Drill spindle holder MK 3 - Drill spindle stroke 175 mm - Drill spindle speed infinitely variable 60 - 1600 rpm - 3 feeds 0.1; 0.16; 0.25 mm/rev - throat depth 290 mm - max distance drill spindle - table / base plate 790 / 1210 mm - Table with 2 T-slots 570 x 475 mm Kdsdpfx Aet Hr Svoi Rer - Height adjustable via rack and pinion with hand crank - Drive 400 V / 1.1 / 1.8 kW - Space requirement approx. W 600 x H 1950 x D 980 mm - Weight approx. 450 kg - with: - Emergency stop button - emergency stop button - lighting - Machine vice - 15 HSS drill bits 8 to 20 mm

Condition: ready for operation (used), Year of construction: 1975, arm 1200MM stroke head on bench 1400MM Kdjdpfx Aovm Akgsi Rer universal head portable radial

Condition: excellent (used), Hettich hinge boring machine, 380V power supply, vertical and horizontal drilling, 3 drilling heads, rotatable heads, parallel (row of holes) or perpendicular positioning, pneumatic feed of drilling head. The condition of the drill is very good. Kjdpfsyt Icljx Ai Redr

Condition: ready for operation (used), Year of construction: 2002, Professional, heavy-duty version by HANG (German quality) in neat, complete condition. Highly suitable for binderies, printing shops, and print departments. ⸻ Specifications • Brand / Model: HANG 107-30 electronic • Serial number: 102553 • Year of manufacture: 2002 • Number of drilling heads: 4 pieces, individually adjustable • Electronic control, automatic drilling cycle • Power connection: 400V – 50Hz – 6A • CE certification present • Cast iron frame, extremely robust construction • Manual and automatic operation • Adjustable stops with fine adjustment • Machine is mounted on swivel casters (easily movable) ⸻ Condition • Removed from production in working order • Drill spindles and guides run smoothly • No damages, normal signs of use • Immediately ready for operation • Complete, as shown in the photos ⸻ Description The HANG 107-30 is one of the most robust paper drilling machines on the market. Heavier-duty and more professional version than the standard models, thanks to the sturdy drilling heads, automatic drilling cycle, and reliable electronic control system. Perfect for calendar production, book blocks, brochures, index tabs, and more. ⸻ Price 👉 € 3,250 net (0% VAT export possible) Kodpfx Aex A Izlji Redr

Condition: ready for operation (used), Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 3,000 rpm, controller model: DIXI CNC 4400, TECHNICAL DETAILS Travel range, X-axis: 1,000 mm Travel range, Y-axis: 1,000 mm Travel range, Z-axis: 1,000 mm Vertical movement with pallet changer (Y-axis): 880 mm Distance from spindle axis to top of table: 0 – 1,000 mm Distance from spindle axis to top of table with changer: 0 – 880 mm Table dimensions without changer: 840 x 1,000 mm Table dimensions with standard changer: 800 x 800 mm Max. table load: 2,000 kg Max. table load with pallet changer: 1,200 kg Table rotation: 360° continuous Rapid traverse: 1,500°/min T-slots: 7 equally spaced slots, width 18 H7 Tool interface: ISO 50 Spindle speeds: 8 – 3,000 rpm (in 3 ranges) Drive power: 11 kW Drive power in overload: 13.75 kW Max. torque: 200 kpm Working feed rates (X, Y, Z): 1 – 9,999 mm/min Rapid traverse (X, Y, Z): 9,999 mm/min Measuring system resolution: +/- 0.001 mm / 0.001° Positioning accuracy: 0.001 mm / 0.001° Distance from table axis to spindle flange: 390 mm to 1,390 mm MACHINE DETAILS Control system: DIXI CNC 4400 Kjdpozd Rizefx Ai Rsdr Installed total power: 47 kW Compressed air requirement: 6 kg/cm² Dimensions & Weight Dimensions (L x W x H): 4,835 x 4,160 x 3,190 mm Machine weight: approx. 17 t Compressed air requirement: 6 kg/cm²

Condition: used, Year of construction: 2017, bore capacity in steel (diameter) 40 mm throat 285 mm bore stroke 160 mm Spindle Speed 150-2.000 U/min. Kjdpszpzdaefx Ai Redr spindle taper MK4 column diameter 115 mm total power requirement 1,5/2,2 kW weight of the machine ca. 275 kg dimensions of the machine ca. 1000x700x1900 mm

Year of construction: 1995, condition: good (used), 3 drilling heads with 21 spindles each 1 horizontal 21 spindles Kdsdpfjih H Epsx Ai Rjr 2 vertical 21 spindles pneumatic clamps

Condition: new, Drilling capacity in St 60 40 mm threading in St 60 M 24 mm threading in GG 20 M 30 bore stroke 120 mm Short spindle MK 3 throat 293 mm column diameter 115 mm Machine table - usable table surface 514 x 360 mm T-Slots Amount - Width - Distance 2 x 14 x 224 mm Distance spindle - machine table min./max. 117 / 701 mm Kjdpfegp Dyxsx Ai Rsdr feed 0,10 + 0,20 mm/U spindle turning speed range 160 - 2250 UpM total power requirement 1,45 / 1,9 kW height of the machine 1840 mm weight of the machine ca. 285 kg Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pump with motor protection switch, complete fitting

Condition: like new (used), Year of construction: 2022, functionality: fully functional, horizontal glass drilling machine with extendable roller table 700 mm machine sizes : L : 1850 mm , H : 1800 mm , depth : 1200 mm Kodpfx Aijyub Azs Rodr

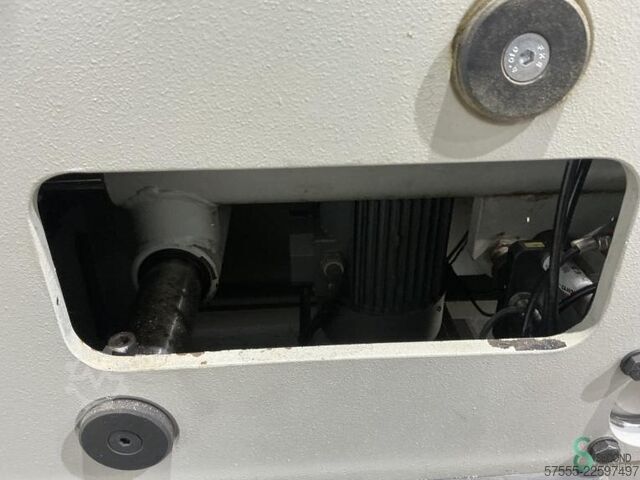

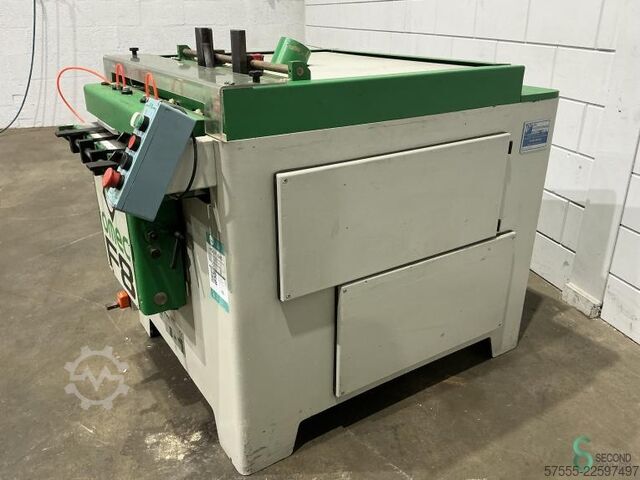

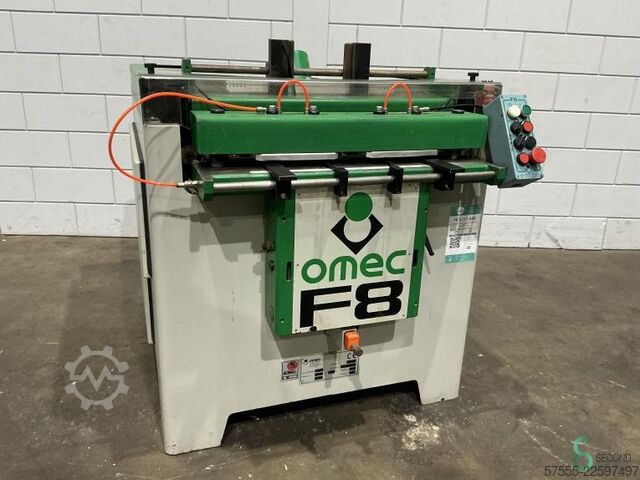

Condition: used, Year of construction: 1998, total width: 1,100 mm, total length: 1,700 mm, total height: 1,150 mm, Colour: White Empty weight: 1.100 kg - Year: 1998 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 980223 - Table length [mm]: 245 - Table width [mm]: 735 - Number of spindles [pcs]: 8 - Spindle diameter [mm]: 16 - Max. spindle speed [rpm]: 17000 - Distance between spindles [mm]: 50 - Workpiece clamps [pcs]: 2 - Workpiece support/Guide: Table - Drills included: Yes - Voltage [V]: 415 - Fuse [A]: 16 - Power [kW]: 7.5 - Transport dimensions: 1700mm x 1100mm x 1150mm (l x w x h) - Transport weight [kg]: 1100kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT Kdjdpszvx N Hsfx Ai Ror VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
