Used Grefe Shank Slotter for sale (438)

Condition: used, Core drill, D. 50 mm, HSS, cutting depth 30 mm, Weldon shank, RUKO · HSS · With Weldon shank, 19.05 mm (3/4") · CBN-ground Ijdpfxoz Trn No Aphoih · Cutting depth 30 mm · Other technical features: Shank type: Weldon · Number of teeth: 12 · Cutting depth: 30 mm · Overall length: 63 mm

Condition: used, Core drill, D.25mm, HSS, cutting depth 55mm, Weldon shank, RUKO · HSS · with Weldon shank, 19.05 mm (3/4") · CBN-ground Isdpfoz Tn T Iex Aphsih · Cutting depth 55 mm · Further technical features: Shank design: Weldon · Number of teeth: 6 · Cutting depth: 55mm · Overall length: 88mm

Condition: used, Supra S quick-change drill chuck, clamping diameter 1-13 mm, B 16 for clockwise rotation, RÖHM Iiedpez Ttvbsfx Apheh · self-tightening · lightweight design · for handheld machines · with taper shank · for clockwise rotation · Further technical specifications: direction of rotation: for clockwise rotation · Outer diameter: 40.2 mm

Condition: used, Dial indicator M2/30T, 30mm, resolution 0.01mm, large measuring range, KÄFER · With a large measuring range · Accuracy according to factory standards · Dimensions according to DIN EN ISO 463 · In this dial indicator, the centrally positioned millimeter scale enables secure and easy reading · The measuring mechanism is supported by ruby bearings at critical points · Clamping shank (Ø 8 mm h6) and measuring pin made of stainless steel Iedpfx Ajz Tm Taspheih · Adjustable tolerance markers · Outer ring diameter 58 mm · Further technical features: 1 pointer revolution: 1.0 mm

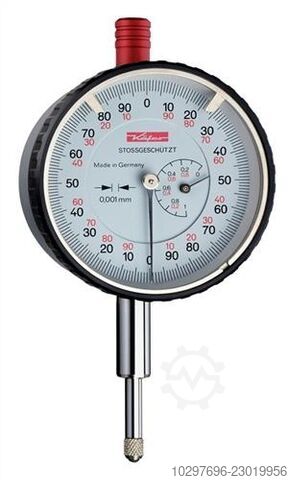

Condition: used, Dial indicator FM1000/5, 5mm range, 0.001mm resolution, with impact protection, KÄFER brand · (Precision dial indicator) · With impact protection · Dimensions according to DIN EN ISO 463 · Shank (Ø 8 mm h6) and measuring pin made of stainless steel · Adjustable tolerance markers · Precision gear measuring mechanism with high resolution of the measured value · Outer ring diameter 58 mm · Further technical features: 1 pointer revolution: 0.2 mm Iiedoz Tuqyopfx Aphjh

Condition: used, Fine indicator Compika 1001, 0.1 mm range, 0.001 mm resolution, with impact protection, KÄFER * With 0.001 mm resolution * With impact protection * With measuring mechanism featuring jewel bearings * Mounting shank (Ø 8 mm h6) * Measuring bolt precisely guided * Scale can be read without parallax error * Zero setting by rotating the cord screw under the screwed-on protective sleeve * Tested accuracy * Interchangeable measuring insert * Outer ring diameter: 62 mm * Other technical specifications: Free travel: 3 mm Iiedpfx Ajz Tpidsphjh * Measuring force: 1.2 N

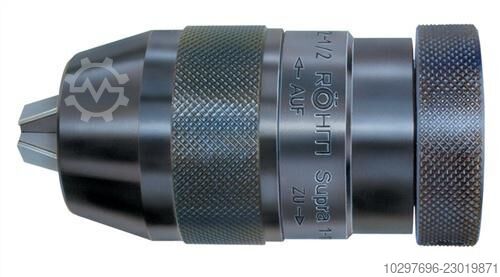

Condition: used, Quick-change drill chuck Supra, clamping diameter 1-13mm, B 16, for clockwise rotation, RÖHM Isdsz Tum Uspfx Aphjih · Self-tightening · Heavy-duty industrial design for stationary machines · With tapered shank · For clockwise rotation · Other technical features: Rotation direction: for clockwise rotation · Outer diameter: 46mm

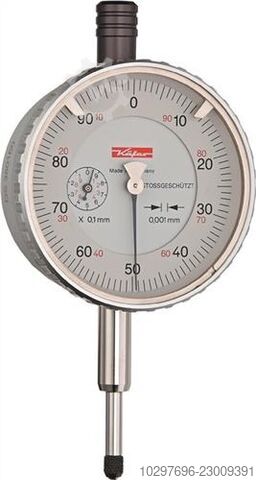

Condition: used, Dial indicator FM1101, 1mm range, 0.001mm graduation, with shock protection, KÄFER brand. · (Precision dial indicator) · With shock protection · Dimensions according to DIN EN ISO 463 · With fine-pointer measuring mechanism · Shank (Ø 8 mm h6) and measuring pin made of stainless steel · Adjustable tolerance markers Iiodpjz Thdtofx Aphsh · Ideally suited for very precise comparative measurements · Outer ring diameter 58 mm · Other technical features: 1 pointer revolution: 0.1 mm

Condition: good (used), Year of construction: 2008, functionality: fully functional, Weiler DZ 40, Year of manufacture: 2008, Siemens 840 D control, Travel X/Z: 200/350 mm, Turning diameter: 180 mm, Max. swing diameter: 560 mm, Y-axis: +/-25 mm, Q-axis / programmable tailstock, Q-axis travel: 360 mm, Ijdpfx Asz Sml Iophsih Q-axis measuring system: rotary, Tailstock: MK 4, Main spindle max. bar capacity: 42 mm, Spindle bore: 52 mm, Rapid traverse X/Z/Q: 30/30/20 m/min, Turret: 16 stations – all driven, VDI 25, Shank diameter: 25 mm, Driven tools up to 4,500 rpm, Parts catcher, Accessories, Driven tool holders, Fixed holders,

Condition: not inspected (used), Year of construction: 2001, functionality: unexamined, overall weight: 11,000 kg, turning diameter max. 480 mm turning length max. 1.000 mm control Fanuc 15 TFB swing diameter max. over bed cover 520 mm turning speed range - main spindle 7 - 3000 rpm gear ratio 2 power capacity - main spindel 53 kW spindle nose 11 DIN 55026 chuck diameter 315 mm spindle bore 103 mm rapid traverse 10 m/min feed power 15 kN number of toolpositions 12 pos. driven statition 6 pos. Shank diameter 50 mm power capacity 5,4 kW Isdpfjz Hmwksx Apheih Max. Speed 2.500 / 625 min/-1 max. Torque 25 / 100 Nm total power requirement ca. 50 kW weight of the machine ca. 11 t dimensions of the machine ca. 6 x 3,5 x 3,0 m The machine was in working order when taken out of service and put into storage; loading is possible. Must move in short time

Condition: used, Stepped drill bit, drilling diameter 6-38mm, HSS, spiral flute, stepped, 12 steps, RUKO · HSS · Spiral fluted · With cross-ground cutting edges · 2 cutting edges · Point angle 118° · Step angle 90° · Shank with 3 clamping surfaces Iiodpfxsz Tlyfj Aphsh · Further technical features: Point angle: 118° · Step angle: 90° · Flute: spiral fluted · Ø: 6/9/13/16/19/21/23/26/29/32/35/38mm · Cutting material: HSS

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, working width: 2,700 mm, Kryma SK2800 automatic slotter with vacuum autofeeder, machine have been used very little and is in perfect condition and available anytime. Speed is approx. 2000pcs per hour. Machine can do up to 10m long sheets. Video can be sent upon request. Also available Kryma WR rotation die cut machine with auto feeder. Machine is not in use but can easily be seen running. * We can arrange transport within Europe, and give offer with transport included if of an interest. Isdpfx Astth Iajphjih

Condition: used, Hammer drill bit, D.80mm, overall length 120mm, for junction boxes, SDS-plus shank, HELLER Isdpfx Apez Tkh Ushoih · Fitted with carbide tips · Hardened steel body with M16 internal thread · Optimal concentricity · Long service life Application areas: Concrete, stone, brickwork, clinker, bricks, lightweight construction materials Complete delivery including shank and centering drill · Further technical specifications: Overall length: 120mm

Condition: used, Stepped drill bit, drilling diameter 4-39 mm, HSS, spiral flute, stepped, 13 steps, RUKO · HSS · Spiral fluted · With cross-ground cutting edge · 2 cutting edges · Point angle 118° · Step angle 90° · Shank with 3 clamping surfaces · Further technical properties: Isdoz Tid Uspfx Apheih · Point angle: 118° · Step angle: 90° · Flute: spiral fluted · Ø: 4/6/9/12/15/18/21/24/27/30/33/36/39 mm · Cutting material: HSS

Condition: used, Year of construction: 2009, operating hours: 61,894 h, travel distance X-axis: 2,340 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, feed length X-axis: 2,340 mm, feed length Y-axis: 800 mm, feed length Z-axis: 600 mm, nominal power (apparent): 25 kVA, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, total height: 3,250 mm, total length: 6,200 mm, total width: 3,700 mm, table width: 750 mm, table height: 930 mm, table length: 1,400 mm, rotary table diameter: 800 mm, rotational speed (min.): 50 rpm, rotational speed (max.): 12,000 rpm, overall weight: 16,000 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 12,000 rpm, spindle nose: SK 40, number of slots in tool magazine: 30, tool length: 330 mm, tool diameter: 80 mm, tool weight: 15,000 g, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, We offer this used Hedelius RS 80-K-2300 5-axis machining center, manufactured in 2009. Key Data Manufacturer HEDELIUS GmbH Type RS 80-K-2300 Year of Manufacture 2009 Power Requirement / Voltage 29 kW / 400 V / 50 Hz (25 kVA) Total Weight 16000 kg Footprint Length 6.20 m Width 3.70 m Height 3.25 m Control System Program Input HEIDENHAIN Controller iTNC 530 NC Software Version 340490 04 SP4 PLC Software Version RS80_K V1.54 Development Level L4 Operating Hours Control System On 63333 Machine On 61894 Program Run Time 28295 Travel Ranges (Total Working Area) X-Axis 2340 Y-Axis 800 Z-Axis 600 Right Working Area (Fixed Machine Table Area) X-Axis 945 Isdpfxez Hx Ihj Aphoih Y-Axis 800 Z-Axis 600 Left Working Area (Rotary/Swivel Table Area) (simultaneous machining possible) X-Axis 800 Y-Axis 800 Z-Axis 600 A-Axis +10° / -90° C-Axis 0 - 360° Clamping Surface - Fixed Machine Table Length 1400 Width 750 Clamping Surface - Rotary/Swivel Table Length Ø 800 Width 630 Work Table T-Slots DIN 650 Slot Width 18 / 18 mm Slot Pitch 125 / 125 mm Number 5 / 5 Table Height Fixed Machine Table 930 mm Celox Motor Spindle Manufacturer Kessler Type DMS 100.XL-633.607 Speed Range 50 – 12000 rpm Tool Shank SK 40 Tool Magazine Magazine Capacity 30 tools Max. Tool Diameter Ø 80 mm (with available free slots) Ø 125 mm Max. Tool Length 330 mm Max. Individual Tool Weight 15 kg Total Magazine Weight 450 kg Special Accessories Scraper Conveyor AME GmbH Total Length ≈ 5700 Height ≈ 1760 Depth ≈ 830 Weight 515 kg Band Filter System (High-Pressure Coolant System) Model PS 120 Tank Capacity 780 l Flow Rate 120 l/min Filter Fleece 670 mm 100 m on a roll Length ≈ 2320 Height ≈ 1060 Depth ≈ 850 Weight 515 kg Motor Spindle - Cooling Unit Manufacturer Hyfra GmbH Type Chilly-25-S Machine No. 09010098 Year of Manufacture 2009 Weight 65 kg Control Cabinet - Cooling Unit Manufacturer Pfannenberg Type DTS 7101 SC Model No. 08390173726 Laser Light Barrier Manufacturer BLUM Type P87.0634 Laser System MINI – MICRO - NANO Wireless Measuring Probe Manufacturer HEXAGON Model m&h Radio-wave Touch Probe Type RWP20.50-M Extra KinematicsOpt HEDELIUS Transformation Kit If you have any questions or require further information, please do not hesitate to contact us.

Condition: good (used), Year of construction: 2008, working width: 4,500 mm, Leading-edge introduction. No. 2 printing unit, positioned below. Iedpfx Apszm Tcvohjih Double-shaft automatic slotter. Rotary die-cutter, positioned above. Folder gluer. Valco MCP-12 electronic glue unit. Stitching head. High-pile stacker. Computer – Siemens electronics. Maximum sheet size: 1,660 x 4,500 mm.

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, EDF Flexy Feed Prefeeder Casemaker EDF 821 FD Full Servo Swing no crash feeder N. 6 colors flexo printing units from top, fixed type (they can be opened for maintenance) N. 6 infrared dryers Iodewhy Abspfx Aphjih Vacuum transport between printing units made by steel platform and belts Double-shaft slotting unit Rotary die cutter with upward disengagement for die cutting replacement when machine is running Stripper transfer unit before folder gluer Folder gluer vacuum transfer full servo controls Valco clear vision gluing unit Counter ejector EDF Unipal palletizer with automatic sheets and pallet inserter Siemens Electronics Available August 2027

Condition: used, Year of construction: 1998, operating hours: 97,593 h, functionality: fully functional, turning diameter: 65 mm, spindle bore: 79 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 25 rpm, For Sale: Gildemeister MF Sprint 65 CNC Sliding Headstock Lathe with 3-Meter Bar Feeder, as shown in the pictures. The machine was removed from our workshop in fully functional condition. A video of the machine in operation prior to disassembly is available upon request. Approximately five years ago, the linear guides of the X1 and Z1 slides (on the main spindle side) were replaced, including bearings and belts. A new HMI interface was installed recently. Detailed specifications and technical data can be found in the attached PDF. TECHNICAL DATA Control: Sinumerik 840C Bar Feeder: SIMAG 65.1-3200G, Year of Manufacture: 1998 Bar Length: 3 meters Bar Diameter / Spindle Bore: 65 mm Main Drive Power Output: 28 / 21 kW Speed Range: 25 – 4,500 rpm Torque: 320 / 240 Nm Maximum Feed Rate for Thread Cutting: 10 m/min C-Axis Speed: 120 rpm C-Axis Torque (Holding Torque): 180 Nm Iiodpfx Ajwym Nfsphjh Tool Carrier Number of Tool Stations: 8 Shank Diameter (DIN 69880): 30 mm Number of Driven Tool Stations: 4 Power Output: 7.6 / 4.6 kW Torque: 24 / 14.7 Nm Maximum Speed of Tool Carrier 1: 4,000 rpm Maximum Speed of Tool Carrier 2: 4,000 rpm Slide 1 Cross Travel / Longitudinal Travel: 155 / 280 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN Slide 2 Cross Travel / Longitudinal Travel: 82 / 120 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN MACHINE DATA Dimensions with Bar Feeder and Chip Conveyor (L × W × H): approx. 6 × 2 × 2 meters Weight: approx. 6.5 tons Operating Voltage: 50 Hz, 400 V Accessories: Cooling System Chip Conveyor Documentation The offer is subject to change and non-binding, changes and errors in the technical data or the equipment, as well as prior sale reserved Used machines are purchased as seen, without warranty claims. Delivery ex works excluding packaging and insurance, unless otherwise agreed. The price does not include statutory value added tax. As is usual with used machines, payment is made before loading.

Condition: used, Shank cutters and drill bits in mint condition, unused, sharpened and second-hand, for CNC machines, as shown in the examples. Iodpozrybpefx Aphoih Technical data: - Length: Various - Diameter: Various - Shank: Various - Weight: 12 kg - Application: Woodworking

Condition: like new (used), Year of construction: 2022, operating hours: 458 h, functionality: fully functional, machine/vehicle number: 1536582684A, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, nominal power (apparent): 30 kVA, torque: 83 Nm, workpiece height (max.): 550 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 200 kg, total height: 3,200 mm, total length: 4,500 mm, total width: 3,500 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 12,000 rpm, overall weight: 4,700 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 13 W, number of spindles: 3, number of slots in tool magazine: 30, tool diameter: 80 mm, tool weight: 8 g, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, We offer this DMG MORI CMX 50 U universal machining center, in like-new condition. Operating hours: Power-on hours: 458 h / Spindle: 330 h, year of manufacture 2022. TECHNICAL DATA Axis travels: • X = 500 mm • Y = 450 mm • Z = 400 mm • B = -5° / +110° • C = n × 360° Work table: • 630 × 500 mm pivoting rotary table • 7 T 14 H7 grooves, 63 mm pitch • Central hole Ø 30 H6 • Permissible table load: 200 kg • Axis – table distance: 150–550 mm Main spindle (inline spindle): • Speed: 20 – 12,000 rpm • Power: 13 kW (40% DC) / 9 kW (100% DC) • Torque: 83 Nm (40% DC) / 57 Nm (100% DC) • Tool shank: SK40 DIN 69871 • Clamping according to DIN 69872, hydraulic control • Clamping force SK40/BT40: 10 kN Tool magazine: • 30 positions, chain with double gripper • Max. tool diameter: 80 mm (130 mm with adjacent pockets free) • Max. tool length: 300 mm (from the spindle face) • Max. tool weight: 8 kg • Max. magazine load: 120 kg • Tool change time: 2.7 s Feeds and accuracy: • Rapid feed rate X/Y/Z: 30 m/min • Max. feed force (40% DC): 4.5 kN • Linear guide rails with rollers on all axes • Direct measuring system on X, Y, Z (including air purge) • Positioning accuracy X/Y/Z: A = 6 µm (ISO 10791-4) • Repeatability X/Y/Z: R = 5 µm (ISO 10791-4) • Accuracy B/C: A = 16 seconds of arc (ISO 10791-4) • Repeatability B/C: R = 12 seconds of arc (ISO 10791-4) Iedpfez Epnvjx Aphoih INCLUDED EQUIPMENT Base machine: • CMX 50 U universal machining center (C-A3390F) • DMG MORI SLIMline Multi-Touch 19" / Siemens 840D SL control (C-B3097F) • Coolant or air, switchable via M functions • Chip tray / drawer • Enclosure with sliding door • DMG MORI IoTconnector included as standard 20 bar production package with chip conveyor (C-K3661F): • Internal 20 bar coolant supply • Scraper-type chip conveyor, 250 l tank (left) • Washing of bed and ATC arm via M function • Coolant spray gun • External electronic handwheel • Enclosure roof • 4-color signaling lamp • Double cartridge filter (filter change without stopping the machine) Measurement / monitoring: • Renishaw measuring kit for Siemens (C-K4222F): PP40 probe with optical transmission, TS27R tool probe, measuring cycles with tool breakage monitoring, dummy tool and calibration ring • 3D QuickSET for CMX U (C-K2530F) – control and compensation of 5-axis kinematic accuracy Software and documentation: • DXF Import option on Siemens controller (C-G3067F) • Documentation in Romanian • Screen text in Romanian DMG MORI Digital Products: • Digital production package: IoTconnector, machine data connector MDC (OPC UA / MTConnect / MQTT), NETservice (remote diagnostics) • Messenger V4 – machine status in real time • DMG MORI Service Agent – preventive service warning • Machine 3D model in STEP format (upon signing of NDA, for CAD/CAM) NUMERICAL CONTROL – Siemens SINUMERIK 840D SL • TCU30.3 console, NCU720.3B PN • Safety Integrated • 19" multi-touch screen, 1024 × 1280 • Block processing time: 1.5 ms • User memory 16 MB + 4 GB extension (EES) CONNECTIONS • Standard 12,000 rpm: 30 kVA / 47 A / 50 A fuse at 400 V • With 20/40/80 bar package: 32 kVA / 50 A / 63 A fuse at 400 V • Voltage: 400 V / 230 V, 50/60 Hz, ±10% • Air: 6–8 bar, average consumption approx. 30 m³/h

Condition: excellent (used), Year of construction: 2002, power: 3.2 kW (4.35 HP), pressing force: 40 t, overall weight: 2,600 kg, 2000 Presse Ross 40V-4, 40-ton mechanical press Manufacturer: Presse Ross Model: 40V-4 Machine type: Mechanical press Year: 2002 Condition: Very good. Requires servicing/adjustment as it has been idle for a few years. No process control. Two-hand control Machine description: Used Presse Ross model 40V-4, a 40-ton mechanical eccentric press, manufactured in 2002. This Italian-made Presse Ross 40V-4 mechanical stamping press has a nominal pressing force of 400 kN / 40 tons, an adjustable stroke length of 7–100 mm, and a variable operating speed of approximately 68–203 strokes per minute. Technical specifications: Manufacturer: Presse Ross Model/Type: 40V-4 Year: 2002 Serial number: 02-0313 Press type: Mechanical eccentric / flywheel-driven press Nominal pressing force: 400 kN / approx. 40 tons Adjustable stroke length: 7–100 mm Ram/slide adjustment: 60 mm Maximum closing/mold height: 275 mm Variable stroke speed: Approx. 68–203 strokes/min Nominal speed: 150 strokes/min Working area depth: Approx. 200 mm Frame opening/passage: Approx. 260 mm Table size: 600 × 450 mm Table thickness: Approx. 55 mm Ram/slide surface area: 400 × 260 mm Tool shank / ram diameter: 50 mm Motor power: 3.2 kW Motor speed: 2,000 rpm Electrical supply: 380 V / 50 Hz Maximum flywheel speed: Approx. 203 rpm Compressed air supply: Approx. 0.5–0.7 MPa Machine weight: Approx. 2,600 kg Isdez Sqx Rjpfx Aphsih Two-hand control of the press Condition: Used machine. Functioned perfectly but has been idle for a few years. Requires service/adjustment. Please contact us for further information, photographs, availability, inspection possibilities, and prices. Note: All specifications, dimensions, capacities, and descriptions are approximate and provided in good faith. Potential buyers should independently verify all key specifications and the machine's suitability before purchase.

Condition: good (used), Year of construction: 2024, functionality: fully functional, Manufacturer: COMEC Model: MD TOP L CA2 Type: Milling and mortise cutting machine Year of manufacture: 2024 Used, with signs of wear, good condition For sale from the location 07570 Weida Technical data according to the manufacturer: Axes: 3 X-axis: 2,500 mm Y-axis: 250 mm Z-axis: 180 mm Horizontal machining unit Electric spindle for milling with a 3.3 kW motor Milling spindle: 12,000-18,000 RPM, adjustable Tool holder: ER32 Drilling unit with a 1.7 kW motor With 16 individually selectable horizontal spindles, pitch 32 mm Drill chuck with a diameter of 10 mm Drill: 4,350 RPM Vertical machining unit Electric spindle for milling/drilling/routing with an 8.0 kW motor Tool rotation speed 12,000-18,000 RPM, adjustable With C-axis, interpolating 360 degrees Unit for saw blade with 2 outputs, 180° for drilling or milling tools Unit shank, tapered ISO30 Tools, collet chuck ER32 Vertical electric spindle for drilling with a 1.7 kW motor, 4,350 RPM 1 drilling head with individually selectable spindles, including: 3 vertical drilling spindles in a row, pitch 32 mm 7+7 front/rear, horizontal drilling spindles in a row, pitch 32 mm 2+2 left/right, horizontal drilling spindles in a row, pitch 32 mm Drill chuck, diameter 10 mm with lateral locking pin Clamping system 6 clamping brackets Adjustable on guide rail With 6 clamping cylinders and 6 lateral alignment cylinders with reference stroke Iijdpfx Aez Izm Nephoh Automatic adjustment of the supports via NC control The clamping brackets are fixed or released via program Extra workpiece width Specially designed clamping elements for a workpiece width of 100 mm Workpiece dimensions to be machined Max. cross-section of the workpieces to be machined Length: 2,250 mm Width: 100 mm Thickness: 30 mm Automatic loading system, model CA2 Adjustable on linear guides with a fixed left side and an adjustable right side Vertical parts magazine with automatic loading system and easy access for the operator Workpiece unloading system on 10 slide rails We will gladly send you further technical data and information upon request if you are interested in purchasing. The machining center is currently powered and can be inspected by appointment. Dismantling, loading, and transport are the responsibility of the buyer.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, This vertical machining center, including the "Clamex unit," is for sale and has seen only a few hours of operation. The machine is being sold because we have switched to a nesting machine. In 2021, the machine was upgraded with a more powerful vacuum pump (16.3 m³). The machine also includes various vacuum clamps; we purchased several larger plates in addition to the standard equipment. Workpiece size: X = 200 - 3200 mm (longer with additional support) Y = 70 - 1200 mm (= max. opening) Material thickness: Z = 8 to 70 mm Max. contour milling dimension in X-direction without clamping: X = 1500 mm Max. contour milling dimension in Y-direction: Y = 985 mm, less milling cutter radius Max. drilling dimension horizontally in X-direction: H = 1168 mm Z-axis stroke: Z = 240 mm Maximum programmable speed: Vector speed: 68 m/min X = 25 m/min, Y = 60 m/min, Z = 20 m/min Milling spindle 7830, power: 7.5 kW (S6), air-cooled with HSK-F 63 tool holder n(max.) = 1000 - 24,000 min-1, continuously adjustable with collet chuck with HSK shank, ceramic ball bearing (hybrid bearing), tool weight max. 6 kg (incl. holder) Tools: max. Ø 110 mm, tool length max. 80 mm Tool changer 7887, 6-position magazine - pick-up system, pneumatic, max. Ø tool: Ø 110 mm Maximum tool weight: > 5 kg per tool or 30 kg when fully loaded Can be equipped with collet chuck with HSK shank Tool changer 7874, 1-position aggregate magazine, swiveling in X and Y directions, only for special bevel gear 7869 with HSK holder Vertical spindles can be activated individually Arrangement in L-shape, 5 in X and 4(5) in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from mounting end (depending on plate thickness) Spindle extension stroke: 70 mm Direction of rotation: alternating right/left n(max.) 1000 - 4400 min-1, continuously adjustable Holder: M 10 thread - parallel seat 11 mm without tool, without holder 6 horizontal spindles 2 double drilling spindles in X-direction 1 double drilling spindle in Y-direction Holder: M 10 thread, parallel seat 11 mm Total drill length max. 63 mm from mounting end without tool, without holder Sawing unit Integrated sawing unit for sawing/grooving in X-direction n(max.) 1000 - 5650 min-1, continuously adjustable Tool holder: A max Ø = 120 mm, I Ø = 20 mm, B = max. 4.0 mm 4-axis “CLAMEX” tool set - Incl. original tool set consisting of Iiodpfsz In Ugjx Apheh 2 pcs. P-system slot milling cutter, DP (diamond) 100.4x7x30mm, Z3, NLA 4/6,6/48mm 1 pc. Milling arbor for P-system slot milling cutter S20x50mm, d=30, L=102, DTK 48mm 1 pc. Milling arbor for P-system slot milling cutter S16x55mm, d=30, L=68, DTK 48mm 1 pc. CNC drill 6mm for Clamex P, L= 57.5 / shank 10x27 / left 1 pc. Adapter for drill with shank d= 10 mm (left) 1 pc. Collet DIN 6388 form B, double slit, size 25 Clamping diameter 20, for HSK-F 63 holders

Condition: used, Der Boxmaker Göpfert SRE Maxi macht alle Verarbeitungsschritte in einem: Rillen und Schneiden - längs und quer, Schlitzen und Stanzen. Wellpappenverarbeitung. The Göpfert SRE Maxi boxmaker performs all processing steps in a single operation: creasing and cutting—lengthwise and crosswise—slotting, and die-cutting. Corrugated Converting. Boxmaker Göpfert SRE-2 Maxi Mod. 250 - 2 (120) Compact Baujahr / Year 1995 - Serial-No. 1536.95.03 Arbeitsbreite / Working width min. 360mm - max. 2.500mm Arbeitslänge / Working Length min. 800mm - max. 10.000mm Dicke des bearbeiteten Materials / Thickness Of Processed Material min. 2mm - max. 16mm Schlitztiefe / Slot Depth 0–1.000mm Produktionskapazität / Production Capacity 250–380 pieces/hour Iodpfjz Hw Hiox Aphsih Geeignet für alle Arten von Wellpappe (ein-, zwei- und drei-wellig), Suitable For All Kinds Of Corrugated Board (Single, Double, Triple Wall) Stromanschluss / Power supply 25KW, 50A Druckluftanschluss / Compressed air Connection min. 8bar - max. 10bar  Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 540 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 32 m/min, feed rate X-axis: 32 m/min, feed rate Y-axis: 32 m/min, feed rate Z-axis: 32 m/min, controller manufacturer: Okuma, controller model: OSP P200M-H, rotary table diameter: 500 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Okuma MU500VA CNC Vertical Machining Centre (2007) Equipped with OKUMA OSP P200M-H CNC CONTROL 20" ROTARY PLATEN 4TH AND 5TH AXIS BUILT IN TRUNION Iedpfoyf Ncqex Aphjih 32 POSITION AUTOMATIC TOOL CHANGER COOLANT THRU SPINDLE TOOL LENGTH MEASURING Travels X-axis (saddle left/right) – 1250mm, Y-axis (pallet front/back) – 660mm, Z-axis (spindle up/down) – 540mm, A-axis – +20~-110 deg., C-axis – 360 deg., Table surface to spindle nose – 127~667mm Table Table size – ø500mm, Max work size – ø730xh500, Floor to table top – 1073mm, Max load capacity – 500kg Spindle Spindle speed – 15000rpm, Turning specification – C-axis table 1000rpm , No. of spindle ranges – Infinitely variable, Tapered bore – 7/24 taper No.40, Bearing dia – ø70mm Feed Rapid traverse – X-Y: 40m/min, Z:32m/min, Rapid traverse (A-C) – 18,000 deg/min, Cutting feed rate – X-Y-Z: 32m/min Motors Spindle (10min/cont) – 11/7.5kW ATC Tool shank type – MAS BT40 Big plus, Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random ATC Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random
