Used Holzmann Copy Lathe for sale (5,902)

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hedpszxih Eofx Ab Tjt

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hodpezxihxjfx Ab Tjt

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hsdpezxihrofx Ab Tjt

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hedpfxszxihls Ab Tot

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hodpfezxihfjx Ab Tot

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hedpfx Aezxig Ueb Tet

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hjdpfx Aozxig Ieb Tet

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hjdpfozxigzox Ab Tet

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hedpfxszxigue Ab Tot

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hsdpfx Abozxigne Tot

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Hsdpfx Abezxighe Tjt

Condition: good (used), Year of construction: 1965, LZ lathe, manufactured by HEID, type VK56, year of manufacture 1965. Hedpfx Aszw E Ifob Tjt Maximum distance between centers: 550 mm Distance between centers: 1000 mm Spindle speeds: 7-710 rpm / Spindle motor approx. 15 kW / Spindle brake. Four-jaw chuck, diameter 800 mm, Röhm. Rapid traverse in longitudinal and cross directions. Coolant system, various accessories. Shipping weight (total): approx. 7000 kg.

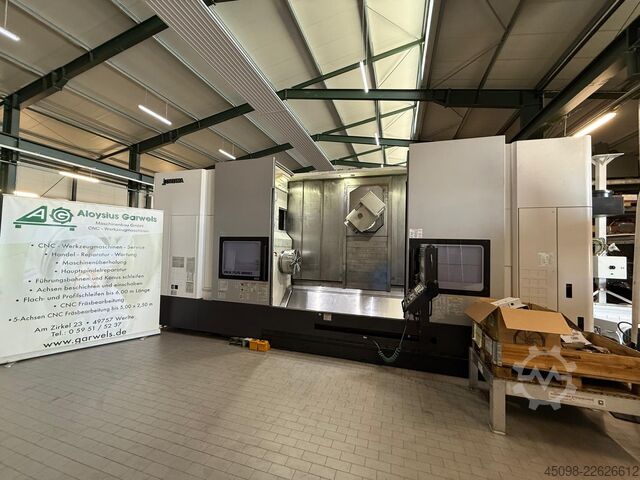

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, 5-axis CNC turning and milling center Okuma Multus B550-C 2000 Control: OSP-P300SA-H Year of manufacture: 2019 Internal machine number: 71 Travel distances: X-axis: 925 mm Y-axis: 520 mm Z-axis: 2,215 mm Distance between centers: 2,000 mm Turning diameter over bed: 830 mm Spindle bore: 112 mm Hedozwulyepfx Ab Tet Tool holder HSK-A100 40-position tool changer Programmable steady rest with hydraulic quill Equipment - Chip conveyor Interlit ISF - Full-stroke cylinder - 6-jaw power chuck SMW Ø 500 IEP - Manual rinsing gun - Drum – trough filter TMF300/980/20 - IFS filter system IFE 5000 - Robot interface Type E - One Touch IGF - Software for input resolution of 0.1 µm - Software package for simultaneous 5-axis machining VTM-1200YB and VTM-2000YB - In-process measurement with Renishaw measuring probe for X/Z/C axis - Automatic zero point adjustment in the Z-axis of the main spindle - High-precision C-axis - Turning function for NC B-axis - Interpolation turning with the X/C/Z axes

Condition: good (used), Year of construction: 1986, CNC lathe VOEST-ALPINE, Type: WNE570X1000, Year of manufacture: 1986, from first owner, in original condition. The machine has only processed plastic. Guide rails are in very good condition. Equipped with a RÖHM 315 mm chuck, Sauter 8-position tool turret, VDI 40, with various tool holders, and tailstock MK 5. Hjdpjzw Evcjfx Ab Tjt Control system: SIEMENS 810T, coolant system, machine fuse, complete machine documentation available, data backup. Turning diameter over the bed: 570 mm Turning diameter over the cross slide: 280 mm Distance between centers: 1000 mm Spindle speeds: 16 - 3150 rpm, spindle motor: 22 kW. Further data, see data sheet. The machine can be demonstrated while powered on.

Condition: used, Nakamura - Tome TMC - 15 CNC Lathe with Nakamura - Tome Fanuc CNC Control, 16 Position Tool Turrret, LNS 6.42HS = 4.8 Barfeeder. S/No. 34545, Capacity Round Collet 34mm, Chuck Diameter 165mm, Swing Over Bed 300mm, Swing Over Saddle 170mm, Max Turning Diameter 180mm, Max Turning Length 250mm, Spindle Speed 135 - 4500rpm, Spindle Nose A2 - 5. S/No. 01908. Country of Origin: Japan Please Note: Filtermist shown not included in this lot, can be purchased separately. Location: This lot is located in Burton-on-Trent. A charge of £300 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser. Hjdpfxszvcrfo Ab Tst

Condition: used, Year of construction: 2002, DMG Gildemeister CTX310 CNC Lathe with GE Fanuc Series 21i-T CNC Control, 12 Position Tool Turret, Collet Chuck, Hydrafeed Barfeed. S/No. 4662 (2002) Hours 39693 & 14215. S/No. 938205 (2002). Country of Origin: Italy Please Note: Filtermist shown not included in this lot, can be purchased separately. Location: This lot is located in Burton-on-Trent. A charge of £350 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser. Hodpfx Abozvcqho Tet

Condition: used, Year of construction: 2002, DMG Gildemeister CTX310 CNC Lathe with GE Fanuc Series 21i-T CNC Control, 12 Position Tool Turret, Collet Chuck, Hydrafeed Multifeed 3 - 80N Barfeeder. S/No. 4661 (2002), Hours 40691& 16285. S/No. 938204 (2002). Country of Origin: Italy Hsdpjzvcmpofx Ab Tjt Please Note: Filtermist shown not included in this lot, can be purchased separately.

Condition: ready for operation (used), Year of construction: 1984, Immediately available ex-works: Hedpfx Aezw Dyyjb Tot L & Z lathe, TONGIL Type TIPL 5 Year of manufacture 1984 Center height 265 mm Diameter over cross slide 300 mm Turning length 1500 mm Drive power 7.5 kW Spindle speeds 22 – 1600 rpm Spindle bore 78 mm Chuck, faceplate, steady rest Price: EUR 2,250.00 plus VAT, ex-works.

Condition: ready for operation (used), Year of construction: 1990, L & Z Lathe AFM TUG 40 Type TUG 40 Year of manufacture 1990 Hjdozw Dytopfx Ab Tet Center height 200 mm Diameter over slide 280 mm Turning length 1500 mm Drive power 5.5 kW Spindle speeds 18 - 1600 rpm Spindle bore 52 mm Chuck, Lynette, steel tool holder Multifix with inserts Price: Euro 2,250.00 plus VAT, ex works.

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 365 mm, spindle bore: 62 mm, turning length: 2,000 mm, spindle speed (min.): 3 rpm, spindle speed (max.): 2,500 rpm, feed rate X-axis: 5 m/min, feed rate Z-axis: 10 m/min, total length: 4,066 mm, total width: 2,583 mm, total height: 1,829 mm, workpiece weight (max.): 1,300 kg, type of input current: three-phase, overall weight: 4,300 kg, travel distance X-axis: 345 mm, travel distance Z-axis: 125 mm, workpiece weight between centers: 1,000 g, workpiece diameter between centers: 365 mm, distance between centers: 2,000 mm, workpiece length between centers: 2,000 mm, The VDF 560 DUS is one of VDF Boehringer's most popular teach-in turning machines, known for its turning diameter. With a standard chuck size of 315mm or larger, these machines offer optimal machining efficiency in the production of single items and small series. This machine is currently located in our showroom, and on-site viewing is possible! Additional options & accessories: - Tool cabinet - Various tool holders - Various cutting tools Hedezwnl Hspfx Ab Tot - Double Multifix holder including Capto connection. - Original fixed guard. - Original documentation. Weight & dimensions: 4,300 kg 4066x2583x1829 mm

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: XD-16III-CP-0073-H, spindle bore: 18 mm, spindle speed (min.): 10 rpm, spindle speed (max.): 1,500 rpm, type of input current: three-phase, overall weight: 2,200 kg, rotational speed (min.): 10 rpm, Equipment: documentation/manual, Hanwha XD16 III Few operating hours Hsdozxhwrepfx Ab Tst Barloader BMG-20 Chip conveyor with trolley and collector Fanuc control Bar diameter modified to Ø18mm

Condition: used, Technical details: turning diameter over bed: 3800 mm Hjdpfx Abox Ngzyj Tjt turning diameter over slide rest: 3200 mm turning length: 12000 mm faceplate turning speed range -stepless-: 2 - 200 U/min max. workpiece weight: 90.000 kg bed width: 4000 mm 2 steadies *

Condition: used, Year of construction: 2008, operating hours: 12,183 h, machine/vehicle number: 1060142, turning diameter: 32 mm, spindle speed (max.): 5,000 rpm, overall weight: 4,000 kg, Frontal twin-spindle lathe for re-machining rough-turned parts produced by cold forging, turning, or sintering. Hedszhktzjpfx Ab Tst Integrated dual-gripper robot for loading and unloading.

Year of construction: 1993, condition: ready for operation (used), Vertical lathe machiningcenter Dörries Scharmann Type: VCE 2000/160 Pallet size: 1.600 mm Pallet load: max. 8.000 kg Number of pallets 13 pcs Table indexing C-Axis 0.001° Table cross travel (X) 2.300 mm Column longitudinal travel (Z) 1.500 mm Crossbeam positions: 9 steps off 100 mm Feed X/Y/Z 1 – 6.000 mm/min. Rapid X/Y/Z 8 m/min. Max rotary diameter 2.000 mm Max workpiece height 1.500 mm Main Spindle Spindle drive motor: 69KW Spindle speed: 2.8 – 315 rpm ATC 70 pots - system 240.2 Live spindle – SK50 Spindle drive motor: 30KW Spindle speed: 10 – 1500 rpm CNC controller Siemens Sinumerik 880M Accessories FMS 13 pallets Rotary loading stations 2 pcs Coolant unit with filtration system Coolant through spindle Hedsgulkijpfx Ab Tot Machine weight Approx 40T. Build year 1993 (2/2)

Year of construction: 1993, condition: ready for operation (used), Vertical lathe machining centre Dörries Scharmann type: VCE 2000/160 Pallet size: 1.600 mm Pallet load: max. 8.000 kg Number of pallets 13 pcs Table indexing C-Axis 0.001° Table cross travel (X) 2.300 mm Column longitudinal travel (Z) 1.500 mm Crossbeam positions: 9 steps off 100 mm Feed X/Y/Z 1 – 6.000 mm/min. Rapid X/Y/Z 8 m/min. Max rotary diameter 2.000 mm Max workpiece height 1.500 mm Main Spindle Hjdpfx Abjguk S So Tot Spindle drive motor: 69KW Spindle speed: 2.8 – 315 rpm ATC for turning 59 pots - system 240.2 Live spindle – SK50 Spindle drive motor: 30KW Spindle speed: 10 – 1500 rpm ATC for SK50 61 pots CNC controller Siemens Sinumerik 880M Accessories FMS 13 pallets Rotary loading stations 2 pcs Coolant unit with filtration system Coolant through spindle Machine weight Approx 40T. Build year 1993
