Used Hydraulic Glulam Press Modular, Custom Length, New 2025 for sale (66,217)

Condition: excellent (used), Year of construction: 2001, - 1 Schuler press - Capacity: 1000 tons - Stroke: 1,300 mm - Die cushion tonnage: 30 - 200 tons - Die cushion stroke: 200 mm - Daylight between press frames (Pmi): 800 mm - Work area: 2,500 x 2,100 mm Podpfx Anozy Uuyoyorb - Movable tables for press: 2 - Approach speed: 600 mm - Working speed at 50%: 96 mm - Working speed at 100%: 46 mm

Year of construction: 1992, condition: used, Pressing force 40 t Effective stroke 500 mm power capacity 17 kW tracking travel 48 mm Overrun time 110 ms Podpezdvcajfx Anysrb safety distance 176 mm Condition: used Accessories, as well as the tools and clamping devices shown in the images, are included in the scope of delivery only if explicitly noted in the additional information. Subject to changes, errors in technical data and specifications, and prior sale!

Condition: used, Single-column eccentric press MÜLLER GEFREES Type 60 SV DK (identical to ExP60) Very little used eccentric press in original condition Machine no. 5250686 Year of manufacture 1986, like new condition Pressing force 60 tons Stroke 280 mm Table area 740 x 560 mm Ram area 385 x 200 mm Die opening in the table 300 x 200 mm Table area, table insert plate 740 x 560 mm Die opening in table insert plate Ø 103 mm Thickness of table insert plate 70 mm Dowel hole 40 mm Table height above floor 815 mm (with table insert plate) Installation height max. 275 (with table insert plate) Installation height max. 345 (without table insert plate) Stroke adjustment 10-90 mm Ram adjustment 60 mm Stroke rate 100 strokes/min Motor power 3 kW Drive power 380 Volt, 50 Hz - mechanical eccentric coupling with pneumatic control Pedpfji A A Tbjx Anyjrb - spring-loaded brake controlled via cam - stroke release via pneumatic foot switch - overload protection with shear plate in the ram - table height adjustment via 2 threaded spindles - manual central lubrication system BEKA - operating manual and pneumatic diagram available Space requirement L x W x H 1400 x 1100 x 2200 mm Weight 3.4 tons very good condition, like new

Condition: excellent (used), functionality: fully functional, overall weight: 800 kg, Year of construction: 1995, pressing force: 10 t, operating speed: 260 mm/s, stroke length: 200 mm, table length: 440 mm, table width: 430 mm, type of input current: AC, Equipment: safety light barrier, Manufacturer JAM Model HYP-1000 Model year 1995 Capacity 98KN (10t) Prsdpfx Aswcqc Uenyjb Stroke 200mm Nyitott magasság: 395mm asztal méret 440 × 430mm Shock hole φ32 × 60L mm ram aproaching speed:260 mm/s ram pressure speed:19 mm/s ram return speed: 219mm/s With light safety device voltage 3-phase 200v 1,5kw press body mass: 800kg operation oil: 43liter ​ Height (mm) 1395 Width (mm) 700 Depth (mm) 1170

Condition: good (used), functionality: fully functional, pressing force: 160 t, table width: 1,250 mm, throat depth: 500 mm, Output 160 tonnes --- Working length 1250 mm --- Podpfx Aozucq Ejnyerb Stroke 250 mm Thrust 500 mm Installation height max. 480 mm Weight approx. 11.2 tonnes Output 30 kW Area of application: universally applicable machine: Straightening / bending / pressing / folding etc. --- Was previously used as a folding press with system tool holder + tools .

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] Predpfxjuhak Ue Anysb - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 2290 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions ((ength-width-height) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: excellent (used), For sale: a professional pneumatic-hydraulic press by Mäder with a maximum pressing force of 100 kN (approximately 10 tons). Prodpfx Anjzucxceyob The machine is designed for industrial applications, including pressing, assembly, stamping, crimping, straightening, and other workshop and production tasks. The press utilizes compressed air and a pneumatic-hydraulic system. It is equipped with foot pedal control for easy operation during work. Technical specifications: Manufacturer: Mäder Type: pneumatic-hydraulic press Pressing force: 100 kN / approx. 10 tons Operating pressure: 6 bar Total stroke: 50 mm Hydraulic stroke: 5 or 10 mm – depending on the version Frame overhang: approx. 300 mm Maximum working clearance: approx. 200–270 mm, adjustable Work table dimensions: approx. 310 × 220 mm T-slot width: 16 mm Mounting hole in the ram: Ø20 H7 × 34 mm deep Ram diameter: Ø40 mm Weight of the press itself: approx. 311 kg Working medium: filtered compressed air Noise level: below 75 dB Control: foot pedal The machine is sold with the table shown in the pictures.

Condition: used, Technical details: pressure: 6 t distance between columns: - mm stroke: 130 mm table surface area: 1200x550x30 mm throat: 500 mm total power requirement: 1,1 kW weight of the machine approx.: 1000 kg space requirements of the machine approx.: L:1,8xB:0,9xH:0,9 m Prjdpou Nfm Tofx Anysb HORIZONTAL SS - operation through keyboard - operating pressure: 10 to 600bar stepless adjustable - work piece clamping area is adjusted through manual screwing of slide-counter holding plate - sizes of counter holding plate: L: 500xW:300xH:35mm - stroke of slide plate: 130mm - silde clamping plate: 550x300x35mm functional *

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 606 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] Podpfxsuhak Ij Anyjrb FLOOR DIMENSIONS - Dimensions (length-width-height) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] Psdpfx Aeuhakzsnysrb - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 440 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions ((length-width-height)) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: used, Year of construction: 1959, machine/vehicle number: 4501, hydraulic table press Pedpjzp Nxrsfx Anysrb

Condition: used, Year of construction: 1990, pressure 100 t Prodpfsyif Nrsx Anysb table surface area 800 x 800 mm ram stroke 450 mm throat 400 mm dayligth 800 mm table height over floor 900 mm die cushion capacity 40 t die cushion stroke 200 mm oil volume 700 l rapid traverse - down 185 mm/sec rapid traverse - up 160 mm/sec working feed 55 mm/sec total power requirement 17 kW weight of the machine ca. 5 t dimensions of the machine ca. 2,2 x 1,2 x 3,4 m Machine has cushion in table.

Condition: as good as new (ex-display), Year of construction: 2025, Hydraulic CNC press, 100 tons (1,000 kN) pressing force Siemens SPS1200 series Prodpfxjnp Ndho Anysb 10" Beijer display Stroke 400 mm Table size 790 mm x 600 mm Feed speed 110 mm Return speed 140 mm Sick light curtain Remote maintenance module installed Rexroth hydraulics with cooler Modifications can be implemented upon request Upon request, the manufacturer can supply C-shaped frames for presses with a pressing force of 10 tons to 400 tons and variable dimensions.

Year of construction: 2002, condition: ready for operation (used), Max. Press force: 1000kN, max. retraction force: 110kN, max. stroke: 360mm, max. working pressure: 251bar, installation height: 560mm, control panel: Siemens SIMATIC OP27, weight: 7.5t, on-site inspection is possible. Prodpeum U Sxsfx Anyjb

Condition: ready for operation (used), Year of construction: 1992, Compressive force: 1000kN/100t, ram stroke: 200mm, max. operating pressure: 290bar, control: DNC70, safety distance: 166mm, overtravel time: 104ms, overtravel distance: 7mm. Psdpfxowcz Axj Anyorb

Condition: used, Technical details: pressure: 25 t stroke: 500 mm daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 0,100 m/s ram speed - reverse: 0,45 m/s Table dimensions: 630 x 500 x 75 mm passage inside table: Ø 180 mm surface area of ram: 450 x 360 mm mortise hole in ram: Ø 32 mm height over floor: 710 mm total power requirement: 8,75 kW weight of the machine ca.: 2,2 t dimension machine xH: 1,7 x 1,1 x 2,95 m Prjdpjvc Awxjfx Anyjb Operation via two-hand control panel. (and one-hand operation) *

Condition: used, Year of construction: 2019, Corpus press Manufacturer: LINYI JIANZHONG WOOD MACHINERY Type: JJZ-CP Year of manufacture: 2019 The JJZ-CP press is suitable for the production of plywood, doors, and MDF panel joints. The feeding and removal of the glued elements are carried out automatically via powered roller conveyors. Technical data - Max. pressure 500 t (adjustable) - Max. filling height 1300 mm - Min. filling height 900 mm - Max. filling size 1300 x 2500 mm - Press dimensions 3600 x 1370 x 4500 mm - Press placement approx. 500 mm below floor level - Feeding table 2000 x 1960 mm - Receiving table 2350 x 2500 mm - Max. power 13.2 kW - Weight 12000 kg - CE marking - Capacity: 6 batches per hour Prodpfezuzwksx Anyeb 2 corpus presses are available for sale. Note: The technical data and descriptions are transcriptions from the original order confirmation. The data is for informational purposes only and is not binding.

Condition: used, Year of construction: 2017, pressing force: 500 t, pressure:500 t passage width:1300x800 mm Pedsd E Irmjpfx Anyorb stroke:600 mm weight of the machine ca.:18 t dimensions of the machine ca.:2400 x 2400 x 5500 m draw back pressure:50 t Controll:Zweihandbedienung cylinder:1 Stück motor:50 kw Oil Cooling:elektrisch column diameter:200 mm work height max.:700 mm Table dimensions:1900 x 800 mm table height over floor:1000 mm pestle plate:1300 x 800 mm pre-running speed:150 mm/sec work speed:5-10 mm/sec. return speed:150 mm/sec :1500 l quantity of oil:1400 l

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, The machine is fully operational and in good condition. Working dimensions: 3200 x 2200 mm Pedpfxoxmr Rxj Anyjrb Dimension adjustment is electrically controlled from the control panel. Powered by a hydraulic unit.

Condition: used, TECHNICAL DETAILS - Table dimensions : 300 x 200 [mm] - Cutting strength : 1700 [daN] Podpjuhakuofx Anysrb - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] - Number of working hours : 1315 [h] - Lower extractor POWER SUPPLY - Operating voltage : 3x 400 [V] - Frequency : 50 [Hz] - Nominal current : 5.5 [A] - Installed power : 2 [kW] FLOOR DIMENSIONS - Dimensions ((length-width-height)) : 1200 x 1100 x 2200 [mm] - Weight : 725 [kg]

Condition: ready for operation (used), A completely renewed and overhauled Oevermann press is available. Press force: 150t, reach: 400mm, stroke: 400mm, installation height: 600mm, table dimensions X/Y: 1200mm/710mm, drive power: 37kW, weight: approx. 9500kg. The following areas have been renewed and overhauled: hydraulics, components, tank, lines and safety devices. The control system has been completely newly installed. Documentation available. An on-site inspection is possible. Podjyxgr Ropfx Anysrb

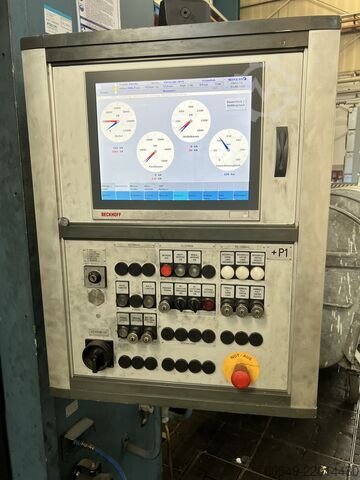

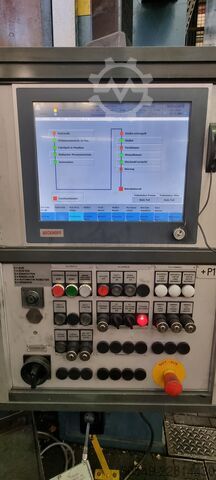

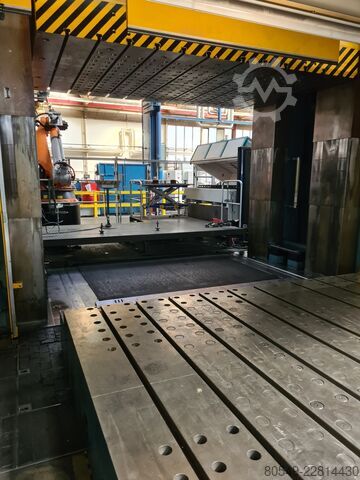

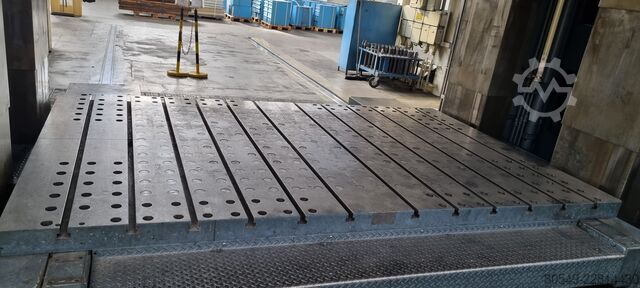

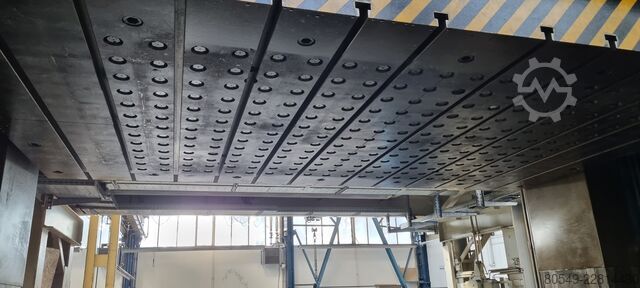

Condition: excellent (used), Year of construction: 2004, SCHULER HYDRAP Year of manufacture: 2004 Press force: 10,000 kN Stroke length max.: 1,650 mm Installation height: 2,400 mm Closing speed: 420 mm/s Working speed max.: 68 mm/s Working speed at rated force: 21 mm/s Tool base area max.: 3,900 x 2,400 mm Prjdpfjz Ei A Tjx Anyob Tool base area min.: 1,800 x 1,200 mm Tool installation height: 750 mm Tool weight max.: 50,000 kg

Condition: new, pressure 80.0 t stroke 250 mm table surface area 1040 x 260 mm column travel between the guideways 1040 mm ajustment speed 8.0 mm/sec working feed 5.0 mm/sec return speed 10.0 mm/sec engine output 5.5 kW weight of the machine ca. 835 kg. dimensions of the machine ca. 1810 x 700 x 2100 mm Equipment: - robust electro-hydraulic workshop press, with fixed cylinder - Ideal for aligning axles, shafts etc., but also for pressing in and pressing out bolts, bearings, bushes etc. - Robust welded steel construction for heavy-duty use - Table height adjustment via piston rod * Including round steel chain and 2x locking bolts * Piston rod with metric mount - 1x set of V-block prism support - Pressure gauge for pressure display - Simple manual operation with : * 1x feed speed * 1x working speed * 1x retraction speed - piston can be stopped in any position - Hydraulic tank permanently mounted on the side - operating instructions Predpfx Anjw U U Svsyeb

Year of construction: 2006, condition: used, machine/vehicle number: 10510, Drive power: 138 kW, clamping force: 4,500 kN, machine weight: approx. 74,000 kg, max. tool weight: 7,500 kg, tool dimensions: approx. 2,150 x 1,300 mm, stroke: approx. 61 mm, SIEMENS SIMATIC C MULTI PANEL control, two-hand operation, upstream light curtain, separate RITTAL control panel system, cooling system, including accessories: 1 workbench, 1 sheet metal cabinet, contents: various hand tools. Prsdpfx Anszqzd Ajyjb

Condition: used, TECHNICAL DETAILS - Cutting strength : 1700 [daN] - Max. slide travel : 125 [mm] - Max. approach speed : 360 [mm/s] - Slide stopping time : 50 [ms] SUPPLY - Supply voltage : 3x400 [VAC] - Frequency : 50 [Hz] - Rated current : 5.5 [A] - Installed power : 2 [kW] FLOOR SPACE - Floor dimensions : 1200 x 1200 [mm] - Machine height : 2200 [mm] - Machine weight : 550 [kg] Predpfxjuhai Ro Anyob MACHINE HOURS - Working hours : 1070 [h]
