Used Scherer Feinbau - Re-Lathe for sale (16,072)

Condition: used, Year of construction: 1976, turning diameter over bed 455 mm turning diameter over slide rest 285 mm turning length 1.000 mm center height over bed 225 mm centre distance 1.000 mm digital readout 2-Achsen ANILAM bed width 330 mm spindle taper KK 6 DIN 55027 spindle bore 45 mm turning speed range 16 - 1.000 U/min power requirement 3,0 / 4,2 kW taper in tailstock-quill MK 4 dia. of quill 62 mm quill stroke 145 mm voltage 400 V total power requirement 4,5 kW weight of the machine ca. 1,95 t dimensions of the machine ca. 2,45 x 1,10 x 1,80 m - Serial-No.: 29-2561 - ANILAM 2-axis digital readout - 4-jaw tool holder Nsdpey Ezyvefx Ag Dela - coolant equipment ATTENTION!!! Machine is sold without a chuck. Upon request and for an additional charge, the following 3-jaw spiral chucks can be included: - CENTER Ø 200 mm = 780.00 EUR - CENTER Ø 250 mm = 1,030.00 EUR

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical details turning diameter over bed 570 mm turning diameter over slide rest 365 mm turning length 3000 mm weight of the machine ca. 5 t dimensions of the machine ca. 5,5 x 1,44 x 1,38 m Additional information Well-maintained lathe from the maintenance department. Working range: Swing diameter over bed 570 mm Swing diameter over cross slide 365 mm Swing diameter in bed recess 600 mm Length of bed recess in front of main spindle 160 mm Turning length 3000 mm Center height over flat surface 280 mm Bed width 360 mm Maximum workpiece weight without steady rest 500 kg Maximum workpiece weight with steady rest 630 kg Main spindle speeds 11.2 - 2240 rpm Drive power 15 kW Feeds 60 longitudinal feeds/revolution 0.063 - 56 mm 60 cross feeds/revolution 0.0315 - 28 mm Tapping 60 thread pitches 0.25 - 224 mm 60 thread counts 112 - 0.125 TPI Travels Cross slide 345 mm Top slide 125 mm Nljdpfx Agey Ed T Ss Dea Tailstock quill 190 mm Main spindle Spindle head DIN 55022 size 8 Camlock spindle head size 8 Spindle bore diameter 62 mm Spindle bore diameter at front bearing 100 mm Tailstock Quad diameter 80 mm Equipment and accessories: 3-axis digital readout 3-jaw chuck 4-jaw chuck RÖHM, 500 mm diameter mm Boring rod holder Center points Multifix tool holder with tool holders Steady rest Machine documentation

Condition: good (used), Year of construction: 1956, Heavy lathe, turning machine, lathe, center and feed screw lathe, center and feed screw lathe -Manufacturer: Weisser, lead screw lathe type PF200 -Turning length: 1340 mm -Turning Ø over bed: 420 mm -Turning Ø over support: 240 mm -Spindle bore: Ø 41 mm -Spindle speeds: 31.5 - 1400 rpm -Three-jaw chuck: Röhm Ø 250 mm -Accessories: incl., see photos -Tailstock mount: MK4 -Drive motor: 2.5/3.5 kW Nedpfxotzf N Rs Ag Dola -Dimensions: 2670/1000/H1230 mm -Weight: 1450 kg

Condition: good (used), Year of construction: 2023, Cycle-controlled lathe Machine type: Kern CD 402 x 1000 Control: Heidenhain Manual Plus 620 HSCI Year of manufacture: 2023 Available from: immediately / now TECHNICAL DATA: Max. turning length: 810 mm Distance between centers: 1,000 mm Turning diameter: 230 mm Max. swing over bed: 400 mm Spindle bore: 64 mm Speed range: 1 - 3,000 rpm Drive power: 16 kW C-axis Number of turrets: Tool stations: 8 Tool holder: Multifix B Speed of driven tools: 4,000 rpm Tailstock: MT4 Quill stroke: 140 mm Quill diameter: 60 mm Features: Nledpfx Agjy Ec Sto Doa 3-jaw chuck: 255 mm Forkardt F+ 255 mm High-pressure pump: 15 bar Coolant gun

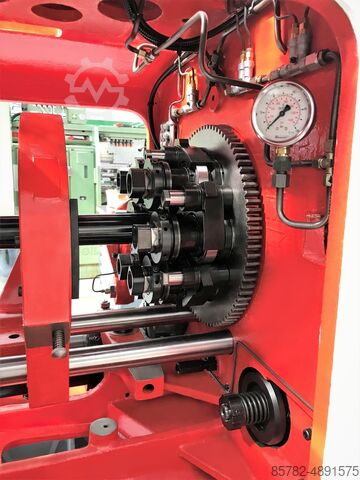

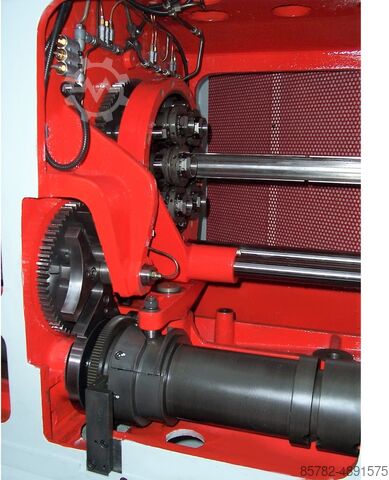

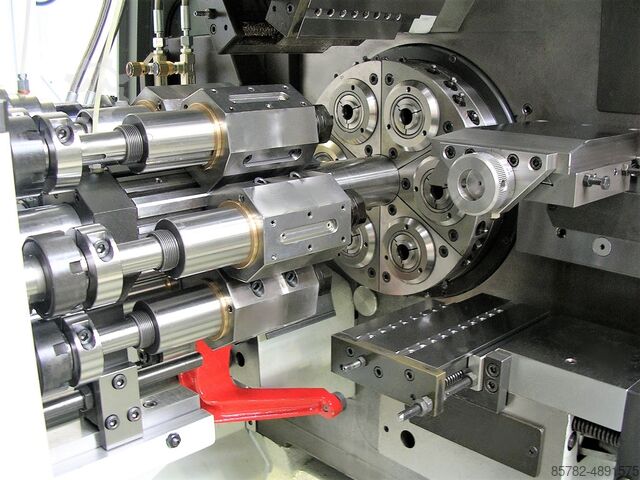

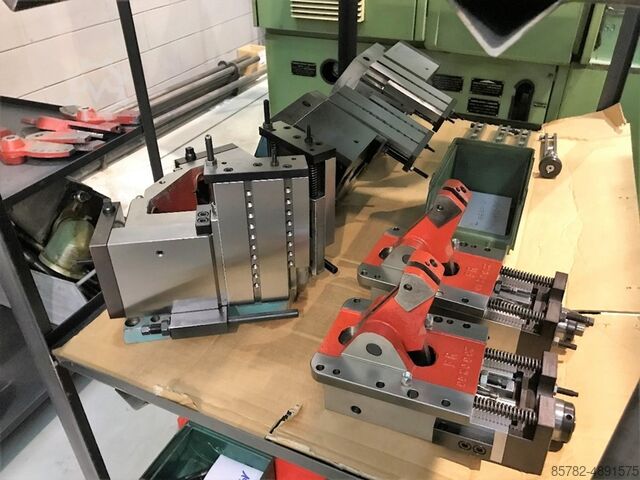

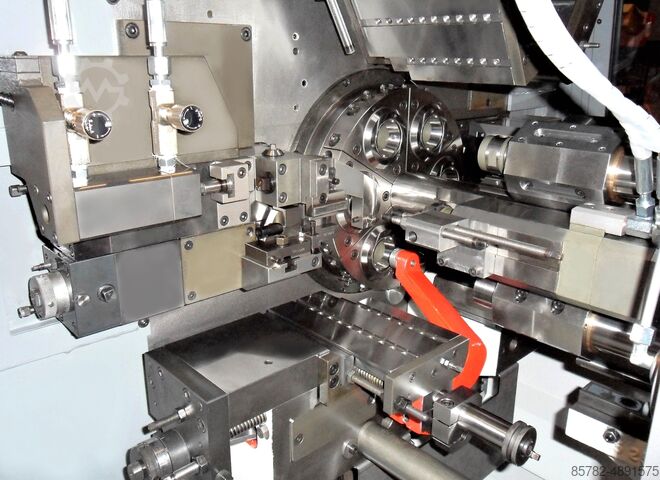

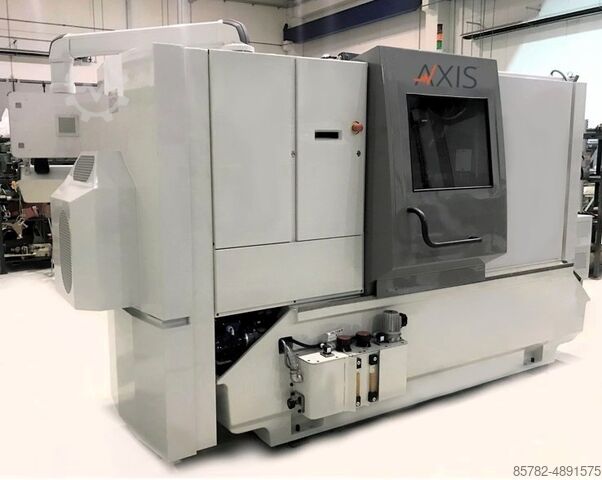

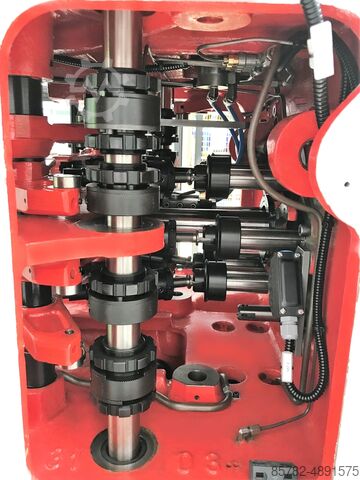

Condition: new, Year of construction: 2025, Gildemeister 20 completely rebuilt to new condition Nljdsfzk S Djpfx Ag Dja -AC motor for production time control -AC motor for threading -GM-type soundproof casters -frequency converter for spindle speed programming -bar passage 20mm ,25mm , 28mm with integral loader -Optional : X and Z axis NC cross slides, NC pickup with NC pickup slide -EC brand

Condition: used, Year of construction: 1972, faceplate diameter 1200 mm swing diameter 1600 mm turning height 1250 mm slide adjustment 800 mm Control Siemens type 840 c Nodpfx Ajyqvfijg Dsla power capacity 56 kW The machine was overhauled and rebuilt by Seidler. No. 97237 No. 37 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, turning diameter over cross slide: 310 mm, turning length: 2,000 mm, turning diameter: 540 mm, spindle bore: 85 mm, spindle speed (max.): 2,250 rpm, travel distance X-axis: 350 mm, travel distance Z-axis: 1,850 mm, rapid traverse X-axis: 5,000 m/min, rapid traverse Z-axis: 8,000 m/min, total height: 2,235 mm, total length: 3,840 mm, total width: 1,925 mm, quill travel distance: 210 mm, quill diameter: 75 mm, overall weight: 4,200 kg, chuck outer diameter: 315 mm, spindle nose: D1-8, center height: 270 mm, Siemens 828D control with ShopTurn Max. turning diameter over bed: 540 mm Max. turning diameter over carriage: 310 mm Center height: 270 mm Distance between centers: 2000 mm X / Z-axis travel: 350 / 1850 mm Chuck diameter: 315 mm Spindle bore: 85 mm Spindle speed: 2250 rpm Tailstock quill diameter: 75 mm Tailstock quill stroke: 210 mm Tailstock taper: MT5 Nledpey Ey Edjfx Ag Dja Feed rate: 5000 mm/min Rapid traverse X / Z-axis: 5000 / 8000 mm Workpiece weight: - Chuck only: 300 kg - With tailstock: 700 kg - With tailstock and steady rest: 1200 kg Machine dimensions without chip conveyor (L x W x H): 3840 x 1925 x 2235 mm Machine weight: 4200 kg Includes: 2 steady rests, 2 Multifix toolholders, Schunk Rota-S315 3-jaw chuck, chip conveyor, manuals

Condition: new, functionality: fully functional, overall weight: 2,500 kg, total length: 4,200 mm, total width: 2,500 mm, total height: 2,170 mm, travel distance X-axis: 390 mm, controller manufacturer: Siemens, controller model: 840D sl + ShopTurn mit „manual machine“, turning diameter over cross slide: 370 mm, bed width: 433 mm, center height: 315 mm, center width: 2,000 mm, quill diameter: 100 mm, quill stroke: 200 mm, rapid traverse Z-axis: 8 m/min, rapid traverse X-axis: 8 m/min, spindle bore: 140 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 2 rpm, turning diameter over bed slide: 630 mm, Equipment: rotational speed infinitely variable, Swing over bed: 630 mm Center distance: 2000 mm Maximum speed range: 2500 rpm Spindle power (100% duty cycle): 20 kW (AC drive) Spindle mount: Camlock D11 Spindle bore: 140 mm Included equipment includes: - 8-station SAUTER VDI-40 turret - Movable control panel along the entire length - Chip conveyor - Siemens AC servo motors - Siemens power supply and amplifier modules - Automatic (or via M function) gear change (2 speeds) - Machining area covered by two sliding doors - Operating mode 1 and operating mode 2 (setup mode at 5 rpm) - Siemens 840D sl ShopTurn control system with "manual machine" - 15-inch touchscreen format 16:9 - With manual machines, cycles can be executed without creating a program header. - Siemens control option: residual material detection. - Absolute encoder (i.e., no reference point travel required). - USB interface on the control panel. Nsdpfx Aowgbuieg Dela - Manual tailstock with drag device and 100 mm spindle diameter. - Automatic central lubrication. - Coolant system.

Condition: new, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 58 mm, turning diameter over bed slide: 430 mm, center height: 215 mm, turning length: 760 mm, quill stroke: 127 mm, quill diameter: 58 mm, total length: 1,885 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,680 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Tip height: 215 mm Center width: 760 mm Spindle bore: 58 mm Spindle nose according to DIN 55029 Camlock D6 Motor power: 7.5 kW Nlodpfou T E Ehjx Ag Dja Spindle speed range: 20-2000 mm Weight approx. 1680 kg Features include infinitely variable speed control Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and cross slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: new, functionality: fully functional, turning diameter over cross slide: 280 mm, spindle bore: 58 mm, turning diameter over bed slide: 470 mm, center height: 235 mm, turning length: 1,000 mm, quill stroke: 127 mm, quill diameter: 68 mm, total length: 2,150 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,800 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Tip height: 235 mm Center distance: 1000 mm Spindle bore: 58 mm Spindle nose according to DIN 55029: Camlock D6 Motor power: 7.5 kW Spindle speed range: 20-2000 mm Features include infinitely variable speed control Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and face slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates Nlodpfsu T Hiuox Ag Dja

Condition: new, functionality: fully functional, turning diameter over cross slide: 620 mm, spindle bore: 153 mm, turning diameter over bed slide: 860 mm, center height: 430 mm, turning length: 3,000 mm, quill stroke: 250 mm, quill diameter: 120 mm, total length: 5,250 mm, total width: 1,700 mm, spindle speed (max.): 680 rpm, spindle speed (min.): 8 rpm, bed width: 510 mm, overall weight: 6,800 kg, quill mount: MK 6, Center height: 430 mm Center distance: 3300 mm Spindle bore: 153 mm Nlsdpfsm E U Ufex Ag Dsa Spindle nose (DIN 55026) A2-11 Gear stages: 12 Spindle speed range: 8-680 rpm Drive power: 22 kW Weight approx. 6800 kg Features include Rapid traverse in X- and Z-axis Star-delta gearshift Fixed steady rest with rollers (max. clamping range 300 mm) Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and face slides Foot brake Manual central lubrication Complete coolant system with rear splash guard and splash guard on the slide Sliding chuck guard Switch rod with 4 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: new, functionality: fully functional, turning diameter over cross slide: 438 mm, spindle bore: 85 mm, turning diameter over bed slide: 660 mm, center height: 330 mm, turning length: 1,500 mm, quill stroke: 165 mm, quill diameter: 85 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, bed width: 400 mm, quill mount: MK 5, Equipment: rotational speed infinitely variable, Tip height: 330 mm Center distance: 1500 mm Nodpfx Aem E Umieg Dsla Spindle bore: 85 mm Spindle nose according to DIN 55029: Camlock D8 Gear stages: 12 Spindle speed range: 15-1500 rpm Drive power: 11 kW Weight approx. 2135 kg Features and more: Each gear stage is infinitely variable from 50% to 100% Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and face slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: new, functionality: fully functional, turning diameter over cross slide: 330 mm, spindle bore: 78 mm, turning diameter over bed slide: 520 mm, center height: 260 mm, turning length: 1,000 mm, quill stroke: 127 mm, quill diameter: 68 mm, total length: 2,160 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,810 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Centre height: 260 mm Centre distance: 1000 mm Spindle bore: 78 mm Spindle nose according to DIN 55029 Camlock D8 Spindle speed range: 20-2000 rpm Drive power: 7.5 kW Features include: Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surfaces) for tool and cross slide Manual central lubrication with a pump for longitudinal and cross slide Complete coolant system with rear splash guard plate and splash guard on the slide Chuck guard Shifting rod with 3 adjustable cams Machine light Fixed centre Set of machine levelling plates Nljdpfjh Rvxhsx Ag Doa

Condition: as good as new (ex-display), Year of construction: 2019, functionality: fully functional, turning diameter over cross slide: 415 mm, turning length: 850 mm, turning diameter: 390 mm, spindle bore: 105 mm, spindle speed (max.): 2,000 rpm, travel distance X-axis: 225 mm, travel distance Z-axis: 950 mm, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, total height: 1,980 mm, total length: 4,600 mm, total width: 1,900 mm, quill diameter: 100 mm, quill stroke: 120 mm, overall weight: 7,000 kg, bar passage: 90 mm, chuck outer diameter: 300 mm, controller manufacturer: Siemens, controller model: 828D + Shopturn, Equipment: documentation/manual, max. turning diameter 390 mm Z-axis travel: 950 mm max. spindle speed: 2000 rpm AC spindle motor SIEMENS (cont./15min) 25/33 kW bar capacity: 90 mm spindle nose: A2-11 Nedpfefk Et Aex Ag Dela Including accessories a. o: SAUTER 12-station turret VDI-40 Trifix holder for driven tools C-axis with spindle clamping and stabilization Wide and stable flat guides 45° inclined bed for optimum chip fall Hinged belt chip conveyor with chip bucket 3-jaw Kitagawa power chuck ø 300 mm Tool measurement can be swiveled in manually Hydraulic tailstock manually adjustable with programmable tailstock quill Coolant unit with powerful pump (4 bar) Rittal filter fan on the control cabinet

Condition: new, functionality: fully functional, turning diameter over cross slide: 330 mm, spindle bore: 78 mm, turning diameter over bed slide: 520 mm, center height: 260 mm, turning length: 1,500 mm, quill stroke: 127 mm, quill diameter: 68 mm, total length: 2,670 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 2,135 kg, quill mount: MK 4, Equipment: rotational speed infinitely variable, Center height: 260 mm Nledjctutmspfx Ag Doa Distance between centers: 1500 mm Spindle bore: 78 mm Spindle nose according to DIN 55029 Camlock D8 Spindle speed range: 20-2000 rpm Drive power: 7.5 kW Weight approx. 2135 kg Equipment includes: Rapid traverse on Z-axis Hardened and precision-ground Z-axis guideways Turcite coating (on counterpart) for the carriage and cross slide Manual central lubrication with a pump for the longitudinal and cross slide Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch bar with 3 adjustable cams Machine lamp Fixed center Set of machine mounting plates

Condition: new, functionality: fully functional, turning diameter over cross slide: 240 mm, spindle bore: 58 mm, turning diameter over bed slide: 430 mm, center height: 215 mm, turning length: 760 mm, quill stroke: 127 mm, quill diameter: 58 mm, total length: 1,885 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,680 kg, quill mount: MK 4, Tip height: 215 mm Center width: 760 mm Spindle bore: 58 mm Spindle nose according to DIN 55029 Camlock D6 Motor power: 5.5 kW Spindle speed range: 20-2000 mm Weight approx. 1680 kg Equipment including Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and face slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Nodpfx Aecir Anog Djla Fixed center point Set of machine mounting plates

Condition: new, functionality: fully functional, turning diameter over cross slide: 280 mm, spindle bore: 58 mm, turning diameter over bed slide: 470 mm, center height: 235 mm, turning length: 1,000 mm, quill stroke: 127 mm, quill diameter: 68 mm, total length: 2,150 mm, total width: 810 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, bed width: 300 mm, overall weight: 1,800 kg, quill mount: MK 4, Tip height: 235 mm Center distance: 1000 mm Spindle bore: 58 mm Spindle nose according to DIN 55029: Camlock D6 Nljdocirnijpfx Ag Doa Motor power: 5.5 kW Spindle speed range: 20-2000 mm Features include Hardened and precision-ground Z-axis guideways Turcite coatings (on mating surface) of the tool and face slides Manual central lubrication with one pump for longitudinal and cross slides Complete coolant system with rear splash guard and splash guard on the slide Chuck guard Switch rod with 3 adjustable cams Machine light Fixed center point Set of machine mounting plates

Condition: used, Machines for Export from Liquidation Stock No. 62506 = Double Mitre Saw RAPID Type DGL 5000 / 500 = Weight approx. 1,200 kg = Special price EUR 1,800 Stock No. 58052 = Eccentric Press MÜLLER GEFREES = Weight approx. 4,700 kg = Special price EUR 2,400 Nedjy Erzdepfx Ag Djla Stock No. 59408 = Eccentric Press Weingarten = Weight approx. 1,400 kg = Special price EUR 1,000 Stock No. 58984 = Eccentric Press Müller Gefrees = Weight approx. 1,400 kg = Special price EUR 1,000 Stock No. 58309 = Eccentric Press MÜLLER GEFREES = Weight approx. 1,000 kg = Special price EUR 1,000 Stock No. 60975 = Eccentric Press 16 tons (Year 2017) = Weight approx. 800 kg = Special price EUR 1,000 Stock No. 62267 (1) = Eccentric Press Weingarten 75 tons (Machine 1) = Weight approx. 4,800 kg Stock No. 62267 (2) = Eccentric Press Weingarten 75 tons (Machine 2) = Weight approx. 4,800 kg Stock No. 54183 = Hydraulic Press MÜLLER 10 tons, without hydraulic pump = Weight approx. 1,200 kg = Special price EUR 1,000 Stock No. 57780 = Hydraulic Press MÜLLER Type HEP 40 = Weight approx. 2,200 kg = Special price EUR 1,900 Hydraulic Press – Hydraulic power unit standing alongside = Weight approx. 3,000 kg Stock No. 60507 = WEBO Drilling Machine with 4 heads = Weight approx. 1,900 kg = EUR 1,600 Stock No. 57592 = ALZMETALL Drilling Machine with 2 heads = Weight approx. 1,700 kg = EUR 1,200 Stock No. 60699 = Column Drilling Machine WEBO MK5 = Weight 1,600 kg = Special price EUR 1,600 Stock No. 60177 = Radial Drilling Machine WEBO Type R4bR = Weight approx. 2,800 kg = Special price EUR 1,900 Stock No. 57432 = GILDEMEISTER Type GD 160 = Weight approx. 4,000 kg = Special price EUR 1,900 --- Many more machines for immediate export available. For example: 10 units welding equipment CLOOS, ESS, etc. 2x CNC lathe HITACHI SEIKI

Condition: good (used), Year of construction: 1999, functionality: fully functional, Machine new white-color in 2014 (order by SIEMENS Energy) Technical Data Working area Max. swing over bed: 570 mm Max. swing over cross slide: 365 mm Max. turning length: 1500 mm Centre height over flat bed: 280 mm Max. workpiece weight: 400 / 1000 kg Max. workpiece clamping length: 1300 mm Work spindle Spindle head DIN 55027, size 8, internal taper 70 Spindle bore: Ø 62 mm Spindle diameter in front bearing: 100 mm Spindle through-hole (depth): 200 mm Max. chuck size: Ø 315 mm Speed range: 3–2500 rpm Max. faceplate diameter: Ø 560 mm Max. faceplate speed: 700 rpm Max. torque: 1800 Nm Carriage – travel Longitudinal travel (Z-axis): 1160 mm Cross travel (X-axis): 345 mm Tooling system: Parat-3 Tool cross-section DIN 770 (h × b): 32 × 25 mm Tailstock Tailstock movement by hand Quill taper: MK5 (MT5) Quill diameter: 80 mm Nedpex Ahx Dofx Ag Dsla Quill stroke: 190 mm Accessories / special equipment CNC control: SINUMERIK 810 D 32-bit processor, digital control ManualTurn with cycle support 10.4" colour LCD display Operating manual 094.0003.1330-00 3-jaw chuck Ø 315 mm Faceplate Ø 350 mm (up to Ø 560 for thin workpieces) Radius turning function Turret on support: size 3, Parat 4-station, manually indexable 4 × 90° Chip conveyor Bürener Maschinenfabrik Particularly suitable for: see production spectrum

Condition: used, Stock no.: 2862 Brand: Stanko Machine serial no.: 654829 Type / Model: 1K62 Centre distance: 1,000 mm Spindle bore: 50 mm Centre height: 240 mm Max. turning diameter over bed: 480 mm Nljdpfx Asy E Hkteg Dja over cross slide: 220 mm Spindle speed range: 12.5 to 2,000 rpm Longitudinal feed: Facing: Connection: Accessories/Equipment: 4-way tool post, 250 mm 3-jaw chuck Condition: good Weight: approx. 2.5 t Dimensions: 2,700 x 1,200 x 1,400 mm

Condition: ready for operation (used), Year of construction: 1965, functionality: fully functional, spindle bore: 62 mm, turning diameter: 580 mm, center height: 275 mm, center width: 2,000 mm, total length: 4,000 mm, total width: 1,250 mm, total height: 1,300 mm, overall weight: 3,400 kg, Ladies and Gentlemen, We are selling a fully functional lathe of the type Schaerer UDA560 with lynette, some steel holders and technical documentation. Availability: immediately Year of manufacture: 1965 Nsdpju St Rrefx Ag Dsla Center height: 275mm Center distance: 2000mm Spindle bore: 62mm Max. turning diameter: 580mm Max. Max. turning diameter in the recess: 630mm Space requirement: 4.00x1.25x1.30m (LxWxH) Weight: approx. 3400kg Accessories: various steel holders, lynette, machine card

Condition: used, For sale is a used Weiler Matador lathe. Version VS2 with pre-select gearbox. Comes with change gears and collet set. Good, fully functional condition. Centre height: 140 mm Swing over bed: 295 mm Distance between centres: 500 mm Spindle bore: 36 mm Spindle speeds: 15 - 3350 rpm Nlsdpfx Asy Hi A Ieg Dsa Inspection under power possible in 5023 Salzburg. Forklift available for loading.

Condition: good (used), Year of construction: 2008, functionality: fully functional, turning length: 1,240 mm, turning diameter: 380 mm, Machine Type: CNC Lathe Manufacturer: Hwacheon Model: Hi-Tech 300 Year of Manufacture: 2008 Control: Fanuc 18i-TB Country of Origin: Korea Delivery Time: available from stock >> Extended turning length configuration >> Driven tools >> Includes tailstock with quill >> Includes bar loading magazine >> Includes additional accessories This horizontal CNC lathe is in very good condition. The machine comes with a comprehensive equipment package, including a full-featured C-axis, touch setter, 3 spindle reduction sleeves, driven tools, tailstock with quill, 3-jaw hydraulic chuck, extended turning length (1240 mm), among others. The extensive features enhance machining capabilities and ensure tool break monitoring. The additional bar loading magazine further increases production productivity. Machine Equipment > Chip conveyor > Bar loading magazine > 3 spindle reduction sleeves > Turning and milling spindle > Driven tools (4 holders available) > Tailstock with quill > Boxways > 3-jaw hydraulic chuck 250 mm (Seoam ACE CAH-10) > Full-featured C-axis > Touch setter Technical Data Performance Swing diameter over bed: 600 mm Max. turning diameter: 380 mm Max. turning length: 1240 mm Spindle Main spindle power: 22 kW Main spindle torque: 1030 Nm Njdpfxjy D Tigj Ag Dela Main spindle speed: 3200 rpm Main spindle chuck diameter: 254 mm Bar capacity: 76 mm Rapid traverse X/Z-axis travel speed: 20 / – / 20 m/min Turret Number of tool stations: 12 positions Driven tool speed: 3000 rpm Drive power: 3.7 kW Tool system (type): BMT Direct drive: 6 powered stations C-axis: 0.001° Tailstock Quill diameter: 100 mm Quill stroke: 120 mm Taper: MT5 Bar feed magazine Type: Samsys Multisam 2000 Bar length: max. 1550 mm

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 122, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. Nedpfjxruvusx Ag Djla No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.

Condition: good (used), Year of construction: 1966, functionality: fully functional, Digital measuring device Centre height: 150 mm Swing over bed: 300 mm Turning diameter in the gap with face plate: 405 mm Distance between centres: 1000 mm 3-jaw chuck, with chip guard Multiflex toolholder Spindle speeds: 33 - 2000 rpm Chip tray Tailstock quill diameter: 45 mm, quill travel: 100 mm Taper: MK 3 Nljdpfsx Eah Asx Ag Dja Machine dimensions: 2500 x 800 mm Weight: 1180 kg Operating manual
