Used Shear Press for sale (13,844)

Year of construction: 2007, operating hours: 138 h, condition: like new (used), functionality: fully functional, machine/vehicle number: 900K707385, Tablet Press PRESSIMA – as new, in ex-works condition Fully functional machine with complete documentation and software. Including multi-tip tooling set EU-D (5 × 4mm) (purchase price: €12,000, 6 months old) as well as a single-tip tooling set (5mm) EU-B. Both punch sets supplied by Ritter. The machine is equipped with an interchangeable turret. Both B- and D-type tooling can be used, in either EU or TSM standard. Operation • Suitable for small batch production • Main compression force measurement with digital readout on the machine panel • Digital display of parameters set via handwheels • Note: No automatic control system available Technical Data • Speed: 10–75 rpm • Max main compression force: 50 kN • Pre-compression force: 10 kN • Turret diameter: Ø 180 mm • Two-wheel feeder, variable speed • Drive motor: frequency controlled, 1.5 kW • Power supply: 400–480 V, 50/60 Hz • Total power consumption: 1.5 kW • Machine housing and press area: stainless steel • Press area unpainted, easy access, hard-nickel-plated surfaces • Central extraction port • Central manual lubrication pump for punches • Automatic lubrication pump for punches and guideways • Feeder motor integrated in the headpiece Mechanics • Handwheels for tablet thickness, main pressure, pre-compression, and fill • Rotary flap between fill tube and feeder • Solid pre-compression and main compression stations • Scrapers on upper and lower punches • Magnetic brakes on lower punches • 12 mm fill shoe as standard • Lower punch is lowered after dosing • Lower guideway and ejection rail easily removable • Machine status display on control panel Measuring and Analysis System • MS2300 for recording and analysis of up to 16 channels Pgedpfx Agsy Hl Aqs Dok • Measurement/analysis of: o Main compression (upper) o Main compression (lower) o Pre-compression (upper) o Ejection force o Scraping force o Upper and lower punch displacement • Measuring amplifiers for main, pre-comp, ejection, and scraping force included Equipment / Features • Upper and lower punch shank bores with 4.8 mm keyways for guided tooling • Chamber-type feeder • Turret hard chrome plated • Main compression force measurement incl. indicator on operator terminal • Accessory kit type 8 MX: o 4 EU-B blank dies o 4 EU-D blank dies o 4 plugs for EU-B/EU-D or TSM-B/TSM-D Optional • Control retrofit with Siemens S7-1200 and Siemens TP panel possible.

Condition: good (used), functionality: fully functional, Trumabend V50 still in operation, fully functional Pedpfey Hq Rmox Ag Dsgk

Condition: good (used), machine/vehicle number: 042-020/101, Single-column press with drawing cushion, good condition, immediately available Psdpsy Hq Ifofx Ag Dogk

Condition: repair required (used), machine/vehicle number: 084-024/1, Single-column press WMW Zeulenroda, has not been used, therefore must be inspected. Pgedpfxsy Hq Hhs Ag Dok

Condition: used, Year of construction: 1977, machine/vehicle number: 10323, Single-column press, condition not checked. Available immediately. Pgodpfx Ajy Hq Dteg Dok

Condition: good (used), functionality: fully functional, Amada turret punching machine still in operation, all machine details are visible in the picture. Pgsdpfx Agsy Hq Ace Djk

Condition: new, Year of construction: 2025, functionality: fully functional, pressing force: 125 t, Single-column press – Manufacturer: Durendus – 125 t servo press – Table 2200 × 750 mm For sale is a hydraulic C-frame servo press from Durendus with an adjustable pressing force of up to 125 t and integrated 50 t ejector. Thanks to modern servo-hydraulics, this machine offers up to 40% reduced energy consumption compared to conventional systems and is ideal for demanding assembly, forming, and production processes. ===== Technical data & information: Hydraulic servo press – C-frame – 125 t Podpfjx Aqtqsx Ag Dogk ==== General Specifications - Manufacturer: Durendus - Model: Single-column press / servo press - Design: C-frame press - Pressing force: 20 – 125 t (adjustable) - Machine weight: approx. 8,700 kg - Dimensions (W × D × H): approx. 2,400 × 2,000 × 3,300 mm - Table height: 870 mm - Installation height: max. 1,000 mm ==== Table & Ram - Table area: 2,200 × 750 mm - Ram area: 980 × 750 mm - Guidance: 4 guide columns Ø 100 mm - Tool centering: 50 mm receptacle - Preparation: Vibration damping plates (30 mm) - Preparation: Robot interface ==== Ejector - Ejector force: 50 t - Ejector stroke: 200 mm ==== Hydraulic Cylinder - Stroke: 0 – 700 mm (adjustable) - Working pressure: max. 245 bar - Return speed: 300 mm/s - Idle speed: 300 mm/s - Pressing speed: - up to 25% load: 25 mm/s - up to 50% load: 14 mm/s - up to 80% load: 7 mm/s - up to 100% load: 6 mm/s ==== Hydraulic Unit - Servo hydraulic pump: Duplomatic, 143 l/min - Servo motor power: 15 kW - Pressure accuracy: ± 5 bar - Pre-fill valve: NG-160 ===== Assembly, forming technology, series production, automated manufacturing, toolmaking, energy-optimized pressing processes Servo press, single-column press, C-frame press, hydraulic press, industrial press, production press, energy-efficient press, die spotting press, tryout press, tool try-out press Are you looking for a hydraulic press tailored to your specific application? Contact us for a custom quote. Our hydraulic presses are manufactured in accordance with both German and European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements as they fully comply with the Brazilian national safety standard NR 12, which builds upon those regulations. Our core expertise lies in special-purpose machine construction and press automation. We offer customized hydraulic presses at surprisingly competitive prices. We primarily use components from leading European manufacturers for the press hydraulics.

Condition: ready for operation (used), functionality: fully functional, The Alfra sheet metal punch is hydraulically operated. With the included sheet metal punches, a wide range of applications is possible. Included are the following sheet metal punches: - 125.0 x 125.0 mm - 92.0 x 92.0 mm Pjdpfxsy Hfnyo Ag Degk - 92.0 x 92.0 mm - 45.5 x 45.5 mm - 22.2 x 22.2 mm - 46.0 x 92.0 mm - 46.0 x 92.0 mm - 46.0 x 92.0 mm - 35.0 x 85.5 mm - 35.0 x 65.0 mm - 31.2 x 68.5 mm - 35.0 x 52.0 mm - 80.5 mm round - 63.5 mm round - 47.0 mm round as well as various other accessories. The required hydraulic power unit is not included.

Condition: used, pressure 150 t Table dimensions 1000 x 630 mm voltage 400 V Inclineable mechanical press with updated electrics (CE2004) and bolster plates. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Psdpfx Asyqv Ahog Djgk About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 2006, Dimension: 2650 x 2100 x 2100 mm Clamping Force: 635 KN Working pressure: 206 bar Piston diameter: Ø200 mm Stroke: 140 mm Daylight: 150/180 mm Heating plant dimension: 250 x 300 mm Max. mass of heating plant: 70 kg Oil reservoir: 100 l Rated power: 19.66 kW Heater capacity: 9.6 kW Vacuum motor power: 2,6 kW Between light curtain and mould area: 270 mm Pedpfx Ajy E N Alog Djgk Stroke of vacuum cover: 140 mm The vulcanizing press from manufacturer PAN STONE, model S-V-65-2RT-PCD, was used by a renowned German company specializing in sealing technology and electromobility. This company is known for its high quality and innovation in seal production. The machine was part of a production line responsible for manufacturing high-performance seals used in various industries. It was always professionally maintained and repaired, which explains its excellent condition. This press offers you the opportunity to invest in proven technology that was utilized by a leading company in Germany.

Condition: good (used), Year of construction: 1987, functionality: fully functional, Clamping unit heating capacity, 1 heating rod / 8 heating rod: 0,48 / 0,9 kW clamping force: 2 x 500 kN heating plate dimensions: 550 x 600 mm Pgedpfxsy E Nzhj Ag Dsk piston stroke: 250 mm diameter of piston, main cylinder: 240 mm diameter of piston, locking cylinder. 39 mm locking cylinder: 260 mm Return capacity: 2 x 600 kN dimensions: 2600 x 2100 x 2100 mm weight approx.: 5 t

Condition: good (used), Year of construction: 1994, Clamping Unit: Clamping force: 7,000 kN Operating pressure: 250 bar Specific pressing pressure: 610 N/cm² Number of levels: 2 Installation height with 75 mm heating plate & 20 mm insulating plate: approx. 2x 190 mm Piston stroke: approx. 400 mm Piston 1 diameter: 543 mm Clamping force, rapid traverse: approx. 2 x 85 kN Retraction force: approx. 2 x 47 kN Pgjdpsy E Nzbsfx Ag Dok Operating pressure: 300 bar Piston 2 diameter: 60/40 mm Stroke: 400 mm Estimated weight: approx. 16 tonnes Hydraulic System: Pressure adjustment: 40 - 300 bar Flow rate regulation: 0 - 99 % Flow rate l/min (HD): 45 against 300 bar Drive power: 22 kW Tank dimensions (LxWxH): 1000 x 770 x 535 mm Closing Speed: Rapid traverse: approx. 40 - 50 mm/s Slow closing: approx. 0 - 20 mm/s Pressing speed: approx. 0 - 3 mm/s Slow opening: approx. 0 - 20 mm/s Opening, rapid traverse: approx. 0 - 60 mm/s

Condition: used, Year of construction: 2005, functionality: fully functional, Clamping force: 4900 kN Working pressure: 206 bar Heating plate dimensions: 700 x 700 mm diameter of piston: 558,8 mm max. stroke: 250 mm daylight: 300 mm max. mass of heating plant: 560 kg capacity of oil tank: 1100 l rated capacity: 82 kW heating capacity: 56 kW enginge output, vacuum motor: 4 kW Stroke of vacuum cover: 200 mm dimensions: 3975 x 2935 x 2555 mmm Equipped with a crane runway (monorail) with three chain hoists Producer: STHAL Year: 2011 Lifting capacity: 3 x 400 kg Lenght of crane runway: ca. 3500 mm Pjdpfx Asy E Ny Reg Dsgk Rolling chassis Lifting capacity: 400 kg Lifting height: 3000 mm stroke speed - main stroke: 4 m/min stroke speed - fine stroke: 1 m/min The vulcanizing press from manufacturer PAN STONE, was used by a renowned German company specializing in sealing technology and electromobility. This company is known for its high quality and innovation in seal production. It was always professionally maintained and repaired, which explains its excellent condition. This press offers you the opportunity to invest in proven technology that was utilized by a leading company in Germany.

Condition: good (used), functionality: fully functional, Press brake AMADA HFP220-4S Podpfjytb Rcex Ag Dogk Type: HFP Number of axes: 8 Touchscreen CNC: AMNC Backgauge stroke: 680 mm Working speed: 200 mm/sec Safety light barrier Sold without tooling Machine is fully functional

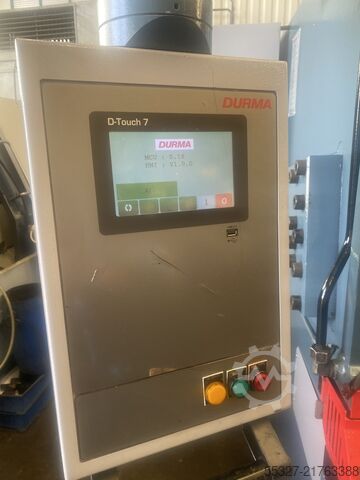

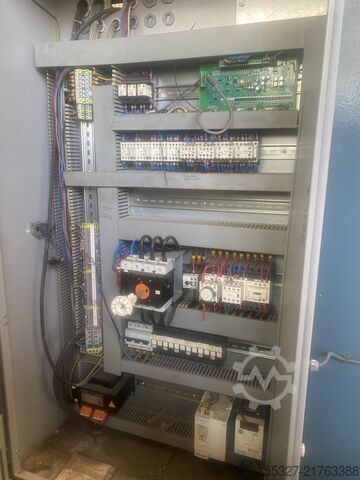

Condition: ready for operation (used), Year of construction: 2012, working width: 3,000 mm, sheet thickness (max.): 16 mm, overall weight: 14,600 kg, capacity 3000x16 mm, weight 14,600 kg Pgedpfxjy Egl Ro Ag Djk

Condition: good (used), Year of construction: 1994, functionality: fully functional, Pressure: 160 t Bending length: 3,200 mm Control unit: CYBELEC CybTouch 15 PS Machine weight approx.: 14,000 kg Accessories/Equipment: - Control unit retrofit March 2025 – CYBELEC CybTouch 15 - Foot switch - Tools Podpsxb Sm Njfx Ag Djgk

Condition: new, Year of construction: 2004, functionality: fully functional, Pressing force: 225 t Bending length: 3050 mm Distance between uprights: 2550 mm Control type: DNC 1200PS Eco/Col Ram stroke: 700 mm Throat depth: 405 mm Distance table/ram: min. 320 / max. 1020 mm Total power requirement: 29.5 kW Machine weight approx.: 15,500 kg Accessories/Equipment: Rear gauge Backgauge traverse adjustment: - X-axis gauging range (from bending line): 5–1000 mm - X-axis adjustment speed: max. 500 mm/sec Height adjustment: - R-axis adjustment range (from table surface): 85–235 mm - R-axis adjustment speed: max. 150 mm/sec Backgauge finger adjustment: - Z1-axis adjustment range (from left table front): 520–2365 mm - Z1-axis adjustment speed: max. 1000 mm/sec - Z2-axis adjustment range (from left table front): 690–2535 mm - Z2-axis adjustment speed: max. 1000 mm/sec - X1-axis adjustment range (from center line): ± 125 mm - X1-axis adjustment speed: max. 250 mm/sec Die shifting – adjustment via rear gauge (MVX): - Adjustment range: max. 100 mm Podjxb Tftepfx Ag Degk - Adjustment speed as per X-axis: 500 mm/sec Front support/press brake aides: - Swivel angle BV1/BV2-axis: 55° - Swivel speed BV1/BV2-axis: max. 45°/sec - Lifting force per swivel arm BV1/BV2-axis: max. 1,500 N

Condition: used, Year of construction: 2002, functionality: fully functional, Press force: 135 t Pgedpfoxfh R Esx Ag Dek Bending length: 3050 mm Distance between uprights: 2550 mm Stroke: 400 mm Oil volume: 300 l Control: CYBELEC DNC 1200 PS Eco Total power requirement: 15 kW Machine weight approx.: 10,700 kg Dimensions (LxWxH): 4200x2200x3200 mm Accessories/Equipment: – 2 bending aids in front of the machine – Parking right/left for bending aids – 3 backgauge fingers – CYBELEC DNC 1200 PS Eco control

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Pgedpjw Imq Rjfx Ag Dok

Condition: excellent (used), functionality: fully functional, Sheet width: 2,500 mm Sheet thickness: 4 mm Machine weight approx.: 5,000 kg Space requirement approx.: 3,000 x 2,000 x 1,700 mm Accessories/equipment: - Sheet holding device - Angle stop - 3x support arms - Foot switch - Light barrier Psdpfx Aeyz Rv Eog Djgk

Condition: good (used), Pressure 100 t Bending length 2050 mm Psdpsltk Uxefx Ag Dogk Control CYBELEC DNC 880S Equipment/accessories: - axes controlled: Y1, Y2, X, R, Z1, Z2, X1 - hydr. Wila clamping on top - motor. Crowning

Condition: good (used), Year of construction: 2008, pressing force: 320 t, table width: 60 mm, throat depth: 400 mm, total length: 41,000 mm, overall weight: 29,000 kg, travel distance X-axis: 600 mm, travel distance Z-axis: 2,900 mm, installation height: 550 mm, Equipment/accessories: Pgedpfx Ajqu Strsg Dek - hydr. crowning

Condition: new, Sheet width 3100 mm sheet thickness 10 mm cutting angle 2 ° Hold down 14 pieces Stroke rate 13 strokes/min throat 350 mm Oil capacity 260 l Control CYBELEC CybTouch 8 Total power requirement 22 kW Machine weight approx. 10.550 kg space requirement approx. 4000x2250x2050 mm Equipment: - Hydraulic swing cut plate shear - touch screen controller with digital display for backgauge - automatic cutting gap adjustment via controller - backgauge control 1000 mm travel with ball screws - Swing cut machine with cutting gap adjustment - 2 backgauge arms - 1 side stop Pgedpfx Agok Tzztj Dsk - light barrier behind the machine - cutting length limitation - cutting line illumination - chrome steel knives - ball rollers in the table - hinged finger guard with limit switch - foot switch - CE-sign / declaration of conformity - Operating instructions in German

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Pressure: 225 t Bending length: 4050 mm Control: DA 69 TW Oil capacity: 400 l Total power requirement: 17 kW Machine weight approx.: 18,100 kg Pgsdpfxoyz S Ngo Ag Dok Dimensions: 5700 x 2610 x 3300 mm

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Pressure: 225 t Bending length: 2050 mm Distance between uprights: 1550 mm Control: CYBELEC DNC 1200 PS Eco Stroke: 550 mm Table height: 700 mm Throat depth: 405 mm Distance table/ram: 320-870 mm Pjdpfewvi Uvjx Ag Dsgk Frame throat depth: 405 mm Machine weight approx.: 14,000 kg Accessories/Equipment: - Controlled axes: Y1 - Y2 - X - R - Z1 and Z2 manually adjustable - Lasersafe angle measurement - Pneumatically adjustable support table - Pneumatic upper and lower tool clamping - Two-hand foot pedal operation - Manual crowning
