Used Studer Favorit Cnc for sale (8,748)

Year of construction: 2023, condition: new, ProMax Professional Series CNC CNC PLASM PAPER BURNING machine TECHNICAL PARAMETERS Bdedpfx Ajnfvlvjd Asb working width 2000 working length 4000 ventilated 8-section table travel speed up to 50 m/min KEY EQUIPMENT DELTA servo drives X axis support with double rails quick START- preparing machines for cutting under 1 minute planetary gears helical bevel bars in class 6 touch screen monitor with industrial computer remote control sectional extraction table with pneumatic cylinders anti-collision system CS- system that protects the torch from collision CLS system of central lubrication double basing of Y axis laser marker indicating the torch position SC system - safety system We offer other dimensions of tables.

Year of construction: 2023, condition: new, PLASM PLOTER MODEL MTX 1530 Ventilated Construction: steel+aluminum Working field: 3000/1500/200 XY axis drive double-sided gate drive: 4Nm stepper motors with gears, gear strips Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasm system Linear guides: Hiwin IGUS guide Automatic material detection system Power supply: 240V Permissible load: 1800kg Total weight: 800kg net USB port for opening projects and transferring files using external pen-drives Sheet metal detection system THC cutting height control system Hiwin wire guides Double-sided gate drive: X-axis stepper motor and gear rails Y axis stepper motor and toothed rails Z axis stepper motor and ball screw Drives realized with Hiwin brand rails Ventilated table adapted for fume extraction INCLUDED: -ventilated table -control software in Polish -Declaration of Conformity CE - DTR - warranty. -start-up and training included in the price The latest control system available in our plotters: Integrated THC height controller Anti-diving torch function Types of accepted files : DXF, PLT ( hpgl ), G-Codes (.tap) Integrated CAM module: MyMini CAM -. Automatic object recognition Ven. External. Path analysis in advance Bdedpjnfvlgofx Ad Ajb Cutting parameter database Correction of design angle to material Ability to cut from any point Possibility of cutting from the end DXF,PLT import Automatic generation of paths with offsets, entries and exits The program can be used with an external CAM program Separate speed for holes Parameter database Project correction to material angle Soft and Hardware limits THC anti-diving functions Game pad control capability Material detection by touch system, floating head WHY IT'S WORKING WE ARE POLISH MANUFACTURER OF PLASMA BURNERS CLOSE COOPERATION WITH PROMA-ELECTRONIKA COMPANY (PRODUCER OF THC) PROFESSIONAL GUIDE RAILS OF RENOWNED COMPANY HIWIN, A FEATURE OF THESE GUIDES IS VERY LONG LIFE, HIGH QUALITY OF CUTTING NOT REQUIRING FURTHER PROCESSING COMPONENTS SUCH AS GEARS, MOUNTS, HANDLES, ETC. ARE MADE BY US USING CNC TECHNOLOGY, WHICH RESULTS IN HIGH QUALITY AND REPEATABILITY OUR STRENGTHS HIGH CLASS SHIELDED CABLES INDUCTIVE SENSORS ON ALL AXES, WHICH ARE NOT SUBJECT TO DUST JAMMING ADVANCED THC MY PLASM SMOOTH BURNER OPERATION CPC INTERFACE (VOLTAGE DIVIDER SEPARATOR) MOUNTED ON CUTTING MACHINES WE ASSEMBLE CUTTING MACHINES DELIVERED BY A CUSTOMER OR WE PURCHASE CUTTING MACHINES MEETING CUSTOMER'S REQUIREMENTS WE ASSIST IN ARRANGING LEASES It is possible to select the appropriate cutting machine to individual needs of the company. We offer other dimensions of tables.

Condition: used, Year of construction: 2012, Model Year: 2012 Bdodox Tuddopfx Ad Aob Width: 1,050 mm Length: 515 mm Height: 600 mm Number of Axes: 3 Holder: BT40 Spindle Speed (RPM): 8,000 Processable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, Peek

Condition: refurbished (used), functionality: fully functional, Cold Radial Forging Machine GFM SX-10 Bedpfx Adjq U R Rus Ajdb YOM: 1971/2024 CNC: Siemens SINUMERIK ONE with PLC 1500 Forging Box Number of forging hammers 4 Max. forging force per hammer 1250 kN Number of strokes 1200 1/min Hammer lenght 135 mm Diameter setting range 60 mm Forge eccentric 3,5 mm Chuck head Clamping force max. 50 kN Advance speed max. 20000 mm/min Stroke 1290 mm Workpiece rotation 35-71 1/min Workpiece lenght max. 900 mm Counter holder Clamping force max. 50 kN Advance speed max. 20000 mm/min Stroke 1290 mm Mandrel Clamping force max. 20 kN Advance speed max. 18000 mm/min Stroke 800 mm Dimensions Lenght approx: 9100 mm Width (with electrical cabinets and control panel) approx.: 4500 mm Height forging machine approx.: 2150 mm Forging height above floor: 1250 mm Weight (forging machine) approx.: 29000 kg The machine is completely revamped with a new Electrics, Hydraulics, new Control and with functionality test before delivery.

Year of construction: 1974, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 1293, CNC Radial Forging Machine GFM mod. SX-16 Manufacture: GFM (Austria) YOM: 1974 / 2022 Model: SXL-16 Machine number: 1293 PLC: Siemens S7 - Technology V4.2 with CNC Bosch Rexroth XM Numbers of Hammers: 4 Forging force: 800 Ton (200 t per Hammer) Strokes per minute: 580 Hammer length: 320 mm Maximum hammer setting scope - calculated by diameter: 100 mm Maximum diameter of forging regarding: - structural steel: circular cross section – Ø 160 mm square cross section – 130 mm - high alloy steel: circular cross section – Ø 120 mm square cross section – 100 mm Extreme quadrangle: 12 x 120 mm Maximum length of forging: 6000 mm Min and Max diameter of mounting in manipulator: 30 - 160 mm Feed of manipulator A: 6800 mm Feed of manipulator B: 7200 mm Passage through manipulator: Ø 130 mm Manipulators speed in fast move: 400 mm/s Feed speed of manipulators (stepless adjustment): 10 ÷ 115 mm/s Cooling water pressure: 3 ÷ 5 bar Temperature of inlet water: max. 30˚C Cooling water consumption: 34m3/h Pipe diameter for cooling water: 2” Compressed air pressure: min. 5 bar Pipe diameter for compressed air: Ø20 mm Consumption of compressed air: 1,5 Nm3/h Power supply (nominal power): 350 kW Motor voltage: 500 V Bdsdpfsq U Sa Sex Ad Aeb Control voltage 220 V Power of main engine: 200 kW Power of pump motors: 185 kW Power of manipulators motors: 2 x 22 kW Dimensions of the machine Axis height of forging above the hall level: 750 mm Maximum height of machine above the hall level: 2.050 mm Maximum length of machine on the hall level: 33.740 mm Foundation length: 34.200 mm Maximum width of machine on hall level without loading equipment: 4350mm Foundation width: 15.600mm Machine net weight: 124.490 kg

Condition: refurbished (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 1276, CNC Hot Radial Forging GFM SX-13 New in 1974 / 2022 New control system PLC SIEMENS S7 Machine number: 1276 No. of Hammers: 4 Forging force each hummer: 160 Ton Hammer stroke / min: 700/min Hammer lenght: 240 mm Diameter setting range: 80 mm Maximum forging diameter: Structural steel, round-cross section: Ø 130 mm square cross section: Ø 115 mm Smallest dimensions forged: Ø 25 mm Manipulator A max. displacement: 6820 mm Bdodpfxeq U R T Ne Ad Aeb Manipulator B max. displacement: 7150 mm Maximum workpiece length: 6000 mm Rapid speed manipulator: 400mm/sec Total connected power: 300 kW 380 V, 50 Hz Machine dimensions: Forging height over floor: 615 mm Total height pf the machinr over floor: 1665 mm Total machine lenght: 32670 mm Total foundation lenght: 33400 mm Tot. machine width (without auxliary equipments): approx 3885 mm Total foundation width: 16000 mm Total weight of the machine: 84.000 Kg

Condition: good (used), Year of construction: 2008, spindle speed (min.): 4,000 rpm, travel distance Z-axis: 500 mm, throat depth: 300 mm, Year of manufacture: 2008 Chuck diameter: 8" Number of axes: 3 Length: 500 mm Bdjdsx Nvm Sjpfx Ad Asb Neck diameter: 300 mm Spindle speed (rpm): 4000 Machinable material types: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Derlin, Peek

Condition: good (used), Year of construction: 2008, spindle speed (min.): 4,000 rpm, travel distance Z-axis: 500 mm, throat depth: 300 mm, Model Year: 2006 Bdedpfox Nvm Eox Ad Aob Chuck Diameter: 8" Number of Axes: 3 Length: 500 mm Swing Over Bed: 300 mm Spindle Speed (RPM): 4000 Machinable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, PEEK

Condition: good (used), Year of construction: 2008, spindle speed (min.): 5,000 rpm, travel distance Z-axis: 600 mm, throat depth: 300 mm, Year of manufacture: 2008 Chuck diameter: 10" Number of axes: 3 Length: 600 mm Bdsdpfx Aox Nvmrjd Asb Swing diameter: 300 mm Spindle speed (rpm): 5000 Processable materials: Steel, Aluminium, Titanium, Graphite, Copper, Invar, Composite, Delrin, Peek

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 110532, turning length: 1,980 mm, spindle bore: 105 mm, spindle speed (max.): 2,500 rpm, turning diameter over bed slide: 600 mm, controller model: Siemens 840DSL mit ShopTurn, TECHNICAL DETAILS Swing diameter over bed: 600 mm Distance between centers: 2,000 mm Bsdpfx Ajy Ex Hmed Aodb Turning length: 1,980 mm Spindle bore: 105 mm Speed: 2,500 rpm Power: 18.5 kW MACHINE DETAILS Control: Siemens 840DSL with ShopTurn Number of gear stages: 2

Condition: ready for operation (used), Year of construction: 2010, operating hours: 5,002 h, functionality: fully functional, machine/vehicle number: NT100JG0126, turning length: 424 mm, turning diameter: 370 mm, travel distance X-axis: 380 mm, bar passage: 52 mm, controller model: FANUC FS-31iA5 (MAPPS 4), TECHNICAL DETAILS Turning length: 424 mm Maximum turning diameter: 370 mm (270 mm with turret 2) Bar capacity: 52 mm Turn-mill spindle Full indexing specifications: Yes X-axis travel: 380 mm Y-axis travel: ±105 mm Z-axis travel: 460 + 155 mm (ATC) B-axis: ±120º Spindle speed: 12,000 rpm Drive power: 9/5.5 kW Tool magazine Magazine positions: 38 Tool holder: Capto C5 Maximum tool length: 250 mm (210 mm for tools under Ø70 mm) Maximum tool diameter: Ø70/Ø130 mm (with/without adjacent tools) Maximum tool weight: 5 kg Lower Turret X-axis travel: 155 mm Z-axis travel: 610 mm Number of tool stations: 10 Tool rotational speed: 6,000 min⁻¹ Driven tool power: 1.5/1.2 kW Main Spindle Spindle speed: 6,000 rpm Drive power: 11/7.5 kW Spindle bore: 73 mm Chuck type: Hollow chuck (8") Manufacturer: KITAGAWA Spindle nose: JIS A2-5 Maximum torque: 223 Nm Sub Spindle Spindle speed: 1,000 rpm BW axis: 4 fixed positions, 0º, -30º, -180º (-225º for overhang to conveyor, if equipped) MACHINE DETAILS Control: FANUC FS-31iA5 (MAPPS 4) Potential rated output: 39.24 kVA Dimensions & Weight Dimensions (L x W x H): 2,705 x 2,425 x 2,385 mm Weight: 8,800 kg Bodpfx Aey Edc Hod Asdb Operating Hours Powered on: 54,061 hours Spindle 1 operating hours: 9,813 hours Spindle 2 operating hours: 5,002 hours EQUIPMENT Chip conveyor Signal lamp High-pressure pump Air blower outside the spindle Foot switch (double) for main and sub spindle

Condition: ready for operation (used), Year of construction: 2005, operating hours: 19,229 h, functionality: fully functional, machine/vehicle number: 8043943123C, turning length: 1,050 mm, turning diameter: 465 mm, travel distance X-axis: 300 mm, travel distance Z-axis: 1,050 mm, controller model: Siemens 840 D, TECHNICAL DETAILS Turning diameter: 465 mm Turning length: 1,050 mm Swing diameter: 680 mm Chuck diameter: 325 mm X-axis travel: 300 mm Z-axis travel: 1,050 mm Spindle speed range: 3,500 rpm Rapid traverse X/Z: 30 m/min MACHINE DETAILS Control: Siemens 840 D Number of tool positions: 12 positions Tool holder: VDI 40 Weight: 7,500 kg Operating hours Bedey D I Ttepfx Ad Ajdb Spindle hours: 19,229 h Power-on hours: 81,347 h Note: The machine can be inspected under power upon request.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: X3936002, turning length: 1,500 mm, turning diameter: 600 mm, TECHNICAL DETAILS Turning length: 1,500 mm Bsdpoy Dgnpsfx Ad Ajdb Turning diameter: 600 mm

Condition: ready for operation (used), Year of construction: 2019, operating hours: 2,770 h, functionality: fully functional, machine/vehicle number: NL257181158, turning length: 705 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 795 mm, swing diameter over cross slide: 742 mm, swing diameter over bed slide: 920 mm, TECHNICAL DETAILS Working Area Swing diameter over bed max.: 920 mm Swing diameter over cross slide max.: 742 mm Turning length max.: 705 mm Bar capacity: 80 mm X-axis travel: 260 mm Y-axis travel: 50 mm Z-axis travel: 795 mm Main Spindle Power: 18.5/15 kW Max. speed: 4,000 rpm Chuck size: 10 inch Spindle bore: 91 mm Front bearing diameter: 140 mm Sub Spindle Power: 11/7.5 kW Max. speed: 4,000 rpm Chuck size: 6 inch Spindle bore: 45 mm Front bearing diameter: 85 mm Turret and Axes Tool stations: 12 Tool shank cross-section: 25 mm Max. driven tool speed: 10,000 rpm Rapid traverse X-axis: 30,000 mm/min Rapid traverse Y-axis: 10,000 mm/min Rapid traverse Z-axis: 30,000 mm/min Rapid traverse B-axis: 30,000 mm/min MACHINE DETAILS Control: M730UM with CELOS Operating hours: 2,770 h Power-on hours: 10,820 h Dimensions & Weight Machine height: 2,000 mm Bdedpfxjy A Nf Is Ad Aob Installation dimensions: 3,347 x 2,106 mm Weight: 5,820 kg EQUIPMENT Y-axis Sub spindle Main spindle with 10-inch chuck Sub spindle with 6-inch chuck Chip conveyor High-pressure coolant system Tool measuring system Parts catcher Workpiece ejector Interface for bar loader

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 1,585 mm, turning diameter: 300 mm, controller model: Siemens 840D Powerline, number of slots in tool magazine: 120, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Turning length: 1,585 mm Turning diameter: 300 mm Tool magazine capacity: 120 positions MACHINE DETAILS Control: Siemens 840D Powerline Bdjdpfx Adjy Dqtij Asb EQUIPMENT Sub spindle C-axis Hollow clamping device (diameter 68 mm) on main spindle, left Measuring device with probe Oil mist separator

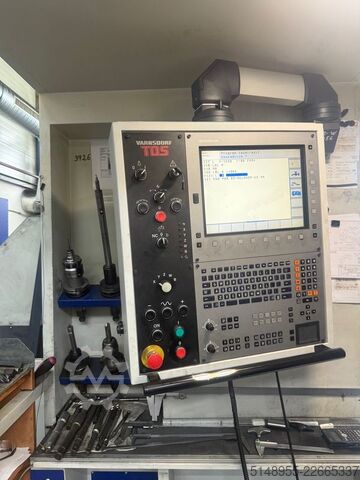

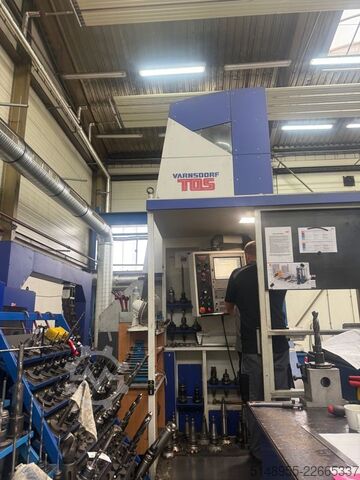

Condition: ready for operation (used), Year of construction: 1983, operating hours: 8,529 h, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,120 mm, travel distance Z-axis: 950 mm, table load: 3,000 kg, spindle diameter: 100 mm, The machine was modernised and overhauled in 2002! TECHNICAL DETAILS Working spindle diameter: 100 mm Spindle speed range: 1,800 rpm Taper: ISO 50 Spindle travel (W): 630 mm Travel X-axis: 1,200 mm Travel Y-axis: 1,120 mm Travel Z-axis: 950 mm Table clamping surface: 1,000 mm x 1,120 mm Bsdpfjy Edgfex Ad Aodb Table load capacity: 3,000 kg MACHINE DETAILS Control system: HEIDENHAIN TNC426 Motors and drives: SIEMENS Operating hours (as displayed): Control system on-time: 37,038 h Machine operating time: 30,987 h Program run time: 8,529 h Spindle run time: 12,156 h EQUIPMENT Handwheel: HR410

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 144205, turning length: 2,500 mm, controller model: MAZATROL PC-Fusion CNC 640MT, Equipment: chip conveyor, TECHNICAL DETAILS Turning length: 2,500 mm MACHINE DETAILS Control: MAZATROL PC-Fusion CNC 640MT Tool magazine: 30 tool stations EQUIPMENT High-pressure coolant system Driven tools Bsdpfsy Dp Acox Ad Ajdb Chip conveyor Measuring probe/tool measurement Steadies (lunettes) Note: A minor repair has been carried out on the machine. The repair certificate is attached.

Condition: ready for operation (used), Year of construction: 2004, operating hours: 60,425 h, functionality: fully functional, turning length: 1,050 mm, turning diameter: 465 mm, travel distance X-axis: 300 mm, chuck outer diameter: 325 mm, controller model: Fanuk Series 21I-TB, TECHNICAL DETAILS Max. turning length: 1,050 mm Turning diameter over cross slide: 350 mm Max. turning diameter: 465 mm Chuck diameter: 325 mm X-axis travel: 300 mm Z-axis travel: 1,050 mm Bdjdpfx Asy Hg S Hjd Aob Max. spindle speed: 3,500 rpm Max. torque: 630 Nm Spindle bearing diameter: 120 mm Max. bar diameter: 90 mm Tailstock stroke: 850 mm Quill stroke: 150 mm Rapid traverse X/Z axis: 30 m/min Number of tool turret positions: 12 Tool holder: VDI 40 MACHINE DETAILS Control: Fanuk Series 21I-TB Drive power: 33 kW

Condition: ready for operation (used), Year of construction: 2006, operating hours: 16,093 h, functionality: fully functional, turning length: 1,000 mm, spindle speed (max.): 5,000 rpm, controller model: MITSUBISHI M-720BM (MAPPS 2), counter spindle speed (max.): 5,000 rpm, milling spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Turning length: 1,000 mm Main Spindle Max. spindle speed: 5,000 rpm Drive power: 22/15 kW Spindle bore: 73 mm Counter Spindle Max. spindle speed: 5,000 rpm Drive power: 22/15 kW Spindle bore: 73 mm Milling spindle speed: 0 - 12,000 rpm Tool holder: Capto C6 Tool stations: 100 positions Hollow clamping device: 67 mm MACHINE DETAILS Control unit: MITSUBISHI M-720BM (MAPPS 2) Operating Hours Bjdpfsy Eydyjx Ad Aodb Operating hours: 26,875 h Spindle hours: 16,093 h EQUIPMENT Y-axis Fully indexable B-axis Chip conveyor, discharge right Standard coolant system Interface for high-pressure coolant system, 70 bar Tool spindle with through-spindle cooling Coolant spray gun Blow air through sub spindle Manual tool presetting on main spindle 3-color signal tower Double foot switch Simultaneous 5-axis machining Automatic power off Tool offset for 5-axis machining Programmable data input Dynamic interchange diameter/radius Stroke check prior to movement

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2011, operating hours: 18,972 h, machine/vehicle number: 363/11, actuation type: hydraulic, number of rollers: 4, roller (bottom) diameter: 150 mm, working width: 1,500 mm, sheet thickness (max.): 5 mm, TECHNICAL DETAILS Max. sheet thickness: 5 mm Max. working width: 1,500 mm Diameter of upper roll: 130 mm Diameter of lower rolls: 150 mm MACHINE DETAILS Control: CNC Drive: Hydraulic Bedpfx Aey Hhwqod Aodb Number of rolls: 4 Number of driven rolls: 4 Dimensions & Weight Dimensions (L x W x H): 3,700 x 1,200 x 1,200 mm Transport weight: 2,000 kg Transport packages: 2 Operating hours: 18,972 h EQUIPMENT Cone bending CE marking

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 71, turning length: 360 mm, turning diameter: 440 mm, spindle speed (max.): 5,000 rpm, bar passage: 45 mm, controller model: Fanuc 18iTA, TECHNICAL DETAILS Turning diameter: 440 mm Turning length: 360 mm Bedpfoy E Hpiex Ad Aodb Spindle speed: 50 - 5,000 rpm on both spindles Bar capacity: 45 mm Spindle nose: ASA A2-5 C-axis: 0.001 on both spindles MACHINE DETAILS Control: Fanuc 18iTA Upper turret: 12 driven stations Lower turret: 12 driven stations Main spindle: 11 / 7.5 kW Sub spindle: 7.5 / 5.5 kW EQUIPMENT Chip conveyor Parts catcher Bar loader interface Bar loader: LNS Mini-Sprint S2 42/3M

Condition: used, machine/vehicle number: 006488, X axis working area: 2500 mm Y axis working area: 850 mm Main Electrospindle power: 5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 11 Bedjwuclxepfx Ad Asdb

Condition: used, machine/vehicle number: 008255, X axis working area: 3050 mm Y axis working area: 850 mm Main Electrospindle power: 9 KW Bdjdpfx Aex A Td Ejd Asb Number of controlled axes: 3 axes Total number of drilling spindles: 19 Total number of tool changer positions: 4

Condition: used, machine/vehicle number: 008490, X axis working area: 3657 mm Y axis working area: 1524 mm Working Table: Flat table Bdsdpfjyxmwaex Ad Asb Main Electrospindle power: 12 KW Number of controlled axes: 3 axes Total number of drilling spindles: 10 Total number of tool changer positions: 12

Condition: used, machine/vehicle number: 008491, X axis working area: 2500 mm Y axis working area: 1300 mm Working Table: Pod and Rail Main Electrospindle power: 12 KW Number of controlled axes: 5 axes Bdedpfxoyxmvvs Ad Aeb Total number of drilling spindles: 0 Total number of tool changer positions: 24
