Used Bevel Gear - 1 Piece for sale (92,531)

Condition: like new (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 25582, Equipped with: Fanuc 30ia Control Hydraulic System Coolant System Chip Conveyor Pneumatics Lube System Jib Crane Change Gears Mist Collector Transformer Work Light Stack Light Specifications: Extreme Ratio: 10:1 Root Angle Range (B-Axis): -5 deg. TO 90 deg. Equivalent Root Angle Range: -8 deg. to 90 deg. (Equivalent refers to cradle type machine.) Face Hobbing: Examples of Maximum Gear Pitch Diameter -35 Degree Spiral -152 mm TRI-AC Cutter w/13 Blade Groups Max. Full Depth: 0.550" Max. Face Width: 1.6" Face Milling: Examples of Maximum Gear Pitch Diameter -35 Degree Spiral -7.5" Diameter Cutter Max. Full Depth: 0.625" Max. Face Width: 1.6" Max. Swinging Base Travel (B-Axis): -5 deg. to 90 deg. Max. Vertical Travel (Y-Axis): -4" to 7" Max. Horizontal Travel (X-Axis): -6" to 4" Sliding Base Travel (Z-Axis): 2" to 12" Machine Center to Work Spindle Face (Fixed): 4.5" Tooth Number: 5 to 200 Inclusive Cutting Diameters: Conventional Face Milling: 1.1" to 7.5" Helixact: 100mm to 200mm Fine Pitch: 102mm to 152mm Coarse Pitch: 152mm only Kdjdpfx Agezn Ayms Asu Speeds: B-Axis--Swinging Base (Degrees per Second): 30deg./sec. A-Axis--Work Spindle (Face Milling)(RPM): 0-75 A-Axis--Work Spindle (Face Hobbing)(RPM): 0-375 C-Axis--Cutter Spindle (RPM): 30-500 X-Axis--Horizontal (Inches per Second): 4.92"/sec. Y-Axis--Vertical (Inches per Second): 4.92" Z-Axis--Sliding Base (Inches per Second): 4.92"/sec. Work Spindle: Diameter of Taper at Large End (#39 Taper): 3-29/32" Taper per Foot: 39/64" Depth of Taper: 3" Floor Space: 95.75" x 63.5" Height (less mist collector): 90.75" Approx. Weight: 22,000 lbs

Condition: new,

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Kdodpfxjrtrzds Ag Aeu Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: used, Year of construction: 1973, machine/vehicle number: 24109, Equipped with: Stock Divider Hydraulic Work Clamping Kdodpfexdfa Uex Ag Aju Chip Conveyor Cutter Clamping Bolt Index Plate Change Gears Hydraulic System Coolant System Specifications: Min. Outside Cone Distance: 2.75" Max. Cone Distance: 10" Max. Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 6.8 to 16.5 RPM Feeds (seconds/tooth): 3 to 9 Main Motor: 5hp, 900 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approx. Floor Space: 118" x 86.5" Needed Overall Height: 70" Approx. Net Weight: 16,000 lbs Shipping Weight Boxed for Export: 17,000 lbs

Condition: new,

Condition: new,

Condition: new,

Condition: new,

Condition: new,

Condition: used, Year of construction: 1977, machine/vehicle number: 19909, Equipped with: Index Plate Geneva Cam Cutter Body Hydraulic Work Clamping Coolant Pump & Tank Chip Conveyor Additional Cutter Bodies, Index Plates & Geneva Cams Available Kedpfx Aoxdfazog Asdu Specifications: Minimum Outside Cone Distance: 2.75" Maximum Cone Distance: 10" Maximum Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 Deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 15.6 to 87.7 RPM Feeds (seconds/tooth): 5 to 34.3 Main Motor: 10hp, 1800 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approximate Floor Space: 118" x 86.5" Needed Overall Height: 70" Approximate Net Weight: 18,820 lbs Shipping Weight Boxed for Export: 20,500 lbs

Condition: good (used), gear diameter: 508 mm, total height: 1,780 mm, total length: 2,990 mm, total width: 2,200 mm, MODEL 610 GLEASON GEAR ROUGHER/FINISHER Equipped with: Hydraulic Workholding Pendant Control Chip Conveyor Index Plate Geneva Cam Change Gears Hydraulic System Coolant System Manuals Specifications: Maximum Gear Pitch Diameter: 20" Kdjdpsrtrykofx Ag Aou Cutter Diameters: 9", 10.5", 12",14",16", 18" Whole Depth: 1.250" Root Angle: 60 to 80 deg. Face Width: 3.0" Extreme Ratio (Minimum): 2.25 to 1 Number of Teeth: 20 to 75 Diameter of Taper Hole at Large End: 3-27/64" Cutter Speeds (Per Minute) for Roughing: 15.6' to 87.7' Feeds (Seconds Per Tooth) for Roughing: 3 to 35 Cutter speeds (Per Minute) for Finishing: 6.8' to 20.5' Feeds (Seconds Per Tooth) for Finishing: 3 to 9 Floor Space: 118" x 86.5" x 70" H Weight: 17,500 lbs.

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 25734, wheel diameter: 700 mm, gear diameter: 1,000 mm, wheel width: 152 mm, workpiece spindle speed (max.): 67 rpm, feed length X-axis: 610 mm, feed length Y-axis: 610 mm, feed length Z-axis: 725 mm, pivoting range: 95 °, spindle bore: 203 mm, travel distance X-axis: 610 mm, travel distance Z-axis: 725 mm, Equipment: rotational speed infinitely variable, Equipped with: Fanuc 150MB Control Hydraulic Chucking Work Spindle Large Bore Work Spindle #80 Taper Stock Divider Helical Motion Modified Roll Hansen Coolant Chiller & Filtration Coolant Tank & Pumps Chip Conveyor Ksdoxaqa Sepfx Ag Aedu Chip Hopper Reven Mist Collector Hydraulic System Transformer Cutter Bolt Work Light Operator Platform Hand Tools Documentation Specifications: Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1 Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm) Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm) Range of Tooth Numbers: 1-300 Inclusive Gear Pitch Diameter, Maximum: 1000 mm (39.37") Cutter Size, Maximum: 18" (diameter) Face Milling Cutter Size, Maximum: 350 mm (radius) Face Hobbing Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg. Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed) A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM B-Swinging Base: 0 to 30 deg./sec, N/A C-Cutter: 0 to 500 deg., Same X-Horizontal: +/-305mm (+/-12") Y-Vertical: +/-305 mm (+/-12") Z-Sliding Base: -25/+700mm (-1/+28") B-Root Angle: -5 Degree/+90 Degree Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper) Taper Per Foot:3/4", Same Depth of Taper Front:6", 152.40 mm Depth of Bore: 678 mm (26.7") Diameter of Taper Bore: 140 mm (5.5") Diameter Through Spindle of Hole:7.125", 180.98 mm MACHINE DIMENSIONS: Length x Width:233"x 209", 5920 mm x 5310 mm Height: 129", 3280 mm Weight: 65,000 lbs., 29,484 kg

Condition: good (used), Year of construction: 2000, gear diameter: 449 mm, Equipped with: Fanuc 150MB CNC Control Dry Cutting Cutter Shroud Chip Evacuation System Auto Doors Hydraulic System Lubrication System Work light Stack Light Specifications: Largest Speed Ratio: 10:01 Work Area (Continuous): Largest Depth of Teeth: 15.24 mm Largest Width of Tooth Face: 50.8 mm Work Area Axis: Horizontal Movement X Axis: -114 - 178 mm Vertical Movement Y Axis: -178 - 190 mm Kjdpfxoruakgo Ag Aedu Movement of the Carriage Baseplate Z-Axis: -10.16 - 500 mm Workpiece Headstock Swiveling Range B-Axis: -3 - 90 Degree Maximum Distance Machine Center to Spindle Side: 165 mm Number of Teeth: 5-200 Inclusive Max. Gear Pitch Dia. of Typical 35 Deg. Spiral Angle Gear Using Max. Cutter Dia. 12" Cutter at the Following Ratios: Face Milling 1 x 1 - 13.5" - 342.9mm 2 x 1 - 16.0" - 406.4mm 5 x 1 - 17.7" - 450.0mm Face Hobbing (210mm Dia. Cutter) 1 x 1 - 10.560" - 268.22mm 2 x 1 - 10.286" - 275.00mm 5 x 1 - 11.810" - 300.00mm Milling Head Diameter: Helixact: 100,125,169,200,250,320mm Continuous Gumption Procedure, Teichloroethylene: 102 - 210 mm Workpiece Spindle: Drilling of Large Diameters: 5 3/64" Cone Upward Gradient on 304.8 mm (1 Foot): 21/32" Deep One of the Cone: 5.29" Diameter of the Whole Spindle Perforating: 3.35" Speeds: B-Axle Workpiece Headstock Drag Axis: 30 Degrees A-Axle Workpiece Spindle Number of Revolutions: 0 83 min-1 X-Axis Horizontal: 80 mm/sec Y-Axis Vertically: 80 mm/sec Z-Axis Carriage Baseplate: 80 mm/sec Space Requirement L x W x H (Approximate): 4.75 x 3.40 x 2.54m / 188" x 134" x 100" Machine Weight (Approximate): 10980 kg / 24,156#

Condition: new, for Spider 230; Spider 350 Kdodpfx Ae Abfpzog Aou Packaging quantity: 1 Packaging unit: piece

Condition: good (used), Year of construction: 2007, max. wheel diameter 500 mm gear width 200-400 mm module 12 turning speeds 0-3250 U/min bracke pressure bis max. 95 Nm inner taper Konus #39 Control Fanuc 16 total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2.350 x 2.240 x 2.500 mm Kdedovr Hf Eepfx Ag Aou HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm.

Condition: new,

Condition: new,

Condition: good (used), scrubber dryer, floor cleaning machine, mop machine, gearbox -Manufacturer: Gansow, 4 pieces gearbox from scrubber dryer SG879/5 .: 122154 -Bolt circle: Ø 90 mm / M8 -Shaft: Ø 15 x 55 mm -Translation: i= 9:1 Kedjxbcc Ispfx Ag Aedu -Rotation direction: 2x right-hand / 2x left-hand rotation -Shipping/Price: complete -Dimensions each: 230/120/H120 mm -Weight: 4.0 kg/piece

Condition: new,

Condition: new,

Condition: new,

Condition: new,

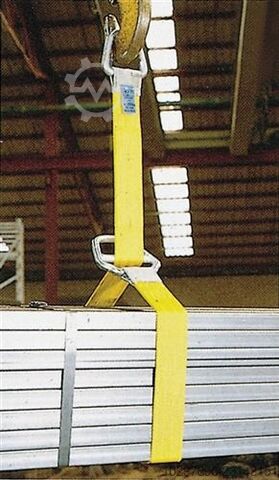

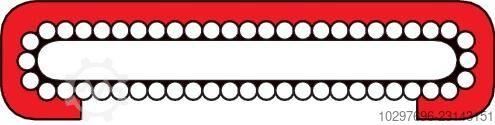

Condition: new, Lifting sling, DIN EN 1492-1, L. 8 m, single-leg capacity 3000 kg · 2-ply with D-ring Ksdpfx Agj Ack Dtj Aodu · Manufactured according to DIN EN 1492-1. Color-coded according to the Euro standard. · Other technical features: sewn-in fittings · Requires testing: yes Design: sewn-in fittings Single-leg capacity: 3000 kg Length: 8 m Multi-leg capacity (WLL) in kg with sling angle TF1: 3000 kg / (WLL) in kg with sling angle TF3: 2400 kg / (WLL) in kg with sling angle TF2: 6000 kg U-shaped capacity: 6000 kg Straight pull capacity: 2400 kg

Condition: new, Electric chain hoist, capacity 125 kg, main lifting speed 8 m/min, FEM group 3m, drive unit · with electric drive · 2 lifting speeds · lifting height 3 m · built-in slip clutch · control cable length 2 m · chain storage included · robust aluminum housing · low overall height Overall height D: 378 mm Number of load strands: 1 Load capacity: 125 kg Ksds Aci Nnjpfx Ag Ajdu Protection class: IP 55/IP 65 Design: electric drive Flange width F: 58-310 mm Fine lifting speed: 2 m/min Lifting height: 3 m Main lifting speed: 8 m/min Power: 0.05 kW Duty cycle ED: 50 % Lifting motor: 0.18 kW FEM group: 3 m

Condition: new,
