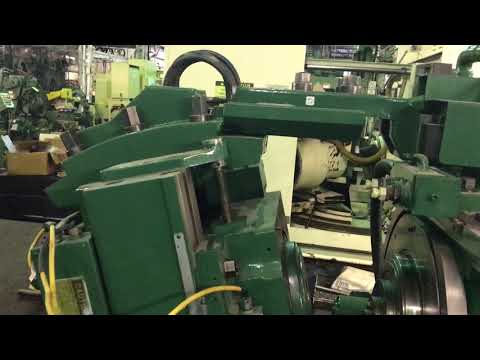

Spiral Bevel Gear Generator

Gleason 608

Condition: used, Horizontal Gear Hobbing Machine WMW MODUL ZFWZ 1250/3 Year of manufacture: 1982 Control: conventional Country of origin: Germany Max. gear diameter: 1250 mm Kdjdswxxxcspfx Ad Iew Gear width: 600 mm Module – max.: 16 Module – min.: 2 Cutter diameter: 240 x 280 mm Table clamping surface: 1020 mm Speed range: 28 – 200 rpm Axial feeds: 0.28 – 8 mm/min Radial feeds: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Swivel range of milling slide - L/R: +/- 45° Rapid traverse motor: 12.5 kW Voltage: 380 V Frequency: 50 Hz Total power requirement: 5/19.5 kW

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 mm table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Equipment/accessories - 7 vices Ksdpfsvu E Spox Ad Iedw - change wheels - Clamping devices - Documentation

Condition: good (used), turning diameter over bed slide: 1,250 mm, turning length: 8,000 mm, workpiece weight (max.): 12,500 kg, DBC Turning Length: 8000mm Swing over bed Ø: 1280mm Swing over cross slide Ø:1000mm Length: 12500mm Width: 2100mm Height: 1800mm Kdedpfxswwtcms Ad Ijw Weight: 35000kg

Condition: ready for operation (used), Year of construction: 1986, overall weight: 4,700 kg, Equipment: documentation/manual, type plate available, Kesel Rack Milling Machine Type L79/2100 with Milling Head Type F55 Year: 1986 Machine No.: 3031 Infinitely variable milling head speed: 0-210 rpm, drive power: 18.5 kW Max. module: 12, max. cutter diameter: 250 mm Clamping/milling length (X-axis): 2100 mm, helix angle: ±30°, cutter feed travel (Z-axis): 370 mm, infeed (Y-axis): 250 mm, milling head swivel: ±30°, max. workpiece width (machining width): 280 mm Milling feed: 10-350 mm/min, rapid return: 5,000 mm/min, table feed max. 3,000 mm/min Cam control, second increased feed rate via cam, hydraulic clamping device with 10 clamping jaws, max. clamping force: 7,500 daN, hydraulic clamping stroke: 7 mm, clamping width: 190 mm Coolant unit with permanent magnet chip conveyor Heidenhain 2-axis position measuring system Machine weight approx. 4,700 kg Milling machine – Milling length 2100 mm with F55 milling head Kodpfx Adjw Rnz Ne Ijdw Infinitely adjustable from 0 – 210 min⁻¹ Drive power 18.5 kW Feed rate max. 500 mm/min, specially controlled via cam for skip feed with 2 shafts – second feed speed Magnetic chip conveyor with chip container and coolant system Hydraulic clamping device with special clamping bars for clamping 2 shafts Milling head with 9-step gear for cutter speeds from 44-296 min⁻¹ Height-adjustable and swiveling milling head Table guide with steel telescopic cover Automatic hydraulic table clamping Coolant system with chip collection trays Central lubrication system for supplying oil to guides, spindles, and bearing point. Automatic with adjustable timer Digital display for X and Y axes Hydraulic clamping for Y-gib Swiveling control panel Swiveling feed slide for helical gearing 30° left/right Heidenhain TNC151 path control Length measuring systems – milling head clamping is hydraulic Inspection under power is possible by appointment. All technical data subject to errors and omissions. Price on request Sale exclusively to EU countries.

Condition: used, Year of construction: 2001, tip circle diameter 1000 mm root circle diameter 50 mm max. module 18 mm min. module 1 mm max. wheel diameter 1000 mm Kodpfxewp S Ths Ad Isdw gear width 630 mm Profile height max. 41 mm helical angle (left/right) max. 45 ° table diameter 720 mm max. table load 1500 kg grinding wheel diam. min/max. 180 / 400 mm grinding wheel width 60 (45/30) mm grinding spindle speed 0 - 3100 U/min total connected load 30 kVa

Condition: used, Year of construction: 1998, x-travel 6000 mm y-travel 4000 mm z-travel 1250 mm w-axis 1500 mm Control Fidia max. workpiece weight 60000 kg Kodeu I E Emopfx Ad Iedw Control unit for tool magazine/tool changer Siemens turning speeds 6,3 - 4000 U/min surface area 2500 x 4500 mm 48 St. tool taper SK50 daylight between the side columns 3700 mm rapid traverse 30000 m/min total power requirement 63 kW weight of the machine ca. 150 t required space 16,8 x 10,3 x 7,9 m

Condition: used, Year of construction: 2008, max. wheel diameter 900 mm gear width 450 mm max. module 10 min. module 1 min. number of teeth 8 milling cutter dia. x width 192 x 215 mm distance table / middle of spindle 910 / 630 mm distance bet. workpiece spdl. ctr-milling sp. 50 / 550 shifting 200 mm swivelling of milling head 240 Grad Kdedpewzmp Usfx Ad Ijw table diameter 700 mm table bore diameter 160 mm milling head speed 25 - 160 U/min total power requirement 21 kW change gears, arbors, shifting, 2-cut circle, chip conveyor, outer steady # with crowning device # in excellent working condition

Condition: excellent (used), Year of construction: 2013, turning height: 2,150 mm, turning diameter: 2,000 mm, Swing diameter 2,000 mm, turning height 2,150 mm, X-axis 1,150 mm, rotary table diameter 1,800 mm, chip conveyor, 25-position tool changer, fleece filter cleaning system, Kdedpfew Edvyox Ad Iew

Condition: good (used), Faceplate: 3600 mm Turning diameter: 4000 mm Max. height under crossbeam: 2950 mm Vertical ram travel: 1750 mm Kdjdpfx Adowf Iwuj Iow Horizontal ram travel: 2255 mm Scale Chip conveyor

Condition: excellent (used), functionality: fully functional, turning diameter: 1,000 mm, turning length: 8,000 mm, total length: 10,500 mm, A used lathe from the Italian manufacturer Leopolod Pontiggia, model NH 500, is for sale. Technical specifications: Turning diameter over bed: 1,000 mm Turning length: 8,000 mm Extensive equipment as in the photos: Kdsdpfx Adjv Epige Iew 1 x 3-jaw chuck 1 x 4-jaw chuck 1 x steady rest + various adapters
