Used Brand (Schweiz) Surface Grinding Machine, Precision Surface Grinding Machine, Surface Grinder for sale (71,321)

Condition: used, Surface Grinding Machine, Precision Surface Grinder BRAND (Switzerland) Model FS 735 Machine No.: 322 82 Year of manufacture: 1982 Electro-magnetic chuck 700 x 300 mm Grinding length 700 mm Grinding width 300 mm Cross travel max. 340 mm Table longitudinal travel max. 750 mm Distance spindle center to magnet max. 400 mm Grinding wheel diameter 300 mm Grinding wheel width 50 mm Grinding wheel width 60 mm with single-sided recess in the grinding wheel Grinding wheel bore 127 mm Table longitudinal feed 0 - 30 m/min, stepless Table cross feed per pulse 1 to 10 mm Rapid cross traverse 340 mm in 6 sec Vertical infeed 0.001 - 0.055 mm Vertical rapid traverse 150 mm/min Grinding wheel speed 2500 rpm Grinding wheel surface speed 39 m/s Spindle drive motor power max. 5.7 kW Hydraulic motor power 1.5 kW Power supply 400 Volts, 50 Hz, approx. 7 kVA - Stepless grinding wheel speed adjustment - Automatic depth infeed - Automatic table cross feed, hydraulic and mechanical handwheel for table cross movement - Hydraulic clamping for the cross movement - Hydraulic table longitudinal movement Bdjdpfxsn Saf Nj Apbec - Hydraulic dressing device - Electromagnetic chuck BRAILLON, Type BJP 700 x 300 mm, overall height 100 mm, continuously adjustable magnetic force - Centralized oil lubrication - BEDA band filter system with coolant tank and pump standing beside, L x W x H = 1600 x 650 x 1100 mm - Separate hydraulic unit with electrical cabinet, L x W x H = 1800 x 750 x 1700 mm - Machine equipped with one grinding wheel Ø 295 mm, width 50 mm - Two additional grinding wheel holders with grinding wheels (internal diameter 127 mm) - One grinding wheel puller Required space for surface grinder L x W x H 2200 x 1800 x 2350 mm Weight of surface grinder approx. 3100 kg Weight of hydraulic unit 500 kg Weight of band filter system 200 kg Space requirement on pallet 2700 x 2200 x 2500 mm Total weight with pallet approx. 4000 kg Good condition

Condition: used, Surface grinding machine BLOHM type HFS 6 make no.: 10493 year of construction 1973 Electro magnetic clamping plate 600 x 300 mm grinding length 600 mm grinding width 400 mm table longitudinal movement max. 650 mm transversal movement 350 mm distance spindle center - table surface max. 600 mm distance spindle center - magnetic plate max. 517 mm Clamping surface table 1020 x 300 mm grinding wheel diameter 300 mm grinding wheel width 50 mm grinding wheel bore 76 mm table longitudinal feed 2-30 m/min infinitely variable table cross feed 2-65 mm stepless electric cross feed 3 m/min vertical feed 0,001 - 0,020 mm per infeed pulse vertical feed 0,250 m/min grinding wheel speed 1400 / 2800 rpm. Motor power hydraulic pump 2,2 kW Motor power grinding spindle 5 / 6 kW Mains connection 380 Volt, 50 Hz. Total power 11 kW - automatic depth adjustment - hydraulic longitudinal table movement Bedpfx Apsd Hbafjbedc - grinding wheel dresser on the headstock - electromagnetic plate height 83 mm - coolant system adjacent, with magnetic filter in filter housing - grinding spindle circulating lubrication - adjacent control cabinet (800 x 500 mm) - swiveling control panel - operating instructions and spare parts manual space requirement L x W x H 3000 x 2200 x 2100 mm weight surface grinding machine 3000 kg weight switch cabinet 200 kg good condition

Condition: excellent (used), Year of construction: 2008, Table size 600 x 300 mm Max. Grinding area 600 x 300 mm Dimensions of grinding wheel 406 x 50 x 127 mm Min. / max. distance table / spindle center 500 mm Table speed, hydraulic infinitely variable 5 - 25 m/min. cross feed 0,1 - 20 mm Cross feed 900 mm/min. Handwheel, transverse 1 revolution 5 mm 1 graduation mark 0.02 mm Automatic vertical infeed 0.001 - 0.999 mm/time Handwheel, vertical 1 revolution 2 mm 1 graduation mark 0.01 mm Euei3ccb with the AD 5 (automatic infeed) 0.005 mm Grinding motor speeds 1450 / 2900 rpm. grinding motor 1,5 / 3,7 kW hydraulic pump motor 0,75 kW drive motor , transverse 1,1 kW Drive motor , vertical 1,1 kW Bdodpfjizka Iox Apbec Machine dimensions L x W x H approx. 2300 x 1800 x 2100 mm Weight 1700 kg Accessories / Special features: - 2-axis digital display - Automatic vertical infeed with spark-out and subsequent upward movement - Electro-magnetic clamping plate L x W 600 x 300 mm - Manual grinding wheel dresser - Grinding wheel speed, 2 steps - 1 pc. grinding wheel with flange - Control panel - illumination - Coolant system with belt filter and magnetic separator - Machine feet - CE conform Siegfried Volz Machine Tools Rüschebrinkstr. 11-153 D - 44143 Dortmund - Wambel

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, grinding length: 350 mm, grinding width: 160 mm, type of input current: three-phase, overall weight: 740 kg, rotational speed (max.): 2,900 rpm, power: 1 kW (1.36 HP), input voltage: 200 V, disc diameter: 250 mm, Equipment: documentation/manual, Manufacturer Mitsui MGG CO.LTD Type: MSG-200M Year of manufacture:1991-4 Maximum grinding width: 160 mm Maximum grinding length: 350 mm Maximum table length movement: 360 mm Maximum table length movement: 200 mm Table movement per handwheel revolution: 3 mm /revolution Grinding spindle speed: spindle: 2900 rpm 50 Hz Standard grinding wheel diameter: 200 mm Grinding wheel width: 25 mm Bedpfxowvf Hbo Apbjdc Grinding wheel speed: 2900 rpm 50 Hz Grinding wheel bore diameter: 31.75 mm Electrical power: 2 HP 1 kW 4P 200V 3 phase Weight, approx. 740 kg

Condition: used, Surface Grinding Machine, Precision Surface Grinding Machine BRAND (Switzerland) Type Mini 500 machine no.: 505/86 year of construction 1986 Electro magnetic clamping plate 450 x 200 mm grinding length 500 mm grinding width 240 mm cross movement 220 mm table longitudinal movement 550 mm distance spindle center - magnet max. 350 mm grinding wheel diameter 225 mm grinding wheel width max. 25 mm grinding wheel bore 50,8 mm table longitudinal feed 0,5-24 m/min infinitely variable table cross feed pulse 0,05-30 mm cross feed 10 - 1000 mm/min. vertical infeed 0,001 - 0,05 mm vertical dividing feed 600 mm/min. Grinding wheel speed 2820 rpm. Grinding wheel speed 33 Vm/sec. motor power grinding spindle 2,2 kW Motor power hydraulics 1,1 kW mains connection 400 Volt, 50 Hz, 9,5 kVA - automatic depth infeed, vertical infeed - mechanical handwheels for axis movements - hydraulic longitudinal table movement - electromagnetic plate WAGNER 450 x 200 mm, height 73 mm - central lubrication - belt filter system with coolant tank and pump adjacent L x W x H = 1300 x 500 x 650 mm - 2 pieces additional grinding wheel holders for grinding wheels with 50,8 mm inner diameter - 1 piece balancing shaft and 1 piece grinding wheel puller - hydraulic power pack L x W x H = 700 x 300 x 750 mm space requirement L x W x H 2000 x 1400 x 2250 mm Bdodjd Nrqfopfx Apbjc weight approx. 1600 kg good condition

Condition: new, Precision surface grinding machine with automatic longitudinal and transverse feed. All castings, such as machine stand, table, etc., are made of MEEHANITE® quality cast iron and are therefore ideally suited for rough everyday work. Ideal for tool and mold making. Table size: 250 x 500 mm Installation height (max. distance spindle/table): 500 mm Max. Table load: 250 kg Motor power main spindle: 1,5 kW Connection: 400 V Dimensions (LxWxH), approx.: 2250 x 1400 x 1800 mm Weight, approx.: 1350 kg* * only machine without auxiliary units Features: - All castings, such as machine column, table, etc., made of MEEHANITE® quality castings. - All guideways hardened and ground - Automatic cross and longitudinal feed - NC-controlled automatic vertical infeed - Ergonomically arranged control panel - Automatic central lubrication - Separate hydraulic power pack - Grinding wheel - Grinding wheel flange - Manual dressing device - Balancing mandrel - Balancing scale - Dressing diamond - Demagnetizing device - Machine light - leveling elements - Operating tool - Operating instructions - CE Available options: - Elektromagent clamping plate (fine-pole) - Automatic demagnetization control for electromagent clamping plate - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Coolant system with magnetic separator / magnetic separator Bedpfsp Dt T Nsx Apbodc - Partial enclosure with limit switch protected sliding doors - Full enclosure with limit switch protected sliding doors - Additional grinding wheel flange - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 - Ball screw for cross feed - Further options on request Pictures may show the machine with special accessories and with application examples.

Condition: new, Precision surface grinding machine with automatic longitudinal and transverse feed. All castings, such as machine stand, table, etc., are made of MEEHANITE® quality cast iron and are therefore ideally suited for rough everyday work. Ideal for tool and mold making. Table size: 200 x 450 mm Installation height (Max. distance spindle/table): 450 mm Max. Table load: 150 kg Motor power main spindle: 1,5 kW Connection: 400 V Dimensions (LxWxH), approx.: 2080 x 1200 x 1700 mm Weight, approx.: 950 kg* * only machine without auxiliary units Features: - All castings, such as machine column, table, etc., made of MEEHANITE® quality castings. - All guideways hardened and ground - Automatic cross and longitudinal feed - NC-controlled automatic vertical infeed - Ergonomically arranged control panel - Automatic central lubrication - Separate hydraulic power pack - Grinding wheel - Grinding wheel flange - Manual dressing device - Balancing mandrel - Balancing scale - Dressing diamond - Demagnetizing device - Machine light - leveling elements Bdedpfxsp Dt Ttj Apboc - Operating tool - Operating instructions - CE Available options: - Elektromagent clamping plate (fine-pole) - Automatic demagnetization control for electromagent clamping plate - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Coolant system with magnetic separator / magnetic separator - Partial enclosure with limit switch protected sliding doors - Full enclosure with limit switch protected sliding doors - Additional grinding wheel flange - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 - Ball screw for cross feed - Further options on request Note: Picture shows FSM 2550 AH of identical design. Pictures may show the machine with special accessories and with application examples.

Condition: new, Precision surface grinding machine with automatic longitudinal and transverse feed. All castings, such as machine stand, table, etc., are made of MEEHANITE® quality cast iron and are therefore ideally suited for rough everyday work. Ideal for tool and mold making. Table size: 400 x 800 mm Installation height (max. distance spindle/table): 550 mm Max. Table load: 400 kg Motor power main spindle: 3,7 kW Connection: 400 V Dimensions (LxWxH), approx.: 3450 x 2050 x 1900 mm Weight, approx.: 3250 kg* * only machine without auxiliary units Features: - All castings, such as machine column, table, etc., made of MEEHANITE® quality castings. - All guideways hardened and ground - Automatic cross and longitudinal feed - NC-controlled automatic vertical infeed - Ergonomically arranged control panel - Automatic central lubrication - Separate hydraulic power pack - Grinding wheel - Grinding wheel flange - Manual dressing device - Balancing mandrel - Balancing scale - Dressing diamond - Demagnetizing device - Machine light Bedep Dt Uiopfx Apbjdc - leveling elements - Operating tool - Operating instructions - CE Available options: - Elektromagent clamping plate (fine-pole) - Automatic demagnetization control for electromagent clamping plate - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Coolant system with magnetic separator / magnetic separator - Partial enclosure with limit switch protected sliding doors - Full enclosure with limit switch protected sliding doors - Additional grinding wheel flange - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 - Ball screw for cross feed - Further options on request Note: Picture shows FSM 3060 AH of identical design. Pictures may show the machine with special accessories and with application examples.

Condition: new, Precision surface grinding machine MIOTAL FSM 3060 AH Table size: 300 x 600 mm Installation height: 500 mm Max. Table load: 300 kg Motor power: 4.6 kW Connection: 400 V Dimensions: 2300 x 1790 x 2200 mm Weight, approx.: 2000 kg Equipment and scope of delivery: - All cast parts, e.g. machine stand, table etc. made of MEEHANITE® quality casting - Automatic cross and longitudinal feed - Permanent lubrication - Automatic cross lifting device - Splash guard on the rear - Grinding wheel - Grinding wheel flange - Honing device - Balancing mandrel - Balancing scale - Dressing diamond - Machine light - Leveling elements - Operating tool - Operating instructions - CE Special equipment of our storage machine: Bjdpfx Apsd Sfd Eobodc - Electric magnetic clamping plate 300 x 600 mm (fine pole) - 2-axis digital readout, accuracy 0.001 mm, X 450 / Y 500 mm - Automatic vertical infeed AD 5 (NC-controlled) for model AH - mode of operation: Automatic rapid traverse vertical and automatic fine feed vertical - Automatic demagnetization control for magnetic clamping plate - Coolant system with magnetic separator - Manual dressing device - Parts enclosure - Ergonomically arranged control panel - Additional grinding wheel flange - Ball screw for cross feed - Grinding wheel and flange for mild steel - Grinding wheel and flange for HRC55 Alternative equipment features / other machine configurations on request.

Condition: used, functionality: fully functional, machine/vehicle number: 113509, High-precision surface grinding machine Willis, 460V, industrial grinder Bodpfsy Eyt Ujx Apbedc

Condition: excellent (used), Year of construction: 1981, grinding length: 450 mm, grinding width: 200 mm, power: 1.5 kW (2.04 HP), input voltage: 200 V, Manufacturer Mitsui MGG CO.LTD Type: MSG-250M Year of manufacture:1981-10 Maximum grinding width: 200 mm Maximum grinding length: 450 mm Maximum table length movement: 500 mm Maximum table length movement: 250 mm Table movement per handwheel revolution: 6 mm /revolution Grinding spindle speed: spindle: 2900 rpm 50 Hz Standard grinding wheel diameter: 200 mm Grinding wheel width: 25 mm Grinding wheel speed: 2900 rpm 50 Hz Bjdewvga Nepfx Apbedc Grinding wheel bore diameter: 31.75 mm Electric power: 2 HP 1.5 kW 4P 200V 3 phase Weight, approx. 1050 kg

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, WE OFFER AND VERY NICE CONDITION SURFACE GRINDING MACHINE READY TO WORK. MACHINE WILL BE READY FOR PICK UP IN MIDLLE OF FEBRUARY 2026 FULLY DATA IN PHOTO-TECHNICAL DETAILS TECHNICAL DATA Bdsdoydrhgopfx Apbjc Table surface dimensions: 700 x 1020 Max table Travel: 760 x 1150 Max Distance Center of Spindle table: 600mm Table speed Approx: 5-25 M/min

Condition: excellent (used), Year of construction: 2001, XYZ 1224 Surface Grinding Machine Electro Magentic Chuck 304 x 609mm Max. Longitudinal Grinding Length 609mm Max. Cross Grinding Length 304mm Max. Distance from Table Surface to Spindle Centre 508mm Max. Longitudinal Hydraulic Travel 660mm Longitudinal Travel Variable 5 – 25m/min Cross Travel Automatic Increment 0.1-10mm Cross Travel Automatic Travel 304mm Cross Feed Handwheel Per Revolution 5mm Cross Feed Handwheel Per Graduation 0.02mm Down Feed Handwheel Per Revolution 2mm Down Feed Handwheel Per Graduation 0.01mm Spindle Motor Speed 3000rpm 50Hz Spindle Motor Power 5hp Hydraulic Motor Power 1Hp Standard Wheel Dia. 355mm Standard Wheel Width 38mm Stand Wheel Bore 127m Machine Weight 1700kgs Foot Print (LW) 3550 x 2550mm Supplied with: 2 Grinding Wheels Balancing Unit Coolant & Dust extraction Toolbox Hydraulic Tanks Diamond Wheel Dresser 415V Electrics Machine Pads & Levelling Bolts Low Volt Work Lamp Bjdpfx Asy R N Aispbodc For Sale with Jet Machinery Ltd Jet Machinery Stock No: #79197 Machine Serial Number: 134046 Cost: £11,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, grinding length: 500 mm, grinding width: 250 mm, total height: 1,800 mm, total length: 2,250 mm, total width: 1,400 mm, feed rate X-axis: 25 m/min, grinding wheel diameter: 205 mm, table length: 500 mm, type of input current: three-phase, table width: 250 mm, grinding wheel width: 19 mm, spindle speed (max.): 2,900 rpm, overall weight: 1,350 kg, grinding spindle motor power: 1,500 W, rotational speed (max.): 2,900 rpm, grinding spindle speed: 2,900 rpm, power: 1.5 kW (2.04 HP), grinding wheel speed: 2,900 rpm, input voltage: 400 V, disc diameter: 205 mm, Metallkraft FSM 2550 Surface Grinder Machine Type: Surface Grinder with NC Controlled Vertical Feed Year: 2018 Control: NC Control Condition: Very Good Bsdpfxev Iq She Apbsdc Includes NC Controlled Vertical Feed Table Enclosure Guard Electro-Magnetic Chuck Wheel Dresser Coolant Equipment Halogen Light DRO Auto-Lube Technical Specifications Grinding Wheel Diameter: 180 to 205mm Grinding Wheel Width: 19 to 13mm Grinding Wheel Bore: 31.75mm Spindle Speed: 2900rpm Table Dimensions: 500 x 250mm X Axis Travel Speed: 5-25m/min Drive Motor Power: 1.5kW Electrical Connection: 400V/3Phase/50Hz Machine Dimensions: 2250x1400x1800mm Machine Weight: 1350kg Notes: *Specifications are given in good faith but not guaranteed*

Condition: good (used), functionality: fully functional, Jung F40 sinusoidal magnet, 300 x 150 mm cooling water tank 9x grinding disc documentation Bdodpszbbkljfx Apboc the machine is powered on for inspection.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Jung JF 520 D year of manufacture 1988 magnet 500 x 175 mm max. grinding area 600 x 220 mm variable speed variable magnetic field strength automatic start diaform coolant/filter tank 3 x flange Bdedpfx Aozba Ngspbec 1 x clamp documentation machine is powered on for inspection

Condition: used, Year of construction: 2010, functionality: fully functional, machine/vehicle number: M60I/9035, Offer Number: M60I/9035 Machinetype: surface grinding machine Make: STÖCKEL Type: FX60/30 SPS Constr. year: 2010 Bodpfx Asw N Dmxopbedc table size: 600x250 mm Location: Germany

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Type PSG 63 – UAN Year of manufacture: 1988 Grinding length: 600 mm Grinding width: 320 mm Max. workpiece height: 500 mm Table travel (longitudinal): 750 mm Bjdpezap S Iefx Apbedc Table travel (cross): 340 mm Grinding wheel diameter: 350 mm Grinding wheel width: 40 mm Spindle speed: 1500 rpm Rapid vertical feed: 400 mm/min Power: 3.7 kW Automatic feed Magnetic chuck Coolant system Weight: 2500 kg Price: EUR 2,000—plus VAT, ex location

Condition: ready for operation (used), Year of construction: 2020, Immediately available ex location: Horizontal surface grinding machine, make Holzmann Model SPM 30 FUM Year of manufacture: 2020 Bjdpfszap Szox Apbodc Grinding length: 400 mm Grinding width: 200 mm Table: 600 x 300 mm Automatic feed Magnetic chuck Coolant system Weight: 2 t Offered at a price of EUR 2,250 plus VAT ex location.

Condition: ready for operation (used), Number of axes: 3, operating hours: unknown, with control system, belt filter, and extraction unit, without documentation or spare parts, not maintained on a regular basis, without maintenance records. An on-site inspection is possible. Bjdpfxsza E Rto Apbjdc

Condition: good (used), Year of construction: 2001, functionality: fully functional, Technical details grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control SIEMENS 840 D magnetic clamping plate 4200 x 1300 mm segment head diameter 1400 mm grinding motor turning speeds up to 320 U/min. grinding motor 306 kW weight of the machine ca. 50,0 t Additional information Segment dimensions: 120/106 x 41 x 250 mm Number of segments: 1 set = 26 pieces Grinding motor feed: 0.5 - 35 m/min, infinitely variable Grinding motor feed: - in steps: 0.002 - 1 mm continuous: up to 5 mm/min. infinitely variable Equipment: * CNC-control SIEMENS Sinumerik 840 D * Automatic hydr. swivelling of the grinding motor from hollow to cross grinding * NC-controlled adjustment of the Marposs measuring head by means of precision support. - new grinding dimensions can be entered into the control, whereby the the grinding head automatically adjusts to the corresponding height. * Dresser with adjustment axis in the machine bed * Coolant system * Electro-magnetic table * Switch cabinet * Oil mist extraction * Documentation Dimensions (length x width x height) Bed: 11800x2200x1400 mm, weight 27500 kg Bdedpsy U Uqgjfx Apboc Grinding head: 3000 x 2500 x 3100 mm, estimated weight 14 t 2 x Oil mist extraction: 1200 x 800 x 2000 mm each Control panel: 1200 x 800 x 400 mm Small control cabinet: 1400 x 1400 x 800 mm 2 x gears each 1200 x 800 x 500 mm Control cabinet: 1600 x 800 x 2000 mm Control cabinet: 3400 x 600 x 2400 mm

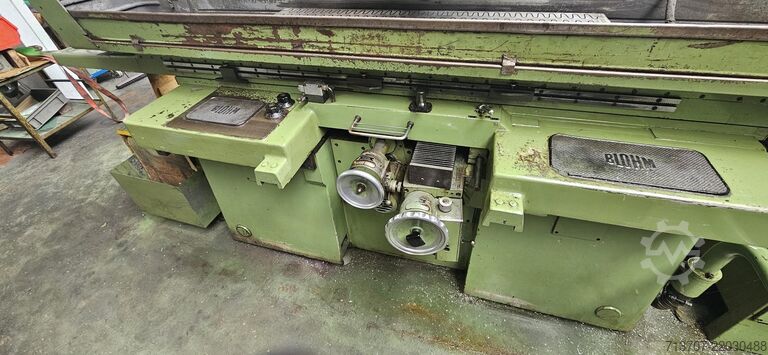

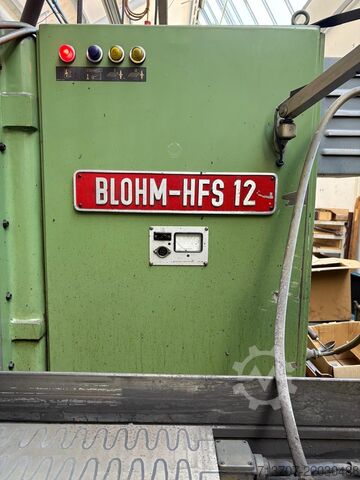

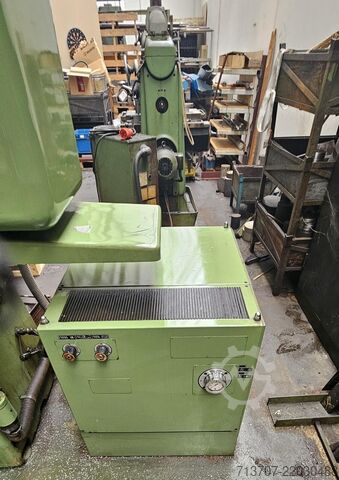

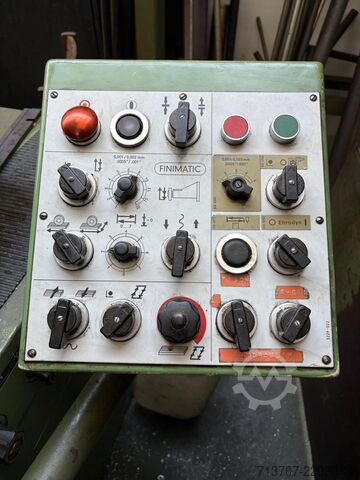

Condition: used, Year of construction: 1970, functionality: fully functional, grinding length: 1,800 mm, grinding width: 400 mm, table length: 1,350 mm, table width: 350 mm, !!!ON-SITE SALE, D-74219 MÖCKMÜHL Bodpfxozamf Ee Apbodc Surface grinding machine BLOHM HFS 12 Year of manufacture: 1970 Grinding length: 1800 mm Grinding width: 400 mm Size of magnetic clamping table: 1,350 x 350 mm Accessories: CBN grinding system Various grinding wheels The machine is in working order and can be inspected while powered on at any time.

Condition: good (used), functionality: fully functional, 1 x Surface grinding machine Jung HF 50 RD with diamond dressing device Coolant system Digital display for Z-axis Swiveling magnetic chuck 200 x 500 mm Technical data: Variable speed 1,000 - 4,000 rpm Grinding length 600 mm Grinding width 300 mm Workpiece height 350 mm Bdedpszawa Tofx Apboc Magnetic clamping plate, electric 500 x 200 mm Grinding wheel diameter 225 x 25 x 51 mm Accessories: 1 x Balancing scale 20 x Grinding wheels (including 14 with flange) The machine can be inspected while powered on.

Condition: good (used), Year of construction: 1994, Grinding length max. 650 mm Grinding width 390 (max. 450) mm Distance from spindle center to table 600 mm max. Bedpfx Asvz A Stepbedc Workpiece weight 350 kg Grinding area 650 x 390 mm Travel paths: X-axis 840 mm Y-axis 500 mm Z-axis 410 mm Total power requirement 15 kVA Machine weight approx. 3.0 t Space requirement approx. 4.0 x 3.0 x 2.5 m

Condition: good (used), Year of construction: 1990, Year of construction 1990 Control type CNC Bsdpfx Aei Hn U Uopbsdc Sanding length 600 mm Sanding width 200 mm Workpiece height 375 mm Table load 100 kg Grinding wheel dimensions 250x25x51 mm Run at 1-24 m/min Speed 4200 rpm Drive motor 5 kW Total power requirement 7.5 kW Machine weight approx. 3.2 t Space requirement approx. 3.7 x 2.1 x 2.1 m
