Used Gildemeister Ctx 400 E Serie 2 for sale (112,448)

Condition: used, Year of construction: 1998, swing diameter max. over bed cover 570 mm swing diameter over face slide 420 mm control Heidenhain CNC PILOT longitudinal stroke 635 mm face stroke 220 spindle bore 79 mm centre distance 1000 mm chucking diameter 250 mm tailstock taper MT 4 feed speed longitudal 0,025-24.000 mm/min. Gbedpfjzcfc Isx Aixor feed speed face 0,025-20.000 mm/min. power feed longitudinal 7.000 N Feed Force Face 3.500 N total power requirement 44 weight of the machine ca. 5,7 t dimensions of the machine ca. 7,5 x 4,0 x 1,7 m Accessories: - 3 clamping jaws - various tool holders

Condition: used, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Gildemeister lathe Color: Pink Rose 3 axes X, Z, C Type: CTX 400 Series 2 CNC Heidenhain With conveyor With driven tooling Godoy A Imqspfx Aixjbr With documentation

Condition: used, Year of construction: 2002, turning diameter 0455 mm turning length 2000 mm control CNC Pilot Heidenhain swing diameter max. over bed cover 670 mm swing diameter above cross guideway 455 mm travel -x axis 320 mm travel -z axis 2080 mm spindle head 220 h5 spindle bore 107 mm turning speed range - spindle 4 - 2.800 U/min max. Torque 2.000 Nm drive capacity - spindle motor 30 kW turret (x-stations) 12 tool taper VDI 50 diameter of quill 120 mm Gbodpszgw Tfefx Aixer pressure max. 14 KN quill stroke 120 mm tailstock taper MT 5 total power requirement 58 kVA weight of the machine ca. 10 t dimensions of the machine ca. 6,7 x 2,4 x 2,3 m CNC - Lathe GILDEMEISTER - CTX 600 E Serie 2 With 3 jaw chuck and self centering steady.

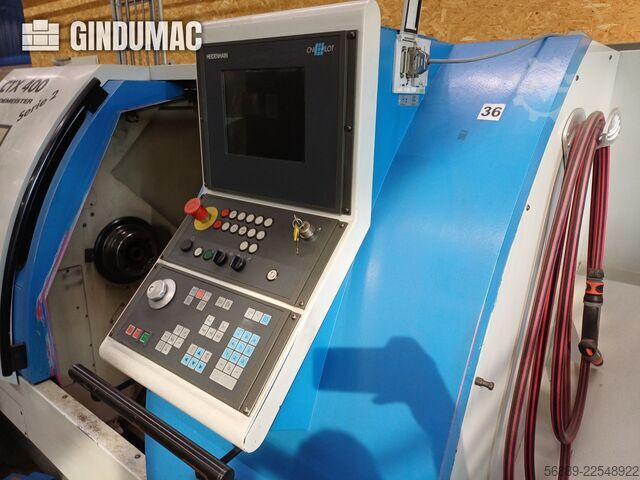

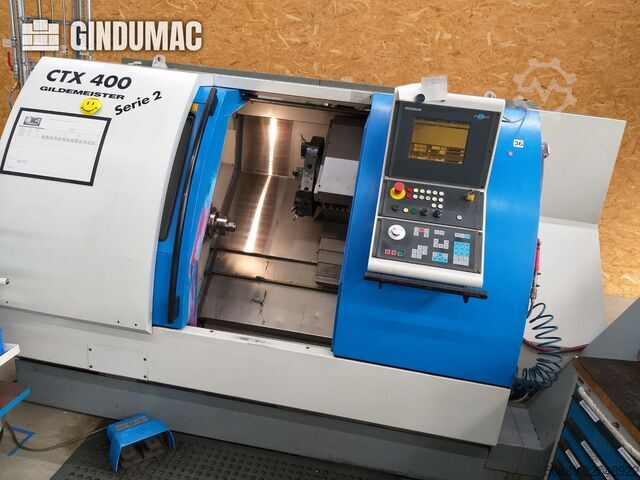

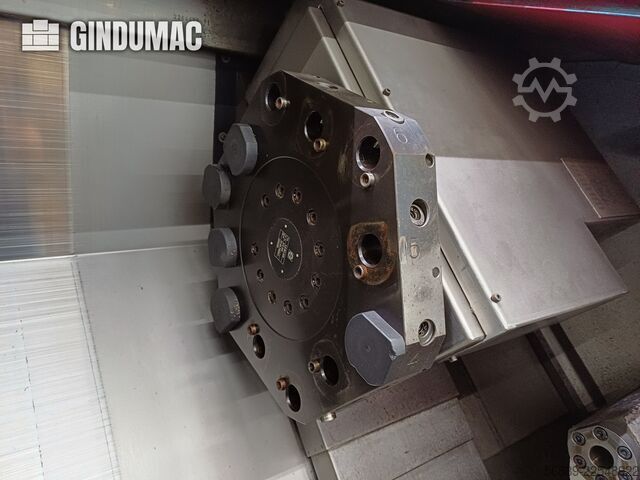

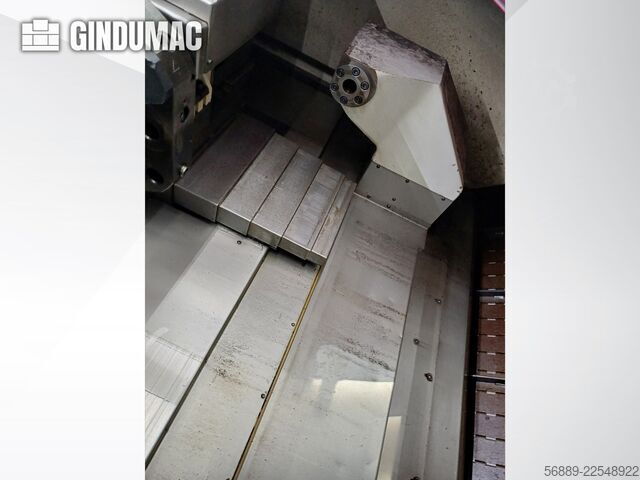

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, turning diameter over cross slide: 470 mm, turning length: 600 mm, turning diameter: 570 mm, spindle bore: 79 mm, Error message: Actuator not operational lots of accessories Gbedpfox Sw Uvox Aixor

Condition: ready for operation (used), Year of construction: 1999, operating hours: 58,132 h, spindle speed (max.): 5,000 rpm, travel distance X-axis: 220 mm, travel distance Z-axis: 635 mm, spindle motor power: 21,000 W, total height: 1,700 mm, total width: 1,700 mm, overall weight: 5,700 kg, controller manufacturer: HEIDENHAIN, controller model: CNC PILOT, product length (max.): 3,565 mm, workpiece diameter (max.): 470 mm, number of slots in tool magazine: 12, number of axes: 2, Horizontal turning machine manufactured in 1999. This Gildemeister CTX400 Serie2 features a maximum turning diameter of 420 mm and a distance between centers of 600 mm. It includes a disc turret with 12 tool stations and a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX400 Serie2 machine we have for sale. Contact us for further details. • Control Unit Brand: HEIDENHAIN • Control Unit Model: CNC PILOT • Distance Between Centers: 600 mm • Swing Over Bed: 570 mm • Swing Over Cross Slide: 470 mm • Maximum Turning Diameter: 420 mm • Spindle Nose: DIN 55026 Flat Flange Size 170h5 • Front Bearing Diameter: 120 mm • Spindle Bore: 79 mm • Maximum Chuck Diameter: 250 mm • Maximum Torque: 320 Nm • Turret Type: Disc Turret • Tool System: VDI 20/20 • Tailstock Taper: MK4 • Tailstock Quill Diameter: 80 mm Gbsdszufq Ijpfx Aixsr • Tailstock Quill Travel: 550 mm • Feed Drive X-Axis: 3.3 kW • Feed Drive Z-Axis: 3.3 kW • Lubrication Pump Power: 0.1 kW • Coolant Pump Power: 1.4 kW • Hydraulic Pump Power: 1.5 kW • Rapid Traverse X-Axis: 24000 mm/min • Rapid Traverse Z-Axis: 20000 mm/min • Feed Rate: 0.025–7000 mm/min • Thread Pitch Range: 0.025–3500 mm/min • Coolant Tank Capacity: 100 L • Power Supply: 400 V • Frequency: 50 Hz • Connected Load: 44 kVA • Rated Current: 64 A • Control Voltage: 24 V • Operating Hours: 58,132 h • CE Certified • Scope of delivery as shown, including 3 internal clamping heads • Configuration as shown: VDI30 disc turret Optional: • Tailstock • Chip conveyor Technical Specification Counter Spindle No Driven Tools No

Condition: used, Year of construction: 2000, Gildemeister CTX 400 S2 Year of manufacture: 2000 2-axis machine (X and Z) 12-tool turret, VDI30 Fanuc 21iT control system Tailstock Chip conveyor included Very good condition, machine comes from a school Gjdpszgupksfx Aixsbr Operating hours: 14,000

Year of construction: 1999, condition: ready for operation (used), Fresh oil lubrication capacity: approx. 3l, voltage: 400V, frequency: 50Hz, fuse protection (slow-blow) according to VDE 0100: 80A, permissible voltage fluctuation at 400V: ±10%, connected load: 44kVA, length: 3210mm, width: 1750mm, height: 1750mm, weight: approx. 4.6t, with chip conveyor. An on-site inspection is possible. Gbsdpfjza E Sqox Aixer

Condition: ready for operation (used), Year of construction: 2002, operating hours: 53,548 h, functionality: fully functional, machine/vehicle number: 01160014061, turning length: 630 mm, turning diameter: 420 mm, vice opening: 66 mm, control type: CNC control, Equipment: chip conveyor, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working area Turning diameter: max. 420 mm Turning length: max. 630 mm Spindle bore: 66 mm Gbedpfjza D Rfex Aixjr Turret Tool head: 12 tools, Sauter VDI30 CNC control: 4290 Heidenhain MACHINE DETAILS Electrical data Voltage: 400 V Auxiliary voltage: 230 V / 24 V Frequency: 50 Hz Current: 80 A Connected power: 44 kVA EQUIPMENT C-axis with driven tools Machine chip conveyor Documentation 2 driven tool holders External reference: 598

Condition: new, Year of construction: 2023, Extraction capacity of filter unit at spigot*: 2600 m³/h (free-eye) Total power consumption*: 0.62 kW Operating voltage: 400 V, 50/60 Hz,3Ph+PE Noise level*: 65 db(A) Dimensions L/W/H in mm: L 975 / W 508 /H 545 Colour: RAL 7035 Weight: 90 kg Manufacturer: ISI Industrieprodukte GmbH *Depending on filter equipment Special voltage or special colour on request Application: Extraction of oil mist, emulsion mist (for emulsions with higher oil contents) and smoke, for small to very large machine workrooms | Oil mist separator. Your advantages of the ELBARON series: - 18 unit variants available - Direct from the manufacturer - ISI-TRONIC as standard (digitalised filter control) - Electronically controlled EC fan as standard - Speed and air flow rate adjustable - Simplex (single-stage) or duplex (two-stage) available - Wide range of air flow rates available - Adaptable to pollutant load and air performance requirements - Large range of mounting and connection accessories - Quality Made in Germany We have developed the ELBARON® filter series for use in machining operations with pure oil or for separating oil mist and smoke (oil mist separator). For many years now, the digital electrostatic air filters of the ELBARON® series have been among the most efficient filter units on the market and are in use worldwide. Our filter units are already digitalised as Option and can be controlled, for example, with a laptop. Gbodpfxoh Rdxns Aixor The ELBARON® unit series comprises 18 unit variants and can be optimally designed for your application in terms of size and performance. ELBARON® units impress with their long service life and absolute functional reliability. Our electrostatic filter cells are dimensioned in such a way that the best possible filter efficiencies, service lives and trouble-free operation are achieved under economic aspects.

Condition: used, Gildemeister CTX 320 Linear V6 with Y axis New 2005. FANUC 18T . Please note that the collet chuck shown in the image will not be included, the original 3 jaw chuck will be supplied. there is also the option to supply a bar feed unit which is compatible for the machine, however currently not set up. Gbedpfx Aisztb Tcexsr

Year of construction: 2003, operating hours: 10,975 h, condition: used, total length: 4,500 mm, total width: 2,500 mm, total height: 2,300 mm, Colour: White Empty weight: 6.500 kg Price: On request - Year: 2003 - Documentation available: Yes - CE marking present: Yes - CE certificate present: Yes - Serial number: - Operating hours: 10975 - Drive system: CNC - Control system brand: Siemens - Control system type: Sinumerik 840D SL - Power [kW]: 25.0 - Centre height [mm]: 340 - Swing over bed [mm]: 680 - Carriage turning diameter [mm]: 565 - Distance between centres [mm]: 600 - Spindle bore [mm]: 65 - Min. spindle speed [rpm]: 0 - Max. spindle speed [rpm]: 5000 - Options: Chip conveyor, Three-jaw chuck - X-axis travel [mm]: 260 - Y-axis travel [mm]: 635 Gbsdpfx Aiozrxifjxjr - Transport dimensions: 4500mm x 2500mm x 2300mm (l x w x h) - Transport weight [kg]: 6500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 2001, condition: ready for operation (used), X-axis travel: 220 mm, Z-axis travel: 635 mm, swing diameter over the bed cover: 570 mm, swing diameter over the cross-slide cover: 420 mm, speed range: 25-5,000 rpm, spindle bore diameter: 65 mm, chuck diameter: 250 mm, tailstock travel: 550 mm, main spindle drive power at 100% duty cycle: 21 kW, maximum torque: 240 Nm, C-axis holding torque: 200 Nm, control system: Heidenhain EP 4290 TP, connected load: 44 kVA, length: 3,250 mm, width: 1,750 mm, height: 2,300 mm, weight without chip conveyor: 5.3 t, operating hours: 16,930 h. Equipment: Hydraulically adjustable three-jaw chuck with various interchangeable jaws, MK4 tailstock quill, 12-station VDI 30 disc turret with 6 driven tool stations, tool measuring arm, workpiece pick-up device, coolant system, chip conveyor, coolant mist extraction system, various tool holders, Drehwerk turning and milling tools including driven tools, two tool cabinets and documentation. The main spindle produces running noise. An on-site inspection is possible. Gbjdpfxszrn H Tj Aixjr

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Machine total operating hours: 3200 h Spindle operating hours: 470 Gbjdpfxozqtmio Aixsr Gildemeister CTX Beta 1250 TC, Year of manufacture: 2013, Control system: Siemens 840D ERGOline with ShopTurn Main spindle as an integrated spindle motor, ISM 76, Drive power: 25/34 kW (100/40% duty cycle), 5000 min-1 Hollow chuck (hydraulic), internal pull rod - 67 mm Max. pulling force 68 kN at Pmax. 45 bar C-axis and spindle brake (hydraulic) Cross slide on top with turning/milling spindle as a motor spindle, with hydraulic clamping for turning, tool holder HSK-63A DIN 69893 Y-axis ± 100 mm B-axis ±110° with pneumatic clamping Turning length 1250 mm Tool disc magazine 1 x 24 positions Tailstock, automatically positionable, hydraulically actuated, with integrated center bearing Absolute, direct linear encoders in X, Y, Z axes Coolant pump 6 bar; 20 l/min, chuck flushing system, externally on the main spindle, coolant system externally for the turning/milling spindle Hinged belt chip conveyor, discharge height 1200 mm Cooling system for spindle motors, motor console, turning/milling spindle, B-axis torque motor USB interface, Ethernet interface Connection for oil mist extraction, electrical/mechanical Eccentric turning and milling Milling of gears using a generating process 5-axis simultaneous machining, contour machining Tool monitoring system, Counter spindle as an integrated spindle motor Workpiece in-process measurement system by Renishaw Reinforced coolant pump 12 bar Chuck flushing system on the main and counter spindle Tailstock function for the counter spindle Coolant supply through the counter spindle DMG Netservice

Condition: excellent (used), Year of construction: 2012, CNC Turning and Milling Center Gildemeister CTX Beta 1250 4A with Sinumerik 840D Shopturn Year of manufacture: 2012 Program operating hours: approx. 20,000 h OPTION GEAR CUTTING ENABLED Technical data: Main spindle speed: Drive power: 32 kW ISM 102 Counter spindle speed: Drive power: Godpeyfcrrsfx Aixjbr ISM 76 Y-axis on slide 1 Driven tools 1x12 on slide 1+2 Bar feeder package Workpiece pick-up gripper deployable on main and counter spindle Coolant system Chip conveyor Short bar feeder IRCO MUK

Condition: used, Year of construction: 2004, CNC lathe Gildemeister Type/Model CTX 520 linear Condition: Used Year of manufacture: 2004 Operating hours: 86,490 Spindle hours: 12,970 Technical data Working area max. turning diameter: 680 mm Turning diameter over X-axis: 565 mm Chuck diameter: 250/315 mm Spindle bore: 107 mm Spindle speed C-axis (main spindle): 400 rpm Travel in X-axis: 315 mm Travel in Z-axis: 1350 mm Number of tools: 12 Power max. 100% duty cycle: 4.9 kW Torque 100% duty cycle: 10.5 kW Speed range: 4500 rpm Tailstock Tailstock travel: 1200 mm Tailstock force: 14 kN Taper: 5 MK Quill travel: 120 mm Coolant system Capacity: 250 l Pump output: 1.7 kW Flow rate at 6 bar: 20 l/min Connected load: 65 kVA / 100 A Operating voltage: 400 V Gbsdpfezn Ih Nsx Aixer Dimensions and weight Weight approx. 10 t + 0.65 t Dimensions approx. 6000 x 3050 x 2270 Equipment: - Chip conveyor without pump - Machine feet Inquiry item: Transportation costs will be provided in a separate quote.

Condition: ready for operation (used), Year of construction: 2003, operating hours: 10,975 h, functionality: fully functional, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 635 mm, center width: 600 mm, center height: 340 mm, controller model: Siemens Sinumerik 840D SL, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Maximum turning height: 340 mm Maximum turning length: 600 mm Turning diameter over bed: 680 mm Turning diameter over carriage: 565 mm Spindle bore: 65 mm Maximum spindle speed: 5,000 rpm X-axis travel: 260 mm Y-axis travel: 635 mm MACHINE DETAILS Control system: Siemens Sinumerik 840D SL Power: 25.0 kW Gedpfxszk Dz Rs Aixobr Dimensions & Weight Dimensions (L x W x H): 4,500 x 2,500 x 2,300 mm Net weight: 6,500 kg Operating hours: 10,975 h EQUIPMENT Chip conveyor Three-jaw chuck

Condition: used, Year of construction: 2011, Lathes Travel distance X: 270 mm Travel distance Y :120 mm Travel distance Z: 1200 mm turning length: 1135 mm max. turning diameter: 700 mm max. circulation diameter: 340 mm max. turning moment: 680 NM range of revolutions till: 4000 rpm Control: DMG powered tools Powered tools: 50 Scrapper chip conveyor Short bar loader magazine IRCO ILS-RBK 100/16 Various main spindle reduction sleeves NC-controlled workpiece removal device Conveyor belt for transporting the workpieces out of the machine Coolant system 8/20 bar with immersion cooler Coolant spray gun Chip conveyor Oil mist extraction system Control cabinet cooling unit (up to 40 °C) 4-color signal light, connection for bar loader magazine Main spindle as integrated spindle motor ISM 102 Counter spindle as integrated spindle motor ISM 76 Easy-Tool Monitor Approx. 40 various quick-change collets size 100 (entire stock) Pneumatic changeover device Ø 100 mm Approx. 50 various tool holders, static and driven (entire stock) Installation elements Documentation Gsdpfx Ajwwv Ifjixobr

Condition: used, Year of construction: 2005, turning diameter 680 mm turning length 600-635 mm control Siemens Gsdpfx Aezgxfvoixebr weight of the machine ca. 6500 kg

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, CNC Lathe Manufacturer: Gildemeister Model: CTX 420 linear V3 Year of Manufacture: 2003 Control Unit: Heidenhain Plus IT Swing diameter over bed: 680 mm Swing diameter over cross slide: 565 mm Cross travel: 260 mm Longitudinal travel: 635 mm Drive power (40/100%): 25/37 kW Speed range: 20 – 5000 rpm Weight approx.: 6500 kg Gsdpoxc Uq Tsfx Aixobr Equipment: Driven tools: 12 stations Tool turret: 12-position Sauter turret VDI 30 Partly hollow clamping chuck Tailstock Automatic quill travel Quill taper: Mk 5 Chip conveyor Measuring arm Oil mist extraction unit Subject to prior sale and errors.

Condition: used, Year of construction: 2007, turning diameter 325 mm turning length 600 mm Godpfeyquwkex Aixsbr control Siemens type 840D turning speeds 5000 U/min power capacity 25 kW total power requirement 35 kW weight of the machine ca. 6,5 t dimensions of the machine ca. 3,5x2,5x2,1 m Tool speed: 4500 rpm X-axis rapid traverse: 60 m/min Z-axis rapid traverse: 45 m/min Machine with Siemens 840 D powerline with Shopturn - C and Y axes, driven tools - IRCO ILS-RBK bar loader - Coolant system with internal coolant supply - Paper belt filter - Partial hollow clamping device - Oil mist separator - Counter spindle - Parts catcher The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2003, turning diameter max. 246 mm turning length 600 mm control 840 D Powerline Siemens greates pass round over bed 400 mm Swing dia. over traverse guideway 300 mm centre distance 600 mm turning speed range - main spindle max. 6.000 min/-1 power capacity - main spindel 16 kW max. Torque 155 Nm spindle diameter in front bearing 100 mm spindle bore 68,5 mm spindle nose 140H5 Spindle speed range subspindle max. 4.000 min/-1 power capacity - Sub spindle 7,5 kW max. Torque 48 Nm spindle diameter in front bearing 75 mm spindle bore 37 mm spindle nose 140H5 Gedpfjypv Tqox Aixobr number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tools max. 5.000 min -1 power capacity - driven tools 3,7 kW max. Torque 24 Nm tool taper VDI 30 Tool dimensions with square shank 20 x 20 mm x-axis 160 mm z-axis 450 mm rapid traverse X: 60 m/min rapid traverse Z: 45 m/min Feed force X: 2,5 kN Feed force Z: 4 kN rapid traverse C: 200 1/min max. Torque C: 155 Nm total power requirement 32 kVA weight of the machine ca. 3,8 t dimensions of the machine ca. 8,0 x 3,0 x 2,7 m CNC - Turning- and MillingCenter GILDEMEISTER - CTX 320 linear V5 - Main- and Subspindle - tool-drive - C-Axis - ShopTurn

Condition: used, Year of construction: 2004, turning diameter max. 560 mm turning length 600 mm control 840D powerline Siemens greates pass round over bed 680 mm Swing dia. over traverse guideway 565 mm centre distance 620 mm turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 25 / 37 kW max. Torque 390 Nm spindle nose 170H5 spindle bearing diameter 120 mm usable bar diameter 65 mm max. chucking diameter 250 mm Gbsdpfx Aiowmf Tpjxor C-Axis 0,025° / 360 ° Spindle speed range subspindle 20 - 7.000 min/-1 power capacity - Sub spindle 25 / 33 kW max. Torque 213 Nm spindle bearing diameter 90 mm spindle bore 57 mm spindle nose 140H5 C-Axis 0,025° / 360 ° number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tools max. 4.500 min -1 power capacity - driven tools 12,2 kW tool taper VDI 40 DIN 69880 Tool dimensions with square shank 40 mm x-axis 185 mm y-axis 80 mm z-axis 620 mm rapid traverse X: 60 m/min rapid traverse Y: 15 m/min rapid traverse Z: 45 m/min total power requirement 50 kVA weight of the machine ca. 7 t dimensions of the machine ca. 6,0 x 3,0 x 2,5 m CNC Turning- and MillingCenter GILDEMEISTER - CTX 420 linear V6 - Main and sub spindle - Tool drive - C axis / Y axis - Partial hollow clamping device - ShopTurn - Surface - Package bar processing consisting of: - Hollow clamping device 66mm - Workpiece picking device - Incl. 2x driven tools - Incl. 4x double tool holders - Incl. 4x tool holders - Incl. 83x tools

Condition: used, Year of construction: 2003, max. Spindle speed 5000 U/min. travel -x axis 160 mm travel -z axis 450 mm numbers of turret head positions 12 tool taper VDI 30 Gbodpov Ehawofx Aixor Control Heidenhain iT Plus Dimensions (L x W x H) 4,5 x 2,5 x 2,5 m weight of the machine 3700 kg CNC Turning- and Milling Center | DMG GILDEMEISTER - CTX 310 Additional equipment: - C-Axis The machine is in good condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: CTX310 | CTX-310

Condition: used, Year of construction: 2007, Technical details: turning diameter: 325 mm turning length: 600 mm total power requirement: 35 kW spindle drive: 25 kW spindle turning speed range: 5000 U/min speeds of tool: 4500 U/min rapid traverse X-axis: 60 m/min diverse toolholders: VDI 40 rapid traverse Z-axis: 45 m/min weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher Gbjdpfxovgb Eps Aixor *

Condition: good (used), Year of construction: 2007, Machine is in good working condition. Machine come without automatic line. Marked equipement with red not come.. Some accesories and machine equipement are also available. Gbedpfx Asxf Iameixsr More specs of the machine, check last two pictures.
