Used Gildemeister Mf Sprint 65 Linear for sale (12,688)

Condition: used, Year of construction: 2007, Technical details: turning diameter: 160 mm turning length: 300 mm control: Siemens 840D Spindle 1 Power: 22 kW Spindle 1 RPM: 5000 1/min Spindle 1 max. bar diameter: 65 Spindle 1 Torque: 150 Nm Spindle 2 power: 16,8 kW Spindle 2 RPM: 5000 1/min Spindle 2 torque: 100 Nm Travel for pick up of 2nd Spindle: W2=690 mm dimensions of the machine ca.: ´4,5x2,0x2,3 m weight of the machine ca.: 9 t Accerories Spindle 1 Collet chuck Spindle 2 Collet Chuck Todpjzd Tcwefx Afwjb Chip Conveyor Parts catcher CNC turning center with 3 turrets with rotary tool drives and 2 spindles. There is an internal coolant system for the turrets with individual pumps *

Condition: good (used), Year of construction: 1997, - Control system: SIEMENS SINUMERIK 840-C - Max. bar diameter: 65 mm - C-axis - Main spindle speed: 31 - 6,300 rpm - Turret 1: 8 stations, 4 of which are powered - Turret 2: 8 stations, 4 of which are powered - Driven tool speed: 4,000 rpm - Both turrets with internal cooling - High-pressure unit - Chip conveyor - Bar feeder IRCO SiMag 65 - Max. bar length: 3,200 mm Dimensions LxWxH: - Machine: 3,400 x 1,700 x 1,800 mm Tjdpfxozxhmas Afwjb - Bar feeder: 4,000 x 1,000 x 1,400 mm - Chip conveyor: 3,000 x 1,100 x 1,600 mm Total weight: approx. 6,000 kg

Condition: used, Year of construction: 1998, operating hours: 97,593 h, functionality: fully functional, turning diameter: 65 mm, spindle bore: 79 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 25 rpm, For Sale: Gildemeister MF Sprint 65 CNC Sliding Headstock Lathe with 3-Meter Bar Feeder, as shown in the pictures. The machine was removed from our workshop in fully functional condition. A video of the machine in operation prior to disassembly is available upon request. Approximately five years ago, the linear guides of the X1 and Z1 slides (on the main spindle side) were replaced, including bearings and belts. A new HMI interface was installed recently. Detailed specifications and technical data can be found in the attached PDF. TECHNICAL DATA Control: Sinumerik 840C Bar Feeder: SIMAG 65.1-3200G, Year of Manufacture: 1998 Bar Length: 3 meters Bar Diameter / Spindle Bore: 65 mm Main Drive Power Output: 28 / 21 kW Speed Range: 25 – 4,500 rpm Torque: 320 / 240 Nm Maximum Feed Rate for Thread Cutting: 10 m/min C-Axis Speed: 120 rpm C-Axis Torque (Holding Torque): 180 Nm Tool Carrier Number of Tool Stations: 8 Shank Diameter (DIN 69880): 30 mm Number of Driven Tool Stations: 4 Power Output: 7.6 / 4.6 kW Torque: 24 / 14.7 Nm Maximum Speed of Tool Carrier 1: 4,000 rpm Maximum Speed of Tool Carrier 2: 4,000 rpm Slide 1 Cross Travel / Longitudinal Travel: 155 / 280 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN Slide 2 Cross Travel / Longitudinal Travel: 82 / 120 mm Rapid Traverse Speed X/Z: 22.5 / 22.5 m/min Feed Force X/Z: 900 / 900 daN MACHINE DATA Dimensions with Bar Feeder and Chip Conveyor (L × W × H): approx. 6 × 2 × 2 meters Weight: approx. 6.5 tons Operating Voltage: 50 Hz, 400 V Accessories: Cooling System Chip Conveyor Documentation Tedjwym Nfjpfx Afweb The offer is subject to change and non-binding, changes and errors in the technical data or the equipment, as well as prior sale reserved Used machines are purchased as seen, without warranty claims. Delivery ex works excluding packaging and insurance, unless otherwise agreed. The price does not include statutory value added tax. As is usual with used machines, payment is made before loading.

Year of construction: 2008, condition: ready for operation (used), Main spindle: max. bar capacity: 65mm, draw tube bore: 75mm, collet holder diameter: 160mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 150Nm, nominal power (S1): 22kW. Counter spindle: draw tube bore: 45mm, centering chuck diameter: 175mm, spindle nose: 140mm, max. speed: 5000/min, nominal torque (S1): 100Nm, nominal power (S1): 16.8kW. W2 axis counter spindle: travel: 690mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X1 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z1 axis: travel: 220mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X2 axis: travel: 165mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Z2 axis: travel: 150mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. X3 axis: travel: 165mm, max. speed: 40m/min, max. acceleration: 10m/s², nominal thrust (S1): 2400N. Z3 axis: travel: 678mm, max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Y3 axis: travel: 80mm (+50/-30), max. speed: 30m/min, max. acceleration: 5m/s², nominal thrust (S1): 5000N. Workpiece unloading (UA-WA): max. unloading weight: 4daN, max. unloading diameter: 70mm. Total number of tool stations: 12, tool holder diameter: 30mm, driven positions: 12, max. speed of driven tools: 4000/min, nominal torque (S1-n = 0/min): 17Nm, nominal power (S1-n = 4000/min): 2.9kW, control: Siemens 840D, operator panel: ErgoLine, screen: color TFT 19 inch, number of spindles (C-axes): 2, number of axes: 10, number of channels: 4. Operating hours: 70,035h power on, 48,657h in production, machine operates with cutting oil. With documentation and Bar Loader FMB Turbo 8-80 XT 3200. An on-site inspection is possible. Tjdpfx Aoyln Eksfweb

Year of construction: 2006, condition: like new (used), With machine come 5 live tool holders and 5 normal tool holders. Parts shown by hand not come. Tjdpfx Afolbmy Ujweb

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm Todpsy Nyg Aefx Afwsb W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Tedpfxjy Nyrxo Afwjb Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 32,700 h, functionality: fully functional, travel distance X-axis: 165 mm, rotational speed (max.): 5,000 rpm, bar passage: 65 mm, controller model: SIEMENS 840 D, Equipment: chip conveyor, TECHNICAL DETAILS X1 travel: 165 mm Z1 travel: 220 mm X2 travel: 165 mm Z2 travel: 150 mm X3 travel: 165 mm Z3 travel: 650 mm Y3 travel: 80 (+50/-30) mm Bar capacity: 65 mm Main and sub-spindle speed: 5,000 rpm Turrets: 3, each with 12 stations (all driven) Driven tool speed: 4,000 rpm Tool holder: VDI 30 with drive, DIN 5480 Tsdpjymmdbsfx Afwjb MACHINE DETAILS Control: SIEMENS 840 D Operating hours Power-on hours: 52,511 h Spindle hours: 32,700 h EQUIPMENT C-axis Y-axis Coolant system Chip conveyor Bar feeder TOP Automazioni XF 375

Condition: used, Year of construction: 2000, Turret 1 - facing/length turning 155/280 mm Turret 2 - facing/length turning 82/120 mm Spindle bore (main spindle) 79 mm ((w/collet chuck 65 mm) Spindle bore (sub spindele 65 mm (w/collet chuck 42 mm) Spindle speeds (25-5000 rpm (main spindle) Tsdjy Hppzepfx Afwob C-axis - 5000 rpm. Turret w/8 stations Control: Siemens Sinumerik 840 C Equipped with: Magazine bar feeder Manuf. Simag model 65.1 - 3200 mm - built 2000 Chip conveyor Various tool holders

Condition: good (used), Year of construction: 2007, functionality: unexamined, machine/vehicle number: 2601-0324, The Sprint 42 Linear from DMG Gildemeister is a CNC turning/milling center with 6 linear axes and 2 C-axes. Direct drives enable high acceleration and precise machining operations. It is suitable for demanding series production of parts with a bar diameter of up to 42 mm. Year: 2007 Spindles: Main and counter-spindle, each up to 6,500 rpm; bar passage through main spindle 42 mm, counter-spindle 38 mm. Tool capacity: 26 stations, including up to 11 driven tools; turret with Y-axis for milling and threading operations. Axes / Travels: Slide 1: X1 = 65 mm, Z1 = 350 mm, Y1 = 120 mm Slide 2: X2 = 326 mm, Z2 = 320 mm, Y2 = 265 mm Rapid traverse rates: up to 30 m/min (X1, Z1, X2, Z2), Y2 up to 18 m/min Control system: FANUC 160i-TB with 15" DMG SlimLine panel Including IEMCA Boss 545-E bar feeder Tedpfxszkgqzo Afwjb The IEMCA Boss 545-E bar feeder (Type 32 LL, year of manufacture 2007) is included in the scope of supply and enables the continuous feeding of material up to Ø 42 mm. It operates with 400 V / 50 Hz and requires 6 bar of air pressure; its own weight is approximately 860 kg. Main spindle newly bearing: The main spindle has already been overhauled (new bearing). Inspection & Collection: An on-site inspection is possible. If you are interested or have questions about technical details, please do not hesitate to contact us.

Condition: good (used), Year of construction: 2008, functionality: limited functionality, machine/vehicle number: 8086010539B, spindle motor power: 5,500 W, spindle speed (max.): 6,500 rpm, spindle bore: 46 mm, type of input current: three-phase, bar passage: 42 mm, bar diameter (max.): 42 mm, overall weight: 4,700 kg, DMG Gildemeister Sprint 42 linear CNC turning center with FANUC 160i control and IEMCA Boss 545-E bar feeder. The machine is a compact and productive CNC twin-spindle turning center for the series production of bar stock parts up to 42 mm in diameter. Thanks to its main spindle, counter-spindle, 6 linear axes, 2 channels, and powered tools, the machine is particularly suitable for precise turning, drilling, milling, and complete machining operations in medium to high volumes. The machine is available including the bar feeder and chip conveyor. On-site inspection is possible by arrangement. Machine data: Manufacturer: DMG / Gildemeister Italiana Model: Sprint 42 linear Machine No.: 8086010539B Year of manufacture: 2008 Control: FANUC 160i User interface: DMG SlimLine / TFT 15" Spindles / C-axes: 2 Number of axes: 6 Number of channels: 2 Max. bar diameter: 42 mm Main spindle max. speed: 6,500 rpm Counter spindle max. speed: 6,500 rpm Installed power: 40 kVA Operating voltage: 400 V / 50 Hz Base machine weight: approx. 4,700 kg Travel distances: X1: 65 mm Y1: 350 mm Z1: 120 mm X2: 265 mm Y2: 326 mm Z2: 320 mm Spindle data: Main spindle: Max. bar diameter: 42 mm Guide bushing bore: 46 mm Max. speed: 6,500 rpm Nominal power: 5.5 kW Nominal torque: 37.5 Nm Tjdpfxezkh Iue Afwsb Counter spindle: Guide bushing bore: 38 mm Max. speed: 6,500 rpm Nominal power: 3.7 kW Nominal torque: 19.6 Nm Bar feeder: Manufacturer: IEMCA Model: Boss 545-E Type: 32 LL Year of manufacture: 2007 Serial No.: 020722GA10 Weight: approx. 860 kg Voltage: 400 V / 50 Hz Compressed air: 6 bar Weight: 860 kg Location: Bocholt Availability: immediately available Inspection: possible by arrangement Loading / Transport: for collection

Condition: ready for operation (used), Year of construction: 2015, operating hours: 42,222 h, spindle speed (max.): 5,000 rpm, bar diameter (max.): 65 mm, total width: 1,990 mm, total height: 2,300 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, overall weight: 9,500 kg, controller manufacturer: FANUC, controller model: 310, product length (max.): 4,500 mm, number of axes: 8, This 8-axis DMG MORI Sprint 65 linear was manufactured in 2015. It features a maximum workpiece diameter of 175 mm and a maximum bar diameter of 65 mm. The machine is equipped with two turrets, each with 12 driven tool positions, and offers a maximum spindle speed of 5000 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI Sprint 65 linear multi-spindle turning machine we have for sale. Contact us for further details. Control system: CNC 310 isTotal hours: 61295 hOperating hours: 42222 hMain spindle power 20/25 kWCounter spindle power 17 kWMax. main spindle speed: 5000 rpmMax. counter spindle speed: 5000 rpmMax. main spindle bar diameter: 65 mmMax. counter spindle bar diameter: 45 (65) mmCNC CONTROLLED AXESStroke X1 165 mmRapid speed X1 30 m/minAcceleration X1 5 m/s2Stroke Z1 678 mmRapid speed Z1 30 m/minAcceleration Z1 5 m/s2Stroke Y1 80 (+50/-30) mmRapid speed Y1 30 m/minAcceleration Y1 5 m/s2Stroke X2 165 mmRapid speed X2 30 m/minAcceleration X2 5 m/s2Stroke Z2 640 mmRapid speed Z2 30 m/minAcceleration Z2 5 m/s2Stroke W2 690 mmRapid speed W2 30 m/minAcceleration W2 5 m/s2Number of turrets 2Number of rotating tools each station 12 all driven positionsTool system VDI 30Max driven tool speed 4.000 rpmApprox. coolant tank capacity 650 lCoolant pump max.capacity (per each turret) 20 l/minPump pressure 7 barPower supply 91 kVALxWxH of the machine 4.500x1.990x2.300 mmApprox. machine weight 9.500 kgIEMCA MASTER 865 MP 43 L (4m) bar feederBase machine configuration:- Drive for slide 1 and 2 (all 12 pos.)- C-axis for main and counter spindle- Y-axis for slide 1- Swarf conveyor belt type- Counterspindle collet cleaning with coolant- Workpiece unloading including belt- Mechanical preparation for oil mist filter- Electrical and software interface for bar loader- Angular synchronism between main and counter spindle- Automatic machine shut down- 2 additional on/off outputs (4 M-functions)- Rigid tapping- Piece and time counter- Software for polygonal turning for slide 1 and 2- Constant cutting speed- Helical interpolation for slide 1- Spindle speed control- Quadruple warning light- Cooling device for electrical cabinetAdded options:I-V50011 Collet chuck Type "MPF 65/140" without axial feed for main spindle max. diameter: 65mm.Clamping elements and other equipment:I-V50025 Manual collet changer type "SACO MPT65/140 and MPF65/140"I-V50092 Differential pressure for counterspindle, possibility of setting two different clamping pressures.I-V50083 1 set of soft jaws for chuck type "SMW 175-BBD"I-V50080 Chuck type "SMW 175-BBD" For counter spindle, including adapter for adapting the spindleI-V60050 Tool holder for drilling tools with internal cooling and cylindrical shank Ø 32mm,with clamping shank according to DIN 69880 (VDI 30) - 4pcsI-V60010 Radial tool holder for external machining type C1 with clamping shank according to DIN 69880 (VDI 30) - 5pcsControl system options:I-V12060 Tool wear monitoring system Monitor for CNC FANUCI-V12070 Sister tool selection system for Tool Monitor for CNC FANUCHydraulic and filtration equipment:I-V40045 External flushing of jaws/collets with coolant on main spindle and counter spindleSpecial optionsSK001 Special clamping device with mandrel for counter spindle product HAINBUCH AXFIX 811 including 2 colletsVarious new spare parts are included. Technical Specification Tedpfx Afezhklwewsb Counter Spindle Yes Driven Tools Yes

Condition: used, Year of construction: 2011, Technical details: weight of the machine ca.: 11 t Gildemeister MF Twin 65-II lathe with loading automation. Tjdpfx Asyz Sdqofwob This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. *

Condition: used, Year of construction: 2003, Technical details: weight of the machine ca.: 11 t Gildemeister MF Twin 65-II lathe with loading automation. Tsdpfoyzyudjx Afwsb This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts. *

Condition: used, Year of construction: 2007, Number of working hours 20456 h spindle hours 75180 h control FANUC 310 i chuck diameter 175 mm turning speeds 5.000 min-1 weight of the machine ca. 8800 kg dimensions of the machine ca. 4500 x 1990 x 2300 mm Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Tsdpoydfq Isfx Afwjb Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm

Condition: used, Year of construction: 2008, bar material dia. 65 mm turning speeds 5.000 min-1 Number of working hours 34979 h spindle hours 72260 h control FANUC 310 i weight of the machine ca. 8800 kg dimensions of the machine ca. 4500x1990x2300 mm Number of controlled spindles (C axes): 2 Number of controlled axes: 8 Number of channels: 3 Max. bar diameter: 65 mm Bore in tie rod: 75 mm Tjdpfx Afoyat Hvswsb Chuck diameter: 175 mm Spindle nose: 140 mm Max. speed: 5,000 rpm Nominal torque: 191 Nm Nominal power: 20 kW DATA FOR THE W2 AXIS OF THE COUNTER SPINDLE Stroke: 690 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 2,400 N X1 AXIS DATA Stroke: 165 mm Rapid traverse: 40 m/min Max. acceleration: 10 m/s² Nominal force: 2,400 N Z1 AXIS DATA Stroke: 678 mm Rapid traverse: 30 mm Max. acceleration: 5 m/s² Nominal force: 5,000 N Y1 AXIS DATA Stroke: 80(+50/-30) mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N X2 AXIS DATA Stroke: 165 mm Rapid traverse: 30 m/min Max. acceleration: 5 m/s² Nominal force: 5,000 N Number of tool stations: 12 Tool holder diameter: 30 mm Driven stations: 12 mm Max. speed of driven tools: 4,000 rpm Translated with (free version)

Condition: used, Year of construction: 2000, turning diameter . mm turning length . mm Tsdpfx Aeqn A Rnjfweb control 2x 840 D Kühlmittelsystem chip conveyor ja kW generator - rated current 95,00 A connected load 65,00 kW

Condition: used, Year of construction: 2007, turning diameter 65 mm Todpfx Aozdk Evefweb turning length 150 mm control Siemens 840D spindle passage 75 mm turning length 150 mm c-axis 2x 0,001 ° gripping station 65 mm speeds 5000 U/min rapid traverse 30 m/min turret (x-stations) 3x12 Number of axles 10 St. number of toolholder-holes 36 chip conveyor ja / yes kW coolant filtering unit ja / yes kW Number of working hours 35000 h total power requirement 22 kW weight of the machine ca. 9 t dimensions of the machine ca. 4,4 x 2 x 2,3 + Iemca m DMG Sprint 64 Linear CNC lathe, built in 2007, 10 axes, 2 spindles, 3 turrets with Iemca Master 880 loading magazine Accessories: a large number of tool holders in total 104 off, 24 of them are driven tool holder

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 2 MAIN SPINDLE - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - Max. turning diameter : 120 [mm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.1 [°] POWER SUPPLY - Supply voltage : 230 [V] - Total installed power : 7.5 [kW] Todpfx Afou E U Ufoweb WEIGHT & DIMENSIONS - Machine floor space : 5.400 x 1.900 [mm] - Machine height : 2.000 [mm] - Machine weight : 5.000 [kg] MACHINE HOURS - Number of hours under power : 33912 [h] - Number of working hours : 21069 [h] EQUIPMENT - CNC : FANUC 160i - Coolant tank - Chips conveyor - Parts catcher - Parts conveying strip

Condition: ready for operation (used), Year of construction: 2003, operating hours: 20,317 h, spindle motor power: 7,500 W, spindle speed (max.): 8,000 rpm, bar diameter (max.): 32 mm, total width: 1,630 mm, total height: 1,920 mm, overall weight: 4,350 kg, controller manufacturer: FANUC, controller model: Series 160i-8, product length (max.): 4,900 mm, number of axes: 8, This 8-axis DMG GILDEMEISTER Sprint 32 linear was manufactured in 2003. It features a turning length of 120 mm and a turning diameter of 32 mm. The machine is equipped with a Fanuc 160i-B control and offers impressive spindle speeds of up to 8000 rpm. If you are looking to get high-quality multi-spindle turning capabilities, consider the DMG GILDEMEISTER Sprint 32 linear machine we have for sale. Contact us for further details. Tsdpfxsy E Nq Ae Afwob • Turning length: 120 mm • Turning diameter: 32 mm • Axis travels: • X1: 65 mm • Y1: 350 mm • Z1: 120 mm • X2: 265 mm • Y2: 235 mm • Z2: 320 mm • C1: 360° • C2: 360° • Spindle bore: 42 mm • Total power requirement: 34 kVA • Condition: Very good; connected and ready for testing Additional equipment • Set of accessories and tool holders included Technical Specification Counter Spindle No

Condition: excellent (used), Year of construction: 2004, operating hours: 19,176 h, functionality: fully functional, machine/vehicle number: 2301-0160, Gildemeister Sprint 32 linear, serial number 2301-0160, year 2004. 2 x 4 = 8-axis configuration + rotary table + tool magazine. 8,000 RPM on both spindles. Operating hours: 19,176 / 15,274. Todpfx Aszxntasfweb

Condition: good (used), Year of construction: 2007, operating hours: 27,896 h, functionality: fully functional, machine/vehicle number: 2101-0171, turning diameter: 20 mm, rotational speed (max.): 10,000 rpm, torque: 14 Nm, Equipment: bar feeder, chip conveyor, TECHNICAL DATA Max. turning diameter: 20 mm Tool body diameter: 20 mm Spindle positioning resolution: 0.1° Main spindle Rated power: 3.7 kW Maximum power: 5.5 kW Torque: 14 Nm Rated torque: 9.4 Nm Speed: 10,000 rpm Axis data Linear axis Z1 / X1 / Z1 – Stroke: 80 / 35 / 240 mm Linear axis Z1 / X1 / Z1 – Rapid traverse (max.): 40 m/min Linear axis Z1 / X1 / Z1 – Acceleration (max.): 10 m/s² Linear axis Z1 / X1 / Z1 – Nominal force: 1,250 N Linear axis Z2 / X2 – Stroke: 180 / 230 mm Linear axis Z2 / X2 – Rapid traverse (max.): 40 m/min Linear axis Z2 / X2 – Acceleration (max.): 10 m/s² Linear axis Z2 / X2 – Nominal force: 1,250 N Tool holder Number of fixed tools (internal): 6 Diameter: 20 mm Number of fixed tools (external): 4 Tool shank size: 12 × 12 mm Tsdpfx Afsy Dr S Heweb Number of driven tools: 4 Collet type: ESX 16 MACHINE DETAILS Control: Fanuc 16iT Machine dimensions (L × W × H): 2,275 × 1,300 × 1,760 mm Weight: 2,600 kg Connected load: 21 kVA Power-on hours: 85,620 h Operating hours: 27,896 h EQUIPMENT - Bar feeder FMB Turbo 3-36 / 4200 / A, year of manufacture 2007 - Coolant tank with chip conveyor - Central lubrication - Hand-held control unit - Documentation available

Condition: ready for operation (used), Year of construction: 2015, operating hours: 43,196 h, functionality: fully functional, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, controller model: Fanuc 310 is, spindle speed (max.): 5,000 rpm, counter spindle speed (max.): 5,000 rpm, No minimum price – guaranteed sale to the highest bidder! CNC turning center with comprehensive accessories! A wide range of like-new spare parts is also available! TECHNICAL DETAILS Travel X1 axis: 165 mm Travel X2 axis: 165 mm Travel Y1 axis: 80 (+50 / -30) mm Travel Z1 axis: 678 mm Travel Z2 axis: 640 mm Travel W2 axis: 690 mm Todpfx Aoza Alhsfwob Rapid traverse X/Y/Z/W axis: 30 m/min Acceleration X/Y/Z/W axis: 5 m/s² Main and counter spindle Power main spindle: 20 / 25 kW Power counter spindle: 17 kW Speed main spindle max.: 5,000 rpm Speed counter spindle max.: 5,000 rpm Bar diameter main spindle max.: 65 mm Bar diameter counter spindle max.: 45 mm Number of turrets: 2 Number of rotating tools per station: 12 driven positions Tool system: VDI 30 Speed driven tools: max. 4,000 rpm MACHINE DETAILS Control: Fanuc 310 is Coolant tank capacity: approx. 650 l Coolant pump capacity per turret: max. 20 l/min Pump pressure: 7 bar Connected power: 91 kVA Dimensions & Weight Machine dimensions (L x W x H): 4,500 x 1,990 x 2,300 mm Machine weight: approx. 9,500 kg Operating hours Power-on hours: 64,274 h Operating hours: 43,196 h EQUIPMENT IEMCA MASTER 865 MP 43 L bar loader Drive for slides 1 and 2, all 12 positions C-axis for main and counter spindle Y-axis for slide 1 Chip conveyor, belt type Counter spindle collet cleaning with coolant Workpiece discharge including belt Mechanical preparation for oil mist filter Electrical and software interface for bar loader Angular synchronization between main and counter spindle Automatic machine shutdown 2 additional inputs/outputs, 4 M-functions Thread drilling without compensation chuck Piece and time counter Software for polygonal turning for slides 1 and 2 Constant cutting speed Helical interpolation for slide 1 Spindle speed monitoring Four-color warning light Cooling unit for control cabinet Collet chuck type MPF 65/140 without axial feed for main spindle, max. diameter 65 mm Manual collet changer type SACO MPT65/140 and MPF65/140 Differential pressure for counter spindle with the possibility of setting two different clamping pressures 1 set of soft jaws for collet chuck type SMW 175-BBD Collet chuck type SMW 175-BBD for counter spindle including adapter for spindle adjustment Tool wear monitoring system for CNC FANUC Sister tool selection system for Tool Monitor CNC FANUC External flushing of jaws and collets with coolant on main and counter spindle

Condition: ready for operation (used), Year of construction: 1996, number of axes: 2, This Gildemeister MF twin 65 was manufactured in 1996. It features two turrets, each with 12 tool positions, all motorized-capable, and includes 14 driven tools and 14 tool holders. The machine boasts both spindles in very good condition and a bar passage of 65 mm, complemented by a Cucchi Pietro bar feeder. Contact us for more information about this machine. • 2 turrets (12 + 12 tool positions), all motorized-capable • Bar passage: 65 mm • Both spindles in very good condition • New hydraulic/power unit pump Additional equipment • Cucchi Pietro bar feeder • 14 driven tools Tjdoyaqr Aopfx Afwjb • 14 tool holders

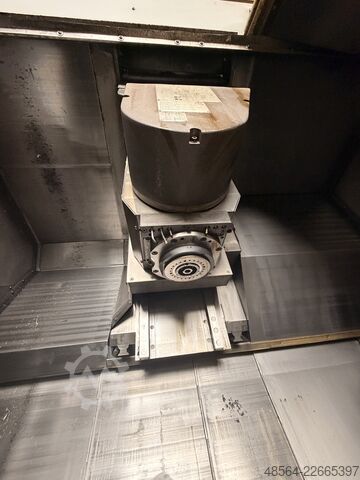

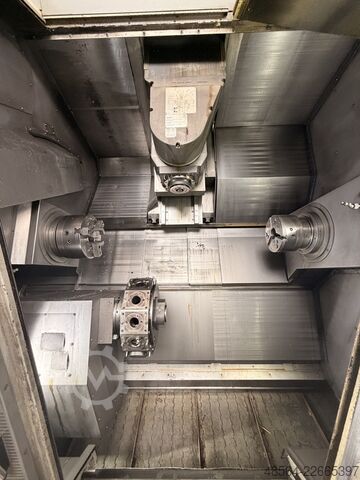

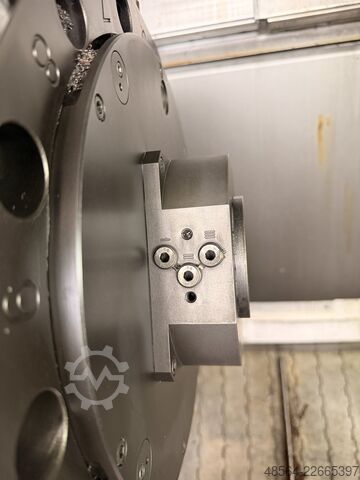

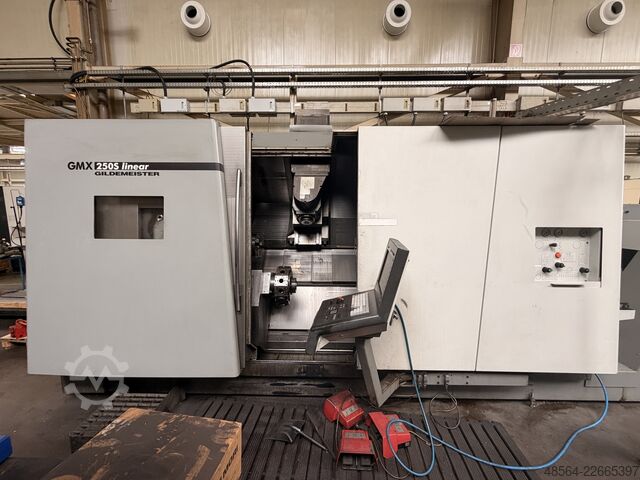

Condition: used, Year of construction: 2008, operating hours: 51,226 h, functionality: fully functional, Control system: HEIDENHAIN Plus iT with Turn Plus Turning length: 1175 mm (tailstock machine 1100 mm) Tool holder: HSK 63A (DIN 69893) Tool magazine: 1 x 36-position disc magazine Tedpfezx Agzjx Afwjb Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and expert reassembly – all from a single source. Billing based on individual terms and conditions and duration. Contact us for your personal offer.
