Used Gleason-Pfauter Gp 200S for sale (13,005)

Condition: used, Year of construction: 2001, Technical details: max. wheel diameter: 200 mm gear width: 50 mm max. module: 6 table diameter: 168,14 mm boring diameter: 65,532 mm weight of the machine ca.: 11 t table turning speeds: 0-1.000 U/min length of stroke min./max.: 0-70 mm no. of strokes: 180-1.800 Stück This machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required. * Hodpexz Avbjfx Ab Ast

Condition: used, Year of construction: 2004, Technical details: max. wheel diameter: 130 mm gear width: 25 mm module max. : 3 module min. : 0,5 control: Siemens 840D work-spindle diameter: 85 mm strokes - infinitely variable: 500 - 2500 Hub/min stroke: 30 mm total power requirement: 48 kVA weight of the machine ca.: 11,5 t space requirements approx. LxWxH: 4,7 x 3,0 x 3,3 m Equipment: -Counterholder with tip -chip conveyor Hodpsvi Ninsfx Ab Aot -hydraulically operated counterholder arm and linear guides i.D. *

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, GP300 CNC gear hobbing machine, WET AND DRY MACHINING available as required. Both options are freely selectable. Hjdpfx Absxqn Tqj Aot Siemens 840D Solution Line, 5-axis system, suitable for shaft and disc-type workpieces. Max. Ø300 mm, max. module 6, swivel range ±45°, axial travel 440 mm, hobbing power 15 kW, HSK-B80, table Ø300 mm, direct drive, speed 90–900 rpm. High precision, digital drive technology (Sinamics S120), automatic head positioning 0.001°, linear guides, safety retraction, temperature compensation, full enclosure.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 13230, wheel width: 25 mm, wheel diameter: 130 mm, controller model: Siemens 840D, spindle diameter: 85 mm, stroke rate (max.): 2,500 1/min, TECHNICAL DETAILS Wheel diameter max.: 130 mm Wheel width: 25 mm Module max.: 3 Module min.: 0.5 Ram spindle diameter: 85 mm Stroke rate: 500 - 2,500 strokes/min (continuously adjustable) Stroke: 30 mm MACHINE DETAILS Hsdpfx Aszb Dtcob Aot Control model: Siemens 840D Total power requirement: 48 kVA Dimensions & Weight Space requirement (L x W x H): 4,700 x 3,000 x 3,300 m Machine weight approx.: 11.5 t EQUIPMENT Tailstock with point Chip conveyor Hydraulically actuated tailstock arm and linear guides

Condition: like new (used), Year of construction: 2017, max. wheel diameter 100 mm gear width 26 mm max. module 31 min. module 0,1 Control Siemens 840 D SL Number of working hours 9598 h total power requirement 45 kW weight of the machine ca. 7,8 t dimensions of the machine ca. 4,40x3,95x3,01 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ 180 mm and workpiece axis Stand inclination range (manual) - 1/+ 11° Tool holder (manual clamping) HSK-D63 (hollow shank taper according to DIN 69063) Hsdpfxjv Ehbbo Ab Aot Weight of the machine approx. 7,000 kg with robot cell

Condition: used, Year of construction: 2008, control Siemens 840D Hobbing Machines for Large Gears Hedpjwzypnsfx Ab Ast Flexible and Versatile Gear Hobbing Gleason’s large hobbing machines offer maximum productivity for roughing and finishing operations on cylindrical gears for many industries: wind turbines, industrial gearboxes, mining, and shipbuilding, gear machining, and many more. The guideways are wide and feature hydraulically preloaded guides, which are used in combination with a separate linear guide and backlash- free rollers. This ensures precise slide movements with every feed. The design of the worktable ensures optimal conditions for absorbing and transferring cutting forces to the machine base. The use hydrostatic table bearings, combined with the proven backlash-free double-worm gear, guarantees precise table movements and the highest flatness and concentricity accuracies of the worktable. This holds true regardless of significant fluctuations in workpiece weight and/or high machining forces. The motorized gear hobbing heads for external and internal gear cutting are designed to meet the requirements of modern cutting tools. All machine sizes can be equipped with both external and internal gear hobbing heads. The power range of the drive takes future tool developments into account. Naturally, the gear hobbing head drive is also backlash-free. These machines are particularly well-suited for use with state-of-the-art cutting materials.

Condition: ready for operation (used), Year of construction: 2001, controller manufacturer: SIEMENS, controller model: 840, overall weight: 11,500 kg, number of axes: 5, This 5-axis Gleason PFAUTER G320 CNC + Promot Automation was manufactured in 2001. It features a Siemens 840 control unit, a maximum workpiece diameter of 380 mm, and a module range of 0.5-7.0. The system includes Promot Automation handling, a robotics system, and a cooling belt system. If you are looking to get high-quality gear grinding capabilities consider the Gleason PFAUTER G320 CNC machine we have for sale. Contact us for more information about this machine. • Operator panel: included • Module range: 0.5–7.0 • Workpiece diameter: min 10 mm, max 380 mm • Number of teeth: 10–600 • Axis travels: Z (vertical) 200 mm; X (horizontal) 230 mm; Y (tangential/shift) 135 mm • Clamping head swivel (A): ±45° • Tailstock stroke: 125 mm • Dressing travels: V (tangential) 180 mm; U (radial) 110 mm • Grinding wheel speed: up to 3000 rpm, stepless • Linear axis speed: 10,000 mm/min • Max. table rotation speed: 240 rpm • Table resolution: 0.001° • Feeds: machining and working feeds stepless • Grinding wheel dimensions: diameter 270–350 mm; width up to 104 mm; bore 160 mm • System weight: approx. 11,500 kg Hedpfxjyf E R Dj Ab Ast • Space required (machine): approx. 3.7 m × 2.4 m × 2.75 m Additional equipment • Promot Automation handling unit (robotics handling) • Operator panel/handheld (for automation) • Conveyor belt • Cooling belt system • Hydraulic unit • Space required (automation): approx. 4.5 m × 1.6 m × 4.0 m

Condition: used, Year of construction: 2018, max. wheel diameter 450 mm max. module 4 mm Control Siemens 840 D sl internal diameter 100-300 mm weight of the machine ca. 11 t dimensions of the machine ca. 5,85 x 8,30 x 3,80 m GLEASON-PFAUTER 300 PS Gear Skiving Machine – Year 2018 For sale is a high-performance CNC gear skiving machine type GLEASON-PFAUTER 300 PS, built in 2018. The machine is ideally suited for the precise machining of internal gears and offers excellent dynamics, advanced CNC technology, and a robust machine design. Equipped with a powerful Siemens 840D sl CNC control, this machine provides optimal conditions for efficient and repeatable gear manufacturing processes. Technical Specifications - Max. gear diameter: 450 mm - Max. module: 4 mm - Internal diameter range: 100 – 300 mm - Max. allowable skiving cutter diameter: 175 mm - Mounting surface diameter: 125 mm Hjdpezupl Nefx Ab Ajt - Axis Travels: X-axis travel: 350 mm Y-axis travel: 300 mm Z-axis travel: 440 mm - Max. skiving head swivel angle: ±25° - Workpiece table outer diameter: 570 mm - Max. table load capacity: 5 kN - Feed Rates and Speeds X-axis feed rate: 12,000 mm/min Y-axis feed rate: 5,000 mm/min Z-axis feed rate: 8,570 mm/min - Tool speed: 0 – 3,000 rpm - Workpiece table speed: 0 – 1,500 rpm Additional Equipment / Information - CNC Siemens 840D sl - Swivel gripper slide travel: 180° - Operating voltage: 400 V - Machine weight: approx. 11 t - Space requirement: approx. 5.85 × 8.3 × 3.8 m - Hydraulic oil capacity: 150 l - Coolant capacity: 850 l - Motor and hydraulic cooling: 100 l The machine is in very good condition and is ideally suited for demanding series production and high-precision gear manufacturing applications. Inspection by appointment possible.

Condition: ready for operation (used), Three milling heads for different machines of the brand Pfauter-Gleason are available. 1) Milling head for Gleason Genesis 130H. 2) Milling head for Pfauter P200, without counter bearing. 3) Milling head for Pfauter PE250. An on-site inspection is possible. Hodexl Upzjpfx Ab Ast

Condition: used, Year of construction: 2008, Maximum workpiece outer diameter 3420 mm workpiece diameter nominal 2400 mm max. module 30 mm control Siemens Sinumerik 840 D Minimal workpiece - internal diameter 630 mm Maximum workpiece outer diameter 3420 mm Maximum workpiece tooth width 600 mm max. rim strength 500 mm Maximum permissible head circle diameter 440 mm Hob/disc cutters – Maximum length 90 mm Milling arbour diameter 80 mm milling head -swivable +15/-15 Grad workpiece table outer diameter 1870 mm Workpiece table bore 600 mm Workpiece table – Maximum permissible load 300 kN rapid traverse X-axis 3000 mm/min rapid travel z-axis 4000 mm/min Workpiece table speed 0-6 U/min Tools speed 18-180 U/min weight of the machine ca. 38 t dimensions of the machine ca. 8,41 x 9,05 x 5,19 m total connected load 100 kVA Equipment/accessories: - IFK2 internal milling head - Milling arbor with spacer discs - Chip conveyor - Oil mist extraction Hedpfx Aeztz Rujb Aet - Dry machining only - Technical documentation

Condition: used, Year of construction: 2007, max. workpiece diameter 2800 mm workpiece diameter nominal 2400 mm max. module 30 mm control Siemens Sinumerik 840 D Minimal workpiece - internal diameter 630 mm Maximum workpiece outer diameter 3800 mm Maximum workpiece tooth width 600 mm max. rim strength 50 mm Maximum permissible head circle diameter 440 mm Hob/disc cutters – Maximum length 90 mm Milling arbour diameter 80 mm milling head -swivable +15/-15 Grad workpiece table outer diameter 2500 mm Workpiece table bore 800 mm Workpiece table – Maximum permissible load 400 kN Rapid traverse on the X and Y axes 3000 mm/min rapid travel z-axis 4000 mm/min Hodpfx Abew Rf S Sj Ast Workpiece table speed 0-4 U/min Tools speed 18-180 U/min Cutter arbor cone HSK-B160 weight of the machine ca. 57 t dimensions of the machine ca. 10,7 x 8,1 x 4,85 m total connected load 100 kVA Equipment/Accessories: - IFK2 internal milling head - Milling spindle with spacer discs - Chip conveyor - Oil mist extraction - Wet and dry machining possible - 2 chip conveyors - Technical documentation

Condition: used, TECHNICAL DETAILS Hjdpex Ed A Rjfx Ab Aet - Part diameter : 100 [mm] - Nominal module * gear hobbing : approx. 3.0 [mm] * endless screw milling : approx. 5.0 [mm] - Max. axial movement : 320 [mm] - Cutting head orientation : -45 / + 115 [°] - Main mill max. diameter : 118 [mm] - Max. cut out length of the mail mill : 180 [mm] - Max. mill movement (Shifting) : 160 [mm] - Max. part-holder spindle speed : 3000 [t/mm] - Min./max. distance between axes : 10/100 [mm] - Cutting head motor power : 14 [kW] - Main mill speed : 50-12000 [t/mm] - Weight : 5000 [kg] EQUIPMENT - CNC Siemens 840D - Cooling tank - Chip conveyor

Condition: used, TECHNICAL DETAILS - Maximum workpiece diameter : 80 [mm] - Z-axis travel : 220 [mm] - Max module : 2.5 - Max workpiece-holding spindle speed : 3000 [rpm] Hodpfxsyuzgae Ab Ast - Max dimensions of the hob (diameter x length) : 118 X 120 [mm] - Speed of the hob-holding spindle : 200-5000 [rpm] - Shifting travel : 140 [mm] - Angular travel of hob-holding headstock : -45/+115 [°] - Machine floor space : 2700/2180 [mm] - Machine height : 2310 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840D PowerLine - Loading manipulator

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, Fully reconditioned milling head from a Gleason Pfauter P210L – manufactured in 2004. Hedpfxjzr Hd Rj Ab Aot

Condition: excellent (used), Capacity M16 module Table diameter: 1,200 mm Maximum workpiece diameter: 1,500 mm Hjdpfx Abozql Ufe Aot Milling slide travel: 600 mm Table center hole diameter: 250 mm

Condition: excellent (used), Year of construction: 2008, Siemens Sinumerik 840 D, 5 axes controlled. Wheel diameter max 2000 mm 700 mm wheel width Hodpfoza Egbox Ab Aet Machine weight 35,000 kg Space requirements approx. 6.9 x 8.4 x 3.7 m

Condition: excellent (used), Year of construction: 2018, max. wheel diameter 450 mm max. module 4 mm internal dia. - min. 100 mm internal dia. - max. 300 mm Maximum permissible peeling wheel diameter 175 mm Diameter of the installation area 125 mm slide travel X-axis 350 mm slide travel Z-axis 300 mm slide travel Z-axis 440 mm Largest swivel range of the peeling head ±25 Grad workpiece table outer diameter 570 mm Workpiece table – Maximum permissible load 5 kN Feed - X 12000 mm/min Feed - Y 5000 mm/min Feed - Z 8570 mm/min Hjdpfx Abszfqike Aet Tools speed 0-3000 U/min Workpiece table speed 0-1500 U/min voltage 400 V weight of the machine ca. 11 t dimensions of the machine ca. 5,85 x 8,3 x 3,8 m Technical specifications: - CNC Siemens 840 sl - Swivel grab travel: 180 degrees Fluids: - Hydraulic: 150 l - Coolant: 850 l - Engine and hydraulic cooling: 100 l - Grease lubrication: 2 kg

Condition: used, Year of construction: 2014, Technical details: max. wheel diameter: 150 mm gear width: 350 mm max. module: 4 total power requirement: 48 kW weight of the machine ca.: 13 t Hodpfx Aextbmisb Ast dimensions of the machine ca.: 4,88 x 4,40 x 3,56 m spindle turning speed range: 100-1000 U/min Infeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning. *

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm Knife spindle - Speed range 41-121 U/min working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: - 18-piece cutter set - Chip conveyor Hedsyh Rmmspfx Ab Aot - Technical documentation

Condition: excellent (used), Year of construction: 2002, max. wheel diameter 350 mm gear width 230 mm max. module 8 min. module 1 Hsdpfxey D T Upo Ab Aot Control Siemens 840 weight of the machine ca. 10,5 t dimensions of the machine ca. 4,5 x 2,5 x 3,0 m Loading unit, very good condition.

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 200 mm gear width: 250 mm max. module: 3 min. module: 0,5 total power requirement: 45 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation Hjdoy Nk Idopfx Ab Ajt *

Condition: used, Year of construction: 2003, The equipment will be available for sale starting March 2027, as it is currently still in use within the production process Please state your offer price. Price without packaging and transportation; Payment in advance. You need to make us a price offer is you are interested about the machine. The hand over will be at our location Terms of delivery: EXW Cugir, Romania The buyer can assist in disassembling the machine. The buyer is responsible for transporting the machine. We organize only the loading part of the machine on the trailer/truck with forklift/crane The equipment will be available for sale starting March 2027, as it is currently still in use within the production process Hedpfoza Tyvjx Ab Aot

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: Hjdpfx Aow Rrb Hob Ajt - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

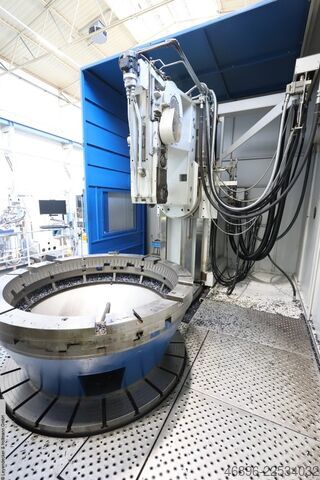

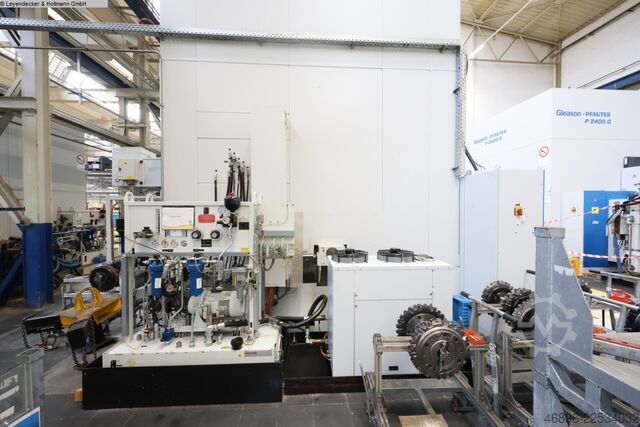

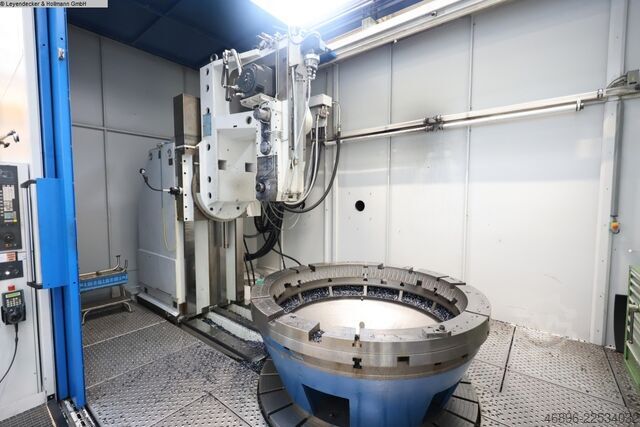

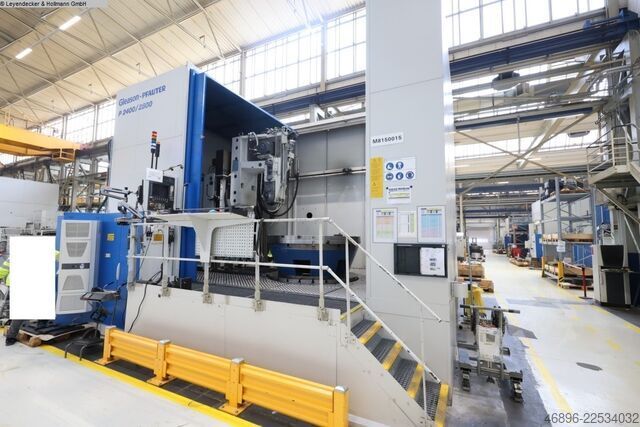

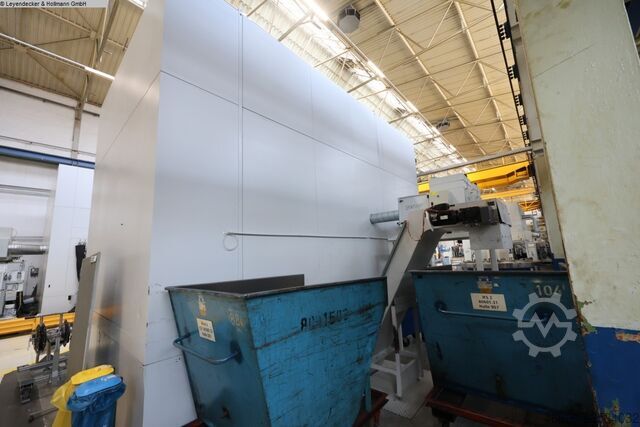

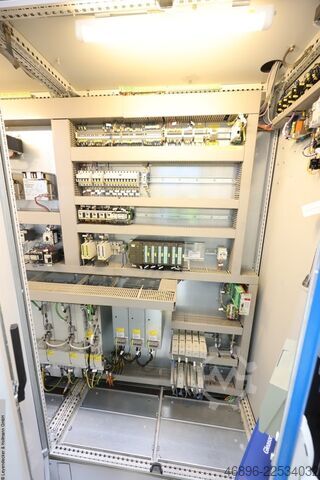

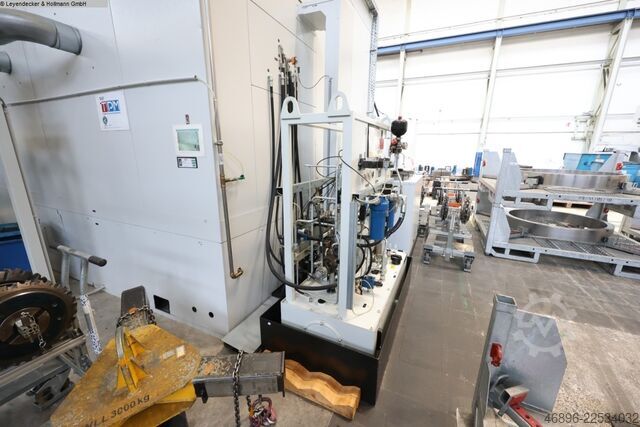

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other Hodpfx Abowzyp Is Ajt regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2001, Technical details: max. wheel diameter: 80/120 mm max. module: 2,5 max. top circle diameter: 65 mm : 22 mm : 140 mm : 120 mm slide travel axial ( Z-axis ): 320/400 mm Dimensions (L/W/H): 3270 x 3240 x 2020 mm weight of the machine ca.: 6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1 Hjdpfx Aboxrwpke Ajt *
