Used Gustav Wolff Eccentric Press for sale (12,821)

Condition: good (used), Year of construction: 1998, functionality: fully functional, total length: 19,000 mm, total width: 19,000 mm, table width: 610 mm, overall weight: 8,500 kg, table length: 850 mm, power: 12 kW (16.32 HP), pressing force: 120 t, installation height: 300 mm, to visit under power Pjdpfxerwlxas Aflsgp

Condition: good (used), Year of construction: 2002, functionality: fully functional, power: 12 kW (16.32 HP), pressing force: 120 t, table width: 610 mm, table length: 850 mm, total length: 19,000 mm, total width: 19,000 mm, overall weight: 8,500 kg, installation height: 300 mm, to visit under power Pgodpfx Aorwlxteflop

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, pressing force: 4,000 t, stroke length: 180 mm, throat depth: 500 mm, overall weight: 28,000 kg, controller model: Siemens S7-300, The machine underwent a major overhaul in 2007! The following modifications were carried out on the single-column eccentric press PEE 400: Conversion of the press drive to an adjustable drive with 15-45 strokes of the press ram Conversion of the clutch and brake to a pneumatically actuated Ortlinghaus clutch-brake combination Adjustment of the pinion shaft, flywheel, and bearing cover to the pneumatically actuated clutch-brake combinations Replacement of the rolling bearings for the pinion shaft and flywheel bearing Replacement of all sealing elements and wear parts for the drive Replacement of the seals for the compensator cylinder Replacement of the V-belts for the flywheel drive Replacement of the entire electrical control system Installation of a stroke adjustment mechanism Modification of the safety device Mounting of a tie rod to reduce frame deflection under press force Replacement of the worm gear for ram adjustment, pressure spindle, spindle nut, and pressure ring Refurbishment of the ram guide rails Replacement of the die plate and its support Hydraulics Pneumatics Psdpfszmfnqox Afljgp Lubrication Hydraulic pull-down cushion in the press table Tool mounting arms for attaching the press tool Tool lever strips in the table TECHNICAL DETAILS Pressing force: 4,000 kN Adjustable stroke: 30–180 mm Adjustable stroke rate per minute (continuous operation): 15–45 /min Ram adjustment: 150 mm Overhang: 500 mm Ram area (width × depth): 1,200 × 800 mm Table area (width × depth): 1,600 × 1,000 mm Maximum distance between table and ram area: 625 mm MACHINE DETAILS Control: Siemens S7-300 Motor power: 55 kW Motor speed: 1,500 rpm Hydraulic pull-down cushion Piston diameter: 110 mm Piston rod diameter: 90 mm Effective piston area: 95 cm² Pull-down cushion diameter: 230 mm Adjustable counterforce: 10–250 kN Usable pull-down cushion stroke: 90 mm Speed of the pull-down cushion during extension: max. 65 mm/s Hydraulic system Flow rate of the pull-down cushion pump: 29 l/min Drive power of the main pump: 7.5 kW Oil capacity in the tank: 250 l Flow rate of the circulation pump: 65 l/min Drive power of the circulation pump: 1.5 kW Operating pressure for clutch and brake: 5 bar Operating pressure for ram weight compensation: 5 bar Total machine weight: 28,000 kg

Condition: excellent (used), Eccentric press Inventory No. 3920 Manufacturer: Rijva Type 504 Press force: 40 tons * Stroke adjustment: 15 to 75 mm * Adjustable ram: 60 mm Pjdpozpbvpsfx Afljgp * Installation height: 310 mm * Overhang: 225 mm * Table surface: 570 x 430 mm * Adjustable table * Foot pedal operation * Central lubrication * Machine weight: approx. 2600 kg. In very good condition.

Condition: excellent (used), Eccentric press Pjdpfx Aszpbvioflogp Inventory no. 3919 Manufacturer: Weingarten Type: XOR 2 Press force: 75 tons * Stroke adjustment: 10 to 100 mm * Adjustable ram: 60 mm * Installation height: 360 mm * Overhang: 270 mm * Table area: 630 x 600 mm * Foot-operated * Machine weight: approx. 4500 kg In very good condition.

Condition: new, functionality: fully functional, Year of construction: 2026, overall weight: 1,400 kg, input voltage: 400 V, total length: 1,150 mm, total width: 900 mm, total height: 1,910 mm, OPEN 16T ECCENTRIC PRESS – THE MACHINE HAS MINOR DAMAGE AS SHOWN IN THE PHOTOS: THE ELECTRICAL CONTROL CABINET AND THE OIL DRIP TRAY ARE DENTED. Professional 16-ton eccentric press designed for punching, stamping, bending and forming metal components. The open back frame construction provides easy access to the working area and comfortable machine operation. The rigid and durable construction ensures stable operation even during intensive industrial use. The machine is equipped with a dry pneumatic friction clutch and modern safety systems. Main machine features: • Open back frame design • Rigid and durable construction • Fixed working table • Transversely mounted crankshaft • Horizontally mounted crankshaft • Dry pneumatic friction clutch • Lifting balance device • Safety valves • Manual control • High production efficiency TECHNICAL SPECIFICATIONS: • Pressing force: 16 t • Stroke under load: 2 mm • Slide stroke: 0–70 mm • Number of strokes: 125 strokes/min • Maximum die height: 170 mm • Distance from slide block to frame: 170 mm • Working table dimensions: 320 × 480 mm • Table hole diameter: Ø100 mm • Opening dimensions: 160 × 240 × Ø210 mm • Slide dimensions: 180 × 200 mm Psdpfx Afozp I Tzjlsgp • Shank hole size: Ø40 × 60 mm • Distance between columns: 220 mm • Table thickness: 60 mm • Maximum tilt angle: 25° • Motor power: 1.5 kW • Machine dimensions: 1150 × 900 × 1910 mm • Weight: 1400 kg Equipment: • Light curtains • Mechanical guards • Ejector in lower table Delivery conditions: • Delivery to customer possible • Shipping cost calculated individually • Brand new machine • 12-month warranty • Warranty and after-sales service • CE declaration of conformity Additional delivery information: • Delivery can be arranged throughout Europe • Shipping cost calculated individually depending on customer location • Fast order processing • Personal collection possible • Machine professionally secured for transport

Condition: good (used), Year of construction: 1981, Machine parameters: Rated forming force: 250 t Stroke: 45 mm Pedezpxziopfx Aflogp Description: The machine is in good technical condition; testing can be arranged upon prior agreement. Dimensions: 2580 x 1350 x 2975 mm Power requirement: 22 kW Czech documentation Machine weight: 12,880 kg

Condition: used, Year of construction: 1975, functionality: fully functional, power: 33.1 kW (45.00 HP), input voltage: 380 V, input frequency: 50 Hz, type of input current: three-phase, pressing force: 60 t, stroke length: 140 mm, throat depth: 280 mm, We are offering this used Osterholt EXPA 60 eccentric press, manufactured in 1975, for sale. Pedpfezlgz Njx Aflogp Machine number: 873368 Type: EXPA 60 Pressing capacity: 60,000 kg Stroke length: 280 mm Minimum ram height: 100 mm Adjustable ram: 60 mm Adjustable stroke: 10–140 mm Motor power: 45 hp Mains voltage: 380 V If you have any questions or would like more information, please do not hesitate to send us a message or call us.

Condition: used, Year of construction: 2000, gebraucht 2000 070165A prompt, Zwischenverkauf v Italien 19800 € 1 40 to 2.6 mm 650 mm 380 mm 120 mm 8 - 78 mm 145 1/min 6 60 mm 40 mm 195 mm 297 mm 800 mm 3 kW 1450 mm 1150 mm 2150 mm 2200 kg Two-hand control panel and foot pedal Pjdpfx Afeyrhpvjlsgp Work area enclosure with safety switch Additional bolster plate Central lubrication system Stroke counter Operating manual with CE declaration of conformity BUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISE We offer you maximum security and complete transparency. • HONEST INSIGHTS: Detailed photos and functional videos of the current condition • LIVE ON-SITE CHECK: Live testing is possible at our facility • DIGITAL DEMONSTRATION: Individual live demonstration via video call • RISK-FREE PURCHASE: 14-day return policy Details:

Condition: used, Year of construction: 2004, pressure 25 t throat 375 mm stroke 80 mm Psdpfxsykb D De Aflsgp no. of strokes 120 Hub/min ram adjustment 45 mm total power requirement 3,5 kW weight of the machine ca. 2,8 t

Condition: used, Year of construction: 1992, pressure 25 t throat 375 mm Pgjdpfx Asykb Dkjflop stroke 8 - 80 mm no. of strokes 120 Hub/min ram adjustment 45 mm total power requirement 1,5 kW weight of the machine ca. 2,5 t

Condition: used, SCHULER Podpsrgp N Hofx Afljgp TYPE 315-400 PRESSURE: 315t LENGTH OF STROKE: 30-160mm STROKES PER MIN: 36

Condition: used, Year of construction: 1990, EBU 160t TYPE HK160F PRESSURE: 160t UP TABLE DIMENSIONS: 1000x500mm DOWN TABLE DIMENSIONS: 1200x800mm STROKES PER MINUTE: 80 STROKE LENGTH: 20-200mm DAYLIGHT: 600mm POWER: 15kw Pgedpfozktzyjx Afljp WEIGHT: 17,500 kg THE MACHINE IS IN EXCELLENT CONDITION AND READY FOR LOADING.

Condition: used, RICHTER 315t PRESSURE: 315 tons DAYLIGHT: 500 mm TABLE: 1500 x 1250 mm Pjdjzmmvispfx Aflogp WEIGHT: 23,000 kg

Condition: used, Year of construction: 1990, ECCENTRIC PRESS GIZELIS 150t PRESSURE 150t TABLE DIMENSIONS 1000x660 mm STROKE 120-220 mm POWER 11 kW Pgjdpfxsx N Sr Dj Afljp WITH HYDRAULIC CLAMPING SYSTEM

Condition: used, Year of construction: 1998, ZANI TYPE: AFN 200t PRESSURE: 200t STROKE: 20-180mm Pjdpfezau Uuox Aflogp STROKES PER MINUTE: 50 POWER: 15kW UPPER TABLE DIMENSIONS: 1100x760mm LOWER TABLE DIMENSIONS: 1300x850mm WEIGHT: 19.5t YEAR: 1998 MADE IN ITALY

Condition: refurbished (used), ECCENTRIC PRESS SGP TYPE : PEZZ 500/1700/1000 PRESSURE : 500t Psdpjhqqnzjfx Aflsgp DOWN TABLE DIMENSIONS: 1700x1000mm LENGTH OF STROKE: 20-153mm DISTANCE BETWEEN RAM -TABLE: Min 700mm , Max 800mm WEIGHT: 40.000 kgr MADE IN AUSTRIA

Condition: used, Pressure: 200 t Length of stroke: 40-180mm Strokes by minute: 32 Up table size: 630x500mm Down table size: 900x800mm Technical characteristics: AIR CLUTCH Power: 15 HP DIMENSIONS: Height: 3000 mms Width: 1000 mms Pedj Dvi Uepfx Aflogp Length: 2750 mms Weight: 14000kgr New electric system

Condition: used, Pressure: 160t Podpfjc Nt Akjx Aflogp Stroke: 20-140mm Length of stroke: 50 Up table size: 600x330mm Down table size: 1000x700mm Power: 15kw Weight: 10.000kgr

Condition: used, Year of construction: 1990, ECCENTRIC PRESS GIZELIS 200t PRESSURE 200t TABLE DIMENSIONS 1000x660 mm STROKE 17-230 mm POWER 11 kW WITH HYDRAULIC CLAMPING SYSTEM Pgodpfxjx N Sqys Afljp

Condition: used, Pressure: 160T Psdpo Dviwsfx Aflsgp Length of stroke: 30 - 180 mm Down table size: 800x900 mm Back pressure: WITH BACK PRESSURE Technical characteristics: WITH AIR CLUTCH New electric system

Condition: good (used), Manufacturer: DIGÉP Tip: SD 100 Pgodpfsm Uc R Ajx Aflep

Condition: used, Russian manufacturing, Max. pressing force: 25 t Table size: 550 x 400 mm Pjdoxbf Sfopfx Aflsgp

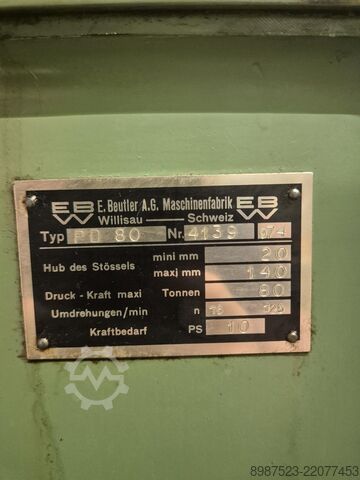

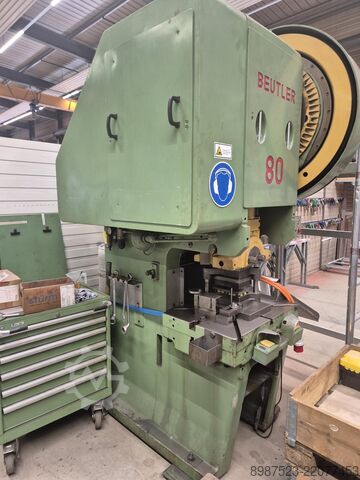

Condition: used, Year of construction: 1974, machine/vehicle number: 4139, functionality: fully functional, pressing force: 80 t, stroke length: 140 mm, table width: 530 mm, table length: 750 mm, ram plate width: 335 mm, ram plate length: 440 mm, Equipment: documentation/manual, For sale is a robust eccentric press from Beutler Maschinenbau with approximately 80 tons of pressing force. The machine is ideally suited for punching and forming operations. Specifications: • Table area: approx. 750 x 530 mm Pgjdpfszb Eaqex Aflsp • Ram area: approx. 440 x 335 mm • Ram adjustment: approx. 150 mm • Stroke: adjustable from 20 – 140 mm • Max. installation height: approx. 320 mm • Table opening: approx. Ø 230 mm Sold without warranty, ex works. The machine will be delivered without electrical power and compressed air connection. Payment before collection.

Condition: excellent (used), Eccentric press Inventory no. 3341 Manufacturer: Ter Hart Type: EP 13 * Pressing force: 13 tons * Stroke adjustment: 5 - 50 mm * Adjustable ram: 35 mm * Table dimensions: 330 x 230 mm * Installation height: 200 mm * Overhang: 115 mm * Foot/hand operation (guard) * Protective guard (hand) Pgsdpfxezi Erho Aflsp * Weight: 520 kg
