Used Holz-Her Lumina 1380 Multi for sale (10,127)

Condition: excellent (used), Year of construction: 2023, workpiece height (max.): 60 mm, edge thickness (max.): 15 mm, Holz-Her Edgebander LUMINA 1380 Multi PUR & EVA glue application (up to 60mm) + NIR unit / laser edging up to 45mm, as exchangeable station Jointing milling unit IntelliSet - tool correction fa.s.t. - Set-up on the fly iTronic - pressure & glue quantity control Fully motorized configuration of all units Multi-function milling units - 1.3mm radius (double) & 2mm (double) Cgedpfx Asx E A Dijd Aot Spraying units and much more... The machine is currently being refurbished at the factory in Voitsberg, Austria. Delivery, installation, and commissioning can be arranged directly through us at additional cost. The machine is currently located in our distribution warehouse in Gratwein, Austria. In the event of discrepancies between the German and a foreign language version, only the German version is binding. Our Terms and Conditions can be found on our website at holzher.de/de/agb.

Year of construction: 2016, condition: good (used), For inquiries: Zoltán Utasi +36 30 205 7380 • Edging thickness coiled edging: 0,4 - 3 mm • Edging thickness of cut-length edging: o max. 3 mm with unit FF701 o max. 8 mm without unit FF701 o max. 15 mm possible through tool change at trimming unit • Edge height: max. 65 mm • Workpiece thickness: 8 - 60 mm • Workpiece width: min. 65 mm • Workpiece length: min. 160 mm • Feed speed: variable 10 - 18 m/min LUMINA 1380 Ltronic Motor-driven pressure bridge adjustment Automatic lubrication of the transport chain Preparation RETURN-connection Electric for variable feed 400 V / 50 Hz, 2.2 kW Cgedpfxswkf Twe Ad Aot Operation Edge Control 19 with 18,5" Touchscreen ECO MODE power-saving mode Pre-milling unit 1802 with 2 milling units Edge feeder MG701 SYNCHRO automatic transport of roll and strip products Ltronic LT702 NIR+ Laser Edging Unit Glue application system Glu Jet GJ302 automatic motorized, automatic adjustment of gluing height (tracing nozzle) (EVA, PUR) Glu Jet rinse hopper Change carriage GJ302 Change carriage LT702 Pressure section 1913 MOT: first roller driven, 2 support pressure rollers Sprayer unit after pressure unit with use of antistatic coolant End trimming unit1918 (60 mm) pneumatic Form trimming unit FR701: Play-free mechanism and 6 fully digital NC servo-axes ensure Form trimming unit FF701: Play-free mechanism and 4 fully digital NC servo-axes ensure 100% repetition accuracy at the touch of a button. Scraper unit 1929 MOT4 with motor-driven adjustment for sensing rollers Surface glue scraper FK701 With pre and post tracing device for scraping out superfluous glue on the complete panel length for a clean glue line. Sprayer unit1856 for the in- and outfeed area Buffing unit 1940 For edge cleaning and polishing

Condition: used, Year of construction: 2021, functionality: fully functional, For Sale: Premium Holz-Her 1329 Multi Edgebander + Return-Master 5920 We are selling a high-end Holz-Her 1329 Multi edgebanding machine, including the Return-Master 5920 return system. The unit is 4 years old and in excellent condition. Codpfx Adeygrgho Aogt Original New Price: €138,000 + VAT Our Price: €69,000 + VAT (50% savings) Why choose this machine? Get a premium, lightly used machine for the same price as a subsidized unit, but without the paperwork, bureaucracy, or long-term obligations of a grant application. Maintenance: Regularly serviced by the expert Dimpex technical team. Performance: High-spec "Multi" version for versatile production needs. Serious inquiries only, please.

Condition: ready for operation (used), Year of construction: 2016, Numerically adjustable infeed fence Air flotation infeed table Anti-adhesive liquid spray system Pre-milling unit with diamond cutters Edge feeder for edge banding from coil or strips Glue station for GlueJet cartridges or L-Tronic laser technology 4 pressure rollers with pneumatic pressure adjustment Edge lubricant spray system Dual-motor precision end trimming unit with pneumatic angle adjustment Top and bottom edge surplus trimming unit (straight trimming) Numerically adjustable profile edge milling unit Flat scraper Profile scraper – two profiles Cleaning liquid spray system Pneumatically activated buffing units Pneumatically activated edge buffing unit Cgodpfeyrniisx Ad Ajt Feed speed continuously adjustable from 10 to 25 m/min Automatic lubrication of the feed chain Frame support Minimum workpiece length: 140 mm Workpiece thickness: 8–60 mm Minimum workpiece width: 60 mm Year of manufacture: 2016

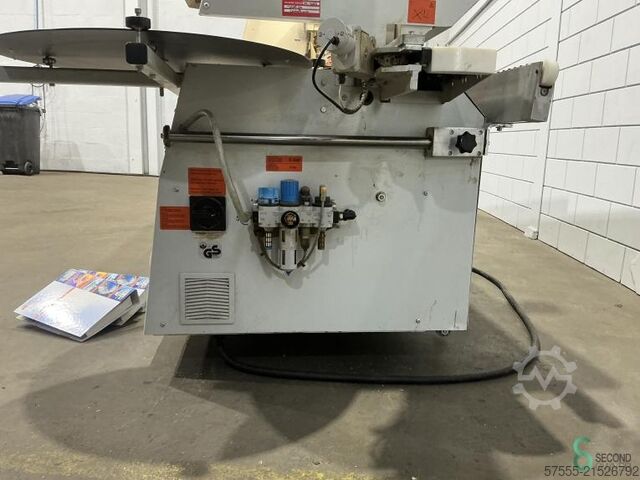

Condition: used, Year of construction: 2010, total height: 2,580 mm, total length: 5,500 mm, total width: 1,500 mm, Weight: 1.500 kg Price: On request - Year: 2010 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 161/1-10 - Number of units [pcs]: 7 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Tools available: Yes - └ 4th unit type: Cap unit - - Tools available: Yes Codeyu Tkkopfx Ad Asgt - └ 5th unit type: Rough milling unit - - Tools available: Yes - └ 6th unit type: Corner rounding unit - - Tools available: Yes - └ 7th unit type: Flat scraping unit - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 38.85 - Fuse [A]: 50 - Transport dimensions: 5500mm x 1500mm x 2580mm (l x w x h) - Transport weight [kg]: 1500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2007, total height: 1,900 mm, total length: 5,700 mm, total width: 1,000 mm, Colour: Grey Weight: 1.380 kg - Year: 2007 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 4684/0-709 - Number of units [pcs]: 7 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Cap unit - - Tools available: Yes - └ 4th unit type: Rough milling unit - - Tools available: Yes - └ 5th unit type: Corner rounding unit - - Tools available: Yes - └ 6th unit type: Radius scraping unit - - Tools available: Yes - └ 7th unit type: Flat scraping unit - - Tools available: Yes Cedpfxeyfn Dao Ad Ajgt - Glue system: Glue pot - Transport dimensions: 5700mm x 1000mm x 1900mm (l x w x h) - Transport weight [kg]: 1380kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2014, operating hours: 11,517 h, Empty weight: 6.000 kg - Year: 2014 - Documentation available: No - CE certificate present: No - Serial number: 070614/B/1-407 - Operating hours: 11517 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 4 - - C-axis present: Yes - Type milling table: Flat table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 18 - Tool changer positions [pcs.]: 12 - Vacuum pump present: Yes - └ Number [pcs.]: 2 - └ Brand: Becker - └ Year of manufacture: 2023 - └ Main motor power [kW]: 18.5 - └ Capacity [m³/h]: 600 - └ Vacuum pressure [bar]: 250 - Working range X [mm]: 7220 - Working range Y [mm]: 1580 - Z-axis working range [mm]: 180 - Transport weight [kg]: 6000kg Financial information Cgsdpfxjx E Uk Uj Ad Ast VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2011, total height: 1,730 mm, total length: 6,100 mm, total width: 1,440 mm, Colour: Grey Weight: 2.500 kg - Year: 2011 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 5/1-107 - Number of units [pcs]: 9 - └ 1st unit type: Pre-milling unit - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Tools available: Yes - └ 4th unit type: Cap unit - - Tools available: Yes - └ 5th unit type: - - Tools available: Yes - └ 6th unit type: Corner rounding unit - - Tools available: Yes - └ 7th unit type: Radius scraping unit - - Tools available: Yes Cedpfsyf Dakex Ad Aegt - └ 8th unit type: - - Tools available: Yes - └ 9th unit type: Flat scraping unit - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 21.9 - Fuse [A]: 50 - Transport dimensions: 6100mm x 1440mm x 1730mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 1987, total length: 4,300 mm, total width: 1,350 mm, total height: 2,550 mm, Colour: Grey Weight: 1.250 kg - Year: 1987 - Documentation available: No - CE certificate present: No - Serial number: 1454/8- 75 - Max. cutting height vertical [mm]: 1900 - Max. cutting width [mm]: 3300 - Min. saw blade diameter [mm]: 100 - Horizontal cutting: Yes - Vertical cutting: Yes - Transport dimensions: 4300mm x 1350mm x 2550mm (l x w x h) - Transport weight [kg]: 1250kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Cgsdpfsw Rm Inex Ad Ajt Yorick Diebels

Condition: used, Year of construction: 2005, Used machine Year of manufacture: 2005 Condition: Guides slightly worn, only suitable for rough cutting Equipment and technical data: - Cutting length: 4300 mm - Max. passage height: 2200 mm - Max. trimming height: 2100 mm - Max. scoring height vertical: 2100 mm - Cutting depth: 80 mm - Motor: 5.5 kW - Saw blade speed: 4500 rpm - Saw blade diameter: 300 mm - Extraction: 2 x 100 mm - Compressed air consumption: 60 NL/min Dimensions: 5620 x 1480 x 2990 mm Availability: short-term Cjdpfxewqifks Ad Aogt Storage location: Flörsheim

Condition: used, Edgebander Holzher Sprint 1317 pre-milling units glue application, glue cartridge pneumatic pre-cut guillotine pressure rollers trimming saws top-bottom milling units corner rounding profile scraper flat scraper Max. edging height (mm): 50 Cgedpfox Tf D Uox Ad Ast Edge thickness from roll: 3 mm Feed speed: 10 m/min The machine requires servicing, adjustment, and calibration. It can be started and all units power on, but the front saw does not react to material and the corner rounding unit requires adjustment.

Condition: used, Year of construction: 2006, Used machine Year of manufacture: 2006 Condition: completely overhauled Equipment and technical data: - fitted with new glue application system - manually adjustable infeed fence - milling unit 1961 - edge feeder 1903 - glue application station 1906 with tracking nozzle - pressure unit 1816, pneumatic - end trimming unit 1822 - milling unit 1942 M for radius, chamfer, flush trimming - complete air nozzle - scraper unit 1929 - chip collection box Cedjwka H Sopfx Ad Aogt - surface scraper 1964 - extraction hood set - complete safety covers - total length: 5,291 mm - workpiece thickness: min. 6 / max. 50 mm - edge band thickness depending on configuration: 0.4–5 mm - max. edge band height: 55 mm - minimum edge band strip length: 350 mm - max. edge band overhang/height per side: 3 mm - minimum workpiece width: 60 mm - minimum workpiece length: 180 mm - feed speed: 12.5 m/min - extraction: - jointing/milling unit: 900 m³/h - milling unit: 280 m³/h - scraper unit: 280 m³/h - static vacuum: - jointing/milling unit: 1,490 Pa - milling unit: 1,650 Pa - minimum air velocity: 20 m/sec - jointing/milling unit connection: 70 mm - scraper unit connection: 70 mm - compressed air: 6 bar Availability: short notice Location: Röllbach

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Equipment and Technical Data: - For classic nesting processing with wear plate - Machine frame of welded construction with ground and hardened prism guides for the gantry, unit head, and consoles - Gantry-type traveling column - Helical rack and pinion drive in X and Y axes, ball screw in Z axis for precise positioning - Working dimensions: - Max. support area on nesting table: X = 3100 mm, Y = 1560 mm - Max. traverse paths: X = 4695 mm, Y = 2100 mm, Z = 293 mm - Max. clearance height over DYNESTIC table: Z = 100 mm from table top (without wear plate) - Maximum programmable speed Vector speed: 128 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min - DYNESTIC table: - Fixed, continuous processing table with grid layout - Continuous grooves in X and Y directions - Groove spacing: 50 mm - Includes 25 meters of sealing cord for clamping the wear plate - Vacuum fields: Single-circuit vacuum system - Drilling unit 7877: - 19 spindles - Drive power: 1.7 kW - 13 vertical spindles: - Individually selectable - Arranged in U-shape - 5+4 in X direction, 4 in Y direction - 32 mm spacing - Max. drill diameter: 35 mm - Total drill length: 70 mm from screw-on end (depending on panel thickness) - Spindle stroke: 70 mm - Rotational direction: alternating clockwise/counterclockwise - Speed (max): 1000 - 4400 rpm, infinitely variable - Tool holder: M10 thread, 11 mm fit - Without tool, without holder Cgsdpfx Adewka Upo Ajt - 6 horizontal spindles: - 2 double drill spindles in X direction - 1 double drill spindle in Y direction - Tool holder: M10 thread, 11 mm fit - Max. total drill length: 63 mm from screw-on end - Without tool, without holder - Milling unit 7842: - Power: 12.0 kW (S6) - Max. speed = 1000 - 24,000 rpm, infinitely variable - Max. power at 12,000 to 24,000 rpm - Air-cooled - With HSK-F 63 tool holder - With right-hand threaded nut (for right-hand rotating tools) - With collet chuck for HSK shank - Ceramic ball bearings (hybrid bearings) - Tool weight max. 6 kg (incl. holder) - Tools: milling and grinding tools max. Ø 160 mm - Safety enclosure according to CE standard - Side and rear safety fence - Vacuum pump: 500 m³/h, dry-running - Personnel safety ensured by light barriers in the front machine area - Hand-held control device for remote operation of the machine with the following functions: - Start/stop of the processing program - Control of processing cycle speed - Reset button - Manual feed/rapid traverse for all axes - EMERGENCY STOP - CAMPUS V7 CAD/CAM software 1x machine license consisting of: - CAMPUS NC-HOPS: - Graphic variant system with WOP and CAD/CAM features for creating part variants using macro technology - CAMPUS MT-Manager - CAMPUS Workcenter - CAMPUS DXF interface - Automatic central lubrication - Automatic lubrication at defined intervals - Additional sealing against dust via pressurization in each guide carriage

Condition: not inspected (used), Year of construction: 2006, Connected load 380V 22A Edgecontrol operating panel 1856 Spray device 1961 Pre-milling unit 1901 Edge feeder 1905 Glue station 1926 Pneumatic pressure unit 1819 End trimming unit 1962 Milling unit 1966 Milling unit 1965 Scraper blade rounding 1983 Contour milling unit 1964 Flat scraper blade 1944 Polishing unit Cgjdpfx Adjy Ici Rj Ajt Extraction nozzles 1x120/1x160/1x100mm

Condition: used, Year of construction: 1991, Used machine Year of manufacture: 1991 Codpfox Rr D Aex Ad Aegt Fully automatic vertical machine, Cutting area 5,300 x 2,200 mm (cutting width x cutting height), Saw blade diameter 300 mm, Control for vertical and horizontal cuts, with ALU folding stops and ALU center support, with SUPER-CUT scoring unit Motor 3 kW - 400 V Availability: short-term Location: Röllbach

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Condition: Good (the machine has undergone extensive maintenance every year, most recently in March 2026!) Equipment: - iTronic – Adaptive pressure and glue quantity control with automatic, program-dependent fine adjustment - MOT SPS adjustable infeed fence - Automatic chain lubrication: Intelligent automatic transport chain lubrication - Edge Control 19 control system - EL GRM variable, 400V 50Hz, 2.2kW V2 SPRINT 1329 PERFORMANCE 400V 50Hz - Edge Control 19 control system with 18.5" touchscreen color display, 16:9 format - ECO MODE energy-saving mode: An automatic standby circuit - Jointing unit 1802 (2 x 2.0 kW, 200 Hz, 12,000 rpm) with 2 milling units for jointing panel edges - Diamond cutter, Ø 70 x 64 x 30 mm, Z2+2, left-hand rotation, Air Stream System (HOLZ-HER / LEUCO Patent) - Diamond cutter, Ø 70 x 64 x 30 mm, Z2+2, right-hand rotation, Air Stream System (HOLZ-HER / LEUCO Patent) - Edge feed 1901 SYNCHRO: automatic transport of coil and strip material - Glue application station Glu Jet GJ301 automatic (2.3 kW, 50 Hz) - DW501 SPS motorized SPRINT - GM501 spray device after the printing unit with lubricant (recommended for high-gloss edges) Cgedpfey Hyl Tox Ad Aot - End trimming unit 1918 (60 mm) pneumatic (2 x 0.45 kW, 12,000 rpm) pneumatically tiltable 0/10° - Milling unit FR701: 100% repeat accuracy at the push of a button due to backlash-free mechanics - Air Stream System multi-cutter, diamond Ø 70.9 x 16 mm, Z = 2+2 - Form milling unit FF701: 100% repeat accuracy at the push of a button due to backlash-free mechanics - Diamond cutter, Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4, radius R = 2 mm, left-hand rotation with CM technology - Diamond cutter, Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4, radius R = 2 mm, right-hand rotation with CM technology - Scraper unit 1929 MOT4 incl. high-gloss package with motorized adjustment of the tracing rollers - HW reversible knives for scraper holder, R = 2.0 mm (2 pcs. required) - Flat scraper FK701 with pre- and post-sensing for removing adhesive residue - TR501 spray unit for infeed and outfeed (separating and cleaning agent) - Includes nesting shoes below with their own spray unit Location: Hesse Availability: Approx. July 2026

Condition: used, Year of construction: 2006, functionality: fully functional, operating hours: 0 h, input voltage: 380 V, total height: 1,700 mm, total length: 5,700 mm, total width: 1,150 mm, overall weight: 1,500 kg, We are offering this fully operational HOLZ-HER SPRINT 1312 edge banding machine, year of manufacture 2026. Type: 1312 Equipment number: 1337/0-506 Serial number: 5002547 The machine is in operation until mid-May and will then be replaced with a new one. Cjdpfx Ajy Ir Ayjd Ajgt The machine can be tested at any time, even though it is located in an adjacent building. Loading with a forklift is possible without any issues. Collection only. If you have any questions or need further information, feel free to send us a message or give us a call.

Condition: excellent (used), functionality: fully functional, Edge banding milling machine with Holz Her 3-roller feed unit, 30 mm spindle, 50 mm milling width. Machine dimensions: 1000 x 1000 x 1300 mm, weight: 250 kg, in good condition, fully functional. Shipping available at additional cost. Cgsdpfxjvkgdro Ad Aot

Condition: used, Year of construction: 2005, Used machine Year of manufacture: 2005 Features and Technical Data: - Base machine 555 - Milling dimensions: - X = 3,514 mm - Y = 1,544 mm - Maximum machining dimensions: - X = 3,868 mm - Y = 1,746 mm - Z = 325 mm - Workpiece support with 8 consoles, pneumatically clamped - Drilling unit 7968: - 18 vertical drilling spindles with 32 mm pitch - 12 in the X-axis, 6 in the Y-axis - Individually selectable - T-shape arrangement - Maximum drilling diameter: 35 mm (depending on panel thickness) - Spindle extension stroke: 70 mm - Alternating right- and left-hand rotation Codox Enpqspfx Ad Aegt - Infinitely variable spindle speed: n = 4,725 rpm - 2 horizontal drilling units in X-direction, 1 horizontal drilling unit in Y-direction - Saw unit 7946: - Motor: 3.5 kW - Pneumatically swiveling to 90° - n = 5,300 rpm - Tool holder: A Ø = 200mm, I Ø = 30mm, B = max. 3.5mm - Sawing/grooving in X and Y directions - Milling unit 7935: - With 6 kW, water-cooled spindle - Milling unit 7982: - For lock case routing - Tool changer 7996: - 18-position carousel magazine - Vacuum pump with 140 m³/h - Handheld control unit - PC control with TwinCAM WOP system - Siemens control system Availability: short-term Location: 63934 Röllbach

Condition: good (used), Year of construction: 1997, functionality: fully functional, - PVC Primus, 3 mm PVC cartridge system - Gluing, flush trimming, flush milling, chamfer milling, radius milling - Scraper blade, buffing unit - Dimensions: 4700 x 1400 x 1650 mm - Weight: 1300 kg - Working dimensions: Length: 4500 mm Depth: 1020 mm Height: 1630 mm Codpewv Uq Ajfx Ad Ajgt - Connection nozzle: 140 mm Ø - Workpiece width: min. 60 mm - Feed rate: 11 m/min - 6 bar - 400 Volt compressed air - Edge thickness: 8 mm for strip material, 2 mm for roll material - WITHOUT pre-milling unit - New pneumatic cylinder Shipping possible at additional cost

Condition: ready for operation (used), Year of construction: 2002, machine/vehicle number: 226/0-206, Max. cutting length 4,300 mm, Max. cutting height (vertical) 2,100 mm, Max. cutting height (horizontal) 2,010 mm, Max. cutting depth 60 mm Cgjdpfx Ajwgm Ihod Ajt Motor 4 kW Max. circular saw blade diameter = 250 mm, Extraction nozzle diameter = 120 + 100 mm Max. installation dimensions 5,080 x 2,780 x 1,600 mm, Support rails have been replaced! --- Excluding transport and assembly of the machine --- Ex works in Seevetal, as seen, Subject to prior sale

Condition: used, Year of construction: 2006, functionality: fully functional, operating hours: 3,839 h, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, workpiece height (max.): 50 mm, edge thickness (max.): 6 mm, height adjustment type: mechanical, feed rate X-axis: 18 m/min, actuation type: pneumatic, total height: 1,500 mm, total length: 4,900 mm, total width: 1,100 mm, Equipment: CE marking, documentation/manual, We are offering this used Holz-Her 1315 edge bander, year of manufacture 2006. Type: 1315 Serial number: 4622/0-704 Factory number: 5009138 Series: KAM07V2 Year: 2006 Operating pressure: 6 bar Maximum pressure: 8 bar Holz-Her Sprint 1315 End trimming unit (one coupling has an air leak) Cedpfx Aoy El Nzsd Aegt Bonding possible with granules or cartridges 2 saws Top and bottom trimming Radius scrapers With corner rounding Flat scraper Polishing brushes Machine still in operation Available from 04/05/26 Can be loaded by forklift If you have any questions or require further information, feel free to send us a message or call us.

Condition: good (used), Year of construction: 2023, For inquiries: Zoltán Utasi +36 30 205 7380 • Edgebander for the edging and post-machining of materials in panel • form (such as chipboard panels, MDF panels, tabletops, etc.) • Edging thickness of coiled edging: 0,4 - 3 mm • Edging thickness of cut-length edging: 0,4 - 5 mm • Edging height: max. 55 mm • Panel thickness: 8 - 50 mm • Edging cross section: max. 5 x 50 mm (depending on material) • Workpiece width: min. 70 mm • Workpiece length: min. 180 /210 mm • Feed speed: 9 m/min. • with manual pressure bridge adjustment • Pull-out workpiece support, distance 500 mm • Control unit Edge Control BC 15 with 15.6" touch screen • Vi.se. (VIsual SEtting mode) provides all setting values for the digital counters and pressure gauges as a digital logbook to set up the machine quickly and safely. • Pre-milling unit FG101 with 2 diamond cutter heads • Edge feeder MG101 • Glu Jet hybrid technology GJ101 (2,3 kW, 50 Hz): automatic adjustment of gluing height (tracing nozzle) Cgedpfx Asy I Srujd Aot • Hopper for 1,4 kg glue cartridges (4 cartridges) • Glu Jet rinse hopper • Automatic refill function • Pressure unit DW101 • End trimming unit KA101 (50 mm) pneumatic plunge in 1-motor 0.22 kW, 12000 rpm • Trimming unit FR101: multifunctional milling unit Flush, Radius 2 x 0,37 kW, 12000 rpm 2 x HW insert milling cutter Ø 75, Z4, R2 • Corner rounding unit FF101 on double linear guide • Scraper unit ZK101 R=2,0 mm • Chip collector • Surface scraper unit FK101 • Buffing unit SW101(2 x 0.13 kW, 1,400 min-1) For cleaning and edge polishing, with 2 textile discs Ø 120 mm pivotable 0 - 5° • Sprayer TR101 for the in- and outfeed area

Condition: used, Year of construction: 2009, HOLZ-HER edge banding machine CONTRIGA 1366 Edge thickness: 0.4-30 mm (depending on equipment) Edge height: 51/66 mm (depending on equipment) Panel thickness: 6-45/60 mm (depending on equipment) Edge types: Rolls and strips Feed speeds: Continuous feed from 12-30 m/min (depending on equipment) With adjustable infeed level in the magazine area (max. adjustment range 30 mm) With height-adjustable magazine plate for changing the lower edge overhang With large magazine plate Ø 820 mm for edge rolls up to Ø 800 mm With transport chain including automatic central lubrication With motor-driven, position-controlled bridge height adjustment With pneumatic locking roller for the shortest workpiece sequence With extendable workpiece support (extension width 1600 mm) With space-saving, pneumatically controlled sliding hoods over the entire machine (Deviations for individual units are possible) with motorized infeed guide with injection oiler for lubricating all joints and bolts (including operating hours counter) with central connection for extraction (2x Ø 200 mm) with integrated chip collection box at the end of the machine (when radius scraper unit is installed) PPC 231 control system - Power PC for efficient setup and changeover - 15" SVGA screen with touchscreen - 128 MB CF memory card - USB connector on board - Ethernet network connection - Keyboard connector on board - Windows-like user interface - all information in plain text and/or graphics - Rotatable and pivoting control panel at eye level - Dust-proof membrane keyboard with softkeys (pushbuttons) - LED display for unit preselection - Program list with program names and numbers - Extensive program memory - Individual selection of the units with the functions as basic setting options for setpoints, route points and tool corrections as well as the fixed route points - Centralized and clear setup processes for units and their axis settings via fine adjustment (depending on the equipment) - Interval display for the shortest workpiece distance - Integrated path control - Path points are controlled generally or program-specifically - Clear and complete recording of all operating data - Service messages in plain text - Diagnostic system - including integrated synchronous bus system for high precision in unit control - Individual administration for up to ten users, including password protection - Online maintenance (optional), data exchange with HOLZ-HER Service - Barcode interface (optional) BASIC MACHINE CONTRIGA 1366 - Belt bridge Options and accessories for the basic machine Spraying device 1856 for the inlet and outlet area For the inlet area: Electronically controlled release agent sprayer with Riepe-LPZ/II release agent For the outlet area: Electronically controlled cleaning agent sprayer with Riepe-LP163/93 cleaning agent (only in conjunction with pre-milling unit 1961 and surface scraper 1964) Joint milling unit Joint milling station 1803 (2x 2.6 kW, 200 Hz, 12000 min-1) With two plunge-controlled milling units 1 unit in up-cutting direction 1 unit in down-cutting direction Plunge path 5 mm With static frequency converter 200 Hz Without milling tool With ProLock screw-in clamp for fast tool changes Tool for 1803 (workpiece height up to 60 mm) Diamond milling cutter PRO UT 2 pieces (front and rear) including protective covers Ø 100-63 - Ø 30 mm, Z = 3 + 3 + 3, 1x left-hand rotation, 1x right-hand rotation Noise-reduced milling cutter with integrated chip guide DFC technology (Leitz syst Cjdpfxsvvkfds Ad Ajgt

Condition: used, Storage location: Nattheim Cgjdpjvvkrdefx Ad Aet
