Used Hommel Werke Inside Micrometer for sale (3,129)

Condition: excellent (used), HOMMEL WERKE LV-50E roughness measuring device. Tjdpjvdybdefx Ahmjc

Condition: like new (used), Year of construction: 2012, operating hours: 4,541 h, functionality: fully functional, machine/vehicle number: SN:79004, travel distance X-axis: 1,035 mm, travel distance Y-axis: 540 mm, travel distance Z-axis: 620 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 35 m/min, nominal power (apparent): 14 kVA, torque: 96 Nm, controller manufacturer: Heidenhain, controller model: TNC 620, workpiece weight (max.): 1,000 kg, total height: 2,850 mm, total length: 2,500 mm, total width: 2,910 mm, table width: 540 mm, table length: 1,200 mm, table load: 1,000 kg, rotational speed (min.): 10 rpm, rotational speed (max.): 10,000 rpm, overall weight: 5,100 kg, spindle speed (min.): 10 rpm, spindle speed (max.): 10,000 rpm, operating hours of spindle: 4,541 h, coolant supply: 3 bar, distance table to spindle center: 150 mm, spindle motor power: 1,400 W, number of spindles: 1, number of slots in tool magazine: 24, input voltage: 400 V, type of input current: AC, Equipment: documentation/manual, rotational speed infinitely variable, The machine is in excellent condition and is almost like new. It has been used almost exclusively for aluminum prototype construction. Disassembly upon request. Here are all the details from the technical description. SN: 79004, Year: 2012 Commissioned: February 2014 UVA 1035 PLUS Heidenhain Vertical machining center with HEIDENHAIN TNC 620 control, new price, after discount, net 79,900.00 Standard equipment of the UVA 1035 PLUS as ex works: - Computer-optimized, vibration-damping machine base made of gray cast iron - Large linear guides with 45 mm width in all axes Description Overall price - CNC control Heidenhain TNC 620 - Ergonomically arranged control panel with electronic handwheel - Digital Heidenhain drives in all axes - Ball screws (supported on both sides and preloaded) diameter 40 mm - Pitch 12 mm in all axes - Rapid traverse rate 35 m/min in all axes - Guide covers (telescopic) in all axes - Spindle taper SK 40 DIN 69871 A - Tool pull stud DIN 69872 - Main drive with 13 kW, 96 Nm - Main spindle speed range 10 - 10,000 1/min - Preparation for internal cooling 20 bar - Tool changer (dual-arm gripper) with 24 storage locations - Work area full protection with large viewing doors and 2 work area lights - Large coolant tank with 380 l capacity - 2 chip drawers for easy and quick manual chip disposal - Flood coolant 3 bar / 60 l/min - Chip flushing in the work area - Spray gun for cleaning the inside of the machine - Signal light 2-color - Festo pneumatic system - Automatic central lubrication in all axes - All axes: Positioning accuracy +/- 0.005 mm - Repeat accuracy +/- 0.003 mm (ISO 230-3) - Painting in light gray (RAL 7035) and blue gray (RAL 7031) - Documentation - UVA Unverzagt machining centers comply with the CE standard Tjdpfx Aszzrmpohmec UVA 1035 PLUS Heidenhain Technical details of the machine Travel ranges Travel X-axis [mm] 1,035 Travel Y-axis [mm] 540 Travel Z-axis [mm] 620 Distance spindle bottom edge to table [mm] 150 - 770 Work table Table length [mm] 1,200 Table width [mm] 540 Number of T-slots 5 Slot width [mm] 18 Table load max. [kg] 1,000 Feed Rapid traverse X and Y axis [m/min] 35 Rapid traverse Z axis [m/min] 35 Diameter ball screw X and Y axis [mm] 40 Diameter ball screw Z axis [mm] 40 Main spindle Main spindle speed max. [1/min] 10,000 Main spindle power [S6-40% ED kW] 14 Main spindle torque max. [Nm] [S6-25%] 96 Tool holder SK 40 Tool magazine Number of tool magazine positions 24 Tool change time [sec] 2.8 max. tool diameter [mm] 80 max. tool length [mm] 300 max. tool weight [kg] 7 Coolant system Volume coolant tank [l] 380 Through coolant pressure [bar] 3 Through coolant [l/min] 60 Internal coolant supply pressure [bar] 20 (optional) Air blow external yes Basic machine data Installation area width [mm] 2,910 Installation area depth [mm] 2,500 Machine height [mm] 2,850 Weight of the basic machine [kg] 5,100 Electrical connection power [kVA] 30 Required pneumatic connection [bar] 6 Required compressed air [l/min] 260 Control Manufacturer Heidenhain Control type TNC 620

Condition: used, Year of construction: 2016, Control Heidenhain x-travel 800 mm y-travel 1.020 mm z-travel 1.020 mm Condition: Used The machine has been overhauled by GROB. Technical features & accessories: - HYFRA cooling unit - KNOLL KF-220 belt filter - KNOLL 750K-1 chip conveyor - TM218-9 tool magazine - SCHULER LMC900 automatic pallet loader - 10 pallet stations - Movable robot arm Tjdpoz Hz Nhofx Ahmec Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data/specifications, and prior sale.

Condition: used, Year of construction: 2014, Control Heidenhain x-travel 1.000 mm y-travel 1.100 mm z-travel 1.040 mm tool taper HSK 63 number of tool places 338 Pos. Condition: Used Technical features & accessories: - TM218 tool changer - KNOLL FKA/750 cooling unit - KNOLL KF220 belt filter - KNOLL 850K-1 chip conveyor Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change and errors in technical data and specifications; Todpfoz Hz N Isx Ahmjc subject to prior sale.

Condition: used, Year of construction: 2011, Control HEIDENHAIN iTNC 530 x-travel 600 mm y-travel 770 mm z-travel 800 mm spindle tunring speed 30.000 U/min Condition: Used The offer includes 2 GROB G350 machining centers. Technical features & accessories: Tedpfx Ahjz Hz Nnjmjc - Disc-type tool magazine with 40 tool positions - Auxiliary tool magazine TM171 with 171 tool positions - SCHULER LMC600 pallet storage system (3/4 module) - 27 pallet storage positions, 3-level - 1 rotary setup station - SCHULER Pilot control system - 2 KNOLL 500K-1/10 chip conveyors Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale!

Condition: used, Year of construction: 2011, Control Heidenhain x-travel 600 mm y-travel 855 mm z-travel 750 mm tool taper HSK 63 number of tool places 40 Pos. Condition: Used Tedoz Hz Nzspfx Ahmec Technical features & accessories: - KNOLL 500K-1/10 chip conveyor (right-hand side) - BÄR TFK140 belt filter - ARO belt filter Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale!

Condition: used, Internal quick probe, length measuring device, internal precision measuring device, internal measuring device, internal measuring probe, micrometer screw -One revolution of the drum corresponds to: 0.5 mm -Interior measuring device -Measuring range: approx. 800 - 1500 mm Tedod Hb Iaspfx Ahmec -Weight: 5 kg

Condition: used, Year of construction: 2015, overall weight: 16,000 kg, total height: 2,200 mm, total length: 4,410 mm, total width: 2,600 mm, GROB C6-A – Cold Rolling Machine Technical Data: Gear Module: up to approx. 2.3 Gear Diameter: approx. 8–80 mm Max. Clamping Diameter: approx. 315 mm Power: 25 kW Tsdjz E Ra Hopfx Ahmjc Weight approx.: 16,000 kg Dimensions (LxWxH) approx.: 4410 x 2600 x 2200 mm Year of construction: 2,015 Terms of payment: 100% prepayment before pick-up Terms of delivery: From foundation under power: No

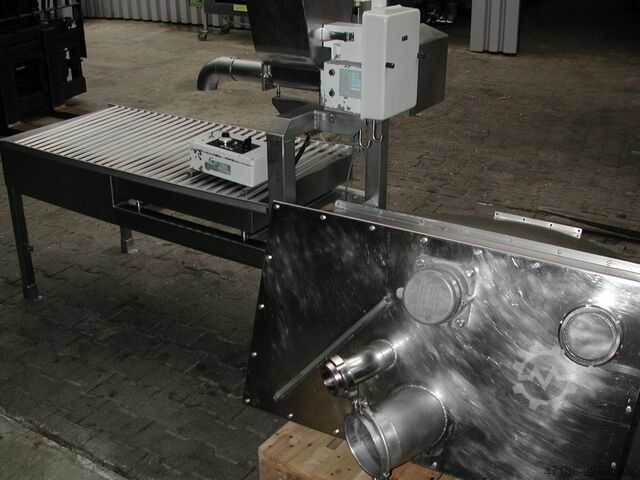

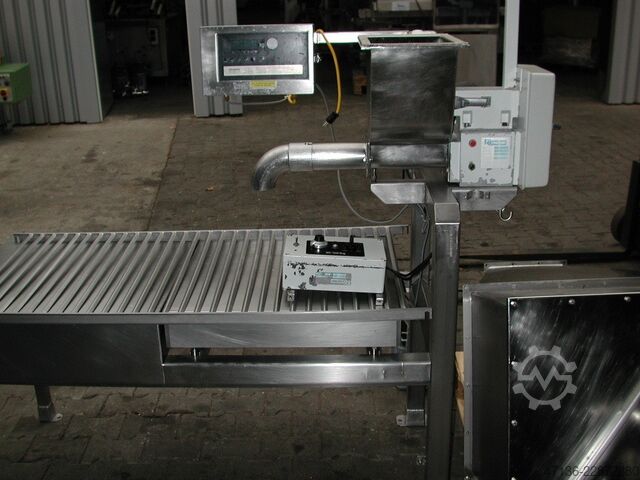

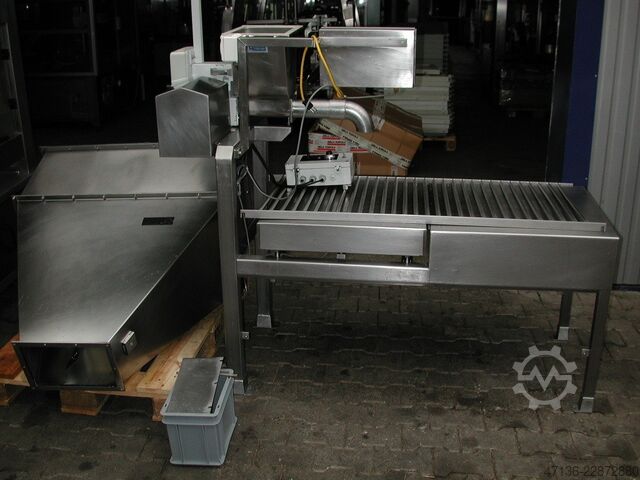

Condition: used, Year of construction: 1995, max. weight 60 kg; min. weight 0,4 kg. Tedpfoz Ia Huox Ahmoc

Condition: excellent (used), Year of construction: 2019, overall weight: 7,400 kg, Equipment: documentation/manual, Surface and contour measuring machine. Model: T8000 Wavemove ZKG. Used for measuring engine blocks. More information available via email. Todpez Hx Eyjfx Ahmjc

Condition: used, Height pliers, parallel pliers, height transfer gauge, height transfer measuring device -Manufacturer: Hommel Werke, height transfer theory -Type: 4626 DBP -Dimensions: 165/140/H430 mm -Weight: 7.6 kg Tjdpfx Ahefnr Iyomsc

Condition: reconditioned (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: U300625501192, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, workpiece diameter (max.): 900 mm, workpiece weight (max.): 800 kg, table load: 800 kg, rotary table diameter: 770 mm, rotational speed (min.): 50 rpm, spindle speed (max.): 16,000 rpm, number of spindles: 1, number of slots in tool magazine: 208, tool length: 465 mm, tool weight: 8 g, input voltage: 400 V, input frequency: 50 Hz, warranty duration: 3 months, Equipment: documentation/manual, rotational speed infinitely variable, Base machine G550 AB, Generation 0 Travel in X: 800 mm Travel in Y: 950 mm Travel in Z: 1020 mm Power supply: 400 V, 50 Hz, TN-S Dust extraction port for connection to a work area extraction system Swiveling table (A' axis) Rotary table (B' axis), pallet clamping system GROB Machine control: HEIDENHAIN iTNC 530 Optimization of the machine kinematics with KinematicOpt GROB standard interface to the loading system V1.4 Swiveling table (A' axis) Rotary table with pallet clamping system GROB (B' axis) Motor spindle HSK-A 63, 16,000 min-1, 159/206 Nm, 25/32 kW GROB spindle diagnostics GSD Simple disc magazine HSK-A 63 with 50 tool positions Tool additional magazine TM167 HSK-A 63 with 167 tool positions Tool cleaning device Electromechanical tool length measuring device Palette 630 x 630 mm, grid hole pattern, without gripper claws Scraper belt chip conveyor, discharge height 1,100 mm Coolant high-pressure system (5-38 bar, internal coolant) Coolant low-pressure system Compressed air supply through the spindle center External compressed air supply via a flexibly adjustable hose Switchable coolant pressure booster for the nozzles in the motor spindle Oil skimmer for coolant maintenance Flushing device for the floor of the work area Blow-out gun in the work area Tsdezmabfepfx Ahmec Flushing gun in the work area Flushing device (Z-axis) Workpiece clamping system in the work area - KP1: Hydraulic oil, manual pressure reduction, 30-200 bar (H1) - KP2: Hydraulic oil, manual pressure reduction, 30-200 bar (H1) - KP3: Hydraulic oil, manual pressure reduction, 30-200 bar (H1) - KP4: Hydraulic oil, manual pressure reduction, 30-200 bar (H1) Machine status indicator, three-color Infrared measuring probe m&h IR25.41 Remote machine diagnostics with access control switch Warranty for 3 months

Condition: used, Year of construction: 2010, functionality: fully functional, machine/vehicle number: 10110710, Technical characteristics: # Measurement capacity [mm]: Diameter 0.2 to 50 / Length 300 # Maximum workpiece size: Diameter 150 / Length 300 / Weight 10 Kg # Resolution: Diameter 0.1μm / Length 0.1μm / Rotation 0.018˚ # Precision: Diameter (2+D[mm]/100)μm / Length (5+L[mm]/100)μm Tjdjxxvpvopfx Ahmoc # Repeatability: Diameter 0.5μm / Length 3μm Dimensions # Measuring system: 780*650*912 # Installation surface [m]: 0.8x0.8 # Weight: 145 Kg # Clamping type: Morse Taper MK2 / Travelling head tension length 20 mm IT system: Windows XP Professional Electrical Equipment # Operating voltage: 230/115V # Connected load: 1.5 kVA / 16 A

Condition: as good as new (ex-display), functionality: fully functional, sheet thickness (max.): 8 mm, overall weight: 6,500 kg, Used plate shear from Luther Werke. Capacity: 2500 x 8 mm Deep throat: 50 cm Sold as is, where is. Weight: 6500 kg Tedpfx Asz Hbtgehmsc

Condition: excellent (used), functionality: fully functional, REF: MM5465 1 x Seitz-Werke GmbH filling machine for bottles. Fed by counter-pressure tank. Manufacturer - Seitz-Werke GmbH Tjdpfx Asx A A I Hehmoc Model - SF 12. Date of manufacture - 1961 (has been refurbished since). Speed - up to 1200 bph (depending on filling volume). Capacity - variable filling range (whatever bottle size fits into holders). Overall dimensions - 1100mm diameter x 2350mm H. Last used in March 2023.

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: G551-1586, travel distance X-axis: 800 mm, travel distance Y-axis: 770 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 16,000 rpm, position of the milling head: Horizontal, table load: 1,000 kg, overall weight: 22 kg, input voltage: 400 V, Equipment: documentation/manual, GROB G550 / G551 5-axis machining center with TM167 tool magazine and Schuler LoadMaster LMC 900 Price upon request Important conditions: Please note that the sale of this machine is only possible under the following conditions: • Sale exclusively to end-users/manufacturing companies (no resale to dealers) – corresponding company profile required • Sale only within Germany or the EU • Inclusion of a dual-use statement in the purchase agreement (legally required) Sales/Transfer conditions: • Dismantling, removal, and transport are the responsibility of and at the risk of the buyer. • The buyer is responsible for personnel, tools, and transport equipment. Personnel may only work with appropriate personal protective equipment, and only trained personnel may be used. Technical data Todozxf Hkjpfx Ahmec Manufacturer: GROB-WERKE GmbH & Co. KG Model: G550 / G551-1586 Machine type: 5-axis universal machining center Year of construction: 2015 Control system: Siemens Sinumerik 840D Axes: 5 Tool holder: HSK-A63 Spindle speed: 16,000 min⁻¹ Spindle power: 35 kW Spindle hours: approx. 19,125 h X-axis: 800 mm Y-axis: 770 mm Z-axis: 500 mm Measuring probe: Renishaw IKZ: 70 bar Tool management GROB TM167 additional tool magazine Year of construction: 2021 167 additional tool positions Total number of tool positions: 287 Fully integrated into the system Automation Schuler Automation LoadMaster LMC 900 Year of construction: 2015 Linear pallet changing system 9 pallet positions Beckhoff/TwinCAT control System is fully functional and ready for operation Condition The production cell is in good condition and has been in continuous operation. The machine has a relatively low number of spindle hours and is equipped with a TM167 additional magazine installed in 2021. According to the operator, there are no known defects. The system is ideally suited for the automated production of demanding 5-axis components in the following areas: Mechanical engineering Automotive industry Aerospace Medical technology Tool and mold making Scope of supply GROB G550 / G551 machining center GROB TM167 tool additional magazine Schuler LoadMaster LMC 900 9 pallets Documentation Inspection Inspection possible by appointment. The machine can be inspected while powered on. Location: Germany / Waiblingen If you are interested, we look forward to hearing from you so that we can discuss the further details. Keywords GROB G550, GROB G551, 5-axis machining center, Siemens 840D, TM167, tool magazine, Schuler LoadMaster, LMC900, pallet automation, HSK63, CNC machining center, 5 Axis Machining Center.

Condition: used, Year of construction: 2016, x-travel 800 mm y-travel 1020 mm z-travel 1020 mm Control SIN840D sl B - axis 360 x 0,001 ° A - axis -185 / +45 x 0,001 ° feed x-axis 1 - 65.000 mm/min feed y- axis 1 - 50.000 mm/min Feed z- axis 1 - 80.000 mm / min. rapid traverse X/Y/Z 60 / 50 / 80 m/min spindle turning speed - stepless 1 - 16.000 U/min power capacity at 100 % load 25,00 kW power capacity at 40 % load 32,00 KW max. torque at 40% / 100% load 206 / 159 Nm spindle diameter in front bearing 70 mm tool taper HSK-A63 tool magazin: 272 tool length - max. 400 / 465 mm tool diameter 68 mm tool diameter with 2 vacant positions 160 mm tool total weight 8,00 kg Chip to chip time 4,2 sec. size of pallet 630x630 mm workpiece weight 700 kg interference diameter 900 mm total power requirement 50,00 kW weight of the machine ca. 32,00 t dimensions of the machine ca. 10,00 x 6,00 x H3,50 m 5-axis machining center with SIEMENS Sinumerik 840D SL control, integrated KNOLL coolant, coolant through the spindle, chip conveyor, Tsdjzy Saaopfx Ahmoc RENISHAW measuring probe, BLUM-Laser, GROB Spindle-diagnosis (GSD) Additional Tool-Magazine TM218, Pallett-Storage PSS630-R13-12

Condition: used, Year of construction: 2012, x-travel 800 mm y-travel 950 mm z-travel 1020 mm Control SIN840D sl B - axis 360 x 0,001 ° A - axis -180 / +45 x 0,001 ° feed x-axis 1 - 65.000 mm/min feed y- axis 1 - 50.000 mm/min Feed z- axis 1 - 80.000 mm / min. rapid traverse X/Y/Z 60 / 50 / 80 m/min spindle turning speed - stepless 1 - 16.000 U/min power capacity at 100 % load 25,00 kW power capacity at 40 % load 35,00 KW max. torque at 40% / 100% load 223 / 160 Nm spindle diameter in front bearing 80 mm tool taper HSK-A63 tool magazin: 50 tool length - max. 400 / 465 mm tool diameter 72 mm tool diameter with 2 vacant positions 160 mm Todpfezz Afcox Ahmsc tool total weight 8,00 kg size of pallet 630x630 mm workpiece weight 700 kg interference diameter 900 mm total power requirement 50,00 kW weight of the machine ca. 26,00 t dimensions of the machine ca. 7,00 x 4,50 x H3,50 m 5-axis machining center with SIEMENS Sinumerik 840D SL control, integrated KNOLL coolant unit, sitchable to minimal quantity lubrication coolant through the spindle max. 80bar, chip conveyor.

Condition: ready for operation (used), Year of construction: 2013, Hommel Etamic Opticline C514 Waveform Measuring Instrument / Waveform Measuring Machine Year of manufacture: 2013 Measuring range, diameter: 0.2 - 140 mm Measuring range, length: 500 mm Workpiece diameter: 150 mm Workpiece length: 530 mm Workpiece weight: approx. 15 kg Resolution, diameter: 0.1 µm Resolution, length: 0.1 µm Resolution, rotation: 0.018° Accuracy, diameter: (2 + D/100) µm Tedpozz H Risfx Ahmec Accuracy, length: (5 + L/100) µm Repeatability, diameter: 0.5 µm Repeatability, length: 3 µm Measuring speed: 10–80 mm/s Measuring rotation: 1 rev/s Positioning speed: 200 mm/s Typical measuring time: 3–30 s Dimensions of measuring system: 780 × 875 × 1,420 mm Weight: 1,850 N ≈ 185 kg You are welcome to visit us for an inspection. We will gladly arrange cost-effective shipping for you! You will receive a proper invoice. For foreign customers, a net invoice can also be issued. A valid VAT identification number is required. Subject to prior sale. Visit our shop and view our other offers. The company names and trademarks mentioned are the property of their respective owners and are used solely for identification and description of the products. Deviations from technical data and errors in the description of the item may occur and are subject to change.

Condition: used, Year of construction: 2008, Control: HEIDENHEIN iTNC 530 Spindle: 35/47 Nm; 12,000 rpm Tool Holder: HSK-A 63 Tool Magazine: 40 positions (disc type) Travel (X/Y/Z): 600 / 770 / 805 mm Tjdez Dizmspfx Ahmsc The machine is currently in storage. The images shown may not reflect its current condition while in storage.

Condition: used, Year of construction: 2008, Control system: HEIDENHEIN iTNC 530 Spindle: 35/47 Nm; 12,000 rpm Tool holder: HSk-A 63 Tool magazine: 40 positions (disc type) Tedpoz Diz Hofx Ahmec Travel (X/Y/Z): 600 / 770 / 675 mm The machine is currently in storage. The images shown do not necessarily reflect its current condition while in storage.

Condition: excellent (used), Micrometer make Hommel Precision Measuring range 175 - 200 mm diameter (2852) Test gauge in wooden storage case Todpfett Nugox Ahmjc

Condition: used, Year of construction: 2020, controller manufacturer: Siemens, controller model: 840 Dsl - GROB4Pilot, _____ Description: Year of manuf. : 2020 Control : Siemens 840 Dsl - GROB4Pilot Speed : 16000 rpm Movement X/Y/Z : 1050/800/1050 mm Tool holder : HSK 63 In General: Year of manufacture:2020 Control system:Siemens 840 Dsl – GROB4Pilot Travel ranges X/Y/Z:1,050/800/1,050 mm Speed:16,000 rpm Tool holder:HSK 63 Fluid supply:coolant + blast air Spindle: Technology:Direct drive spindle Speed:16,000 rpm Max. torque:206 Nm Max. power:32 kW Tool holder:HSK 63 NC rotary table: Technology:NC rotary table with pallet clamping system B-axis:0.001° Pallet size:630 x 800 mm (630 x 630 mm) Fluid connections:6 Tool magazin: Technology:4-disc magazine Number of stations:237 Tool changer:Pick-up Tsdpfxozu H Afo Ahmoc Tool cleaning:Mechanical Equipment: Position measurement systems:Direct on all axes (glass scales) Chip removal:Chip conveyor Coolant supply:Internal coolant system, 80 bar Hydraulic clamping:4 clamping circuits, 30–190 bar Support control:Pneumatic Touch probe:Renishaw OMP 60 Tool measurement:Length measurement Set-up bay door:Can be operated automatically or manually Emulsion mist separator:Mechanical Pallets I:2 pieces 630 x 800 mm Pallets II:2 pieces 630 x 630 mm

Condition: good (used), Year of construction: 2008, functionality: fully functional, coolant supply: 40 bar, Equipment: chip conveyor, documentation/manual, 1 Universal machining center, Grob G 350, year of manufacture 2008 5-axis simultaneous operation Control system: Heidenhain ITNC 530 Travel distances: X-axis: 600 mm Y-axis: 770 mm Z-axis: 675 mm Total power consumption: 47 kW Machine weight approx.: 13 tons Tool interface: HSK-A63 Number of tool positions in the magazine: 40 Tedpfx Ahjzqg Eljmoc Measuring probe, infrared Dual pallet changer Coolant system, 40 bar, chip conveyor

Condition: used, Bread crumb crusher Hommel Rotormat 1000 Condition: used, functional Control panel separate Todpfx Ahez A Sq Ijmsc Machine made of stainless steel Movable on 2 rollers
