Listing
Volkach
7,943 km
Horizon VAC-100 a VAC-100 m SPF-20 A FC-20 A
HorizonVAC-100 models
Call
Condition: used, Year of construction: 1999, Horizon booklet maker VAC-100 a VAC-100 m SPF-20 A FC-20 A
offer consists of:
- air suction collator VAC-100a
- air suction collator VAC-100m
- stitching and folding SPF-20A
Nwodpfx Abexxtyrjzji
- frontcutter FC-20A
Horizon VAC-100a / Horizon VAC-100m
air-suction collators
- technology: touch & work
- model: air-suction collator
- bins: 10 each collator
- error avoidance: misfeed-,doublefeed- and jamming control
- saveable jobs: 9 memories for repeat orders
- extensibility: up to 6 collators (60 bins)
programs:
- doublecycle (nonstop-work)
- inject (simply and doubly)
- booklet making program
- block program
- selective collating
- sheet size: max. 500x350mm; min. 148x120mm
- paper weight: 40-250g/qm
- loading height: 55mm/ bin
- production speed: max. 9.500 cycles/h
- power: 230V/50Hz - 1,86kW
- dimensions: 842x652x1.961mm
- weight: 310kg
Horizon SPF-20A
stitcher and folder:
- format adjustment: fully automatic
- DIN-size and standard fold types: preassigned
- saveable jobs: 12 memories for special sheet sizes + all DIN sheet sizes
- stitching heads: 2 - expandable up to 4 stitching heads
- stapling options: top-, side-, cornerstitiching
- ring eylete stitiching: with ring eyelet stitching heads possible
- inlet format:
max. 500x350mm;
min. 180x120mm
- processing strength:
min. 2 pages; max. 22 pages (80g/sqm)
- clip distance: min. 73mm
- stitching wire: 26 - 28
- production speed: max. 3.600 cycles/h
- power: 230V/50Hz - 0,45kW
- dimensions: 2.710x810x1.070mm
- weight: 490kg
Horizon FC-20A
fore-edge trimmer:
- counter
- faulty set ejection
- booklet size:
max. 250x20mm; min. 85mm
- size front cut:
max. 20mm
- trimming thickness:
min. 4 pages / max. 88 pages (80g/sqm)
- production speed: max. 3.400 cycles/h
- power: 230V/50Hz - 0,2kW
- dimensions: 610x810x1.070mm
- weight: 240kg
We can also organize the following for you:
packaging, loading, transport ( by ship or plane) including customs
Listing
Neuwied
7,748 km
Collecting machine
HorizonVAC 100 a c , SPF20a FC20a
Call
Condition: refurbished (used), Year of construction: 2002, Horizon VAC 100 A+C brochure line
Staple-fold station SPF 20A, trimmer FC 20A
Nwedpfxeyl Aiwj Abzsi
Jogger PJ 77R
Listing
Radom
8,431 km
Horizon booklet making line
Horizon VAC-100a + VAC-100m +SPF-200a + FC-200a Booklet Maker
Call
Condition: good (used), Horizon VAC-100a + VAC-100m + SPF-200a + FC-200a Booklet Maker
The machine is fully operational and ready for production.
Very low mileage.
This is one of the newest Horizon models.
The entire machine is set up from the control panel.
Made in Japan.
The line consists of:
– Horizon VAC-100a / VAC-100m
Max size: 350x500mm
Min size: 120x148mm
Vacuum feeding
10 shelves
Stack height: 55mm
Basic weight: 40-270g
Power supply: 230V
Weight: 310kg/piece
Touchscreen control
Jam, double-feed, and no-feed sensors
Ability to save 9 preset jobs to the machine’s memory
Horizon SPF-200A
10.4″ color touchscreen
Non-stop operation thanks to the mis-assembly ejection function
Max size: 508x356mm; Min size: 180x120mm
Nedozlf T Depfx Abzewi
Max speed: 4500 booklets/hour
Weight: 500kg
Stitching Wire-folding
Two Hohner heads
Up to 200 jobs can be saved in the machine’s memory.
Additional options include wire feed control and a block stitching module.
Horizon FC-200A
Cutting thickness 4-5mm
230V power supply
Weight 244 kg
New trimmer design, stable operation with servo motors, and additional booklet guide.
Touch panel for quick format changes.
Reset the machine to a different format with a single click.
The machine includes: LC-200 delivery, operating tools, spare parts, and documentation.
Listing
Radom
8,431 km
Booklet Maker
Horizon VAC-100a + VAC-100c +SPF-20A + FC-20A Booklet Maker
Call
Condition: good (used), Horizon VAC-100a + VAC-100c + SPF-20A + FC-20A Booklet Maker
Machine setup is via the control panel. Made in Japan.
The line consists of:
– Horizon VAC-100A / VAC-100M
Max size: 350x500mm
Min size: 120x148mm
Vacuum feeding
10 shelves
Stack height: 55mm
Basic weight: 40-270g
230V power supply
Njdpoziyt Tofx Abzjwi
Weight: 310kg/piece
Touchscreen control
Jam, double-feed, and no-feed sensors
Ability to save 9 preset jobs to the machine’s memory
Horizon SPF-20A
Max size: 500x350mm
Min size: 120x180mm
Wire stitching
Folding
Two Hohner heads
Horizon FC-20
Cutting thickness: 88 sheets
230V power supply
Weight: 240kg
Touchscreen control panel for quick format changes. With a single click, you can retool the machine for a different format.
230V power supply
Weight: 490kg
The machine includes: delivery, PJ-77R jogging machine, operating tools, additional components, and documentation.
Listing
Volkach
7,943 km
Horizon | VAC-100 m | collator | 10 stations | 2009
HorizonVAC-100
Call
Condition: used, Year of construction: 2009, Horizon VAC-100m Air-Suction Collator Tower
The VAC-100m is the ideal solution for print shops looking to expand their production capacity without investing in completely new systems. Its easy integration with the VAC-100a tower and high reliability make it a valuable addition to your production line.
Key Features:
Cost-efficiency:
The VAC-100m is a cost-effective expansion solution as it operates without its own display and control unit. This reduces acquisition costs and allows you to expand existing systems efficiently.
Expandable Capacity:
With the ability to connect up to 5 VAC-100m towers to one VAC-100a tower, you can flexibly expand your collating capacity to up to 60 stations. This enables efficient handling of large jobs and a significant increase in your production capacity.
Reliability:
With error prevention features such as misfeed, double-feed, and jam control, the VAC-100m ensures that your production runs smoothly and without interruptions.
Specifications:
- Technology: Touch & Work (via VAC-100a)
- Number of stations: 10 per tower
- Expandability: Up to 6 towers (60 stations)
- Error prevention: Misfeed, double-feed, and jam control
- Job memory: 9 storage slots for repeat orders
- Programs: Double cycle (non-stop operation), sheet insertion (single and double), booklet making program, block program, selective collating
- Sheet size: Max. 500x350 mm; Min. 148x120 mm
- Paper weight: 40-250 g/m²
- Loading capacity: 55 mm per station
- Performance: Up to 9,500 sets/h
- Power: 230V; 50/60Hz - 1.86 kW
- Dimensions: 842x652x1,961 mm
- Weight: 310 kg
3 MONTHS WARRANTY
We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems.
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Nedpfou Sy Uusx Abzswi
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Listing
Ząbkowice Śląskie
8,263 km
Collecting machine
HorizonVAC 100a/100m
Call
Condition: excellent (used), Horizon VAC 100a/100m
Trimmer
Nwsdpfx Aextwy Ejbzei
Sewing
SPF20A
FC20A
Listing
파주시
10,640 km
Document finishing system
HorizonVAC-100a + 4x VAC-100m + ST-40
Call
Condition: used, Year of construction: 2010, HORIZON VAC-100a + 4x VAC-100m + ST-40 (2010, Used)
1. Configuration
VAC-100a Air Suction Collator Tower × 1
VAC-100m Air Suction Collator Tower × 4
ST-40 Stacker × 1
Language: English Interface
Total Stations: 50 Bins
2. Specifications
VAC-100 Series
Max. Sheet Size: 350 × 500 mm
Min. Sheet Size: 120 × 148 mm
Paper Weight Range: 40 ~ 250 gsm
Bin Capacity: 55 mm per station
Power Requirement: 230V / 60Hz
Nodpoy Rixqofx Abzowi
Feeding System: Air Suction System
ST-40
Max. Sheet Size: 350 × 500 mm
Min. Sheet Size: 182 × 128 mm
Stacking Capacity: Approx. 360 mm
Listing
Otterndorf
7,616 km
Gathering machine
HorizonVAC 100m
Call
Condition: like new (used), Year of construction: 2001, functionality: fully functional, Horizon gathering tower Horizon VAC 100m
10 stations with a stacking height of 55 mm
Minimum format 148 mm x 120 mm / Maximum format 450 mm x 500 mm
Speed up to 9500 cycles/h
Njdpfx Aewt D S Djbzewi
Double, miss, and jam detection
Double cycle / eject 1 or 2 times
Manual / spare parts list
Power connection 230 V, 2.3 KW / weight 320 kg / dimensions 810x954x1961 mm
Software version 1.20
Listing
Wymysłów
8,235 km
Mitutoyo Vickers Hardness Tester HV-100 AUTOVICK System + Vision Unit
Twardościomierz Vickers Mitutoyo HV-100 System AUTOVICK + Vision UnitTwardościomierz Vickers Mitutoyo HV-100 System AUTOVICK + Vision Unit
Call
Condition: excellent (used), For sale: Professional automatic Vickers hardness tester Mitutoyo HV-100, made in Japan, in excellent technical and visual condition. The device is equipped with the AUTOVICK automatic measurement system and the Mitutoyo Vision Unit, enabling fast, repeatable and fully automatic hardness measurements without operator subjectivity.
Intended for measurement laboratories, quality control departments, manufacturing plants, automotive, aerospace, and toolmaking sectors.
——
Key information
• Measurement method: Vickers (HV)
• Model: HV-100 (series HV-100B / HV-100C / 100D)
• Load range: up to 100 kgf
• Automatic AUTOVICK system
• Integrated Mitutoyo Vision Unit
• Automatic impression recognition and HV calculation
• Made in Japan
• Power supply: 230 V
• Stable, heavy-duty laboratory construction
——
Technical condition
• Device operational and complete
• Very good visual condition
• Regularly used in an industrial environment
• Last technical inspection: 2020
• Ready for immediate operation after connection
——
Included in the set
• Mitutoyo HV-100 hardness tester
• Vision Unit (measuring camera)
• AUTOVICK automatic system
• Set of weights
• Original accessories and holders
• Transport cases with equipment
Nwjdpeyc H I Sefx Abzji
• Original Mitutoyo documentation and manuals
• Weight: 65 kg
Listing
Volkach
7,943 km
Horizon VAC 100a | 2007 | 9,1 Mio
HorizonVAC 100a
Call
Condition: used, Year of construction: 2007, Air suction collator HORIZON VAC-100a, 10 Stations, used
Key Features
- Efficient and Reliable: The Horizon VAC-100a is designed for demanding environments. It ensures your collating jobs are completed quickly and efficiently
- Touch & Work: Thanks to 'Touch & Work' technology, the VAC-100a is easy and intuitive to operate
- Memory: The machine has 9 programmable memory slots for repeat jobs, saving you time and effort
- Accuracy and Precision: Say goodbye to miss-feed, double-feed, and jam problems. The VAC-100a offers error prevention controls to ensure each set is perfectly collated
Specifications
- Format: max. 500x350mm; min. 148x120mm
Nwedpfjzp Hpnox Abzei
- Paper weight: 40-250g/sqm
- Performance: up to 9,500 sets/h
- Loading capacity: 55mm/station
- Power: 230V; 50Hz - 1.86kW
- Dimensions: 842x652x1,961mm
- Weight: 310kg
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Listing
Emskirchen
7,997 km
Zusammentragmaschine / Collating
HORIZONVAC-100a
Call
Condition: used, Zusammentragmaschine / Collator Machine Horizon VAC 100a
Year 2008 - Serial-No. 412063
10 Stationen Zusammentragmaschine 10 Stations Collating Machine
Nsdov Hruuspfx Abzswi
Format / Size min. 120 x 148mm - max. 350 x 500mm
Papiergrammatur / Paper weight 40-250g/sqm
Ladekapazität / Loading capacity 55mm each Station
Panel Operation and Controls
Stau / Jamming
Doppelbogen- und Fehlbogenkontrolle / double-sheet and no-sheet control
Online-Video-Inspection by WhatsApp - MS Zoom - Telegram
On Stock Emskirchen/Nürnberg - Available Immediately - Can be test
Listing
Volkach
7,943 km
Horizon VAC-1000m | 2018
HorizonVAC-1000
Call
Condition: used, Year of construction: 2018, Collating Tower for Expansion, Horizon VAC-1000m, 10 Stations
The Horizon VAC-1000m tower is an expansion module for the VAC-1000 system designed to increase the capacity of collating machines. Unlike the VAC-1000a tower, the VAC-1000m does not have its own display and is solely intended for expansion purposes.
Key Features
- Number of Stations: 10
- Modular Expansion: The VAC-1000m can be used in conjunction with a VAC-100a tower to reach up to 60 stations, allowing adaptation to different production volumes.
- Suction and Air-Blow System: Like the VAC-1000a, the VAC-1000m uses the patented rotating vacuum feed system with air-blow support to ensure reliable paper feeding with various paper qualities.
- Integration: The VAC-1000m seamlessly integrates into existing Horizon systems to enhance efficiency and flexibility.
Specifications
- Maximum Sheet Size: 350 x 500 mm
- Minimum Sheet Size: 148 x 120 mm
Nwedpfx Abozhun Nozji
- Loading Capacity: 55 mm per station
- Weight: 310 kg per tower
- Power Supply: 230 V, 2.3 kW
Listing
Otterndorf
7,616 km
Document finishing system
HorizonVac 100A, SPF 20, FC 20, PJ 77
Call
Condition: excellent (used), Year of construction: 2000, Booklet production: Horizon VAC 100A, SPF 20A, FC20A, LC 200, PJ 77
Counter reading on the VAC 100A tower: 1.88 million
The machine is in perfect working order and is in very good condition.
Infeed formats: Max. 500 mm x 350 mm, Min. 180 mm x 120 mm
Nedjrt T Ahjpfx Abzewi
Finished formats: Max. 250 mm x 350 mm, Min. 85 mm x 120 mm (cut)
Type thickness: Max. 4 mm
Staple spacing: 73 mm - 160 mm
2 Hohner 48/5 stitching heads
Wire gauge: 24 - 28
Machine dimensions: Length 470 cm x Width 110 cm x Height 196 cm (without PJ 77)
Weight: 990 kg
Power supply: 2 x 230 V with Schuko plug
Listing
파주시
10,640 km
Document finishing system
HorizonVAC-1000, SPF-200A, HP-200A, FC-200A, SC
Call
Condition: used, Year of construction: 2018, functionality: fully functional, Used Horizon Booklet Making System (2018)
1. System Configuration
VAC-1000, BC-20, SW-20, SPF-200A, HP-200A, FC-200A, SC-200
Interface Language: Japanese
2. Machine Overview
The Horizon VAC-1000 Booklet Making System is designed for high-quality booklet production from offset or digitally printed sheets. It offers reliable feeding, precise collation, and professional booklet finishing, making it suitable for commercial printers and digital print shops.
Nwedpfxozl Nivj Abzsi
3. VAC-1000 Air Suction Collator (Specifications)
Model: Horizon VAC-1000
Feeding System: Air Suction Rotor Feeding
Number of Bins: 10 Bins (Expandable)
Maximum Sheet Size: 350 × 500 mm
Minimum Sheet Size: 148 × 148 mm
Maximum Speed: Up to 9,900 sets/hour (10-bin configuration)
Features: Double-feed detection, Block Feed, Cover Feed, Wireless Remote Control
Power Supply: Single Phase 200 V, 50/60 Hz
4. SPF-200A Stitcher & Folder (Specifications)
Function: Saddle Stitching & Folding
Maximum Sheet Size: 356 × 508 mm
Minimum Sheet Size: 120 × 180 mm
Maximum Stitch Thickness: 4 mm (Approx. 48 sheets of 64 gsm paper)
Production Speed: Up to 4,500 booklets/hour (A5)
Up to 4,000 booklets/hour (A4)
Stitch Modes: Saddle Stitch, Top Stitch, Corner Stitch, Fold Only
Compatible Units: VAC-1000, HP-200A, FC-200A, SC-200
Power Supply: Single Phase 200 V, 50/60 Hz
Listing
Volkach
7,943 km
Horizon VAC 100a | 1998
HorizonVAC 100a
Call
Condition: used, Year of construction: 1998, Air suction collator HORIZON VAC-100a, 10 Stations, used
Key Features
- Efficient and Reliable: The Horizon VAC-100a is designed for demanding environments. It ensures your collating jobs are completed quickly and efficiently
- Touch & Work: Thanks to 'Touch & Work' technology, the VAC-100a is easy and intuitive to operate
- Memory: The machine has 9 programmable memory slots for repeat jobs, saving you time and effort
- Accuracy and Precision: Say goodbye to miss-feed, double-feed, and jam problems. The VAC-100a offers error prevention controls to ensure each set is perfectly collated
Specifications
- Format: max. 500x350mm; min. 148x120mm
- Paper weight: 40-250g/sqm
- Performance: up to 9,500 sets/h
- Loading capacity: 55mm/station
- Power: 230V; 50Hz - 1.86kW
- Dimensions: 842x652x1,961mm
- Weight: 310kg
All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.
Njdpfx Abexwuznjzewi
Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
Listing
Geleen
7,615 km
Document finishing system
PlockmaticPBM500
Call
Condition: like new (used), overall weight: 277 kg, total width: 650 mm, total length: 1,940 mm, total height: 1,050 mm, input voltage: 220 V, Plockmatic PBM 500 including (SquareFold) BookFold Module and Trimmer Module.
This booklet maker is in very good, lightly used condition!
This machine can be used in an offline configuration as shown, or the machine can be connected to a Ricoh Pro 8100/8200 - C7100/C7200 - C9100/C9200 Series machine.
Counter readings:
Nwjdpfx Aozpybdobzji
PBM 500: 20,938
BookFold Module: 19,511
Trimmer Module: 20,065
- Creates professional booklets inline or offline with stapling and folding.
- Capacity: up to 50 sheets of paper (80 gsm) for folded booklets of approximately 140 pages.
- Supported paper sizes: width from approx. 206 mm to 320 mm, length up to approx. 457 mm.
- Compatible with A and B formats and many custom formats.
Are you looking for other options for the machine?
We are flexible and can configure the machine to your specifications!
This machine has been inspected and thoroughly tested by our own specialized technical service department.
If you would like further information, please do not hesitate to contact us.
Worldwide shipping is possible.
Listing
Obererbach (Westerwald)
7,738 km
Document finishing system

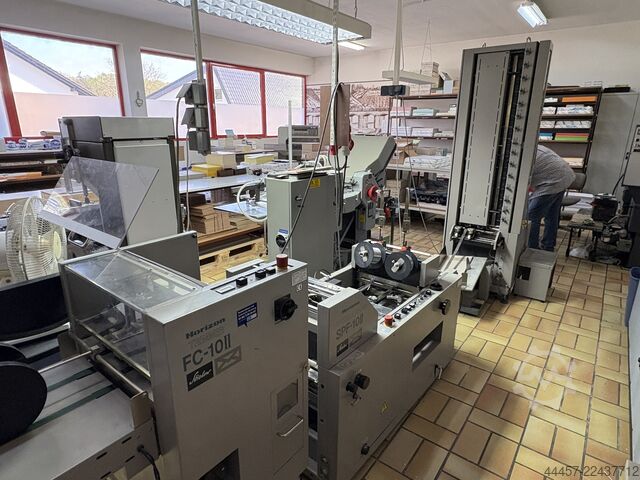

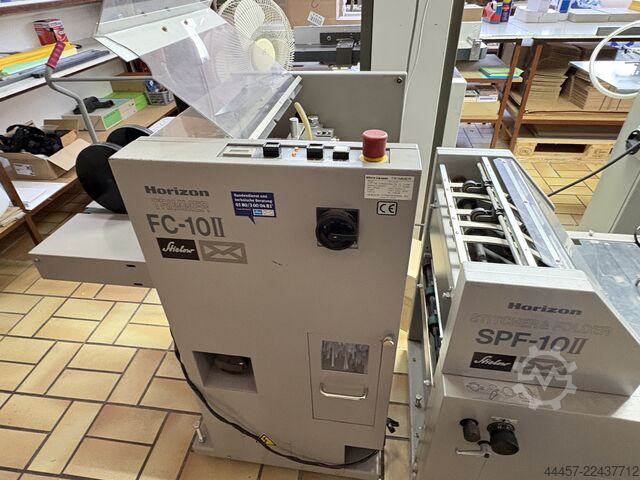

HorizonHAC-15 A + SPF-10II + FC-10II
Call
Condition: excellent (used), Year of construction: 1991, functionality: fully functional, STC-Ref:G-671-2401
Nwjdpfx Aezp D Iuobzei
Horizon HAC-15 A + SPF-10II + FC-10II ,Year: 1991
equipped:
- 1 collating tower HAC 15

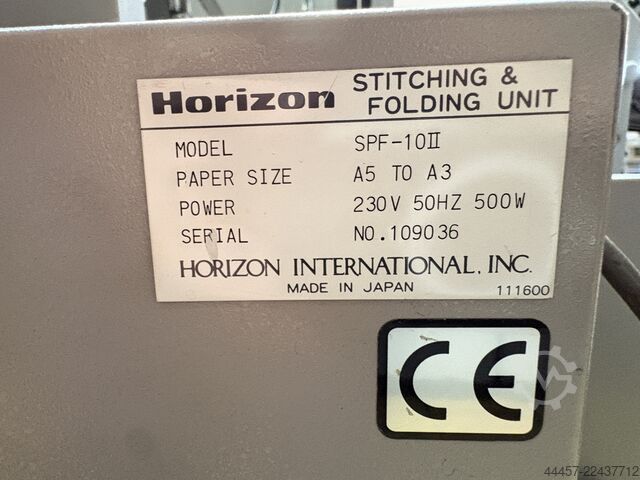

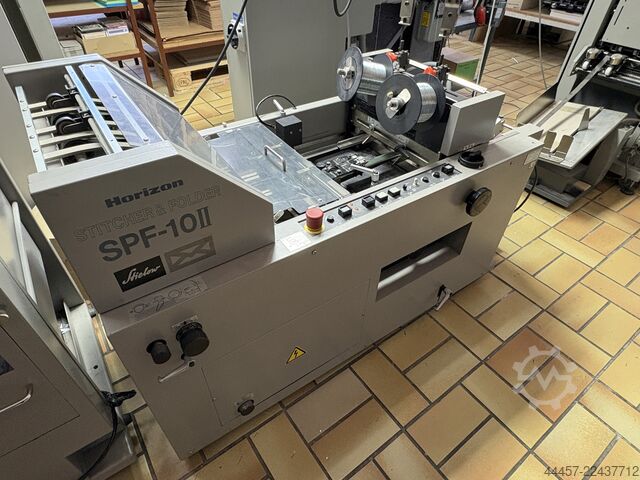

- Type: SPF 10 II stitching station with folding - Nr. 62014

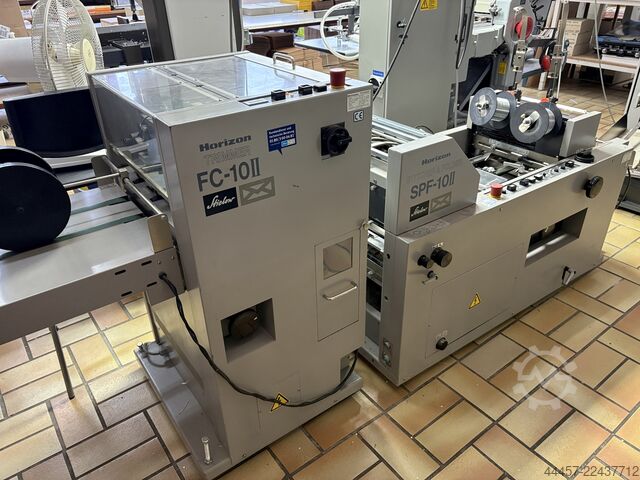

- Trimmer FC-10 II
--> available: 08/2026
Listing
Hattersheim am Main
7,828 km
Document finishing system

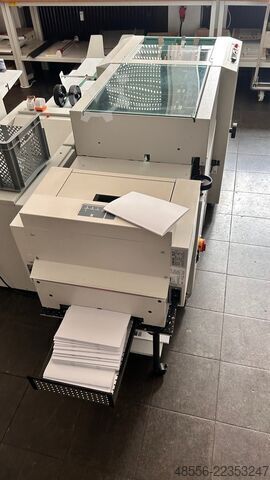

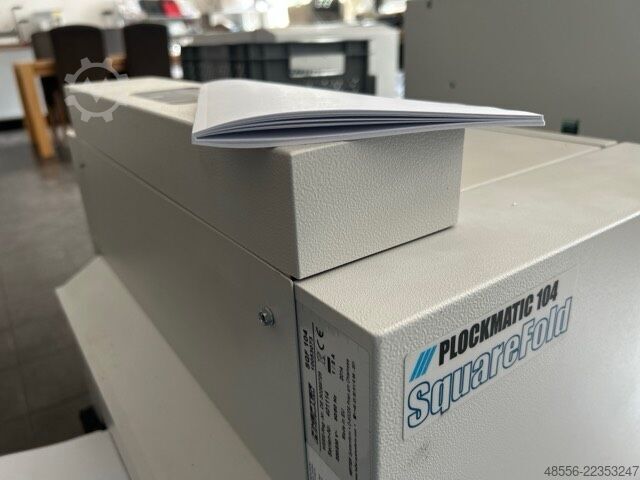

Ernst NagelFoldnak 8 mit Trimmer
Call
Condition: excellent (used), functionality: fully functional, ERNST NAGEL Foldnak 8 (workshop-refurbished)!! In superb condition / like new!!
Saddle stitching machine for brochures up to 100 pages, 2 stitching heads for wire and booklet staples.
Stitching and folding in one process,
automatic activation via photocells.
Magazine and misfeed control, counter, movable staple benders,
wire and booklet staples in the same stitching head, format change in approx. 1 minute!
Paper formats DIN A5, A4, A3, A3+, SRA3 (and any intermediate format)
Brochure formats DIN A4, A5, A6 (and any intermediate format)
2 stitching heads with magazine control. No staple – no stitching.
Njdpfx Aszmgm Uobzewi
No adjustment required for paper thickness.
Staple types: wire staples Ri 26/6
Booklet staples 26/6, 26/8, 26/8S
Production output up to 2,000 brochures/hour
Connection 230 V, 50 Hz, 300 W
Weight 109 kg / dimensions in mm H 870 x W 610 x D 1270
NAGEL TRIMMER / front cutter processes everything that comes from the Foldnak 8.

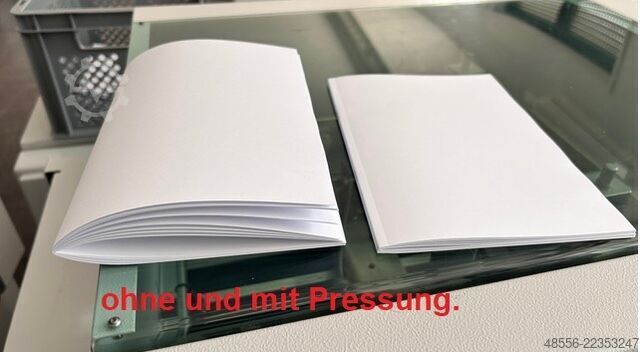

The compression station before trimming ensures brochures lie flat with a sharp fold;
top-mounted conveyor belts ensure secure paper transport even for "thick" brochures;
adjustable belt feed ensures precise alignment against the stop, even for brochures fed in at an angle;
format change in 30 seconds.
Brochure formats DIN A4, A5, A6 (and any intermediate format), min 10 cm
Weight 160 kg
Without a shingle delivery, only a collection tray is available.
!!! Or !!!
We also have a book spine former that can be placed online behind the machine. See pictures.
This costs 1,850.00 plus VAT.
Listing
Helsinki
7,935 km
Document finishing system
HorizonSPF-20
Call
Condition: good (used), Horizon SPM-20 bookletmaker (manual set up)
Horizon Air-Suction Collator VAC-100
Nodpfxszlxqve Abzswi
Horizon Stitcher & Folder SPF-20
Horizon Trimmer FC-20
Only 1,5 million total counter
Listing
Wien
8,409 km
Document finishing system
C.P. BourgBDF Bourg Document Finisher
Call
Condition: excellent (used), Year of construction: 2006, functionality: fully functional, BDF Bourg document finishing system with manual feed for collated sets.
Machine serviced, conveyor belts replaced, in excellent condition!
Stapling-folding-trimming
2 stapling heads from wire coil
Functions for saddle stitching, block stitching, and corner stitching
Nodpfjzaay Njx Abzowi
Fully automatic format adjustment!
Electrical connection 230V/50Hz, 400kg
Includes 4 wire coils
Technical data attached as a PDF!
Great opportunity at a fair price!
Listing
Wien
8,409 km
Crossflow ultrafiltration membrane system PVDF 2.16 m² (100 kDa)
SonstigeCrossflow-Ultrafiltrationsanlage
Call
Condition: excellent (used), Year of construction: 2023, functionality: fully functional, Professionally designed crossflow ultrafiltration membrane system, engineered, built, and fully instrumented by a membrane specialist. 12 membrane modules in 3 parallel stages of 4 modules each, active membrane area 2.16 m². PVDF ultrafiltration membranes, separation limit 100 kDa, in PVC module tubes. Membrane stages can be individually shut off. Designed for diafiltration and pure concentration. Hygienic centrifugal pump, approximately 11 m³/h at approximately 2.5 bar feed pressure, crossflow up to 2.5 m/s. Retentate-side pressure adjustment via automatic proportional valve, stainless steel heat exchanger for temperature control. Ideally operated in conjunction with two feed tanks.
Technical data:
- Total membrane area: 2.16 m² (12 modules, 3 stages of 4)
- Membrane type: PVDF-UF, separation limit 100 kDa; module tubes PVC, stages can be individually shut off
- Circulation rate: approx. 11 m³/h at approx. 2.5 bar; crossflow up to 2.5 m/s
- Permeate rate: 20–120 l/h·m² (depending on suspension/concentration)
- Interfaces: Inlet/Outlet, each DN50 (DIN 11851)
- Instrumentation: Flow rate (feed/permeate), pressure and temperature sensors, proportional valve, stainless steel heat exchanger
- Commissioned in June 2023; well-maintained, operational condition, regularly CIP-cleaned (last cleaning on 02/02/2026)
Nsdpfx Abjzmapvozjwi
More systems and equipment are continuously being offered for sale from a laboratory and pilot plant liquidation – inquiries are welcome.
Sold on behalf of the client through the Köck auction house. Located in eastern Austria, exact address upon request. Collection/dismantling by the buyer.
Trust Seal
Dealers certified through Used-Machines

Listing
Langenfeld (Rheinland)
7,673 km
Document finishing system
WatkissAuto SpineMaster Squarefold
Call
Condition: used, functionality: fully functional, With this offer, you are purchasing a used ‘Watkiss Auto SpineMaster’ book spine press.
Item for sale:
1 x Watkiss Auto SpineMaster
Condition:
This offer is for a used device, which may show signs of wear
(minor scratches or yellowing).
The device has been tested for functionality.
Packaging and shipping:
Nwjdoym Nlnopfx Abzoi
You are welcome to view the device during our business hours. Please make an appointment!
Seaworthy packaging and worldwide shipping available on request!
A functionality test will be recorded on video for you before shipping or collection.
For more information, please feel free to contact us personally.
Listing
Helsinki
7,934 km
Document finishing system
PlockmaticBK 5030
Call
Condition: good (used), Speed: Matches printer engine speed (actual output depends on number of sheets per booklet)
Standard paper sizes: A4, A3, B4, 8.5×11", 8.5×14", 11×17", 12×18", SRA3
Custom paper sizes: Supported
Minimum paper size: 206 × 275 mm (8.1 × 10.8")
Maximum paper size: 320 × 457.2 mm (12.6 × 18")
Paper weight (min–max): 64–300 gsm (16 lb Bond to 110 lb Cover)
Booklet capacity (stapled): 1–30 sheets (80 gsm / 20 lb Bond)
Booklet capacity (folded only): 1–2 sheets (not stapled)
Belt stacker capacity:
• 2 sheets per set: 200 sets
• 8 sheets per set: 70 sets
• 15 sheets per set: 35 sets
• 20 sheets per set: 25 sets
• 30 sheets per set: 15 sets
Off-line use: Supported (manual hand-feed mode)
Weight: 135 kg (297.6 lb)
Nwjdpfxowrpmdo Abzsi
Dimensions (L × H × D): 1230–1440 × 1050 × 700 mm (48.4–56.7" × 41.3" × 27.6")
Power source: 100–230 V, 50–60 Hz (+6%, –10%)
Power consumption: 250 W or less (continuous operation)
Noise emission: 62 dB (entire system)
Listing
Sant Feliu de Llobregat
7,955 km
Document finishing system
WatkissAuto Spine Master
Call
Condition: like new (used), functionality: fully functional, Watkiss SpineMaster – SquareBack Module for Saddle-Stitched Brochures
Manufacturer: Watkiss
Model: SpineMaster
Type: SquareBack spine forming module for saddle-stitched brochures
The Watkiss SpineMaster transforms conventional saddle-stitched brochures into brochures with a square spine (SquareBack), providing an appearance similar to perfect binding, while maintaining the security and strength of saddle stitching. It is the ideal solution for commercial and digital printers who want to offer a premium finish with added value.
Key advantages:
* Converts saddle-stitched brochures into brochures with a square spine.
* Professional appearance similar to a bound book.
* Possibility of printing on the spine.
* Brochures are easier to stack, store, and transport.
* Significant reduction in storage volume.
* Complete opening of the brochure without damaging the spine.
* Compatible with Watkiss brochure making systems and other brands through specific interfaces.
Technical specifications:
* Production: up to 1,320 brochures/hour (offline model) and up to 1,400 brochures/hour (automatic inline model).
* Brochure thickness: from 1 mm to approximately 6.5 mm.
* Maximum capacity: up to 30 sheets of 80 g/m² (120 pages).
* Maximum format: up to 350 x 250 mm depending on configuration.
* Manual feed or inline integration with brochure making systems.
Applications:
Ideal for:
* Catalogs
* Magazines
* Manuals
Nwjdpfx Ajzdyrlebzji
* Corporate brochures
* High-quality digital printing
* Short-run and personalized print jobs
A robust and reliable machine, designed to increase the perceived value of printed jobs and differentiate from the competition with a high-quality SquareBack finish.
Listing
Langenfeld (Rheinland)
7,673 km
Document finishing system
Plockmatic BLM5035S new for CanonimagePress V-Series
Call
Condition: new, functionality: fully functional, This offer is for a new ‘Plockmatic BLM5035S’ brochure production system
Item for sale:
1 x Plockmatic BLM5035S compatible with the following machines:
Canon imagePRESS V900
Canon imagePRESS V1000
Canon imagePRESS V1350
Nwedpfx Absyuubdozsi
Condition:
This is a brand-new unit in its original packaging
Packaging and shipping:
You are welcome to view the unit during our business hours. Please arrange an appointment!
Seaworthy packaging and worldwide shipping available on request!
For further information, please feel free to contact us directly.
We make it easier for you to find: "horizon vac 100 a+m document finishing system"
You will receive new offers immediately and free of charge via e-mail
You can easily terminate the search request at any time
