Used Italpresse Fabricated Platen Diathermic Oil Press for sale (21,493)

Condition: good (used), Code: 0283 Brand: ITALPRESSE Model: 25/13 Fabricated platen for diathermic oil press Technical data: Platen dimensions: mm 2500 x 1300 Max temperature up to 120° Max working pressure: 3/5 kg/cm2 Heating medium pressure 0,5 ate Composition: Aluminium - Flat gauged steel sheet - Coil of piping for fluid circulation - Reinforcement piping - Flat gauged steel sheet - Insulating material Dcsdpfoyazdiex Adrjn

Condition: good (used), Code: 0419 Brand: ITALPRESSE Model: V/2 Electric press for cold gluing of doors, furniture, panels, composite materials, technical materials, plastics, aluminum, various materials Equipped with a motor that is operated by a switch with automatic return. This switch controls the movements of the mobile platen towards or away from the panels, while the required pressure and the release are controlled by a handwheel, which is on the side of the press. This system allows for maximum pressure with minimum effort Platen dimension mm 2500 x 1200 Opening mm 650 Pressure screw n°2 Installed power Hp 0,75 Overall dimensions: mm 2850 x 1200 x 1650 h Dcjdpfozcfdfjx Adrjn Weight kg 880

Condition: good (used), Code: 0478 Brand: ITALPRESSE Model: V/2 Mechanical press for cold gluing Dcodpozz Szaefx Adrsn Equipped with a motor that is operated by a switch with automatic return. This switch controls the movements of the mobile platen towards or away from the panels, while the required pressure and the release are controlled by a handwheel, which is on the side of the press. This system allows for maximum pressure with minimum effort Platen dimension mm 2200 x 1000 Opening mm 650 Pressure screw n°2 Installed power Hp 0,75 Overall dimensions: mm 2550 x 1000 x 1650 h Weight kg 750

Condition: good (used), Code: 0374 Dedpfx Adey If Rwjrecn Brand: ITALPRESSE Model: V/4 Mechanical cold press for wood, panels, doors, furniture, composite materials, technical materials, plastics, aluminium and various other materials Working dimensions 2200 x 1000 mm Platen dimensions: n° 2 platens 1100 x 1000 mm NEW aluminium sheets Option to work on a single table or on separate tables Opening 650 mm N° 4 pressure screws N°2 motors 0,75 Hp each Overall dimensions mm 2550 x 1000 x 1650 h Weight kg 870

Condition: good (used), Code: 0223 Brand: ITALPRESSE Model: PHF Hydraulic press for curved veneers for processing seats, chair backs, benches, tables and other curved items Technical data: Platen dimensions mm 2600 x 1600 Opening between platens mm 1500 Thrust ton 100 Movement from bottom to top Motor power Hp 4 Dedpfx Aoxmhcdjdrjcn

Condition: good (used), Code: 0136 Brand: ITALPRESSE Model: FORMATIC 20.9 Hydraulic fluid membrane press Two sided lamination of veneer to panels shaped or profiled on one face and flat on the other to produce cabinet door raised panels, drawer fronts, desk tops, table tops, kitchen tops, etc. 3-D lamination of plastic foils (PVC, PPE, ABS, Transfer foil ) to panels sheped or profiled on one face to produce: cabinet doors, drawer fronts, desk tops, table tops, kitchen tops, store fixture components, room doors, etc. Platen dimensions mm 2000 x 900 Daylight mm 325 Cylinder stroke mm 325 Dcsdepbvqvjpfx Adrjn Heating electric boiler Kw 27 Thrust ton 300 ton N° 3 thrust cylinders Hydraulic unit power Kw 5,5 Pressure control manometer Automatic pressure reset Opening timer Overall dimensions mm 3300 x 1400 x 2400 h Weight kg 8100

Condition: good (used), functionality: fully functional, BDC 100T Hydraulic Moulding Press | Heated Platen Compression Press BDC 100T hydraulic moulding press for sale with heated platens. Approx. 100 tonne compression press for rubber, plastics, composites and laminating applications. Manufacturer: BDC Machine Type: 100T Moulding Press with Heated Platens Condition: Decommissioned. Good 100 Tonne Heated Platen Compression / Moulding Press This BDC 100T Hydraulic Moulding Press is a heavy-duty industrial press designed for heated platen moulding, compression moulding, forming, bonding and laminating applications. This machine is suitable for use in rubber moulding, plastics processing, composites, bonding, pressing, laminating and heated forming operations, making it a versatile addition to manufacturing, production and specialist fabrication workshops. Key Features 100 tonne hydraulic press capacity Heated upper and lower platens Heavy-duty industrial construction Suitable for compression moulding and heated platen pressing Ideal for rubber, plastics, composites and laminated materials Hydraulic pressing action for controlled force application Well-suited to production, R&D and workshop environments Machine Description The BDC 100T Hydraulic Moulding Press is designed for applications requiring high pressure and controlled heat. The heated platens allow materials to be formed, cured, bonded or compressed under consistent pressure, making the machine suitable for a wide range of industrial moulding and manufacturing processes. Dcjdpfx Adszi Hchsrsn Hydraulic moulding presses of this type are commonly used for rubber moulding, plastic compression moulding, composite forming, gasket production, bonded components, laminating, hot pressing and specialist materials processing. Approximate Technical Specification General Manufacturer: BDC Machine Type: Hydraulic moulding / compression press Press Capacity: 100 tonnes Press Action: Hydraulic Construction: Heavy-duty industrial press frame Rams: 1 Guides: 4 Platen Type: Heated platens Platen Arrangement: Upper and lower heated work platens Working Applications Compression moulding Rubber moulding Plastic moulding Composite pressing Laminating Hot pressing Bonding applications Heated platen forming Production and workshop moulding work Heated Platen System Heating: Heated platen system Platen Size: 510 x 510mm Temperature Control: Fitted with platen temperature control Platen Use: Suitable for controlled heat and pressure applications Press System Power: Hydraulic press system Force: Approx. 100 tonnes Operation: Hydraulic pressing cycle Pump Size: 2.2kW Ram Diameter: 190mm Distance Between Guides: 540mm (Width) Max Daylight: 250mm Typical Configuration: Heavy-duty hydraulic moulding press with heated work platens Summary The BDC 100T Hydraulic Moulding Press is a 100 tonne heated platen compression press used for rubber moulding, plastic compression moulding, composite pressing, laminating, bonding and hot press applications. It features hydraulic pressing action and heated platens, making it suitable for industrial manufacturing, workshop production and specialist materials processing. Important Notice Note: Specifications and information provided in this listing are supplied in good faith; however, their accuracy cannot be guaranteed. Specifications are approximate.

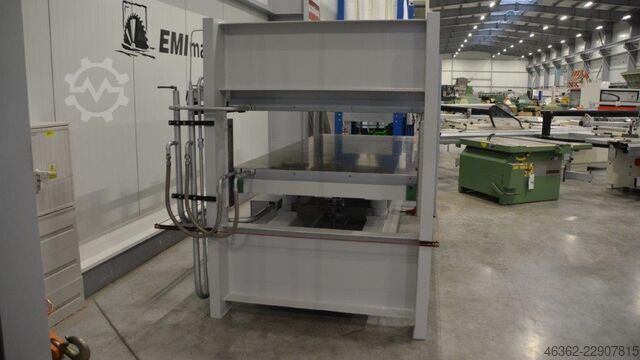

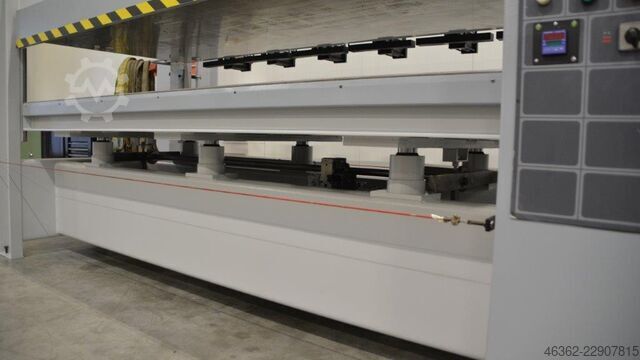

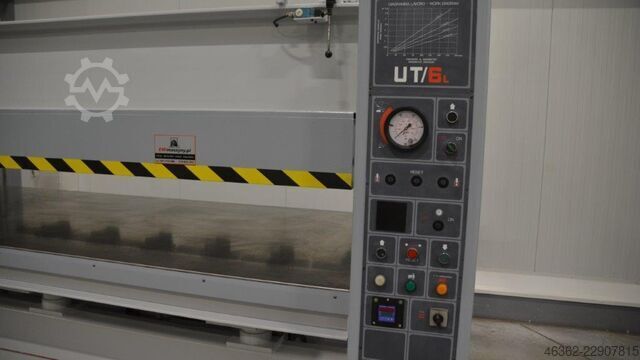

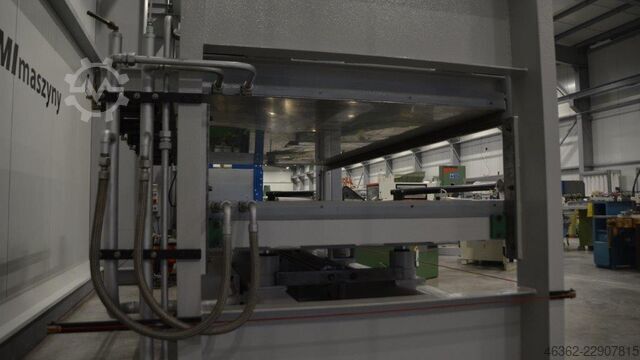

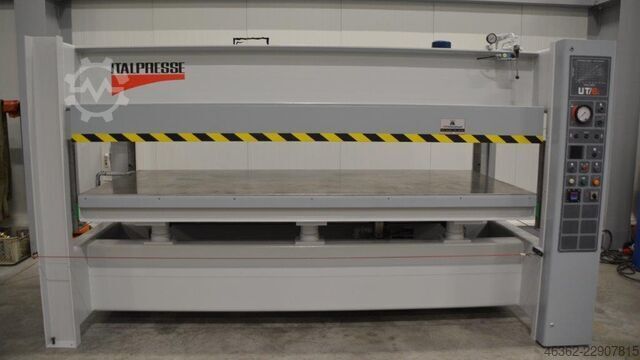

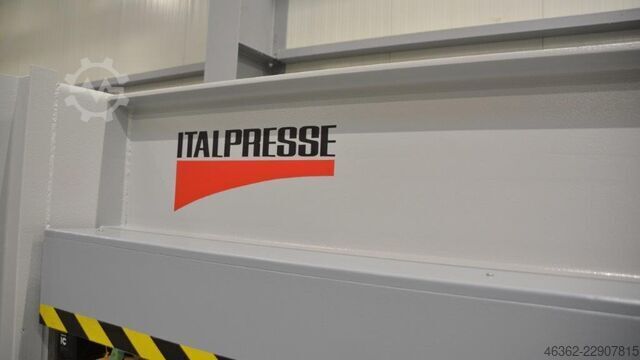

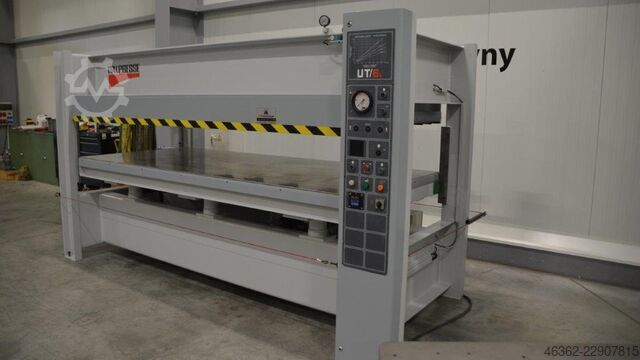

Condition: used, Used Italpresse UT/6 hot press for surface finishing by applying veneers to chipboard, plywood, MDF, solid wood, or plastic laminates, also suitable for aluminum and other metals. The press platens are solid plates made of perforated steel. Platen dimensions: 3000 x 1300 mm. Maximum opening: 400 mm. Platen heating is achieved with heat transfer oil and an electric boiler, complete with a circulation pump. Boiler: 27 kW - 380 V. Selector switch for using 50% of the boiler's power (13.5 kW in 1st position) or 27 kW in 2nd position. Dodpfx Adezkt Tiorjcn Pressing time can be set with automatic opening. Maximum pressure: 300 bar. Option to exclude 2 lateral cylinders from the control panel. Protective Mylar film on the platens. Machine dimensions: 3700 x 1700 x H. 2100 mm. Weight: 6600 kg. Machine complies with CE standards.

Condition: excellent (used), functionality: fully functional, - Shelf length: 3000mm - Shelf width: 1300mm - Clearance: 340mm Dcjdpez Nc Sijfx Adren - Number of pistons: 6 - Piston diameter: 80mm - Oil heating - Hydraulic side pressure - Emergency stop – pull cord

Condition: used, Technical specifications: Max. dimension of glued component: 1600 x 3000 mm 3 vertical presses 2 horizontal presses Hydraulic presses Power supply: 400 V Motor power: 1.5 kW Motor speed: 1450 rpm Dcodpfx Adsyv Atroron Overall dimensions: Length: 1200 mm Width: 3500 mm Height: 2500 mm

Condition: ready for operation (used), Pneumatic material feeding Feeder roller width: 40 cm Dedpfx Adswigbaorecn Material feeding from stack Stack height: 84 cm Maximum working width: 26 cm Total length: 240 cm Width: 42 cm Height without stack: 83 cm

Condition: used, Year of construction: 2014, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, pressing force: 962 t, stroke length: 200 mm, table width: 1,400 mm, table length: 2,750 mm, working width: 1,400 mm, operating temperature: 135 °C, operating pressure: 290 bar, workpiece height (max.): 200 mm, workpiece weight (max.): 250 kg, cylinder diameter: 270 mm, opening width: 200 mm, plate width: 1,400 mm, pressure: 25 bar, temperature: 150 °C, We are offering this used ITALPRESSE MARK C/ 14-27.5/2 veneer press, year of manufacture 2014. Machine type: MARK/C 14-27.5/2 Serial number: 184450514 Rated voltage: 400 V Frequency: 50 Hz Year of manufacture: 2014 Single-level through-feed press system with top ram Machine is in perfect working condition Meets CE safety standards The machine can also be purchased together with other machines as part of a complete production line. Heating plate dimensions: 1400 x 2750 mm Number of heating plates: 2 units Number of levels: 1 unit Cylinder stroke: 200 mm Daylight opening: 200 mm Feed side: 1400 mm Specific pressure at 100%: 25 Kg/cm² Total pressing force: 9620 kN Cycle time: 2-30 min Operating temperature: 135°C Max. surface operating temperature: 150°C Intended heating medium: thermal oil Number of press cylinders: 6 units Diameter of press cylinders: 270 mm Return cylinders: 4 units Operating pressure: 290 bar Closing speed: 50 mm/sec Opening speed: 50 mm/sec Operating voltage: 400 V Mould data: External mould dimensions: 1340 x 2540 mm Max. mould weight: 250 kg Mould cover dimensions: 1200 x 2400 mm Moulds are not included in this offer but can be supplied at additional cost Powered infeed roller conveyors: Dimensions: 1400 x 3500 mm Feed speed: 8-40 m/min Light barrier control Dodpfx Adeyxp Twjrocn Electropneumatic shaking device for the upper Mylar film Electronic flatness control Automatic switching to pressing speed Compressed air equipment in the lower press table Cylinder support plates are insulated and drilled from solid material for water cooling Feed speed with frequency control Powered outfeed roller conveyors, dimensions: 1400 x 3500 mm Electrical control cabinet / Siemens S7 PLC control panel Dismantling and collection at buyer’s own expense Pick-up location: A-8265 Kroisbach an der Feistritz If you have any questions or require further information, please send us a message or give us a call.

Condition: ready for operation (used), A heated platen forming press Italpresse in bottom piston design is available. Press force: 660t, platen dimensions X/Y: 1900mm/1600mm, heating power: 31kW, connected load: 108kW, rapid stroke cylinder diameter: 70mm, weight: approx. 28000kg. Documentation available. An on-site inspection is possible. Dsdpfjyxgrdex Adrjcn

Condition: excellent (used), Year of construction: 2013, We sell the Mambrane press for kitchen doors, doors, or door frames, etc. Producer ITALPRESSE, Spa Model: ESTREMA 14,5 - 28 Dcedpez Ikxbjfx Adrsn Year 2013 Area 2800 x 1450mm. / 2 Table PIN system for edge binding. Magazine for foils in rolls included Possible to see at work. Documentation included

Condition: used, Year of construction: 2026, total length: 4,000 mm, total width: 2,100 mm, total height: 2,050 mm, Colour: White Empty weight: 4.020 kg - Year: 2026 - Documentation available: Yes - └ Type Documentation: Technical data, Electrical diagrams, User manual - └ Language: EN - └ Type: Hardcopy - CE marking present: Yes - CE certificate present: Yes - Main motor power [kW]: 2.1 - Press drive: Hydraulic - Max. workpiece length [mm]: 3000 - Max. workpiece width [mm]: 1300 - Max. workpiece height [mm]: 400 - Total stroke [mm]: 400 - Number of work zones [pcs]: 1 - Number of levels [pcs]: 1 - Plate material: Assembled panel Dcedozkr Tbjpfx Adrsn - Number of cylinders [pcs]: 6 - Cylinder diameter [mm]: 70 - Total pressure [Ton]: 70 - Working pressure [kg/cm²]: 2 - Heating boiler present: Yes - Heating type: Oil heated - Max. temperature [°C]: 120 - Transport dimensions: 4000mm x 2100mm x 2050mm (l x w x h) - Transport weight [kg]: 4020kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: good (used), Code: 0158 Brand: ITALPRESSE Model: LOCK FORM SYSTEM AIR - CE Standard Hydraulic air membrane press with loading and unloading - CE Standard Dodpfepvk Diox Adrecn 3-D coated on one face lamination of veneer to panels shaped or profiled on one face and flat on the other to produce cabinet door raised panels, drawer fronts, desk tops, table tops, kitchen tops, etc. 3-D lamination of plastic foils (PVC, PPE, ABS, Transfer foil ) to panels sheped or profiled on one face to produce: cabinet doors, drawer fronts, desk tops, table tops, kitchen tops, store fixture components, room doors, etc. Platen dimensions mm 2650 x 1250 Piece height mm 55 Pressure control manometer Automatic pressure reset Opening timer

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, plate length 3500mm plate width 1300mm solid steel plates oil heating with included heater 8 hydraulic pistons pistons diameter 85mm total pressure 160 tons Dodozxp Swjpfx Adrscn safety line switch year 2002

Condition: excellent (used), Year of construction: 1997, Clamping machine Italpresse model SP 30-8 year 1997 Dcsdpehwwnrjfx Adren S/N 978612997 working lenght approx. 3000mm working width 600mm working height min-max 450 - 1250mm 12 pcs supports 8 pcs pneumatic pressure cylinder Dimensions L x W x H = 3,5m x 0,8m x 2,24 m 1150 Kg technical information under subject of correction

Condition: excellent (used), functionality: fully functional, type of input current: three-phase, pressing force: 90 t, total length: 7,700 mm, total width: 7,400 mm, total height: 2,350 mm, working width: 1,300 mm, working length: 3,000 mm, Throughfeed press for laminated panels ITALPRESSE PL/9 Dcedpfxexy Rm Eo Adron Shelf length: 3000 mm Shelf width: 1300 mm Number of vertical cylinders: 6 Vertical cylinder pressure: 90 t Vertical cylinder diameter: 70 mm Number of horizontal cylinders: 6 Shelf heating using a high-frequency generator The line consists of: – Material feed section – Glue application section – Material loading section – PL/9 press – Output table for material CE certificate Line dimensions: 740x770x235 cm (H) Weight: approx. 8000 kg

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, type of input current: three-phase, A very good machine with the benefit of the infeed table and outfeed exit table, which saves significantly on labour. Dcjdpfszifpgox Adron

Condition: good (used), Year of construction: 2011, Condition: used, in working condition The robust frame construction and press beams ensure precise frame assembly and gluing. The press guarantees accurate squareness while preventing frame distortion or warping. Thanks to the long stroke of the hydraulic cylinders, the lower beam and the clamping jaws require less frequent adjustment. The lower beam features automatic lifting and locking. Technical Specifications • Maximum frame size: 3000 × 2000 mm • Minimum frame size: 250 × 340 mm • Hydraulic pump power: 3 kW • Maximum total pressing force on the horizontal and vertical beams: 19 tonnes • Vertical hydraulic cylinder stroke: 1100 mm • Horizontal hydraulic cylinder stroke: 1200 mm • Lower beam adjustable to three heights: 380, 680 and 980 mm • Adjustable vertical and horizontal pressing pressure • Two horizontal fences with quick-adjustment system • Horizontal and vertical movements are controlled by lever-operated valves mounted on the machine frame • CE-compliant design • Pendant push-button control unit Dcsdpfxezlyv To Adrsn Specifications are provided for information only. This machine is offered for sale on behalf of a customer. Viewing is available by prior arrangement. Please contact us through the platform's messaging system for further information and the relevant technical contact details.

Condition: ready for operation (used), functionality: fully functional, Working width: 1300 mm Manual adjustment of roller spacing Cleaning brush Dcodpfez E Rlpex Adrsn Safety switch Mobile design

Condition: excellent (used), functionality: fully functional, Shelf length 3500 mm Dcsdpfezyaipex Adrsn Shelf width 1300 mm New aluminium shelves 6 hydraulic cylinders Piston diameter 70 mm Water heating Ground clearance 390 mm Safety rupture link Year 1999 Weight 4400 kg

Condition: excellent (used), functionality: fully functional, shelf length 3000 mm; shelf width 1300 mm; water heating; 6 hydraulic cylinders; piston diameter 70 mm; new Teflon films on the shelves Dcsdpfx Aozxp Skjdron

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, overall weight: 4,700 kg, Shelf length: 3000 mm Dcjdezgf Uwopfx Adrsn Shelf width: 1300 mm Hot water heating system Two daylight openings 6 hydraulic cylinders Cylinder diameter: 85 mm Emergency safety pull-cord switch Timed press opening Daylight opening: 400 mm total / 2 × 180 mm Year of manufacture: 2006
