Used Knuth Fpk 4.3 for sale (355)

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 163003, Knuth Milling Machine FPK 4 With extensive accessories. Working Area and Table Table Dimensions: The clamping table typically measures 800 x 400 mm. Vertical Table: Additionally, the machine is equipped with a vertical table of approximately 1020 x 225 mm. Table Load Capacity: Maximum approx. 200 kg to 285 kg. Travels (Axes) X-Axis (Longitudinal): approx. 400 mm to 500 mm. Y-Axis (Cross): approx. 200 mm to 400 mm. Z-Axis (Vertical): approx. 365 mm to 400 mm. Spindle and Drive Spindle Mount: Standard ISO 40 (or SK 40 DIN 2080). Speed Range: The spindle reaches speeds of up to 2,000 rpm. Motor Power: The main drive delivers approx. 2.2 kW to 3.7 kW. Features and Special Equipment Feed: Automatic feed and rapid traverse on all three axes. Milling Head: The vertical milling head is usually swiveling ±90°. Klsdpsy H D Apjfx Ab Iju Weight: The machine, ready for operation, weighs approx. 1,180 kg to 1,550 kg.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Technical details grinding length 600 mm grinding width 300 mm workpiece height - mm total power requirement 7 kW weight of the machine ca. 2,7 t dimensions of the machine ca. 2800x2200x1890 mm Additional information Work area • Travelling distance X-axis: 765 mm • Travelling distance Y-axis: 340 mm • Table dimensions: 300 x 630 mm • Scale ring division Y-axis: 0.02 mm • Scale ring division Z-axis: 0.005 mm • Autom. transverse infeed: 0.1-8 mm • Autom. vertical infeed: 0.005-0.05 mm Drive unit ratings • Motor rating main drive: 5.5 kW • Motor rating servo-drive: 0.5 kW Dimensions and weights • Total weight: 2,700 kg • Dimensions: 800 x 2200 x 1890 mm • Grinding wheel dimensions: 350 x 40 x 127 mm Accessories: 2-axis position display Knuth Xpos 3.1 Grinding wheel, Grinding wheel flange, Balancing arbor, Balancing stand, Halogen work light, Kjdpfx Aszd Ty Nob Islu Magnetic chuck 600 x 300 mm Leveling screws, Operating tools, Instruction manual

Condition: ready for operation (used), Year of construction: 2021, pressing force: 275 t, total width: 2,000 mm, total height: 3,000 mm, overall weight: 13,000 kg, product length (max.): 4,000 mm, Press brake manufactured in 2021. This KNUTH AHK H 30270 features a pressing force of 270 t and a bending length of 3,100 mm. It includes a Cyberlec Touch 8 Controller and a motorized CNC anti-winding system for enhanced precision. The machine is equipped with front support arms sliding on linear guides and a pedal drive for ease of operation. If you are looking to get high-quality bending capabilities, consider the KNUTH AHK H 30270 press brake we have for sale. Contact us for further details. • Loading assistance: Yes • Running hours: 372,4 hours / 36.888 bends • 3 controlled axes: Y1, Y2, X • Controller: Cyberlec Touch 8 • Motorized CNC anti-winding (crowning) system • European clamping tool system • Front support arms sliding on linear guides along the entire length; equipped with T-channels and tilt stops • Rear pusher (backgauge) actuated by servomotor with movement via ball screws and linear guides (X) • Protective guards with electrical contactors • Pedal drive • Workspace lighting lamp • CE certification with Akas Laser Manual safety LC II M FMSC • Technical and operating manual • Distance between columns: 2.600 mm • Knife range: 265 mm • Distance between table and upper support: 485 mm • Depth in the console (C): 410 mm • Table height: 950 mm • Y-axis speeds: fast 110 mm/s; bending 9 mm/s; return 100 mm/s • X-axis fast speed: 250 mm/s; X-axis range: 750 mm/s • R-axis fast speed: 100 mm/s; R-axis range: 200 mm/s • Engine power: 22 kW • Oil tank: 350 L Kedpfozfphfjx Ab Ielu Additional equipment • Tooling: Punch height 67 mm; 4V prism 6 x 60 mm Technical Specification Bending Length 3100 mm

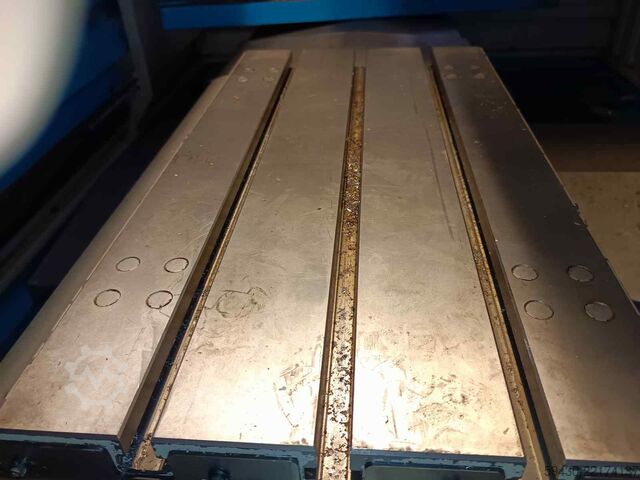

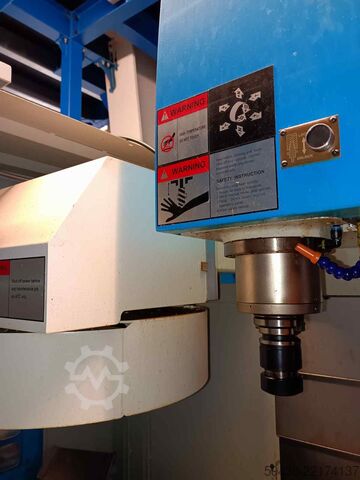

Condition: excellent (used), Year of construction: 2012, Machine in very good condition, worked very little. Spindle Taper #40 Spindle RPM 8000 Tool Magazine 16 Kodpfx Ajzf Aq Heb Iolu Table Length 750 mm Table Width 400 mm X Travel 610 mm Y Travel 400 mm Z Travel 460 mm Multi-Axis 3 Control FANUC

Condition: like new (used), Year of construction: 2019, operating hours: 200 h, Technical Data – Solidturn 200/1500 B – Universal Lathe Working Area Distance between centers 1500 mm Max. turning diameter over bed 400 mm Max. turning diameter over carriage 225 mm Max. turning diameter over gap 530 mm X-axis travel 330 mm Z1-axis travel 130 mm Gap length 320 mm Bed width 330 mm Cross slide swivel range 360° Main Spindle Speed range (15) 22 – 2000 rpm Spindle bore 85 mm Spindle mount Camlock D1-6 Spindle taper MT 5 Feed Feed X-axis 0.036 – 2.019 mm/rev Feed Z-axis 0.072 – 4.036 mm/rev Thread Cutting Metric thread cutting Kljdowuvacjpfx Ab Ieu 0.5 – 28 mm Diametral thread cutting 8 – 56 mm Module thread cutting 0.5 – 3.5 mm Whitworth thread cutting 1 – 56 TPI Tailstock Tailstock quill diameter 65 mm Tailstock taper MT 5 Tailstock quill stroke 120 mm Tailstock lateral adjustment ± 5 Drive Power Main spindle motor power 7.5 kW Supply voltage 400 V Dimensions and Weights Dimensions 2920 x 1150 x 1800 mm Weight 2240 kg

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, The models in the ABS-L series are fully automatic horizontal band saws designed for the precise, straight cutting of large and heavy workpieces. Horizontal band saws (without miter adjustment), like these, are specifically designed for precise longitudinal cuts and offer the highest level of stability in daily use. A rigid, double-column frame forms the core of the extremely stable construction. The central control panel allows you to control the blade feed, continuously adjust the blade speed, and clamp the workpiece hydraulically. The robust, automatic material feed system operates entirely without electronics or programming, yet still provides high repeatability and dimensional accuracy. Double-column construction for outstanding stability Workpiece feed via feed rollers integrated into the vise Hydraulic workpiece clamping Optical detection of workpiece height Infeed roller conveyor, 1.2 m Working area Working height: 585 mm Cutting performance Cutting capacity 0° (rectangular): 600 mm x 560 mm Cutting capacity 0° (round): 560 mm Cutting capacity 0° (square): 560 mm x 560 mm Cutting speed, continuously variable: 15 m/min - 120 m/min Klodpfjzdlu Eox Ab Isu Fence length: 500 mm Positioning accuracy, material feed: 0.5 mm Drive power Main drive motor power: 4 kW Hydraulic pump motor power: 1.1 kW Feed motor power: 0.55 kW Dimensions and weights Dimensions (L x W x H): 3.25 m x 1.4 m x 2.1 m Weight: 2100 kg Blade dimensions: 6000 mm x 41 mm x 1.3 mm

Condition: used, Year of construction: 2020, functionality: fully functional, For sale is a KNUTH RSM 1000 C cylindrical grinding machine in very well-maintained and fully functional condition. The machine comes from a working production facility and is in very good optical and technical condition. It is ideally suited for precise grinding operations in metalworking, toolmaking, manufacturing, and industry. Technical data: * Manufacturer: KNUTH * Model: RSM 1000 C * Machine type: Cylindrical grinding machine / Precision grinding machine * Year of manufacture: 2020 Klsdpfx Aezb Ag Iob Iou * Condition: very well-maintained / fully functional * Application area: Metalworking, toolmaking, precision manufacturing * Location: Meinerzhagen

Condition: used, Year of construction: 2003, x-travel:760 mm y-travel:290 mm z-travel:370 mm turning speeds:60 - 4200 U/min Klsdpfx Ast U Rm Ueb Ieu table::750 x 230 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,13 mm/U feed range:19 - 890 (x) mm/min spindle cone:SK 30 column arm:171 - 476 mm total power requirement:2,4 kVA weight of the machine ca.:0,95 t dimensions of the machine ca.:2,05 x 1,63 x 2,07 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: used, thickness of jaw:160 mm Kodpfx Abjcxxq Ae Ielu dimensions of the machine ca.:0,4 x 0,2 x 0,17 m

Condition: used, thickness of jaw:160 mm dimensions of the machine ca.:0,40 x 0,27 x 0,20 m Kljdpfjcxxnzsx Ab Iju

Condition: used, functionality: fully functional, Robust universal milling machine from KNUTH, featuring the proven WF I design. A classic, German-made workshop machine with a milling head, horizontal milling arbour mounting, a heavy cross slide, and smoothly operating mechanics. Includes original tables and controls. Suitable for workshops, model making, training workshops, repair work, and fixture construction. Also ideal for ambitious private users and collectors of high-quality machine tools – the WF series is highly sought after and easy to operate. Technical specifications: - Model: WF I - Manufacturer: KNUTH Werkzeugmaschinen GmbH, D-Neumünster - Year of manufacture: 1991 - Power consumption: 3 kW - Voltage: 380 V / 3-phase / 50 Hz - Table: Cross slide with T-slots (verify dimensions on site) - Milling arbour: horizontally mountable - Tool holder: SK / MK (verify on site) Kjdpfx Aszabr Teb Ielu - Serial number: 90020 - Weight: approx. 800-1200 kg Collection / Transport: Self-collection with forklift/crane. Loading on site is possible. Shipping via a low-loader can be arranged.

Condition: good (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 109640, spindle bore: 82 mm, center height: 330 mm, quill diameter: 75 mm, quill travel distance: 150 mm, total length: 4,200 mm, total width: 1,050 mm, total height: 1,350 mm, spindle speed (max.): 1,600 rpm, spindle speed (min.): 9 rpm, overall weight: 3,300 kg, torque: 1,500 Nm, KNUTH SINUS 330/3000 Guide and Lead Screw Lathe - Power: 8 kW - Voltage: 400 V - Frequency: 50 Hz - Incl. ACU-RITE digital display - Incl. tailstock, Multifix base, and three-jaw chuck, diameter: approx. 310 mm - Center height: 330 mm - Distance between centers: 3000 mm - Center height in the offset: 435 mm - Length of the bridge: 240 mm - Top slide travel: 145 mm Klodjy Twn Eepfx Ab Ieu - Cross slide travel: 310 mm - Tool dimensions: 25 x 25 mm - Tailstock taper: MK 5 Note: The item must be collected on a date to be determined between July 14th and 16th, 2026. FCA D-45883 Gelsenkirchen - loaded onto a truck.

Condition: used, Year of construction: 1996, sheet width 1350 mm plate thickness 3 mm cutting angle 1° 30' no. of strokes 35 Hub/min table height 850 mm rear stop 450 weight of the machine ca. 1200 kg dimensions ca. 1700 x 1650 x 2000 mm Ksdpfx Abewngqfe Ielu manually operated back gauge 450 mm working lifght included safety gate included

Condition: good (used), Year of construction: 2012, power: 3.7 kW (5.03 HP), Well-maintained semi-automatic bandsaw Knuth model HB 380, year of manufacture 2012 Cutting Capacities Cutting capacity 90° (rectangular): 520x380 mm Cutting capacity 90° (round): 380 mm Cutting capacity 90° (square): 380 mm Cutting capacity 45° (rectangular): 300x380 mm Cutting capacity 45° (round): 300 mm Cutting capacity 45° (square): 300 mm Cutting speed: 20 - 100 m/min Power: 3.7 kW Blade dimensions: 4,800x34x1.1 mm Dimensions: 2,850x1,660x930 mm (W x H x D) Kjdpfxjyxw H Ee Ab Iolu - Hydraulic workpiece clamping - Automatic lift height adjustment Shipping can be arranged upon request.

Condition: good (used), Year of construction: 2002, Drilling and Milling Machine Manufacturer: KNUTH Type: TBF 500 Year: 2002 with coordinate table Kjdpfx Aboy Spube Islu Spindle taper: MK4 Spindle speeds: 125-2500 rpm Motor power: 1.1 kW Table travel: X 500 mm, Y 160 mm Max. installation height: 300 mm Spindle stroke: 130 mm Table size: 200 mm x 730 mm Machine dimensions: Width 1000 mm, Depth 800 mm, Height 1800 mm, Weight approx. 350 kg In good condition.

Year of construction: 2007, condition: used, Empty weight: 2.500 kg Dimensions (LxBxH): 170 x 210 x 230 cm Price: On request Klodpfownip Rex Ab Ieu - Year: 2007 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 750283 - Drive system: CNC - Power [kW]: 7.0 - Number of axes [pcs]: 3 - X-axis travel [mm]: 450 - Y-axis travel [mm]: 300 - Z-axis travel [mm]: 400 - Table length [mm]: 920 - Table width [mm]: 280 - Tool holder: ISO40 - Min. spindle speed [rpm]: 100 - Max. spindle speed [rpm]: 8000 - Transport dimensions: 1700mm x 2100mm x 2300mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 1994, condition: ready for operation (used), A Durmazlar guillotine shear distributed through Knuth is available. Working width: 3020mm, max. sheet thickness: 8mm, motor power: 18.5kW, stroke: 140mm, stroke rate: 14/min, max. pressure capacity: 210bar, oil tank capacity: 250l. Machine dimensions X/Y/Z: approx. 2650mm/3400mm/2300mm, weight: approx. 7500kg. Documentation available. An on-site inspection is possible. Kodpfx Aboy R Drfj Ielu

Condition: used, Year of construction: 2008, machine/vehicle number: 08063895, power: 0.75 kW (1.02 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: AC, KNUTH B180 For sale is a robust and reliable miter band saw for metalworking. Technical data: Cutting capacities: * 90° rectangular: 180 × 290 mm * 90° round: 180 mm * 45° rectangular: 100 × 120 mm * 45° round: 100 mm Band speeds: * 22 / 33 / 45 / 65 m/min Kledpfx Aoy R T R Rjb Ieu Drive: * Main drive motor power: 0.75 kW * Supply voltage: 400 V Dimensions & weight: * Blade dimensions: 2360 × 20 × 0.9 mm * Machine dimensions: 1244 × 457 × 1580 mm * Weight: approx. 105 kg Features & advantages: * Precise miter cuts * Robust and stable construction * Multiple adjustable blade speeds * Ideal for steel, stainless steel, and other metals * Suitable for workshops and professional applications Condition: used / fully functional Inspection and test run possible by appointment If interested, please get in touch.

Condition: used, Year of construction: 2002, Technical details: turning diameter over bed: 330 mm turning diameter over support: - mm turning length: 3000 mm centre height: 330 mm spindle bore of work spindle: 82 mm range of revolution per miute: 9 - 1600 U/min feed range: 0,028 - 6,43 mm/U tailstock quill adjustment:: 150 mm Klsdpfx Aboy Rk S Ee Ieu tailstock taper MT: MK5 total power requirement: 7,84 kW weight of the machine ca.: 2,9 t dimension machine xH: 4,13 x 1,05 x 1,35 m

Condition: new, functionality: fully functional, Year of construction: 2023, machine/vehicle number: M170-382, control type: PLC-controlled, degree of automation: semi-automatic, actuation type: electric, number of rollers: 3, roller (top) diameter: 170 mm, roller length: 1,600 mm, working width: 1,600 mm, sheet thickness (max.): 8 mm, sheet thickness steel (max.): 8 mm, overall weight: 2,310 kg, total length: 3,500 mm, total width: 1,100 mm, total height: 1,130 mm, power: 55 kW (74.78 HP), input voltage: 400 V, input frequency: 50 Hz, Equipment: cone bending device, documentation/manual, emergency stop, foot remote control, hardened rollers, swiveling upper roller, We are offering this hydraulic plate rolling machine Knuth KRM ST-15/6.0, brand new, year of manufacture 2023. Kljdpfxsyyd S Rj Ab Ieu The machine was ordered for a customer who changed their mind, so we are compelled to sell it at a promotional price. Currently, the machine is located at Knuth's headquarters in Wasbek, Germany, and has never been used. If you have any further questions or need more information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: 146978, Knuth Surface Grinding Machine Flat HFS 2500C Working Area & Capacities Table dimensions: 250 x 500 mm Grinding area (max.): approx. 500 x 250 mm Maximum workpiece weight: 180 kg Distance spindle center to table surface: 450 mm Travel Distances & Feeds Longitudinal travel (X-axis): 560 mm Cross travel (Y-axis): 275 mm Hydraulic table feed (X): 7 – 23 m/min Rapid traverse cross (Y): 990 mm/min Rapid traverse vertical (Z): 460 mm/min Spindle & Grinding Wheel Grinding spindle motor power: 2.2 kW Grinding wheel dimensions: 200 x 20 x 31.75 mm Kodpjy H Dg Isfx Ab Ielu Graduation: Y-axis 0.02 mm / Z-axis 0.005 mm Dimensions & Weight Machine dimensions (LxWxH): approx. 2650 x 2150 x 1675 mm Total weight: approx. 1800 kg

Condition: used, machine/vehicle number: 127963, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, spindle mount: MK 3, drilling depth: 130 mm, total width: 420 mm, total length: 800 mm, total height: 1,800 mm, throat depth: 230 mm, overall weight: 190 kg, column diameter: 102 mm, spindle speed (max.): 1,880 rpm, spindle speed (min.): 160 rpm, Dear Sir or Madam, We are happy to answer any questions. This sale is made without any warranty or guarantee. Errors and typos cannot be ruled out. Please check the information in the PDF. Kledpjv T Ax Djfx Ab Iju No returns accepted.

Condition: good (used), Year of construction: 2001, Power: 4.5 kW Drilling capacity: 30 mm Kledpsy H Ih Nsfx Ab Isu End milling: 25 mm Motor power: 0.85/1.5; 2.2 kW

Condition: good (used), Year of construction: 1986, Table size: 600 x 350 mm Travel X-axis: 340 mm Y-axis: 260 mm Head adjustment travel: 200 mm Quill stroke (servo): 210 mm Max. workpiece weight: 500 kg Kodpfxjry Tq Ds Ab Ijlu Includes as-new dielectric fluid, additional filters, user manual Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2008, x-travel 400 mm y-travel 300 mm z-travel 400 mm spindle taper ISO 40 spindle turning speed range 40 - 2.000 U/min table-size 750 x 320 mm feeds -stepless- 10 - 380 mm/min rapid traverse 1.200 mm/min power capacity 2,2 kW quill stroke 80 mm voltage 400 V Ksdpfx Abjxa Hf Ro Ijlu total power requirement 4,7 kW weight of the machine ca. 1,1 t dimensions of the machine ca. 1,15 x 1,40 x 1,85 m - Serial-No.: 148373 - 3-axis digital display - Horizontal milling device - Milling head swivels ±45° - Coolant device
