Used Leadermac Compact Lmc-523C for sale (4,169)

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 2105025, type of input current: three-phase, input voltage: 380 V, input frequency: 50 Hz, input current: 72 A, Four-sided planer Leadermac Compact LMC-523C with 5 spindles, manufactured in 2021. Working width 15 - 230 mm, working thickness 10 - 150 mm, minimum piece length 800 mm (300 mm for sequential feed). Spindles: 3 x 7.5 HP and 2 x 10 HP, spindle speed 6,000 rpm, spindle diameter 40 mm. Feed motor 5 HP with inverter, feed speed 6 - 24 m/min. Fully enclosed machine with sound insulation, chrome-plated feed table, pneumatic pressure rollers with 3 adjustment positions, and a solid cast iron frame. Connection 380 V / 50 Hz, CE version. Options: infeed table 2.5 m (instead of 2 m), pneumatic side pressure roller on the left spindle, split pressure roller at the top, additional tables for multiple sawing on the 2nd bottom spindle, anti-kickback device, and Schneider Easyset touchscreen (1 x conventional and 2 x NC). Dcedpfxoz Ngito Adron

Condition: as good as new (ex-display), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 2201010, Four-sided planer Leadermac Compact LMC-530C with 5 spindles, year of manufacture 2022. Working width 15 - 300 mm, working thickness 10 - 150 mm, minimum piece length 800 mm (300 mm with sequential feed), infeed table 2500 mm. Spindles: 15 HP, 10 HP, 10 HP, 20 HP and 20 HP, diameter 50 mm, 6,000 rpm. Feed motor 7.5 HP, 6 - 24 m/min. Schneider 5.7-inch touchscreen EASYSET with NC control of axis 3 (left radial), axis 4 (top radial) and height adjustment of the pressure bar. Pneumatic left side pressure roller, two-part pressure shoe, extra table and anti-kickback device for multiple sawing. Dsdpfjz Ngiyex Adrecn

Condition: used, Year of construction: 1998, total width: 2,600 mm, total height: 1,900 mm, Colour: White Empty weight: 6.500 kg Dimensions (LxBxH): 590 x 260 x 190 cm - Details: - └ Description: Gas springs are weak - Year: 1998 - Documentation available: No - CE certificate present: No - Number of spindles [pcs.]: 6 - └ Spindle 1: - - Spindle type: Bottom - - Motor power [kW]: 7.5 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - - Tool present: Yes - Min. planing width [mm]: 15 - Max. planing width [mm]: 230 - Min. planing height [mm]: 10 - Max. planing height [mm]: 150 - Feed table length [mm]: 1570 - Feed roller diameter [mm]: 140 - Feed motor [kW]: 5.5 - Conveyor drive: Cardan drive - Diameter extraction nozzle [mm]: 120 - Options: Automatic feeding system - Feed speed: Automatic - └ Min. feed speed [m/min]: 6 - └ Max. feed speed [m/min]: 24 - └ Feed speed control: Incremental - Transport dimensions: 5900mm x 2600mm x 1900mm (l x w x h) - Transport weight [kg]: 6500kg Dsdpoxlthijfx Adrscn - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: ready for operation (used), Year of construction: 2022, This 5s LEADERMAC Compact LMC-530C was manufactured in 2022. It features a working width of 15 – 300 mm and a working thickness of 10 – 150 mm, making it suitable for various woodworking applications. With multiple spindles and a Schneider 5.7” EASYSET touchscreen control, this machine offers advanced capabilities. Consider the opportunity to buy this LEADERMAC Compact LMC-530C wood planer. Contact us for further details. • Ref.: e/haaaa/dc • Working width: 15–300 mm • Working thickness: 10–150 mm • Minimum workpiece length: 800 mm • Minimum consecutive length: 300 mm • Infeed table: 2500 mm • Pneumatic left side pressure roller • Two-piece pressure shoe • Schneider 5.7" EASYSET touchscreen control • NC control axis 3 (left radial) Dodpjzuhfhefx Adrocn • NC control axis 4 (top radial) • NC control for pressure beam height adjustment • Feed motor: 7.5 HP, feed speed 6–24 m/min • 1st spindle: 15 HP, Ø50 mm, 6,000 rpm • 2nd spindle: 10 HP, Ø50 mm, 6,000 rpm • 3rd spindle: 10 HP, Ø50 mm, 6,000 rpm • 4th spindle: 20 HP, Ø50 mm, 6,000 rpm • 5th spindle: 20 HP, Ø50 mm, 6,000 rpm Additional equipment • Additional table for multi-rip saw • Anti-kickback device for multi-rip saw

Condition: excellent (used), Catalog number: 6338 TECHNICAL DATA - Max. width of workpiece: 230mm - Max. height of workpiece: 160mm 7 spindles: 1) Horizontal, lower: 230mm, 5.5kW 2) Vertical, right: 160mm, 5.5kW 3) Vertical, left: 160mm, 5.5kW 4) Horizontal, upper: 230mm, 7.5kW 5) Horizontal, upper: 230mm, 7.5kW 6) Horizontal, lower: 230mm, 7.5kW 7) Universal: 360°, 230mm, 7.5kW - All spindles adjustable up/down, left/right - Spindle diameter: 40mm - All spindles equipped with a brake - Spindle speed: 6000 rpm Top: - 6 toothed, metal feed rollers, including 2 double rollers - 4 rubber feed rollers, including 1 double roller - 3 pressure rollers at the outlet Bottom: - Side pressure roller at the inlet - Toothed, feed roller, swiveling in the lower bed - 3 smooth, metal feed rollers - Rollers adjustable pneumatically - Length of the feed table: 1190mm - Central lubrication of the table - Electric adjustment of the cutting depth - Body lifting motor: 0.56kW - Smooth adjustment of the feed speed on an inverter: 6-24m/min - Feed motor: 3.7kW - Feed on Cardan shafts - Enclosed in a cabinet - Diameter of the dust extraction nozzle: 7x125mm - Dimensions (L/W/H): 5100x2070x1900mm Dcodpfoztzgpex Adren - Weight: approx. 5000kg ADVANTAGES – 7 heads – Universal spindle – Ideal for wet and dry wood – Spindles equipped with brakes - DTR documentation – Used planer, very good condition Net price: 115900 PLN Net price: 26960 EUR, depending on the exchange rate of 4.30 EUR (Prices may vary with higher fluctuations)

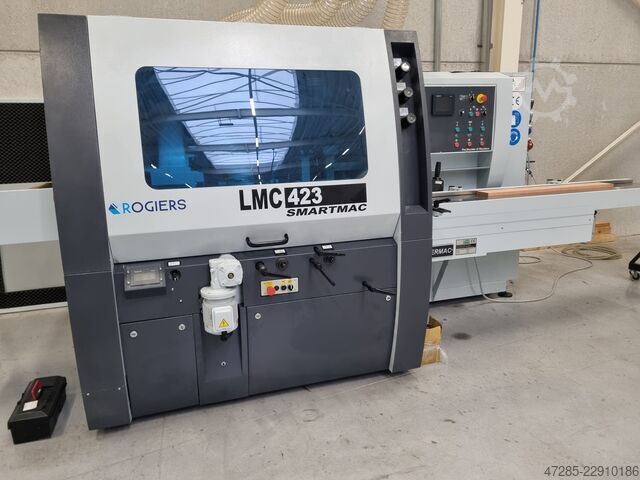

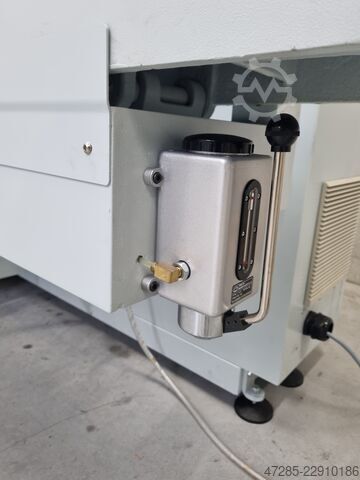

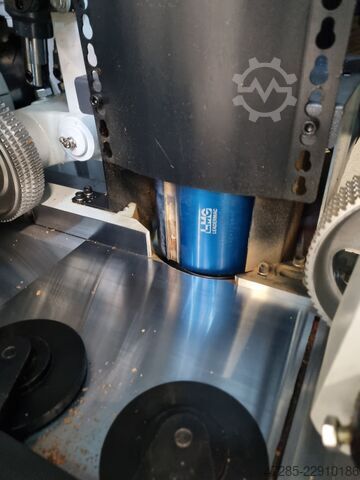

Condition: as good as new (ex-display), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 2205027, type of input current: three-phase, input voltage: 380 V, input frequency: 50 Hz, input current: 72 A, Four-sided planer Leadermac Smartmac LMC-423S with 4 spindles, manufactured in 2022. Equipped with an extended infeed table of 2.5 m (instead of 2 m) and a Schneider Easyset touchscreen control. Djdpfez Ngimox Adrecn

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, planing width: 230 mm, rotational speed (max.): 6,000 rpm, spindle diameter: 40 mm, planing height: 150 mm, roller diameter: 140 mm, Note: The year of manufacture of the machine has been updated. TECHNICAL DETAILS Planing width min.: 15 mm Planing width max.: 230 mm Dsdjzrmupjpfx Adrjcn Planing height min.: 10 mm Planing height max.: 150 mm Number of spindles: 6 pcs. Spindle diameter: 40 mm Planing shaft speed: 6,000 rpm Infeed table length: 1,570 mm Feed Conveyor motor power: 5.5 kW Conveyor drive: Cardan drive Feed system: automatic Feed speed min.: 6 m/min Feed speed max.: 24 m/min Feed speed control: stepped Diameter of dust extraction nozzle: 120 mm MACHINE DETAILS Motor power: 7.5 kW Dimensions & Weight Dimensions (L x W x H): 5,900 x 2,600 x 1,900 mm Unladen weight: 6,500 kg Note: The gas springs are weak.

Condition: excellent (used), Catalog number 7294 TECHNICAL DATA - Max. width of workpiece: 230mm - Min. width of workpiece: 15mm - Max. height of workpiece: 160mm - Min. height of workpiece: 10mm 7 spindles: 1) Horizontal, lower: 230mm, 7.5kW 2) Vertical, right: 160mm, 5.5kW 3) Vertical, left: 160mm, 5.5kW 4) Vertical, right: 160mm, 5.5kW 5) Horizontal, upper: 230mm, 7.5kW 6) Horizontal, upper: 230mm, 7.5kW 7) Horizontal, lower: 230mm, 5.5kW - All spindles adjustable up/down, left/right - Spindle diameter: 40mm - Spindles 3, 5, and 6 are electrically adjustable from the control panel to the desired dimension (ATS) - Motor: 2 x 0.37kW - Spindle diameter: 40mm - All spindles equipped with a brake From above: - 8 feed rollers, toothed, metal, including 2 double rollers - 3 discharge rollers, toothed, rubber, double rollers From below: - Feed roller, toothed, pulling, pivoting - 3 discharge rollers, pulling, metal, smooth - Rollers pneumatically pressed - Length of feed table: 2480mm Dcedpfx Ajz Nlc Ejdrsn - Central lubrication of the table - Electric adjustment of planing thickness - Body lifting motor: 0.56kW - Smooth feed rate adjustment on a frequency inverter: 6-24m/min - Feed motor: 3.7kW - Feed on Cardan shafts - Diameter of dust extraction port: 7x125mm - Dimensions (L/W/H): 5520x1930x1900mm - Weight: approximately 4000kg ADVANTAGES – With 7 heads – Ideal for both wet and dry wood – With ATS – Original DTR documentation + CE – Unpainted – Used planer, in perfect condition Original photos Net price: 156900 PLN Net price: 36500 EUR, depending on the exchange rate of 4.3 EUR (Prices may change due to higher fluctuations)

Condition: used, Year of construction: 2015, total width: 1,900 mm, total height: 1,800 mm, Colour: White Empty weight: 2.000 kg Dimensions (LxBxH): 490 x 190 x 180 cm - Year: 2015 - Documentation available: No - CE certificate present: No - Serial number: 1511030 - Number of spindles [pcs.]: 6 - └ Spindle 1: - - Spindle type: Horizontal spindle - - Motor power [kW]: 7.5 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - └ Spindle 2: Dcjdpfjzwuhhex Adrsn - - Spindle type: Vertical spindle - - Motor power [kW]: 7.5 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - └ Spindle 3: - - Spindle type: Vertical spindle - - Motor power [kW]: 7.5 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - └ Spindle 4: - - Spindle type: Horizontal spindle - - Motor power [kW]: 11 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - └ Spindle 5: - - Spindle type: Horizontal spindle - - Motor power [kW]: 11 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - └ Spindle 6: - - Spindle type: Horizontal spindle - - Motor power [kW]: 11 - - Spindle diameter [mm]: 40 - - Cutterhead speed [rpm]: 6000 - Min. planing width [mm]: 44 - Max. planing width [mm]: 240 - Min. planing height [mm]: 18 - Max. planing height [mm]: 150 - Feed table length [mm]: 1150 - Feed roller diameter [mm]: 140 - Feed motor [kW]: 8.7 - System/software: Schneider - Conveyor drive: Cardan drive - Lubrication system: Manual - Diameter extraction nozzle [mm]: 125 - Options: Powered rollers in table - Feed speed: Automatic - └ Min. feed speed [m/min]: 6 - └ Max. feed speed [m/min]: 24.1 - └ Feed speed control: Continuously adjustable - Voltage [V]: 415 - Current consumption [A]: 144.3 - Fuse [A]: 200 - Power [kW]: 60.0 - Transport dimensions: 4900mm x 1900mm x 1800mm (l x w x h) - Transport weight [kg]: 2000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Working width 230 mm Working height 150 mm 6 heads Head configuration: bottom/right/left/right/top/bottom Ribbed table Head adjustment in two axes Chromed infeed table Material width measuring system (mobile spindle) Stepless feed speed adjustment 6-24 m/min Dcedpfsz D Ag Aex Adrjn Spindle diameter 40 mm Pneumatic pressure feed rollers Year of manufacture 2008

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Leadermac SMARTMAC LMC 523S Four-Sided Planer Manufacturer: Leadermac, Taiwan S/N 092323 Year of Manufacture: 07/2003 In good condition Working width: 230 mm Working height: 125 mm 5 spindles, spindle diameter: 40 mm Feed table: 2000 mm Configuration: 1st lower horizontal spindle: 7.5 kW 2nd right spindle: 5.5 kW 3rd left spindle: 5.5 kW 4th upper horizontal spindle: 7.5 kW 5th lower horizontal spindle: 7.5 kW Continuously adjustable feed rate up to 24 m/min 3 kW feed motor Electronic height adjustment Electronic adjustment of the left head Feed on cardan shafts Five upper steel rollers Two upper rubber rollers Dcodjwft Ufepfx Adrjn One roller in the table top feed Pneumatic material pressure Minimum material length: 400 mm mm Chrome tables Chamber diameter 5 x 125 mm Machine dimensions L x W x H = 370 cm x 200 cm x 190 cm Weight 3500 kg CE marking

Condition: excellent (used), Year of construction: 2008, machine/vehicle number: 0803024, functionality: fully functional, 4-SIDED PLANKER-MOULDER 5 REINFORCED MOTOR TOOL HOLDERS & 3.00 M CHROME TABLE Brand: LEADERMAC Type: SMARTMAC 523 Model: LMC-523SU Serial No.: 0803024 Year: 2008 (Photos taken before servicing & cleaning) MAKING CAPACITIES: - 4-sided planer and moulder - Max. cross-section: 130 x 230 mm - Thicknesses: 10 to 130 mm - Widths: 15 to 230 mm - Minimum length for single workpiece: 600 mm > 760 mm with use of the universal spindle - Adjustable infeeds: max. 10 mm - Spindle speed: 6000 rpm PLANKER COMPOSITION: - Robust frame Welded machine shop - Secure, soundproof, and fully panoramic enclosure on gas struts with interior lighting - Digital counters (Siko type) for precise manual adjustments of each operation - Raised control panel and operator face - Cast steel infeed table (LxW): 2980 x 255 mm Table height from ground: 900 mm - Side infeed spring-loaded pusher - Digital pass-taking indicators 1) Planer spindle 7.5 kW Tool holders Ø125 x L.230 mm 2 & 3) Right & left vertical spindle 12 kW Tool holders Ø125 x L.130 mm 4) Upper horizontal spindle with independent adjustment 11 kW Tool holders Ø125 x L.230 mm - Adjustable pressure shoe at the output 5) 360° universal spindle 11 kW Spindle Ø 50 x L. 240 mm - Vertical idler wheel presser DRIVE: - Feed with variable speed drive: 6 to 24 m/min Drive motor: 3 kW - Helical steel infeed roller in the table Cardan shaft drive - 7 pneumatic pressure rollers 2 notched steel rollers 3 (1 retractable) + 2 rubber-coated rollers - One smooth steel roller in the table at the planer outlet OTHER FEATURES: - Main power supply: 400V. Three-phase + T 50 Hz - Installed power: 53 kW (72 hp) IN 95.6 A - Automatic star-delta starting - Motors with brakes - Toothed belt drive Dcodpfxsv Tzw Ee Adrsn - Electrical thickness adjustment by raising and lowering the beam. 0.37 kW motor - Shaft diameter: Ø50 mm - Minimum working air pressure: 6 bar - Suction: 5 x Ø 120 mm Recommended flow rate: 6100 m3/h Speed: 20 to 28 m/sec depending on the humidity of the wood being machined - CE marking - Padlockable contactor, mushroom stops Dimensions in operating order (W x H): 3000 x 2250 mm Dimensions: 5100 x 2000 x H 1810 mm Weight: 4300 kg Machine supplied with mounted sharpening irons, manual, spare parts list, and diagrams. Please contact us for consumables, accessories, and/or vacuum systems. Upon request, the machine will be serviced and brought into compliance, with inspection and dynamic functional testing. With a 3-month warranty and certificate of compliance. Ex-stock price excluding VAT. Delivery and additional services upon request.

Condition: ready for operation (used), Year of construction: 2015, machine/vehicle number: 1.511.030, functionality: fully functional, planing width: 240 mm, spindle diameter: 40 mm, number of spindles: 6, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Number of spindles: 6 Min. planing width: 44 mm Max. planing width: 240 mm Min. planing height: 18 mm Max. planing height: 150 mm Infeed table length: 1,150 mm Spindle 1 Spindle type: Horizontal spindle Motor power: 7.5 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Spindle 2 Spindle type: Vertical spindle Motor power: 7.5 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Spindle 3 Spindle type: Vertical spindle Motor power: 7.5 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Spindle 4 Spindle type: Horizontal spindle Motor power: 11 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Spindle 5 Spindle type: Horizontal spindle Motor power: 11 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Spindle 6 Spindle type: Horizontal spindle Motor power: 11 kW Spindle diameter: 40 mm Planing cutter speed: 6,000 RPM Feed rate: Automatic Min. feed rate: 6 m/min Max. feed rate: 24.1 m/min Feed rate control: Stepless Conveyor motor power: 8.7 kW Conveyor drive: Cardan drive Diameter of feed rollers: 140 mm MACHINE DETAILS Control system: Schneider Voltage: 415 V Current consumption: 144.3 A Fuse rating: 200 A Connected load: 60 kW Diameter of dust extraction nozzle: 125 mm Lubrication system: Manual Dimensions & Weight Dimensions (L x W x H): 4,900 x 1,900 x 1,800 mm Dcsdpfxozxch Eo Adrjn Unladen weight: 2,000 kg Shipping packages: 1 unit

Condition: good (used), Year of construction: 1999, Four side planer Leadermac Compact 423 S - machine in stock - after the technical review - year of production 1999 - chrome tops - electronic height adjustment TECHNICAL PARAMETERS: - planing width 230 mm - planing height 130 mm - electric adjustment of the left head - electric adjustment of the upper head - electronic height adjustment - five top steel rollers - one upper rubber roller - diameter of the spindles 40 mm 1 lower spindle 5.5 kW diameter 2 right spindle 3 left spindle 7.5 kW Dedpfx Adegufi Serscn 4 upper spindle 7.5 kW - tool diameters 160 and 180 mm - pneumatic clamps - feed on cardan shafts - smoothly adjustable feed 6-20 m / min - 2.2 kW feed motor power - chrome tops - length of the preliminary table top 1980 mm - diameter of nozzles 4x 130 mm Machine dimensions: - length 340 cm - width 190 cm - height 200 cm - weight 2200 kg

Condition: used, Year of construction: 2007, Used LMG Leadermac Smart MA 423 model LMC-423S 4-spindle edge trimming machine workable width: 15-230 mm workable height: 10-150 mm minimum individual piece length: 200 mm spindle rotation speed: 6000 rpm 2-axis positioning with electronic control automatic motor start absorbed current: 52.5 A motor power: 1st motor: 7.5 HP 2nd/3rd motor: 10 HP 4th motor: 10 HP feed motor: 4 HP with cardan drive weight: 2200 kg Dcsdpfx Adjzfgvgjron year of manufacture: 2007 compliant with CE regulations

Condition: excellent (used), Catalog number 6765 TECHNICAL DATA - max. width of workpiece 230mm - max. height of workpiece 160mm number of spindles 4: 1) horizontal lower 230mm, 5.5kW 2) vertical right 160mm, 5.5kW 3) vertical left 160mm – electrically adjustable right/left from the control panel, 5.5kW 4) horizontal upper 230mm – electrically adjustable up/down from the control panel, 7.5kW - all spindles adjustable up/down, right/left - spindle diameter 40mm from above: - infeed rollers, toothed, pulling, 6 pcs, including 2 double rollers - outfeed rollers, pulling, rubber, 2 pcs from below: - infeed roller, toothed, pulling, metal, twisted in the lower table + - outfeed roller, pulling, metal, smooth - rollers adjustable pneumatically - length of infeed table (with pneumatic feeder) 3390mm - possibility of operation without activating the pneumatic feeder, - table adjustable up/down - central lubrication - electric adjustment of planing thickness - stepless adjustment of feed rate - feed on Cardan shafts - feed motor 4kW - enclosed in a cabinet - diameters of dust extraction nozzles 4x120mm - dimensions (L/W/H) 7000x1950x1700mm, - weight approximately 3000kg – for wet and dry wood – pneumatic feeder on the infeed table, – used planer, very good condition Net price: 65900 PLN Net price: 15326 EUR Dcjdpfx Adsztzmcsrsn Net price calculated according to the exchange rate of 4.30 PLN/EUR (with larger exchange rate fluctuations, the price may change)

Condition: used, Multilateral Milling Cutter Equipment Designation: 4 Side Moulder Type: Hypermac LMC - 826 Manufacturer: LMC Leadermac Dcedpowph Sajfx Adren

Condition: used, Features Siemens IE3 type electro magnetically braked motors All spindle motors with Star delta starting system Edge reference straightening system 65 mm high fences Telescopic bedplates between vertical spindles Infeed side pressure unit Double side pressure unit opposite fence side head moving with near side head with pneumatic loading Adjustable side guides after near side head Pad pressure after top head with vertical screw adjustment and mechanical digital readout 2000 mm pre-straightening infeed table with fence each 10 mm adjustment 40 mm diameter spindles belt driven, with spindle speed of 6000 rpm All spindles have horizontal and vertical adjustment, with mechanical digital readouts for fast and accurate setting Independent manual vertical adjustment to top head High precision spindle units with high speed bearings All bedplates and fences have 0.3 mm hardened chrome HRC at 60° Automatic bed lubrication system with timer control Chipbreaker assembly before first and second top head with twin cylinder pneumatic loading One piece heavy duty cast iron main frame with optimum vibration absorption Centralised lubrication system to all main slides Vertical spindles have 80 mm vertical adjustment Horizontal spindles have 40 mm horizontal adjustment Safety interlock at infeed to prevent feeding oversized material ATS electronic positioning by keypad control and motorised adjustment to near side spindle horizontal movement with dual LED measurement display for tool compensation to give radius and actual cutting sizes (Model REC-705B) ATS electronic positioning by keypad control and motorised adjustment to first top spindle vertical movement with dual LED measurement display for tool compensation to give radius and actual cutting sizes (Model REC-705B) – additional LED dual readout display Type REC-720 positioned at first top head ATS electronic positioning by keypad control and motorised adjustment to second top spindle vertical movement with dual LED measurement display for tool compensation to give radius and actual cutting sizes (Model REC-705B) – additional LED dual readout display Type REC-720 positioned at second top head Note: The REC-720 LED dual readouts are linked together with the main REC-705B controller so that they both read the same whether the spindle is adjusted from the top head position manually or at the infeed controller with motorised adjustment – both top heads move together. Lift up sound and safety enclosure including internal lighting and safety interlocks Interlock to lift up enclosure Dust extraction hoods outlet diameter 150 mm Toolkit Instruction and maintenance manual, electrical diagram and parts list. Machine supplied with electrics arranged 3/50/415 V 1 no. CE Pressure Regulator Machine conforms to CE specification Dcedpfx Asz Il Tgsdren

Condition: good (used), Year of construction: 2000, Leadermac LMC 523 Smartmac four side planer - year of production 2000 - DTR - electronic height and width adjustment - possibility to save permanent parameters TECHNICAL PARAMETERS: - planing width 230 mm - planing height 140 mm - diameter of the spindles 40 mm Dsdpfx Ajifftxedrecn 1 lower spindle 7.5 kW 2 right spindle 5.5 kW 3 left spindle, 5.5 kW 4 upper spindle 7.5 kW 5 lower spindle 7.5 kW smoothly adjustable feed 3 kW feed motor power electronic height adjustment electronic adjustment of the left head feed on cardan shafts five top steel pull rollers two upper rubber pulling rollers one role in the table top pulling pneumatic material pressure minimum material length 400 mm length of the preliminary table 2000 mm chrome tables stub diameter 5 x 125 mm Machine dimensions 370 x 200 x 190 cm weight ~ 3000 kg

Condition: new, Year of construction: 2024, I sell the new fourside moulder LEADERMAC COMPACT 430, New machine year 2024. Showroom machine ! Configuration 4 spindles: Bottom 7,5 kW / 10,0 HP Right 7,5 kW / 10,0 HP Left 7,5 kW / 10,0 HP Top 7,5 kW / 10,0 HP Dcodpfx Aerfud Iedren Feeding speed adjustable 6-24 m/min. Feeding motor 7,5 kW / 10,0 HP + inverter Element width max. 15-300mm Element height max. 10-200mm Alle 4 Spindels 6000 rpm. Schneider Touch-Screen EASYSET Electronic programmer for setting the working width, top spinde, aka working height, and height of the pressure zone. Material pressures for short elements. 3-zone pneumatic pressure system for feeding wheels. Total weight 4000kg. Total power 39 kW / 52 HP Fully working. Available immediately Showroom machine, fully NEW ! Incl. CE and complete Documentation !

Condition: ready for operation (used), working width 260mm Dcsdpfx Adszxyddsrsn working height 150mm toothed roller in the feed table before the first head 5 heads head arrangement: lower/right/left/top/bottom electric setting of planing dimensions stepless feed adjustable up to 24m/min pneumatic clamps of the pulling rollers head adjustment in two axes engines: 1. 11kW 2. 11kW 3. 12kW 4. 11kW 5. 7.5kW pulling roller drive via cardan shafts feeding table length 2m chrome plated table additional pulling roller at the right head, so-called tandem horizontal pneumatic clamps set of heads included with the machine

Condition: new, Year of construction: 2024, I sell the new fourside moulder LEADERMAC COMPACT 623C (2M), New machine year 2024. Showroom machine ! Configuration 6 spindles: Bottom 5,5 kW / 7,5 HP Right 5,5 kW / 7,5 HP Left 5,5 kW / 7,5 HP Top 7,5 kW / 10,0 HP Right moulding head 11 kW / 15,0 HP / adjustable speed Left moulding head 11 kW / 15,0 HP / adjustable speed Feeding speed adjustable 6-36 m/min. Feeding motor 3,0 kW / 5,5 HP + inverter Element width max. 15-230mm Element height max. 10-150mm Alle 6 Spindels 6000 rpm. / the left and right squaring moulder with adjustable speed Electronic programmer for setting the top spinde, aka working height. Material pressures for short elements. 3-zone pneumatic pressure system for feeding wheels. Dcsdpjrfuc Refx Adron Total weight 4500kg. Total power 51,18 kW / 68,25 HP Fully working. Available immediately Showroom machine, fully NEW ! Tools, Moulding heads, squaring heads, and all accessories included.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 092323, feed rate X-axis: 24 m/min, working width: 230 mm, spindle diameter: 40 mm, working height: 125 mm, number of spindles: 5, TECHNICAL DETAILS Working width: 230 mm Working height: 125 mm Spindle diameter: 40 mm Infeed table: 2,000 mm Feed speed: 24 m/min Feed motor power: 3 kW Minimum material length: 400 mm Spindles Number of spindles: 5 Lower horizontal spindle power: 7.5 kW Right spindle power: 5.5 kW Left spindle power: 5.5 kW Upper horizontal spindle power: 7.5 kW Dcodpfxexuqm Ue Adrsn Second lower horizontal spindle power: 7.5 kW MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 370 cm x 200 cm x 190 cm Weight: 3,500 kg Electrical Data Voltage: 380 V Frequency: 50 Hz Phases: 3 EQUIPMENT Continuously adjustable feed Electronic height adjustment Electronic adjustment of the left head Feed via cardan shafts Five upper steel rollers Two upper rubber feed rollers Roller in the table feed Pneumatic material pressure Chromium tables CE marking

Condition: excellent (used), Leadermac LMC 423 S, four-sided planer - max planing width: 23cm - max planing height: 13cm - electric raising for feed beam with rollers - feed roller in table + pump with sliding fluid - chrome-hardened tables - complete set of spiral cutterheads - all spindles adjustable vertically and horizontally Dcjdpfx Adoxixu Norsn - bottom spindle 5.5 kW, right and left spindles via one 7.5 kW motor, top spindle 7.5 kW - all motors with brake - stepless feed speed adjustment Weight: 2,200 kg, machine length: 3.3 m. Machine in very good condition, ready for operation.
