Used Scm F410 for sale (731)

Condition: excellent (used), functionality: fully functional, working width: 410 mm, planing width: 410 mm, Planer, jointer SCM F410 Specification: • condition - used, after inspection • manufacturer - SCM • model - F410 • working width - 410 mm • table length - 2610 mm • fence adjustable for angle • motor power - 4.0 kW • spindle speed - 5000 rpm • chip thickness indicator Tedsx E Srvspfx Aklsa • max cutting depth - 8 mm • noise dampening combs at the shaft • motor brake • four-knife shaft, 120 mm diameter, for traditional knives • star-delta starter • dust extraction outlet - 150 mm dia • weight - approx. 650 kg • CE marked • overall dimensions: 261 x 90 x 110 cm (L x W x H) Additional information: • very good technical condition • the presented photos show the actual condition of the item for sale • possibility to start and test the machine on site.

Condition: used, functionality: fully functional, SCM F410 Planer/Thicknesser Specifications: • Condition – used, inspected Tjdezd Stbspfx Aklja • Manufacturer – SCM • Model – F410 • Working width – 410 mm • Bed length – 2610 mm • Adjustable infeed table angle • Motor power – 3.0 kW • Spindle speed – 5000 rpm • Chip thickness indicator • Max. removal depth – 8 mm • Noise-reducing combs near the shaft • 4-knife shaft with a diameter of 120 mm for traditional knives • 0-1 start • Weight – approx. 650 kg • Overall dimensions: 261 x 85 x 105 cm (L x W x H) Additional information: • The machine is in good technical condition and ready for immediate use • The photos show the actual condition of the item • Possibility to turn on and test the machine on-site • Free training on machine operation (at our company premises) • The price listed in the auction does not include VAT and transport costs Financing and transport: • We organize transport using MDD’s fleet, courier companies, or external carriers • We offer financial support in the form of leasing or leasing financing

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: AB/129942, F410 SURFACER Surfacing width: 410 mm Total table length: 2600 mm Table height: 855 mm Infeed table length: 1450 mm Adjustable aluminum fence, up to 45° Fence dimensions: 1100 x 170 mm 4-knife cutterblock, diameter: 120 mm Cutterblock rotation speed: 5000 rpm Motor power: 4 kW SCM surfacing guard integrated into the machine frame Dust extraction port diameter: 120 mm Manual star-delta switch Motor circuit breaker, undervoltage release Main switch, lockable Automatic motor brake Adjustable auxiliary fence Todpfxezadcho Aklsa Available in ARDENNES

Condition: ready for operation (used), Working width 410 mm Length of the planing table 1450 mm Number of knives 4 St. Motor output 4 kW Dimensions (L/W/H) 2650x850x1100 mm weight of the machine ca. 750 kg SCM Surface planer F 410 N ----- Technical manufacturer's description: Planing width: 410 mm Total table length: 2600 mm Table height: 855 mm Feed table length: 1450 mm Aluminum planing fence swivels up to 45° Planing fence dimensions: 1100 x 170 mm 4-knife planing shaft diameter: 120 mm Knife shaft speed: 5000 rpm Motor power: 4 kW TERSA monobloc one-way reversible cutterhead SCM dressing protection device integrated in machine stand 120 mm diameter extraction nozzle Manual star-delta switch Motor protection switch, undervoltage release Lockable main switch Automatic motor brake Pivoting auxiliary fence ----- Price of the above machine on request! ----- Tsdjwzmu Depfx Aklsa (technical data according to manufacturer - without guarantee!) All prices quoted are net and subject to VAT.

Condition: used, machine/vehicle number: 008703, X axis working area: 3650 mm Y axis working area: 1600 mm Working Table: Flat table Main Electrospindle power: 15 KW Number of controlled axes: 3 axes Total number of drilling spindles: 37 Tjdpfxezq Ur Ts Aklja Total number of tool changer positions: 18

Condition: used, machine/vehicle number: 008700, X axis working area: 3050 mm Y axis working area: 1300 mm Main Electrospindle power: 7.5 KW Number of controlled axes: 3 axes Todpfjzq Ur Hex Aklsa Total number of drilling spindles: 52 Total number of tool changer positions: 6

Condition: used, machine/vehicle number: 008704, Overall length: 3435 mm Overall width: 1100 mm Todpjzq Uryefx Aklea Suction capacity: 5750 m3/h No of Filter sleeves: 60

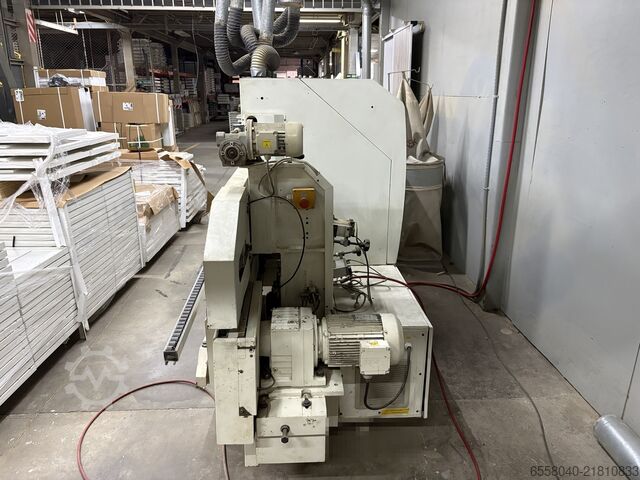

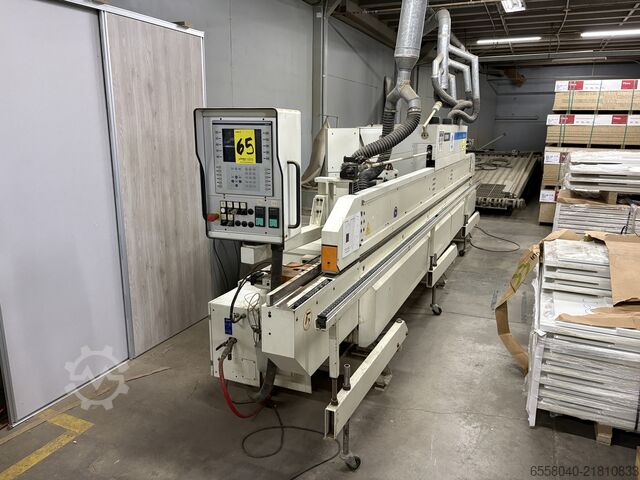

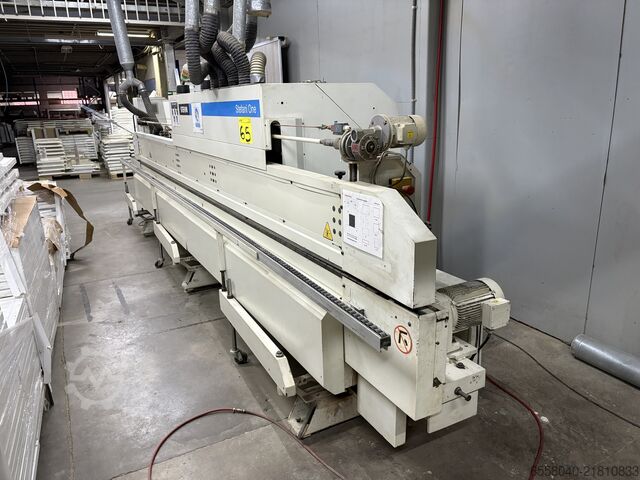

Condition: used, machine/vehicle number: 008132, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Tedow Idc Ropfx Aklsa Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 18 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr

Condition: used, machine/vehicle number: 008238, X axis working area: 3660 mm Y axis working area: 1550 mm Working Table: Flat table Main Electrospindle power: 12 KW Number of controlled axes: 3 axes Total number of drilling spindles: 12 Todpfx Aex A E Tfekloa Total number of tool changer positions: 15

Condition: used, machine/vehicle number: 008108, Max width workable: 1050 mm Max length workable: 2400 mm Tedpfjw Iddujx Akloa Max height workable: 250 mm

Condition: used, Year of construction: 2012, number of axes: 5, working width: 1,240 mm, working length: 3,060 mm, Equipment: CE marking, TECHNICAL DETAILS Machining process: Drilling, Milling Working area X-axis: 3,060 mm Working area Y-axis: 1,240 mm Max. panel thickness: 200 mm Number of working areas: 2 Table type: Flat table Table design: Nesting Table length: 3,060 mm Table width: 1,240 mm Number of controlled axes: 5 Drilling unit Number of drilling units: 1 Installation position: Top Vertical drilling spindles: 12 Horizontal drilling spindles X-direction: 4 Horizontal drilling spindles Y-direction: 2 Total number of drilling spindles: 18 Milling spindle Number of milling spindles: 1 Installation position: Top Controlled axes: 5 Spindle cooling: Liquid cooling Todpfx Aozmvqvjklea Grooving unit Number of grooving units: 1 Installation position: Top Design: Fixed grooving unit Grooving direction: X-direction MACHINE DETAILS Power of main electrospindle: 8.5 kW Power of milling spindle motor: 8.5 kW Control system: PC Control Programming software: Xylog Plus Number of vacuum pumps: 1 Suction capacity per pump: 250 m³/h EQUIPMENT CE marking Front safety mats 16-position tool magazine on the machining head Automatic tool changer Vacuum suction cups for workpiece fixing The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 6487

Condition: not inspected (used), Year of construction: 2001, SCM SUPERSET XL Moulder 5 spindles (Comp.5) Description Number of spindles 5 Spindle sequence bottom-right-left-top-bottom Infeed table length 2500mm Working width 25-260mm Working height 6-180mm Feed speed 6-36 mtr / min Spindle speed 6,000 rpm 400Volt 50Hz CE (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Tjdpjzqc Snofx Akloa Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: used, Year of construction: 2004, 3200mm carriage Electric tilting blade electric cutter Digital display Tjdpfxjzqg Rue Akloa Blade diameter 350mm 380V

Condition: reconditioned (used), Number of spindles 6 St. Working width 240 mm Working height 200 mm Length of the planing table 2500 mm Feed speed 6-36 m/min. Dimensions (L/W/H) 4900x1700x2000 mm weight of the machine ca. 3500 kg Control SCM Mobile 10 SCM Superset NT PLUS Comp. 31 for window production ----- The machine will be partial reconditionned at our facility prior to delivery. Highlights: - Machine with 6 spindles (2 with HSK mounting) - Spindle speed 8,300 rpm - Working width 240 mm, working height 200 mm - Electronic horizontal and vertical spindle positioning - PRL equipment for glazing bead separation - Air-cushion table - Touchscreen control Technical Data: Working width: max. 240 mm (kit for min. width 15 to 25 mm) Working height: max. 200 mm Feed speed: infinitely variable 6 to 36 m/min via inverter Infeed table: length 2,500 mm Machine weight: approx. 3,550 kg Dimensions: length 4,900 mm / width 1,700 mm / height 1,700 mm 1st Spindle: _____ First bottom spindle, horizontal (jointer/planer) Motor with brake, 11 kW Diameter: 40 mm Speed: 6,000 rpm 2nd Tool Mount (HSK): _____ First right tool mount, vertical Motor with brake, 7.5 kW Speed: 8,300 rpm HSK 85S quick-change system Electronic vertical and horizontal positioning 3rd Tool Mount (HSK): _____ First left tool mount, vertical Motor with brake, 7.5 kW Speed: 8,300 rpm HSK 85S quick-change system with pneumatic unit Electronic vertical and horizontal positioning Electronic tool diameter adjustment (setup) 4th Spindle: _____ First top spindle, horizontal Motor with Brake 11 kW Speed ??8,300 rpm Electronic horizontal positioning Electronic tool diameter adjustment (setup) 5th Spindle: _____ Second horizontal top spindle Motor with brake 7.5 kW Speed ??8,300 rpm Electronic vertical and horizontal positioning Electronic tool diameter adjustment (setup) 6th Spindle: _____ Second horizontal bottom spindle Motor with brake 7.5 kW Speed ??8,300 rpm Electronic vertical and horizontal positioning Additional technical features: _____ - 2 feed units following the top spindles to reduce the axis spacing from 620 mm to 450 mm (for short workpieces) - Driven, motorized feed roller integrated into the machine table - Pneumatic hold-down pressure before the jointing spindle (can be deactivated from the control panel) - Pneumatic feed deactivation for the final unit following the 2nd bottom spindle; operable even when the sound enclosure is closed - Pneumatic "TTL" pressure elements before the first horizontal top spindle - Air-cushion lubrication in the machine table to minimize friction - Manual lubrication pump for the machine table - Central lubrication system for guideways and controlled axes - 5 x electronic horizontal positioning (positions 2 – 3 – 4 – 5 – 6) - 4 x electronic vertical positioning (positions 2 – 3 – 5 – 6) - 3 x electronic tool diameter adjustment (setup) Positions (3 – 4 – 5) - Mobile 10 control system - PRL equipment (Glazing bead package) for cutting out the glazing bead Tsdpfjzq Hiqox Akloa - Soundproofing and safety enclosure with electromagnetic interlock (CE standard) Dust extra...

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Tjdevvi I Repfx Akloa

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Tedpfxevwbp Ao Aklsa

Condition: used, Year of construction: 2011, Working size in X-direction: 2770 mm Working size in Y-direction: 1220 mm Working thickness (Z-dimension): 80 mm Machine design: Gantry-type machine Main spindle power: 11.0 kW Main spindle speed: 1500 - 24000 rpm Vector controlled spindle: Yes Clamping system: HSK 63 F Tedjvvi Htopfx Aklea Spindle cooling: Air cooling Number of axes: 3 Tool changer: Yes Tool changer positions: 10 Keyboard: Yes Mouse: Yes Programming system: Xilog Plus DXF interface: Yes Online connection possible: Yes CD-ROM drive: Yes Table type: Matrix table Stop system: Stop cylinders Number of vacuum pumps: 1 Vacuum pump capacity: 250 m³/h Safety: Safety tread mats Storage location: Sonnefeld

Condition: used, Year of construction: 2004, Storage location: Nattheim Tsdpfx Ajvvi Hyjkloa

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTIONAL TABLE - WORK CELL VERSIONX400 CELLDrilling and milling made for you!The numerically controlled machining center is equipped with a wide range of milling/drilling tools to meet every need in the processing of wood and similar materials.- More powerful, with drilling spindles with 8,000 rpm and . Technology, the toughest spindle available on the market, with over 1,000 maintenance-free hours of use. Better and more comprehensively equipped, with various configuration options thanks to the multifunctional table to optimally equip the machine according to your needs. Easier and more understandable programming thanks to the integrated MAESTRO CNC CAD-CAM module. Easier to use: the work table is accessible at all times, the electrical cabinet and vacuum pump are integrated, and in the PRO SPACE configuration there are no guards. Supporting structure. The supporting structure consists of a particularly strong monolithic steel base, heavily ribbed and very rigid. The particularly wide support was specifically designed to give the machine stability, ensuring consistent precision regardless of the working conditions and eliminating the need to anchor the machine to the floor. The base forms a large and solid support for the mobile column: the work unit is thus equipped with a balanced, stable, and durable support that can withstand the most extreme stresses, ensuring higher quality performance and greater precision. The mobile gantry consists of a single, solid unit anchored to the base on both sides and slides on pyrotechnic guides with top-quality ball-return slides. The dual motorization along the X-axis ensures top performance even under demanding working conditions. The movement of the lower moving unit (X-axis) and the working unit along the rod of the moving unit (Y-axis) is achieved thanks to a rack/pinion transmission with helical teeth. this creates a greater tooth-to-tooth thrust which achieves greater acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures absolute quality of finishes as any vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters; These ensure: - Reduced processing times thanks to improved acceleration - Better positioning accuracy thanks to the high-resolution encoder - Zeroing of setup operations when switching on the machine thanks to absolute encoders - Zeroing of general maintenance operations since there are no brushes with the "brushless" system The management of the axis displacement and, in general, of the machine's working elements is carried out by an industrial NS module with digital D Tjdpfxsvvi N Io Aklsa

Condition: used, Year of construction: 1999, Storage location: Nattheim Tedpfx Akjvvi Rxslea

Condition: used, Year of construction: 1995, Storage location: Nattheim Todpfewkirqox Aklja

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Tsdpjw Dcccsfx Akloa

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Tjdpfjw Dcb Sox Akloa

Condition: used, Year of construction: 2001, Bottom / right / left / top with Centro Fix cutter heads. Min/Max. working width (finished dimension): 23 - 180 mm Todeym D Eiopfx Aklsa Min/Max. working height (finished dimension): 6 - 105 mm Min. workpiece length: 300 mm Feed rate: 6 / 12 rpm Spindle speed: 6000 rpm Spindle diameter: 35 mm Motor power, horizontal spindles: 7.5 kW Motor power, vertical spindles: 5.5 kW Feed motor power: 1 kW Diameter of feed rollers: 120 mm Dust extraction nozzle, 1 piece: 150 mm Dust extraction nozzle, 2 pieces: 120 mm Weight: approx. 950 kg Location: Nattheim

Condition: used, total height: 2,000 mm, total length: 8,400 mm, total width: 1,080 mm, Colour: Grey Weight: 3.500 kg Price: On request - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AH/335516 - Number of units [pcs]: 12 - └ 1st unit type: Spraying device - - Tools available: Yes - └ 2nd unit type: Glue unit - └ 3rd unit type: Pressure rollers - - Tools available: Yes - └ 4th unit type: Cap unit - - Tools available: Yes - └ 5th unit type: Rough milling unit - - Tools available: Yes - └ 6th unit type: Corner rounding unit - - Tools available: Yes Tedpfx Aeyudwzokloa - └ 7th unit type: Radius scraping unit - - Tools available: Yes - └ 9th unit type: Flat scraping unit - - Tools available: Yes - └ 10th unit type: Brushing unit - - Tools available: Yes - Voltage [V]: 400 - Current consumption [A]: 68 - Fuse [A]: 68 - Transport dimensions: 8400mm x 1080mm x 2000mm (l x w x h) - Transport weight [kg]: 3500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
