Used Stephan Universal Machine for sale (65,697)

Condition: not inspected (used), Year of construction: 2003, functionality: unexamined, machine/vehicle number: 1117000663, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, nominal power (apparent): 56 kVA, controller manufacturer: HEIDENHAIN, controller model: ITNC 530, total height: 2,600 mm, total length: 5,000 mm, total width: 4,000 mm, table width: 630 mm, table length: 900 mm, overall weight: 10,000 kg, number of slots in tool magazine: 60, mount diameter: 40 mm, tool length: 350 mm, tool diameter: 110 mm, tool weight: 10,000 g, input voltage: 400 V, input frequency: 50 Hz, Incl. 60-fold tool changer, NC rotary table, incl. tool holders located in the tool changer, incl. chip conveyor and coolant system.Attention: without the machine vise shown in the photos!Additional technical specifications:nominal current: 100 APath measuring system resolution: 0,001 mmInput resolution in X/Y/Z: 0.001 mmPosition tolerance in X/Y/Z: 0.010 mmmax. tool diameter with free adjacent places: 160 mmtool length from spindle nose without tool breakage monitoring: 350 mmwith tool breakage monitoring: 315 mmmax. tool weight at automatic tool change: 10 kgmax. total tool weight in magazine: 200 kgDistance of T-slots: 63 mmNumber of T-slots: 9/14 pcsCenter bore: 50 mmmax. rotation of the table top: 20 rpmFeed: 3600°/minResolution of the measuring system: 0.001° Dodpfxez Nd R Is Adrocn

Condition: like new (used), Year of construction: 2025, operating hours: 3,737 h, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 600 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, torque: 136 Nm, controller manufacturer: Siemens, controller model: Siemens ONE, workpiece length (max.): 650 mm, workpiece width (max.): 650 mm, workpiece diameter (max.): 700 mm, workpiece weight (max.): 700 kg, total height: 2,663 mm, total length: 3,645 mm, total width: 3,775 mm, table width: 540 mm, table length: 650 mm, table load: 700 kg, overall weight: 7,500 kg, spindle speed (max.): 18,000 rpm, operating hours of spindle: 3,700 h, coolant supply: 50 bar, spindle motor power: 35 W, number of spindles: 1, number of slots in tool magazine: 175, Equipment: chip conveyor, documentation/manual, Machine: Hedelius Acura 65 Control system: Siemens ONE Spindle speed: 18000 rpm Standby magazine: HSK-A63/115 Chip conveyor Automation interface Profibus interface Rotary table for NPS connection, Acura 65 EL (without T-slot table) Dsdpfx Ajz Nc Taedrjcn Extension for 4- and 6-channel DDF Acura Adjustable clamping pressure: 1-6 bar Kinematics Opt (incl. calibration sphere) Accuracy package for the Z-axis 3D Formingstar package Collision monitoring 3D CAD/CAM workspace data 5-axis simultaneous machining Infrared receiver: Renishaw Laser control system: BLUM Incline bed band filter system: 900 liters Internal coolant supply: 25 bar Pressure boosting pump: 50 bar Air blow gun Flush gun Extended chip flushing system Signal light, 3-way Exhaust filter: LTA 3001

Condition: good (used), Stephan UMC12-F Universal machine Dcedjz It Ilspfx Adrjn Stainless, Bowl capacity 12L, jacketed bowl, with vacuum, variable speed, with Haake D8 circulating waterbath, top mounted bowl scraper, on mobile stainless frame, 3Ph

Condition: like new (used), Year of construction: 2024, operating hours: 100 h, functionality: fully functional, travel distance X-axis: 620 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 36 m/min, nominal power (apparent): 45 kVA, torque: 180 Nm, controller manufacturer: Heidenhain, controller model: TNC640, workpiece height (max.): 430 mm, workpiece diameter (max.): 580 mm, workpiece weight (max.): 300 kg, total height: 3,300 mm, total length: 3,225 mm, total width: 2,256 mm, table load: 300 kg, rotary table diameter: 500 mm, overall weight: 8,500 kg, spindle speed (min.): 5 rpm, spindle speed (max.): 15,000 rpm, operating hours of spindle: 40 h, coolant supply: 42 bar, distance table center to spindle nose: 150 mm, spindle motor power: 3,400 W, number of spindles: 1, number of slots in tool magazine: 60, tool length: 250 mm, tool diameter: 127 mm, tool weight: 7,000 g, coolant supply through spindle: 42 bar, swivel angle B-axis (min.): -50 °, swivel angle B-axis (max.): 110 °, swivel angle C-axis (max.): 360 °, number of axes: 5, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Demonstration machine Equipment of the Axon LU 620 Dodpfxsywyqks Adrocn - Heidenhain TNC640 - 5-axis simultaneous - Heidenhain glass scales on all 5 axes - Kinematic Optimizer - 15,000 rpm Direct Drive spindle with 34 kW and max. 180 Nm (25% duty cycle) - Production package I with 42 bar through-coolant (IKZ) - Air through the spindle - Media feed through the center of the table - Automatic workpiece measurement Renishaw OMP 40 - Laser tool breakage control Blum NT A-3 Split - Paper band filter system - Spindle ring flushing system - Automatic side door - 60 magazine positions - SK40 - Scraper-type chip conveyor - Chip flushing - Extraction system

Condition: new, Year of construction: 2026, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 500 mm, feed length X-axis: 750 mm, feed length Y-axis: 610 mm, feed length Z-axis: 500 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, torque: 100 Nm, controller manufacturer: HEIDENHAIN, controller model: TNC7, total height: 3,060 mm, total length: 4,204 mm, total width: 3,500 mm, table width: 600 mm, table height: 805 mm, table length: 750 mm, table load: 400 kg, rotational speed (min.): 100 rpm, overall weight: 9,000 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 15,000 rpm, coolant supply: 20 bar, distance table center to spindle nose: 650 mm, spindle motor power: 26 W, number of slots in tool magazine: 40, tool length: 250 mm, tool diameter: 80 mm, tool weight: 800 g, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, - Complete machine with a 5-axis rotary/tilting table with Torque motors - Optical scales for X/Y/Z axes - Direct encoders for B/C axes - HSK 63A electrospindle Dedjz Hnx Aspfx Adrscn - High-pressure coolant system through the spindle, 20 bar - Chip evacuator - Electronic handwheel - Kinematic option - MARPOSS part cycle probe - Top cover - CE marking

Condition: ready for operation (used), Year of construction: 2023, operating hours: 362 h, functionality: fully functional, machine/vehicle number: 12430021383, travel distance X-axis: 750 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 560 mm, controller model: Siemens 840D sl Operate, spindle speed (max.): 20,000 rpm, Auction of a DMG DMU 75 Monoblock + Pallet Handling System PH150! Only 362 spindle hours! TECHNICAL DETAILS Travel in X-axis: 750 mm Travel in Y-axis: 650 mm Travel in Z-axis: 560 mm Main drive and spindle Main drive: AC motor, digitally controlled Motor spindle: speedMASTER Warranty period for the motor spindle: 36 months Speed range: max. 20,000 rpm Spindle mounting: SK 40 according to DIN 69871 Part 1 Acceleration time: approx. 2.6 s Deceleration time: approx. 2.6 s Drive power at 40% duty cycle: 35 kW Drive power at 100% duty cycle: 25 kW Dedpfxez I Tcij Adrscn Spindle torque at 40% duty cycle: 130 Nm Spindle torque at 100% duty cycle: 86 Nm Spindle bearing inner diameter, front: 80 mm Spindle bearing inner diameter, rear: 55 mm Tool clamping: DIN 69872 Form A or B Clamping force SK 40: 9 kN Permissible tool diameter with adjacent positions occupied: 80 mm Permissible tool length with adjacent positions occupied: 315 mm Permissible tool diameter with adjacent positions free: 160 mm Permissible tool length with adjacent positions free: 315 mm Number of T-slots: 4 × 14 H12 T-slot spacing: 63 mm Centering bore: 50 mm Thread: 8 × M12 Swiveling axis A Swiveling angle towards the working spindle: +120° Swiveling angle away from the working spindle: −120° Torque of the swiveling axis: 3,400 Nm Holding torque of the swiveling axis: 3,400 Nm Holding torque of the swiveling axis with hydraulic clamping: 6,200 Nm Rapid traverse of the swiveling axis: 40 rpm Feed rate of the swiveling axis: 20 rpm Input and display resolution: 0.001° Bidirectional accuracy of the swiveling axis A: A ≤ 9 arc seconds Permissible moment of inertia of the swiveling axis: max. 59 kg·m² Rotary axis C Rotational range of the C-axis: 360° Torque of the rotary axis: 2,000 Nm Holding torque of the rotary axis: 2,000 Nm Feed rate of the rotary axis: 7,200°/min Bidirectional accuracy of the rotary axis C: A ≤ 7 arc seconds Table load: max. 600 kg Permissible moment of inertia of the rotary axis: max. 48 kg·m² Workpiece diameter: max. 840 mm Machinable diameter: 650 mm Workpiece height: 500 mm MACHINE DETAILS Control system: Siemens 840D sl Operate Cooling system: Liquid cooling Lubrication: Oil-air lubrication Operating hours Power-on hours (according to counter): 1,166 h Spindle hours (according to counter): 362 h Further technical data can be found in the attached offers.

Condition: repair required (used), Year of construction: 2002, operating hours: 20,300 h, For sale: Dcedpfxoz E Hwbo Adron Manufacturer/Type: Deckel Maho, DMU 60 P hi-dyn, 5-axis machining center Year of manufacture: 2002 Information: Tool changer for 60 SK 40 tool holders, Mill Plus control system Current condition: The Y-axis travels out of round by 0.03 mm; the machine is currently not functioning because the hard drive needs to be replaced. Availability: Immediate Accessories: 3D measuring probe, machine manual

Condition: used, Year of construction: 2018, travel distance X-axis: 510 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 70 m/min, rapid traverse Y-axis: 70 m/min, rapid traverse Z-axis: 70 m/min, feed length X-axis: 510 mm, feed length Y-axis: 600 mm, feed length Z-axis: 700 mm, feed rate X-axis: 70 m/min, feed rate Y-axis: 70 m/min, feed rate Z-axis: 70 m/min, nominal power (apparent): 63 kVA, torque: 900 Nm, workpiece height (max.): 490 mm, workpiece diameter (max.): 535 mm, workpiece weight (max.): 200 kg, total height: 3,470 mm, total length: 4,150 mm, total width: 3,120 mm, table load: 200 kg, rotary table diameter: 450 mm, rotational speed (max.): 80 rpm, overall weight: 18,000 kg, distance between spindles: 540 mm, number of spindles: 2, number of slots in tool magazine: 112, tool length: 550 mm, tool diameter: 75 mm, tool weight: 12,000 g, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, We are offering this very well-maintained, twin-spindle, 5-axis machining center, MAG SPECHT 450 DUO, manufactured in 2018. Manufacturer: MAG / FFG Machine Type: SPECHT 450 DUO Year of Construction: 2018 Condition: very good Operating Hours: 15,908 hours Machine Number: X.0112.6552 Order Number: E.7500194.001 Wiring Diagram Number: E.7500194.001 Location: 36199 Rotenburg an der Fulda, Germany Inspection: possible under power The machine is designed as a highly productive, twin-spindle machining center for series production and features 5-axis machining, two working spindles, and HSK-A63 tool holders. Technical Data: Year of Construction: 2018 Machine Number: X.0112.6552 Number of Spindles: 2 Machining: 5-axis Tool Holder: HSK-A63 Travel X: 510 mm Travel Y: 600 mm Travel Z: 660 / 700 mm Axis Speed X/Y/Z: up to 70 m/min Spindle Distance: 540 mm B-/A-Axis: up to 80 rpm B-Axis Division: 360° x 0.001° Table Plate Diameter: 2 x 450 mm Table Load: 2 x 200 kg Max. Interference Diameter of Workpiece/Fixture: 2 x 535 mm Max. Workpiece and Fixture Height: 490 mm Max. Weight Moment at 90°: 900 Nm Tool Magazine: 112 tool positions HSK 63 Tool Diameter with Full Load: 75 mm Tool Diameter with Empty Spaces: 140 mm Max. Tool Length: 550 mm with front loading Max. Tool Weight: 12 kg Total Weight of Tools in Magazine: max. 420 kg Accuracy / Measuring System: Path Measuring System X/Y/Z: 0.0001 mm Djdpfx Adoz Ar H Sjrjcn Positional Accuracy: 0.005 mm Positional Repeatability: 0.004 mm Machine Dimensions: Width: approx. 3,120 mm Length: approx. 4,150 mm Height: approx. 3,470 mm Machine Weight: approx. 16,000–18,000 kg Electrical Rated Power according to Nameplate: 63 kVA Operating Voltage: 400 V / 50 Hz The machine can be inspected under power at the Rotenburg an der Fulda location by appointment. Technical documentation is available. Sale from location. Subject to prior sale and errors in the technical data.

Condition: ready for operation (used), Kölsch / Beichle Uni1-Uni4 / Universal milling machine - Universal rotary table - Coordinated milling paths X / Y / Z - Suitable for general milling operations and partial and full circular milling - Additional three-jaw chuck Dcsdpfez Eyyijx Adrjn Dimensions: L x W x H 1.7 x 1 x 1.9 meters / Weight 950 kg Errors and omissions excepted.

Condition: ready for operation (used), Year of construction: 2000, operating hours: 28,027 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain Mill Plus, spindle speed (max.): 18,000 rpm, No minimum price – guaranteed sale to the highest bidder! Vertical machining center with a virtually new spindle (the machine received a new spindle after 23,919 operating hours)! TECHNICAL DETAILS Travel in X-axis: 800 mm Travel in Y-axis: 700 mm Travel in Z-axis: 600 mm Spindle Spindle speed: 18,000 rpm Tool holder: HSK 63 Dcjdpfx Adjz Hu Sieren MACHINE DETAILS Internal coolant supply: 40 bar Control system Control system manufacturer: Heidenhain Control system model: Mill Plus Spindle operating hours: 28,027 h Spindle replacement at: 23,919 h EQUIPMENT NC rotary table with C-axis NC swiveling head FD function (free-form machining) Pallet changer Infrared measuring probe for workpiece measurement Additional magazine with 120 positions

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 540 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 32 m/min, feed rate X-axis: 32 m/min, feed rate Y-axis: 32 m/min, feed rate Z-axis: 32 m/min, controller manufacturer: Okuma, controller model: OSP P200M-H, rotary table diameter: 500 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Okuma MU500VA CNC Vertical Machining Centre (2007) Equipped with OKUMA OSP P200M-H CNC CONTROL 20" ROTARY PLATEN 4TH AND 5TH AXIS BUILT IN TRUNION 32 POSITION AUTOMATIC TOOL CHANGER COOLANT THRU SPINDLE TOOL LENGTH MEASURING Travels X-axis (saddle left/right) – 1250mm, Y-axis (pallet front/back) – 660mm, Z-axis (spindle up/down) – 540mm, A-axis – +20~-110 deg., C-axis – 360 deg., Table surface to spindle nose – 127~667mm Djdpfjyf Ncqsx Adrscn Table Table size – ø500mm, Max work size – ø730xh500, Floor to table top – 1073mm, Max load capacity – 500kg Spindle Spindle speed – 15000rpm, Turning specification – C-axis table 1000rpm , No. of spindle ranges – Infinitely variable, Tapered bore – 7/24 taper No.40, Bearing dia – ø70mm Feed Rapid traverse – X-Y: 40m/min, Z:32m/min, Rapid traverse (A-C) – 18,000 deg/min, Cutting feed rate – X-Y-Z: 32m/min Motors Spindle (10min/cont) – 11/7.5kW ATC Tool shank type – MAS BT40 Big plus, Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random ATC Retention knob type – MAS 2, Tool capacity – 32, Max. tool dia (w/ adjacent tool) – ø90mm, Max. tool dia (w/o adjacent tool) – ø125mm, Max. tool length – 400mm, Max. tool mass – 8kg, Tool selection – Memory random

Condition: good (used), Year of construction: 1998, Mikron UM 710/900 Universal Milling Machine High-precision universal tool milling machine from the Swiss quality manufacturer MIKRON, model UM 710/900. The machine comes from a well-maintained environment and impresses with the renowned Mikron precision and generous work area (up to 900 mm travel in X). It is ideally suited for toolmaking, prototype construction, training, or demanding repair workshops. Technical data at a glance (manufacturer's specifications): Work area & axes: Longitudinal travel (X-axis): 710 / 900 mm Transverse travel (Y-axis): 630 mm Vertical travel (Z-axis): 500 mm Spindle: Tool holder: SK 40 / DIN 69871 Gear stages: 4 Speed range: adjustable (vertical & horizontal) Dcjdpfx Adszcqcgsron Main drive & feed: Spindle drive power: 11 kW (at 44% duty cycle) / 7.5 kW (at 100% duty cycle) Feed rate (X, Y): 0 – 10,000 mm/min (programmable) Feed rate (Z): 0 – 8,000 mm/min (programmable) Rapid traverse (X, Y / Z): 10 m/min / 8 m/min Work table (rotary table): Clamping surface: 600 x 1,200 mm T-slots: 9 pieces (14-H7, spacing 63 mm) Max. table load: 500 kg Electrical system, dimensions & weights: Connected power: Total installed rated power 21.5 kW Operating voltage: 3 x 400 V - 50 Hz Coolant system: 150 liter capacity Machine weight: approx. 4,300 kg (incl. safety cabin) Product video “Everything from a single source: We will gladly offer you suitable bank financing for your project.” More items – new and used – can be found in our shop! International shipping costs available upon request!

Condition: ready for operation (used), Year of construction: 1998, Available for immediate pickup at our location: Vertical machining center ZPS Depo Type MCTV 1060 NT Year of manufacture 1998 Heidenhain iTNC 426 M Table 1270 x 590 mm Travel distances X/Y/Z 1016/610/760 mm SK 50 Spindle speeds up to 8000 rpm Table load max. 900 kg Drive power 11 kW Tool changer, 24 positions Dcjdpfx Adjz Ixq Eorsn Distance spindle – table 80 – 840 mm Weight 6700 kg Price: Euro 4,000.00 plus VAT, pickup at our location.

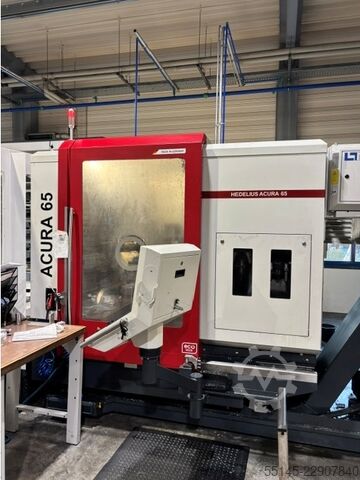

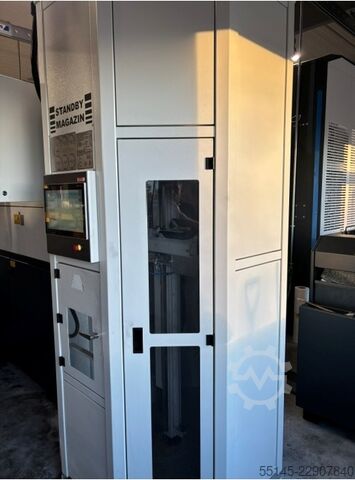

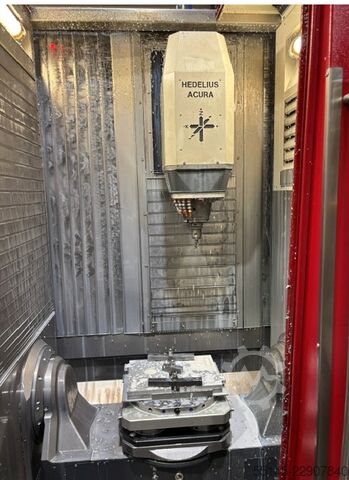

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, 5-axis machining center Hedelius ACURA 65, including standby magazine Control system: TNC 640 Year of manufacture: 2017 Internal machine number: 80 Travel distances: X-axis: 700 mm Y-axis H / V: 650 / 465 mm Z-axis: 600 mm Rotary-swivel table: Ø 650 x 540 mm Dodpfxjz Ix Uwo Adrocn Swivel range: +30° to -115° Table load: 500 kg Mount: DIN 69871 AD 40 Tool magazine: 65 positions Spindle speed: 50 - 14,000 rpm Accessories Standby magazine with 180 spaces Incline bed coolant system SKM 900 Chip conveyor LTA extraction system 3D measuring probe Coolant gun KinematicOpt

Condition: used, Year of construction: 2009, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 700 mm, feed rate X-axis: 24 m/min, feed rate Y-axis: 24 m/min, feed rate Z-axis: 24 m/min, controller manufacturer: FANUC, controller model: OI-MC, table width: 700 mm, table length: 1,400 mm, table load: 1,000 kg, spindle speed (max.): 10,000 rpm, spindle motor power: 15,000 W, spindle nose: DIN 40 ISO, number of slots in tool magazine: 24, CNC FANUC – OI-MC TABLE Table dimensions: 1400 x 700 mm T-slot dimensions / pitch: 5-18 x 125 mm Maximum allowable weight: 1000 kg CAPABILITIES: X-axis longitudinal travel: 1200 mm Y-axis transverse travel: 700 mm Z-axis vertical travel: 700 mm Dcodsz H Npcspfx Adrsn SPINDLE: Spindle mount: DIN40 ISO Rotational speed: 10,000 rpm Motor power: 11/15 kW FEEDS: Rapid traverse rate for X, Y, Z axes: 24000 mm/min Complete with: - Rotating table, 4th axis, with LCM HP250 tailstock - 24-position RANDOM-type tool magazine - Variety of collets - Remote electronic handwheel Year of manufacture: 2009

Condition: good (used), Year of construction: 1981, Table size 1300 x 400 mm Tool holder DIN 2080 ISO 40 Dsdpfx Aod D Tf Hedrecn Travel ranges X-axis, automatic/manual 1000 / 1020 mm Y-axis, automatic/manual 350 / 370 mm Z-axis, automatic/manual 430 / 450 mm Speed range, 2 steps 32 – 1400 rpm Quill in vertical milling head yes Milling head, swiveling ± 90° Feed range X/Y-axis, stepless 10 – 1000 mm/min Feed range Z-axis, stepless 4 – 400 mm/min Rapid traverse X/Y-axis 5 m/min Rapid traverse Z-axis 1.8 m/min Drive power, vertical + horizontal 3.2/4 kW Space requirement L x W x H 3200 x 2700 x 2200 mm Weight 2400 kg Accessories / Special features: • NC point-to-point control HEIDENHAIN TNC 131 S • RS 232 interface • Stepless feed • Automatic and/or manual operation possible • Safety devices / prompts to secure the hand crank when the X-Y and Z axes are moved manually, as well as the manual tool clamping • Vertical and horizontal milling spindle • Quill in vertical milling head • Hydraulic axis clamping • Central lubrication • Coolant system Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: good (used), Mikron WF 41C CNC Universal Milling and Drilling Machine Professional, extremely robust CNC universal milling and drilling machine MIKRON WF 41C Due to its stable design, the machine is ideal for workshops, prototype construction, maintenance, or demanding toolmaking. The machine is equipped with the proven HEIDENHAIN TNC 155 path control system. Thanks to its clear-text dialogue guidance, it can be programmed extremely easily directly on the machine, supports graphic simulations, and allows easy loading of external CNC programs via the serial interface (ideal for CAD/CAM applications). Technical data at a glance CNC control Model: HEIDENHAIN TNC 155 Operating modes: Manual operation (like digital display), positioning with manual input, single block, sequence of blocks, program test (graphic simulation) Interface: V.24 / RS-232-C for data transfer Feed drives & travels Travel in X-axis (table longitudinal, automatic): 630 mm Travel in Y-axis (spindle carriage transverse, automatic): 500 mm Travel in Z-axis (table vertical, automatic): 460 mm (p. 1) Feed rate: continuously adjustable from 1 – 3000 mm/min in all 3 axes Rapid traverse rate: X and Y axes: 6000 mm/min | Z axis: 4000 mm/min Max. vertical installation height: 559 mm (between vertical milling head and rotary table) Milling spindle drive Working spindle speeds: 21 gear stages Speed range: 31.5 – 3150 rpm Spindle motor power: 6.0 / 8.0 kW Tool holder: ISO 40 / M 16 with draw-in groove (SK 40 DIN 2080) Arbor movement (vertical): 90 mm Table geometry & workpiece capacity Rotary table clamping surface: 500 x 1000 mm T-slots: 7 pieces (distance: 63 mm, width: 14-H7 mm) Clamping surface perpendicular: 397 x 550 mm (with 4 x 4 threaded holes M16, distance 90 mm) Dcodpfozcqf Isx Adrsn Max. recommended workpiece weight: 500 kg Electrical system & cooling Electrical connection power: 13.5 kW Coolant tank volume: approx. 100 liters Dimensions & weights Net machine dimensions: 1745 mm (L) x 1501 mm (W) x 2124 mm (H) Max. space requirement during operation (including control console): 2930 mm (L) x 2115 mm (W) x 2125 mm (H) Machine weight (net): 3100 kg (including vertical milling head and rotary table) Product video “Everything from one source: We would be happy to offer you a suitable bank financing option for your project.” More articles - new and used - can be found in our shop! International shipping costs on request!

Condition: used, Year of construction: 1996, functionality: fully functional, machine/vehicle number: 500 050, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, torque: 82 Nm, controller manufacturer: Grundig / Heidenhain, controller model: MillPlus, workpiece length (max.): 500 mm, workpiece width (max.): 400 mm, workpiece height (max.): 400 mm, workpiece diameter (max.): 50 mm, workpiece weight (max.): 200 kg, total height: 2,200 mm, total length: 2,200 mm, total width: 1,800 mm, table width: 500 mm, table height: 800 mm, table length: 700 mm, table load: 200 kg, rotary table diameter: 500 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 9,000 rpm, overall weight: 3,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 9,000 rpm, Deckel Maho DMU 50 T – CNC Universal Milling Machine (Year of manufacture: 1996) Dodpsz D Ab Tefx Adrjcn For sale is a well-maintained and fully functional CNC universal milling machine, the Deckel Maho DMU 50 T, equipped with the proven MillPlus control system. This machine is ideally suited for toolmaking, the production of single parts and small series, and for training workshops. Key features: Control system: MillPlus (Deckel Maho) Travel ranges: X = 500 mm / Y = 400 mm / Z = 400 mm Table: Swiveling rotary table for flexible 5-axis machining Spindle: SK40, up to 9,000 rpm Equipment: Full enclosure with sliding doors and ergonomic control panel Sales and transport conditions (Incoterms): Sales condition: EXW (Ex Works / Ex Location) Dismantling & Loading: Dismantling, removal from the building, loading, and transport must be completely organized and carried out by the buyer (at their own expense and risk). Dismantling can also be carried out for a fee. Various accessories included. The machine can be inspected on-site by appointment.

Condition: good (used), Year of construction: 1991, Table clamping surface: 710 x 400 mm Tool holder: ISO 40 Travel paths: X-axis: 400 mm Y-axis: 350 mm Additionally displaceable in Y-axis: 420 mm Z-axis: 380 mm Quill stroke: 80 mm Speed range: 45 – 2240 rpm Feed range, stepless: 6.3 – 1250 mm/min Rapid traverse: 1250 mm/min Drive power: 2.2 / 2.8 kW Dimensions (L x W x H): 1400 x 1600 x 1850 mm Weight: 1900 kg Accessories / Special Features: • 3-axis digital readout by HEIDENHAIN • Vertical and horizontal milling spindle • Vertical milling head with quill, tiltable right and left • Stepless feed • Rapid traverse on all 3 axes • Fixed angle table Dcjdpfx Adoupiyporen • Coolant system • Chip tray • Spindle clamping by push button, e.g., for tool change • Machine feet • Central lubrication • Control panel • Emergency stop switch Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: good (used), Year of construction: 2011, functionality: fully functional, 5-axis machining center Hedelius RS 805 K Control system: Heidenhain iTNC 530 Year of manufacture: 2011 Internal machine number: 78 Dcodpfoz Iw Tfex Adron Travel ranges: X-axis 1,500 mm Y-axis 800 mm Z-axis 600 mm Tool holder: SK 40 Tool magazine: 30 positions Spindle speed: 12,000 rpm Accessories: - Inclined bed coolant system SKM 900 - Internal coolant system 25 bar - Chip conveyor - Operating panel - Air blow guns - Flushing guns

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, travel distance X-axis: 820 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 500 mm, number of slots in tool magazine: 60, Equipment: chip conveyor, General Control: Max 5 Year of manufacture: 2023 Working Area Travel X: 820 mm Travel Y: 550 mm Travel Z: 500 mm Travel B: +110° / -110° Dsdpfxeyap Tfs Adrocn Travel C: 360° Tool changer: 60 stations Rapid traverse X/Y/Z: 36 / 36 / 36 m/min Spindle Speed: 12,000 rpm Power: 16 kW Tool holder: SK40 NC Rotary Table Clamping surface L x W: 600 x 600 mm Spindle nose to table: 150 - 650 mm Table load capacity: 350 kg Equipment Chip conveyor Coolant supply Direct path measuring system Through-spindle air 5-axis simultaneous capability Workpiece measurement Tool measurement High-pressure coolant (IKZ)

Condition: used, Year of construction: 2017, Control DMG MORI SLIMline x-travel 500 mm y-travel 450 mm z-travel 400 mm b-axis -5 / + 110 ° 360 ° table dimensions 630 x 500 mm rapid traverse 30 m/min turning speed range 20 - 12.000 U/min Drive power (40/100%) 13/9 kW tool taper SK 40 number of tool places 30 Pos. Number of working hours ca. 11.605 h spindle hours ca. 4.061 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: - Chip conveyor Dcodpoz I D Amsfx Adrjn - Internal coolant supply (ICS) - Coolant spray gun - Electronic handwheel - Direct position measuring system (X, Y, Z) - Renishaw probe kit - Oil and emulsion mist separator Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale.

Condition: like new (used), Year of construction: 2019, functionality: fully functional, -Travel ranges: X-axis: 800mm Y-axis: 800mm Z-axis: 600mm -A-axis swivel range (2 torque motors): +/- 140° -Swivel axis A speed: Max. 50 min-1 Djdpfx Adjz Iy Swjrecn -C-axis rotary range (1 torque motor): 360° (continuous) -Rotary table speed: Max. 100 min-1 -Table load: Max. 1000kg -Path control: Heidenhain TNC 640 -Tool holder: HSK-A63 -Spindle speed range, stepless: Max. 18,000 min-1 -Rapid traverse speed: Max. 60m/min -Additional tool magazine: 224 tool positions -Main magazine: 11 tool positions -Max. tool length in changer: 400mm -Max. tool diameter in changer: 130mm -Chip flushing hose -Chip conveyor flushing -Emulsion mist extraction system -Chip conveyor -Protective guard automatic: 840mm opening width -Compressed air supply: Min. 6 bar -Stand-alone cooling unit -Remote maintenance -Machine weight: 15,500 kg -Tool measurement: Blum Laser -3D machine model -IKZ water cooling: Max. 80 bar -Coolant tank volume: 1100 liters The image is an example.

Condition: used, Year of construction: 2017, Control Heidenhain TNC 640 x-travel 600 mm y-travel 450 mm z-travel 450 mm spindle tunring speed 20.000 U/min tool taper HSK-A63 number of tool places 170 Pos. Dcedpfxez Ic Afj Adron Condition: Used Technical features & accessories: - Tool magazine, MIKRON ATC 170 - Tool cooling system, HABOR PRECISE INC - Oil mist/air filter, DSL Signatec 15 - Chip conveyor, KNOLL 500 K-1 - Workpiece magazine with 7 stations Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale!

Condition: ready for operation (used), Year of construction: 1970, Immediately available, free of any insolvency claims: Universal milling machine SHW with swivel head, vertical head, and horizontal milling attachment Type UF 1 Year of manufacture 1970 Table 700 x 310 mm Travel distances X/Y/Z 550/340/420 mm Spindle taper SK 40 Spindle speeds 46 – 2200 rpm Quill travel 80 mm Ram stroke 200 mm Feeds 12 – 254 mm/min Weight 2 tons SK 40 collets Dsdjz Ixlpjpfx Adrscn Hydraulic vise Weight 2 tons Price: EUR 1,750.00 plus VAT, ex works.
