Used Traub Traub Tnl 32-7 for sale (33,150)

Condition: good (used), Year of construction: 2013, TX8i-s / WinFlexIPS Bar diameter up to Ø 32 mm Design allows for conversion between long and short turning Controlled axes: 9 Tool holder WRV on top, X/Y/Z dual drive Counter spindle with WRV on the bottom, separate drive Rear unit with drive Nedpfezzahzox Agrowl Rated voltage 400 V, 3~, N, PE · 50 Hz Connection power 28 kVA, pre-fuse 63 A Recommended supply line: 16 mm² up to 30 m, otherwise 25 mm² Total drive power 46 kW · 73 A Compressed air requirement approx. 300 Nl/min Machine weight 6,850 kg Dimensions L × W × H 3,870 × 1,670 × 2,500 mm Safety standard EN ISO 23125, design type 3 small - Coolant lubrication with cutting oil — internal feed 30 bar, medium pressure 20 bar, high-pressure internal cooling 80–120 bar with its own pump - Coolant treatment system with strip filter (ELBARON) - Mist extraction and fume separator - Fire protection and extinguishing system — prerequisite for unmanned shifts with oil - Workpiece removal with linear unit (part gripper) - Incl. various clamping jaws - Linear measuring system in the X-axes - TRAUB tool monitoring and WinFlexIPS programming - Bar loader FMB turbo 3-36 for bars up to 3,200 mm, with synchronous and displacement device - Chip conveyor, hinged belt - Color: Dust gray RAL 7037 Machine operating time approx. 30,600 hours Machine price without the shown accessories (extensive accessories can be purchased separately) Errors and prior sale excepted. The machine can be inspected under power with short notice.

Condition: used, Swiss-type cnc lathe TRAUB TNL 12/7 Njdpfxszxii Ns Agrjwl

Condition: used, Swiss-type cnc lathe TRAUB TNL 12/7 Nwjdpfxszxii As Agrjl

Condition: ready for operation (used), Year of construction: 2013, operating hours: 55,000 h, spindle speed (max.): 8,000 rpm, overall weight: 7,000 kg, controller manufacturer: TRAUB, controller model: TX8i-s, number of axes: 7, This 7-axis TRAUB TNL 32-7 horizontal turning machine was manufactured in 2013. Ideal for precision turning operations, it offers robust performance and reliability. Consider the opportunity to buy this TRAUB TNL 32-7 horizontal turning machine. Contact us for more information. Additional equipment • Coolant pump 3 bar / Coolant pump 8 bar • Swarf conveyor, hinged belt type H=1000 mm Njdpoyrd H Dofx Agrowl • Linear encoder X-axis for revolver top/bottom • Fabric filtration for coolant: grade of filtration ca. 30-40 µm • High-pressure coolant pump 20 bar • CO2 fire fight system Kraft & Bauer Machine Benefits Technical Machine Benefits • Max bar diameter: 32 mm • Spindle stock stroke: 305 mm • Auto bar loader: fmb lsk38-3200, max. Bar length 3200 mm • Top revolver: x/y/z/h-axis, 10 tools dual drive • Bottom revolver: x/y/z/h-axis, 9 tools same drive; counter spindle independent drive • Conveyor belt for finished parts with gripper • Machine worked only with cutting oil

Condition: ready for operation (used), Year of construction: 2012, operating hours: 19,295 h, spindle motor power: 10,700 W, spindle speed (max.): 8,000 rpm, overall weight: 6,000 kg, total width: 2,500 mm, total height: 2,600 mm, bar diameter (max.): 32 mm, travel distance X-axis: 140 mm, controller manufacturer: TRAUB, controller model: TX 8i-p, product length (max.): 4,500 mm, number of axes: 7, This 7-axis TRAUB TNL 32 P was manufactured in 2012. It features a maximum bar diameter of 32 mm and a maximum Z-axis travel of 305 mm. The machine includes two turrets with live tooling capabilities, offering 10 and 9 tool stations respectively. If you are looking to get high-quality turning capabilities, consider the TRAUB TNL 32 P swiss type turning machine we have for sale. Contact us for further details. • Number of Turrets: 2 • Maximum Z-Axis Travel: 305 mm • Main Spindle Torque: 21 / 32 Nm • Main Spindle C-Axis Resolution: 0.001° • Turret 1 Tool Stations: 10 • Turret 1 Live Tool Stations: 10 • Turret 1 Live Tool Speed: 12,000 rpm • Turret 1 Live Tool Power: 1.5 / 2.5 kW • Turret 1 Tool Holder Diameter: 45 mm • Turret 1 Turning Tool Shank: 16 x 16 mm • Turret 1 X-Axis Travel: 140 mm • Turret 1 Z-Axis Travel: 305 mm • Turret 1 H-Axis Resolution: 0.001° • Turret 1 Chip-to-Chip Time: 0.3 sec • Turret 2 Tool Stations: 9 • Turret 2 Live Tool Stations: 9 • Turret 2 Live Tool Speed: 12,000 rpm • Turret 2 Live Tool Power: 1.5 / 2.5 kW • Turret 2 Tool Holder Diameter: 45 mm • Turret 2 Turning Tool Shank: 16 x 16 mm • Turret 2 X-Axis Travel: 140 mm • Turret 2 Y-Axis Travel: -25 / +40 mm • Turret 2 Z-Axis Travel: 320 mm • Turret 2 Chip-to-Chip Time: 0.3 sec • Counter Spindle Speed: 8,000 rpm • Counter Spindle Power: 1.5 / 2.5 kW • Counter Spindle Torque: 4.5 / 7.7 Nm • Counter Spindle C-Axis Resolution: 0.001° • Maximum Clamping Length: 250 mm • Maximum Bar Diameter (Counter Spindle): 32 mm • Back Working Tool Stations: 8 • Back Working Live Tool Stations: 3 • Back Working Live Tool Speed: 12,000 rpm • Back Working Live Tool Power: 1.5 / 2.5 kW • Back Working Tool Holder Diameter: 36 mm • Rapid Traverse (X / Y / Z): 20 / 20 / 20 m/min • Maximum Feed Rate: 20,000 mm/min • Total Power Requirement: 46 kW • Space Requirement incl. Bar Feeder: 8,000 x 2,500 x 2,600 mm • Chip Conveyor: Optional, not included • Coolant System: Yes • Tool Turrets: 2 • Back Working Unit: Yes • Bar Feeder Interface: Yes • Bar Feeder: LNS Hydrobar Express 332 S2 / 3 m • Electronic Handwheel: Yes • Hydraulic Unit: YesMachine defects: The counter spindle is currently unusable due to prolonged inactivity. Either the sensor or the motor is defective. Technical Specification Counter Spindle Yes Nwedpfxjzcyhxj Agrol Driven Tools Yes Through-spindle Coolant Yes

Condition: ready for operation (used), Year of construction: 2014, spindle speed (max.): 8,000 rpm, number of axes: 9, This 9-axis TRAUB TNL 32 swiss type turning machine was manufactured in 2014. It features a TX8i-s control with a 64-bit RISC CNC/PLC processor, color TFT display, and electronic handwheel. The main spindle supports a 32 mm bore, and the machine includes a sub-spindle with a C-axis. It offers a dual-driven upper tool turret and a lower turret with nine tool holders. Consider the opportunity to buy this TRAUB TNL 32 swiss type turning machine. Contact us for more information. • Control: TRAUB TX8i-s CNC/PLC with 64-bit RISC processor and fiber-optic PC; color TFT flat-panel display; electronic handwheel • Software/extensions included: Polyform (C-axis programming), Helical (3D Y-axis interpolation), tapping without compensating chuck, parting tool breakage monitoring, parting tool ejection monitoring, axis shutdown, T-ATC • Main spindle: Motor spindle with hollow clamping system; 32 mm bore/bar capacity; C-axis max speed 8,000 rpm • Max stroke: 305 mm (L version) / 127 mm (K version) • Sub-spindle: Partial hollow clamping, C-axis; cleaning unit mounted on lower tool turret Nwedpfxjx D Drco Agrsl • Upper tool turret: X/Y/Z/H/B axes; 10 tool holders; dual drive • Lower tool turret: X/Y/Z/H axes; 9 tool holders; combined drive; separate counter-spindle operation • Measuring/feedback: Glass scales on X-axis (upper and lower turrets); rotary encoder on C-axis • Back working: 8-position back table with combined drive for up to 3 tools; prepared for internal coolant supply • Clamping: Clamping direction reversal device and counter clamping pressure device on main and counter spindles • Coolant system: Standard system with 3-bar and 8-bar pumps (50 Hz) in a 500-liter tank; additional 28-bar pump (50 Hz), 19 l/min flow rate • Extraction: Connection D 150 mm for central extraction Additional equipment • None specified (no robots, bar feeder, chip conveyor, or external automation listed)

Condition: good (used), Year of construction: 2002, TRAUB TNL 12/7 CNC sliding headstock automatic lathe TECHNICAL DATA Bar capacity: 12 mm Main headstock strokes: 130 / 80 mm Nwsdpfx Agjt E Dbysrol Spindle power: 4 kW Speed, main spindle: 12`000 rpm Upper turret: 6 positions Lower turret: 6 positions Number of driven tools, turret: 6 Max diameter, counter spindle: 12 mm Speed, counter spindle: 12`000 rpm Dimensions: 2850 x 1100 x 1480 mm SCOPE OF OFFER U.A: (list not exhaustive): Traub TNL 12/7 CNC lathe Meyrat high-frequency spindles, 2 pieces Tool holders (driven and non-driven) FMB Minimag 3200 C bar loader Hydraulic unit High pressure pump Chip conveyor Exact scope of supply according to photo gallery No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: used, TECHNICAL DETAILS - maxi bar diameter : 12.7 [mm] - main headstock strokes (fixed/rotary sleeve) : 130/80 [mm] - spindle power : 4 [kW] - rotation speed : 12 000 [rpm] - upper turret : 6 positions - lower turret : 6 positions Nwjdpjuhav Dsfx Agrel - number of rotary positions on turret : 6 - sub-spindle maxi diameter : 12.7 [mm] - sub-spindle rotation speed : 12 000 [rpm] - dimensions : 2850 x 110 x 1480 [mm] - hours in production : 12408 [H] - spindle hours : 9400 [H] EQUIPMENT - CNC TRAUB TX 8i control - bar feeder LNS Alpha ST 320 - C axis on main spindle and sub-spindle - brake on main spindle and sub-spindle - parts catcher with conveying strip - anti fire device - lubricating tank with pump with cooling unit - chip conveyor - various fixed and driven tool holders

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 9 - Number of turrets : 2 MAIN SPINDLE - Spindle power : 6.7 / 10.7 [kW] - Spindle speeds : 8000 [rpm] - Max. bar diameter : 32 [mm] - Z stroke : 305 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 3.7 / 5.5 [kW] - Spindle speeds : 6400 [rpm] - Max. bar diameter : 30 [mm] - C axis indexing precision : 0.001 [°] - X stroke : 140 [mm] - Z stroke : 300 [mm] TURRET 1 - Number of positions : 10 - Number of motorized positions : 10 - Live tools speed : 12 000 [rpm] - Live tools power : 3.4 [kW] - X/Z stroke : 140/300 [mm] - Y stroke : -40/+25 [mm] TURRET 2 - Number of positions : 10 - Number of motorized positions : 10 - Live tools speed : 12 000 [rpm] - Live tools power : 3.4 [kW] - X/Z stroke : 140/320 [mm] - Y stroke : -25/+40 [mm] POWER SUPPLY - Total installed power : 28 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3870 x 1670 [mm] - Machine height : 2500 [mm] - Machine weight : 6000 [kg] MACHINE HOURS - Number of hours under power : 23240 [h] - Number of working hours : 19500 [h] EQUIPMENT - CNC : Traub TX 8i-p Nwjdpfx Aeypxqregrjl - 3 colors status lamp - Coolant tank : 500 [l] * with high-pressure pump : 3,8,20 [bars] * with paper filtering unit - Chips conveyor - Parts catcher - Parts conveying strip - Predisposition for barfeeder

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12.7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 12.7 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 Nwjdpfx Ajuhaw Uegrol UPPER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X stroke : 35 [mm] - Y stroke : -9.5/+28 [mm] - Z stroke : 48 [mm] LOWER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X/Z stroke : 35/79.5 [mm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] - X/Z stroke : 415/138.5 [mm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] EQUIPMENT - CNC : Traub TX8i - Rotating guide bush - Coolant tank - Bar loader : FMB Minimag

Condition: used, TECHNICAL DETAILS Nedpfxsuhaxfo Agrswl - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12.7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 12.7 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 2.5 [kW] - C axis indexing precision : 0.001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X stroke : 35 [mm] - Y stroke : -9.5/+28 [mm] - Z stroke : 48 [mm] LOWER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X/Z stroke : 35/79.5 [mm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] - X/Z stroke : 415/138.5 [mm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] EQUIPMENT - CNC : Traub TX8i - Rotating guide bush - Coolant tank - Bar loader : LNS TRYTON HYBRID

Condition: used, TECHNICAL DETAILS Nwodpfx Agozbvnlsrol - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 18 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 3.0 / 5.5 [kW] - C axis indexing precision : 0,001 [°] - Z stroke : 205 [mm] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 1,5 / 2,5 [kW] - C axis indexing precision : 0,001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 12.000 [rpm] - Live tools power : 1 / 2 [kW] - X/Z stroke : 165 / 550 [mm] - Y stroke : -40 / +25 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 42 [m/min] - B Axis stroke : 100 [°] LOWER TURRET - Number of positions : 7 - Number of motorized positions : 7 - Live tools speed : 12.000 [rpm] - Live tools power : 1.5 / 2.5 [kW] - X/Z stroke : 120 / 250 [mm] - Y stroke : -20 / +40 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 50 [mm/min] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 10.000 [rpm] - Live tools power : 1 / 2 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 24 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.060 x 1.480 [mm] - Machine height : 2.420 [mm] - Machine weight : 4300 [kg] MACHINE HOURS - Number of working hours : 14998 [h] - Number of spindle hours : 11177 [h] EQUIPMENT - CNC : Traub TX 8i-s - Rotating guide bush - Parts catcher - Parts conveying strip - Chips conveyor - Coolant tank * with high-pressure pump * with paper filtering unit - Bar loader : IEMCA ELITE 220 / 32 XL - Oil mist extractor : ELBARON RON/A 1500 DH - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

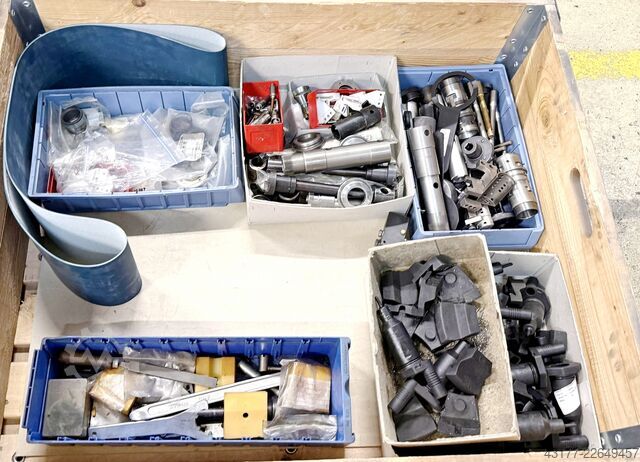

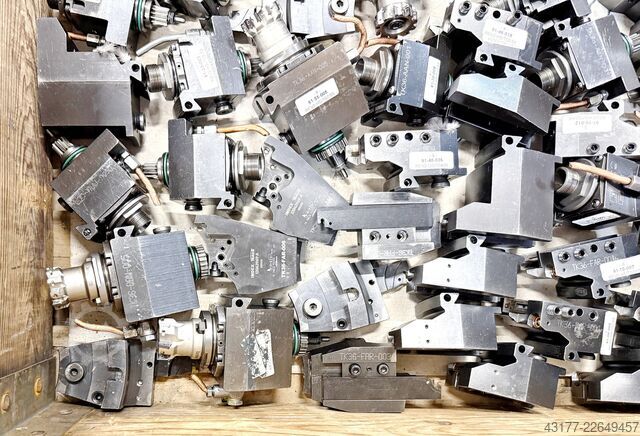

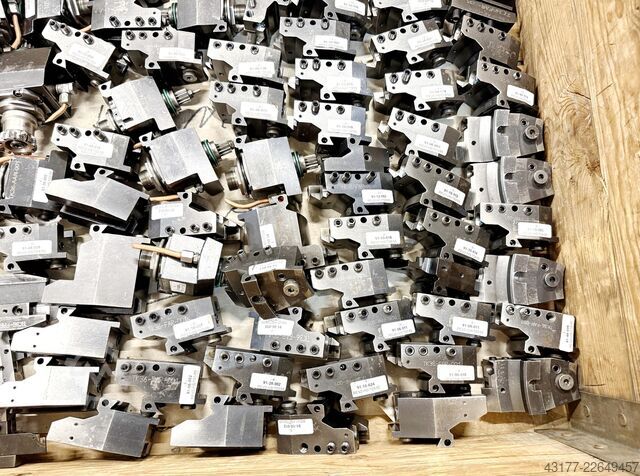

Condition: used, Year of construction: 2011, 5 machines are only sold as a PACKAGE. Includes a large set of tool holders, fixed + driven. Nwsdpfx Agszxhxverol 1. CNC turning center, 3 units Manufacturer: Traub Type: TNL 26 Year of manufacture: 2011 / 2008 / 2006 Operating hours: 64,154 / 75,849 / 81,823 Control: Mitsubishi TX 8i Equipment: - Main spindle - Counter spindle - Upper turret - driven + Y-axis - Lower turret - driven + Y-axis - Front tool holder - driven + Y-axis - Rear tool holder - Bar loader 2x FMB / 1x Breuning Includes tools for the TRAUB machines Tools + clamping devices: - 54 x driven tool holders - 181 x fixed tool holders - Collets, etc. See photos The machines come from ongoing production. 2. CNC lathe, 2 units, one defective Manufacturer: EMCO Type: Turn 332 MC Year of manufacture: 2010 / 2008 Operating hours: unknown Control: Siemens Sinumerik 840D Equipment: - Main spindle - Counter spindle - Upper turret - Lower turret - Bar loader TOP ETL 8-45 One machine comes from ongoing production, one has already been used as a source of spare parts, several components have been removed. Dismantling and loading can be organized by a specialist company for an additional fee.

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Max. bar diameter : 12,7 [mm] - Max. machining length : 130 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 2,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 12,7 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 2,5 [kW] LOWER TURRET - Number of positions : 6 - Number of motorized positions : 6 - X/Z stroke : 35/50 [mm] - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 Nsdjuhawzspfx Agrewl - Number of motorized positions : 4 - Live tools speed : 12.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 18 [kW] EQUIPMENT - CNC : Traub TX8i - Interface : RJ45 / PCMCIA - Spindle brake : on main spindle - Parts catcher - Coolant tank : 200 [l] - Chips conveyor : KNOLL - Bar loader : FMB Minimag 3200 C - Number of turning tool holders : 2 - Number of fixed tool holders : 14 - Collets collection for chuck : F20 - Collets collection for chuck : F16 - Sockets : 4 - Set of shells and collets for bar feeder - Set of spare parts

Condition: ready for operation (used), Year of construction: 2012, operating hours: 8,300 h, functionality: fully functional, spindle speed (max.): 6,400 rpm, bar diameter (max.): 32 mm, controller model: TX 8 i-p, workpiece length (max.): 245 mm, TECHNICAL DETAILS Main Spindle Max. bar capacity: 32 mm Max. workpiece length (swiss turning): 245 mm Max. workpiece length (short turning): 125 mm Max. spindle speed: 6,400 rpm Sub Spindle Max. bar capacity: 32 mm Nedoyn Imyopfx Agrswl Max. clamping length for workpiece: 250 mm Max. spindle speed: 6,000 rpm Upper Turret Number of stations: 10 All driven Max. speed: 12,000 rpm Lower Turret Number of stations: 9 All driven Max. speed: 12,000 rpm Backworking Unit Number of stations: 8 Driven stations: 3 (T12, T13, and T14) Speed T12 & T14: 12,000 rpm Speed T13: 4,000 rpm MACHINE DETAILS Spindle hours: 8,300 hours Control system: TX 8 i-p EQUIPMENT Parts conveyor Chip conveyor Coolant pump 20 bar IFS oil mist separator Bar feeder FMB turbo 3-36

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 18 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 3.0 / 5.5 [kW] - C axis indexing precision : 0,001 [°] - Z stroke : 205 [mm] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 1,5 / 2,5 [kW] - C axis indexing precision : 0,001 [°] - Number of turrets : 2 UPPER TURRET Nwedpfxozlk Aws Agrel - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 12.000 [rpm] - Live tools power : 1 / 2 [kW] - X/Z stroke : 165 / 550 [mm] - Y stroke : -40 / +25 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 42 [m/min] - B Axis stroke : 100 [°] LOWER TURRET - Number of positions : 7 - Number of motorized positions : 7 - Live tools speed : 12.000 [rpm] - Live tools power : 1.5 / 2.5 [kW] - X/Z stroke : 120 / 250 [mm] - Y stroke : -20 / +40 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 50 [mm/min] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 10.000 [rpm] - Live tools power : 1 / 2 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 24 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.060 x 1.480 [mm] - Machine height : 2.420 [mm] - Machine weight : 4300 [kg] MACHINE HOURS - Number of spindle hours : 41026 [h] EQUIPMENT - CNC : Traub TX 8i-s - Rotating guide bush - Parts catcher - Parts conveying strip - Chips conveyor - Coolant tank * with high-pressure pump : 40 [bars] * with paper filtering unit - Bar loader : LNS EXPRESS 220 - Oil mist extractor : DONALDSON TORIT DCE - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 18 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 3.0 / 5.5 [kW] - C axis indexing precision : 0,001 [°] - Z stroke : 205 [mm] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12.000 [rpm] - Spindle power : 1,5 / 2,5 [kW] - C axis indexing precision : 0,001 [°] - Number of turrets : 2 UPPER TURRET - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 12.000 [rpm] - Live tools power : 1 / 2 [kW] - X/Z stroke : 165 / 550 [mm] - Y stroke : -40 / +25 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 42 [m/min] - B Axis stroke : 100 [°] LOWER TURRET - Number of positions : 7 - Number of motorized positions : 7 - Live tools speed : 12.000 [rpm] - Live tools power : 1.5 / 2.5 [kW] - X/Z stroke : 120 / 250 [mm] - Y stroke : -20 / +40 [mm] - Rapid traverses rates (X/Y/Z) : 21 / 21 / 50 [mm/min] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 10.000 [rpm] - Live tools power : 1 / 2 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 24 [kVA] Nwedpfx Agjzlk Aqorsl WEIGHT & DIMENSIONS - Machine floor space : 3.060 x 1.480 [mm] - Machine height : 2.420 [mm] - Machine weight : 4300 [kg] MACHINE HOURS - Number of spindle hours : 30765 [h] EQUIPMENT - CNC : Traub TX 8i-s - Rotating guide bush - Parts catcher - Parts conveying strip - Coolant tank * with high-pressure pump : 40 [bars] * with paper filtering unit - Bar loader : LNS EXPRESS 220 - Oil mist extractor : DONALDSON TORIT DCE - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: excellent (used), Year of construction: 2023, operating hours: 6,739 h, functionality: fully functional, machine/vehicle number: 11920252, turning diameter over cross slide: 20 mm, turning length: 205 mm, turning diameter: 20 mm, spindle speed (max.): 10,000 rpm, spindle speed (min.): 1 rpm, spindle motor power: 5,500 W, rotational speed (min.): 1 rpm, rotational speed (max.): 10,000 rpm, total height: 2,350 mm, total length: 2,970 mm, total width: 2,000 mm, overall weight: 5,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, We are selling our TRAUB TNL 20, including an automatic bar feeder and a swiveling B-axis turret. The machine was used in our medical technology division and is in very good technical condition. It has been regularly maintained and is currently still in production. Due to a restructuring of our machine park, we are selling the machine. The TNL 20 is ideally suited for demanding turning and milling operations and, thanks to the B-axis, also enables the machining of complex geometries in a single setup. The main and counter spindle, as well as driven tools, allow many machining steps to be efficiently combined. Technical data: TRAUB TNL 20 Automatic bar feeder Swiveling B-axis turret Main and counter spindle Driven tools Bar diameter up to 20 mm Simultaneous machining possible Suitable for long and short turned parts Particularly suitable for: Medical technology Precision engineering Precision turned parts Small and medium-sized series Complex turning and milling parts The machine has reliably served us for many years and impresses with its precision and versatile machining capabilities. A test run can be arranged upon request. Nwjdpfx Ajzwmvksgrol We will gladly send additional images, technical documents, and information on tool packages or accessories upon request.

Condition: good (used), Year of construction: 2002, functionality: fully functional, Control system: Traub TX 8i Main spindle Max. bar diameter: 26 mm Max. speed: 8,000 rpm Nwjdjz Erdtspfx Agrsl Counter spindle Max. bar diameter: 26 mm Max. speed: 8,000 rpm Tooling system Number of turrets: 2 (upper and lower turret) Tool positions per turret: 12 stations, without drive Front tool holder, 5-position, with Z3 slide, without drive Rear machining station (5 tools), without drive Bar loader: IEMCA BOSS 432/44

Condition: good (used), Internal item no.: 25088 Tool holder Thread whirling holder incl. cutting inserts Index / Traub No.: 12068219 Njdpfjxu Dcvsx Agrjwl The tool was used on a Traub TNL18 Very well-maintained condition!

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Nodjzxihfopfx Agrowl

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Nsdpozxihrjfx Agrswl

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Nwodpfx Agezxiguorjl

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Nwjdpozxig Ijfx Agrsl

Condition: used, Swiss-type cnc lathe TRAUB TNL 12K Nwedpfx Agezxihxerjl
