Used Trumpf Trulaser 7025/Truflow 3200/Loadmaster for sale (1,824)

Year of construction: 2008, condition: ready for operation (used), A Trumpf CNC CO2 laser cutting system including Loadmaster is available. Laser sources: 2, laser power: 2x3200W, working range X/Y: 7000mm/2500mm, max. sheet thickness mild steel/stainless steel/aluminum: 20mm/15mm/10mm, max. traversing speed: 215m/min. Machine dimensions X/Y/Z: approx. 9000mm/4500mm/2500mm, weight: approx. 11600kg. Documentation available. On-site inspection is possible. Lhjdpfx Akowynv Hoysh

Year of construction: 2013, operating hours: 19,392 h, condition: used, machine/vehicle number: 1683, (Beam in), TRUMPF CNC control, X-axis: 3,000 mm, Y-axis: 1,500 mm, laser power: 5 kW, loading and unloading table, chip/part conveyor. Ledpfx Aksy T Ny Tsyohh

Year of construction: 2008, condition: ready for operation (used), A CNC laser cutting system Trumpf including RotoLas and Liftmaster is available. Laser source: TruFlow 5000, laser type: CO2 laser, laser power: 5000W, travel X/Y/Z: 3000mm/1500mm/115mm, max. material thickness structural steel/stainless steel/aluminium: 25mm/25mm/15mm, positioning accuracy: +/-0.1mm, repeatability: +/-0.03mm, max. axis speed: 200m/min, max. simultaneous speed: 300m/min. Machine dimensions X/Y/Z: approx. 11100mm/4600mm/2400mm, weight: approx. 12000kg, operating hours: 55462h, laser hours: 24430h, beam hours: 12742h. Hours status as of 01/2026. Documentation available. On-site inspection is possible. Expected to be available from January 2027. Ledpfex Tumxex Akyjhh

Condition: good (used), Year of construction: 2007, Working area X 4000 mm, Y 2000 mm, Z 115 mm Weight 16000 kg parameters L x W x H: approx: 9800 mm x 5300 mm x 2000 mm Siemens Sinumerik 840 D type of laser TruFlow 4000 W max thickness 20 mm 4000 mm x 1250 mm feed 3400 mm Dismantling, loading, crane is not in price of machine - plus price per all services Ljdsvtm Szjpfx Akyshh NC: 88631 - Resonator/HD pump 1: 87603 - Beam on/pump 2: 53667 Technical parameters:- Designation: KNC/H 1500/65- Maximum temperature: 650 °C- Recommended operating temperature range: 300°C – 600°C- External dimensions approx. (wxhxd): 2800x3200*x2100mm * height including structure for door when hydraulically opening- Internal dimensions (wxhxd): 1500 x 1000 x 1000 mm- Number of heating zones: 1- Maximum batch weight: 1000 kg- Melting power: 48 kW- Furnace weight: 1300 approx. kg- Voltage: 3/PEN 400/230V AC 50 Hz- The damper is part of the furnace, serves for automatic temperature control in the furnace and is controlled by the program from the controller. - includes technical documentation in Slovak - protocol of measurement and optimization of the temperature field to meet the DIN 17052-1 standard ΔT10°C in the internal working space (in an empty furnace at Tmax) \- Technical documentation is in SJ. Manufacturer: LAC, s.r.o., Czech Republic Year of Production: 2021 This is an electric furnace, the heating system of which consists of heating resistance elements located near the fan unit. Through the heating branches, the fan ensures circulation of the atmosphere in the heating space and thus heating of the working atmosphere and the charge in the furnace. The working chamber of the furnace is equipped with a separately regulated heating unit in the rear wall of the furnace. The furnace is equipped with a radial circulation fan with a horizontal shaft to ensure uniform temperature distribution throughout the working space of the furnace. The circulation fan drives the heated air through the circulation channels of the circulation insert. All rotating parts are located under a cover against accidental contact. The temperature profile of the device is controlled by a PID programmable INDUSTRY controller. This controller allows the creation of up to 30 heat treatment programs depending on the needs of the processing technology and the properties of the processed batch. Dimensions see. appendix.

Condition: excellent (used), Year of construction: 2009, Beam on time: approx. 17,600 hours Laser on time: approx. 45,500 hours Includes Loadmaster. Lhedjzcvx Tjpfx Akysh

Condition: excellent (used), Year of construction: 2014, 3 kW resonator power Lhjdpfx Akeyxc Afsyoh

Condition: excellent (used), functionality: fully functional, Year of construction: 2012, Operating hours: 28,000 h Lhodpsy Rnb Defx Akyoh

Condition: excellent (used), functionality: fully functional, Year of construction: 2023, Operating hours: approx. 3,000 h Lhedpfxsy Nl U Se Akyeh

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2010, operating hours: 18,948 h, machine/vehicle number: A0215A0087, laser power: 2,000 W, sheet thickness steel (max.): 12 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 75 mm, No minimum price – guaranteed sale to the highest bidder! A maintenance checklist from December 2025 is attached! The defects listed there have been completely rectified (see attached activity report from Trumpf)! TECHNICAL DETAILS Working area X-axis: max. 3,000 mm Working area Y-axis: max. 1,500 mm Working area Z-axis: max. 75 mm Speed X: max. 60 m/min Speed Y: max. 60 m/min Speed Z: max. 60 m/min Simultaneous speed X/Y: max. 85 m/min Sheet metal thickness, steel: max. 12 mm Sheet metal thickness, stainless steel: max. 6 mm Sheet metal thickness, aluminum: max. 5 mm Workpiece weight: max. 575 kg MACHINE DETAILS Control system: B&R Arnco Laser type: TruCoax 2000 Laser power: 2,000 W Dimensions and weight Footprint (L x W x H): 7,400 x 3,300 x 2,300 mm Transport width: 2,464 mm Weight: 9,000 kg Electrical connection: 65 kVA Operating hours (as of December 17, 2025) Operating hours, laser: 18,948 h Ledpfx Aezdp Ntskyshh Laser beam on-time: 3,635 h EQUIPMENT Closed machine frame with integrated laser head Motion unit for high-precision machining Drives with maintenance-free three-phase servo motors Sheet metal support accessible from both sides Enclosed beam guidance Fully integrated cooling unit Traveling extraction system Collection container for falling parts under the working area Positioning laser diode FocusLine

Condition: reconditioned (used), Year of construction: 2017, functionality: fully functional, Specifications: Lodpfezgf Tgex Akyohh X/Y axis working area: 3000 x 1500 mm Z axis working area: 115 mm Control system: SINUMERIK 840D sl USB port: yes Dimensions: Length: 11400 mm Width: 7000 mm Height: 3200 mm Control, hardware, electrical equipment Control system: Siemens 840D SL User interface: Windows 10 IoT Screen: Multi-touch monitor Screen size: 19" Interface: USB Axis data - Max. speed Speed: 235 m/min Working area X-axis: 3000 mm Y-axis: 1500 mm Z-axis: 116 mm Max. workpiece weight, pallet changer: 1100 kg Max. workpiece weight, both pallets: 2200 kg Laser-specific data - TruDisk 8001 Max. laser power: 8000 W Max. sheet thickness, structural steel: 25 mm Max. sheet thickness, stainless steel: 40 mm Max. sheet thickness, aluminum: 25 mm Max. sheet thickness, copper: 16 mm Max. sheet thickness, brass: 10 mm Configuration: ⦁ Working area: 3000 x 1500 mm ⦁ Enclosed machine frame ⦁ Machine cooling unit (water-air) ⦁ Automatic pallet changer in longitudinal direction ⦁ High-speed cutting package ⦁ Water-air cooling unit ⦁ Laser extraction ⦁ Smart Beam Control (intelligent beam monitoring) ⦁ Performance package for fusion cutting ⦁ Installation: Left-hand side ⦁ Cleaning brush ⦁ Integrated camera ⦁ Smart Collision Prevention ⦁ Automatic nozzle cleaning ⦁ Electric roll-up cover ⦁ Nozzle changer ⦁ Wireless operation point ⦁ Copper cutting package ⦁ Brass cutting package ⦁ Performance package for fusion cutting ⦁ Coolline ⦁ Brightline ⦁ Teleservice Automation: ⦁ Loadmaster (Liftmaster also available as an option)

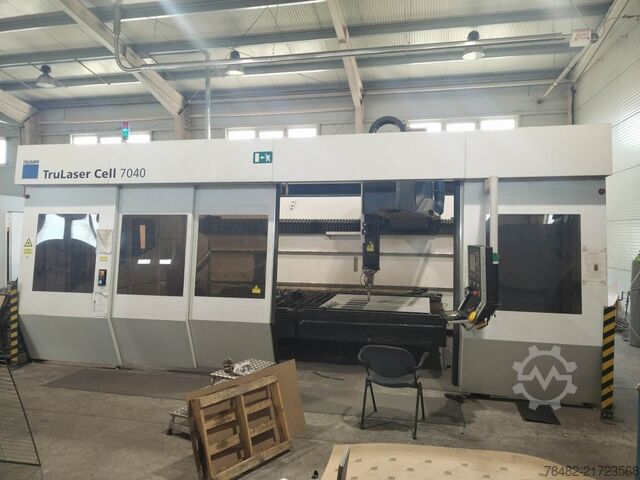

Condition: good (used), TRUMPF TruLaser Cell 7040 3D laser cutting system with 3000 W Manufacturer: TRUMPF Model: TruLaser Cell 7040 Type: L31 Year of manufacture: 2016 Operating hours: 17,024 h Laser source: TRUMPF TruDisk 3001 Laser power: 3,000 W C-axis: NX360° B-axis: ±135° Travel range X: 4,000 mm Travel range Y: 2,000 mm Travel range Z: 750 mm Work table: movable Work table height: 750 mm Front opening: automatic sliding door Protective cabin: available Protective cabin roof: available Camera for work area monitoring: left Monitor: available Coordinate system: Standard Control system: TruTops Cell Basic Voltage: 400 V Frequency: 50 Hz Connection power: 13.5 kVA Required fuse rating: 80 A Laser cooling: Water-water Laser cooling unit: Standard Extraction system: available Lodpozfvrkefx Akyohh Dust extraction duct: Standard Dust extraction duct length: 30 m Additional cutting gas: Air Additional equipment: Dust collector manufacturer: Herding Filtertechnik System: MultiCoater Dosing unit: MCI 55/1 Extinguishing system for compact dust collector: Carbon dioxide Chiller manufacturer: Riedel Type: PC 161.1L4-D13W Year of manufacture: 2016 Refrigerant: R407C Filling quantity: 2.5 kg Rated voltage: 400 V Phases: 3~ Frequency: 50 Hz Rated current: 11 A Protection class: IP54 Max. operating pressure: 28.7 bar According to the operator, the service and maintenance intervals have always been observed.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2012, controller model: SIEMENS SINUMERIK 840D SL, laser power: 4,000 W, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 15 mm, sheet thickness aluminum (max.): 10 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working area: 3,000 x 1,500 mm Laser power: 4,000 W Sheet thickness, mild steel max.: 20 mm Sheet thickness, stainless steel max.: 15 mm Sheet thickness, aluminum max.: 10 mm Lens cutting head diameter: 250 mm MACHINE DETAILS Control system Control model: SINUMERIK 840D SL Screen: 17" touch color screen Voltage: 400 V Frequency: 50 Hz Electrical standard: IEC EQUIPMENT Closed machine frame with integrated laser unit Torque drive in combination with linear direct drives CO₂ laser TruFlow 3200 with optimized standby mode High-frequency excitation Installation plans and installation conditions, 2 copies Motion unit for highly precise machining Closed beam guidance Single cutting head strategy Cooling unit Automatic pallet changer in the longitudinal direction Wide longitudinal conveyor belt Ergonomic control panel with touch color screen Work area lighting Position laser diode Spray device PierceLine FocusLine NitroLine PlasmaLine Transport and assembly device Maintenance-free turbo radial blower Gas mixer integrated Laser control TASC Laser power control Laser logbook function Lens cutting head with 250 mm lens Universal cutting device with bus connection LensLine with condition monitoring ControlLine: Height control and sheet edge detection Easy operation Simple workshop programming Advanced workshop programming Fast re-production Automatic shut-off ContourLine FastLine FlyLine Microweld Production plan AdjustLine Teleservice via internet USB interface RJ-45 network connection CE marking Light barriers Multi-chamber extraction system Compact filter unit Machine enclosure with Makrolon panels Lsdpfxjzd Afzs Akyohh TruTops Laser initial license TruTops Laser secondary license TruTops Tube follow-up license Documentation TruLaser 3030 Documentation, 2 copies, 1 x paper / 1 x CD Note: The operating hours can be found in the last image.

Condition: defective spare-parts repository (used), functionality: not functional, Year of construction: 2010, laser power: 2,000 W, power: 65 kW (88.38 HP), input voltage: 400 V, input current: 100 A, input frequency: 50 Hz, type of input current: three-phase, compressed air connection: 7 bar, overall weight: 8,900 kg, Equipment: CE marking, documentation/manual, We are offering this defective TRUMPF TruLaser 1030 laser cutting machine, manufactured in 2010. The resonator of the machine is defective. The machine is being sold as a source of spare parts. Laser power: 2000 W Year of manufacture: 2010 Lhjdpfxozdz Nre Akyjh Mains voltage: 400 V Frequency: 50 Hz Connected power: 65 kVA Control voltage: 24 V Connected current: 3 × 100 A Compressed air connection (N₂): 7–14 bar Nitrogen connection (O₂): 29 bar Oxygen connection: 14 bar Machine weight: 8900 kg If you have any questions or need more information, please send us a message or call us.

Condition: reconditioned (used), functionality: fully functional, Year of construction: 2018, laser power: 8,000 W, Manufacturer: TRUMPF Type: TruLaser 3060 fiber (L66) Year of manufacture: 2018 Working area 6000 x 2500 x 115 mm Laser power: 8000 watts Control: Siemens Sinumerik 840D SL Standard equipment Machine Lhodpfxowl I Tvs Akyjh ⦁ Working area 6000 x 2500 mm ⦁ Closed machine frame ⦁ Integrated cabinet with roller shutter ⦁ Automatic pallet changer in longitudinal direction ⦁ Gantry drive combined with linear direct drives ⦁ Closed beam guidance via laser light cable (LLK) ⦁ Cooling unit ⦁ Integrated control cabinets ⦁ Longitudinal conveyor belt ⦁ Work area lighting ⦁ Positioning laser diode ⦁ Spraying system ⦁ PierceLine ⦁ FocusLine ⦁ NitroLine ⦁ PlasmaLine ⦁ Automatic nozzle cleaning Extended features: ⦁ External TruDisk 8001 solid-state laser with 1 LLK output (includes BrightLine fiber and Fusion Cut Performance Package) ⦁ DetectLine ⦁ Drop & Cut ⦁ Advanced Condition Guide sensors ⦁ Cameras 1+2 ⦁ Cross conveyor ⦁ Wireless Operation Point ⦁ Dust protection for device plate ⦁ High-speed cutting package ⦁ Copper cutting package - O2 and N2 cutting data ⦁ Brass cutting package - N2 cutting data ⦁ Smart Collision Prevention (only in conjunction with TruTops Laser or TruTops Boost)

Year of construction: 2007, condition: ready for operation (used), A Trumpf CNC 2D laser cutting machine is available. Laser type: CO2, laser source: Trumpf TruFlow 5000, laser power: 5000W, wavelength: 10.6µm, travel path X/Y/Z: 4000mm/2000mm/115mm, max. sheet thickness mild steel/stainless steel/aluminum: 25mm/20mm/12mm, max. table load: 1250kg. Machine dimensions X/Y/Z: approx. 12000mm/5300mm/2400mm, weight: approx. 14000kg. Documentation available. An on-site inspection is possible. Lhodpfx Akezcyrqsyjh

Condition: used, functionality: fully functional, Year of construction: 2007, operating hours: 32,500 h, machine/vehicle number: A0225A0106, control type: CNC control, laser power: 3,200 W, We are offering for sale a reliable and fully functional CO2 CNC laser cutting machine, the Trumpf TruLaser 3030 (3200W). This machine is an excellent choice for job shops, metal fabrication companies, or as a cost-effective backup solution to boost your production capacity. Lsdjzfgnvjpfx Akyjhh Up time : 32500 Laser on time : 12550

Condition: ready for operation (used), Year of construction: 2010, operating hours: 15,043 h, laser power: 3,600 W, travel distance X-axis: 6,500 mm, number of axes: 5, This TRUMPF TruLaser Tube 7000 KT02 was manufactured in 2010. It features a working area of 6500 mm on the X-axis and can handle circular diameters up to 200 mm. Equipped with a CO₂ laser TruFlow 2000 and a laser cutting head with a 155 mm lens, it's ideal for precise tube cutting. Contact us for more information about this machine. • Circular diameter: 200 mm • Reject station: 3 m with brush table • Reject tray Ljdpfsx D I H Djx Akyjhh • Working Range X Tube Axis: 6500 mm • Outer Circle Diameter: 254 mm (Upgraded from standard 200 mm) • Unloading Station: 3 m with brush table, front unloading • Laser Type: CO2 Laser TruFlow 3600 including LensLine (Surcharge upgrade from standard TruFlow 2000) • Control: Sinumerik 840D, Teleservice • Standard Software/Features: NitroLine, FocusLine, SprintLine, Laser power control, Programmable cutting gas pressure, Program re-entry, Automatic shutdown, Workspace lighting, Laser logbook function, Laser cooling unit • Laser: CO₂ laser TruFlow 2000 • Laser cooling unit • Cutting Head: Lens cutting head with 155 mm focal length, ControlLine • Control unit: 84D • Connectivity/data transfer: RJ-45 network connection, USB connection; network connection incl. installation • Safety: CE marking, Multi-beam light barriers, Compact dust extractor 1500 Nm³/h, Protective cabin with Makrolon panels • Ambient Operating Temperature: Up to 43°C • Installation Type: Special machine installation setup Additional equipment • Accessories: • Spare parts case for cutting heads • 1 x remote control kit • Clamping jaw set Ø 16 / 200 mm • U-shaped guide rails for reject station with ID = 200 mm • Automation: • Loading Unit: LoadMaster Tube 6.5 m with bundle support, 2 grippers, 254 mm outer circle diameter capacity, low-scratch design for 6m, swiveling conveyor line, additional gripper D=254 mm • Options for LoadMaster Tube 6 m: • Circular diameter 250 mm • Shorter belt support • Swivelable conveyor section • Additional gripper Ø 200 mm • Additional gripper Ø 250 mm • Special equipment: • Flexible reject station 4.5 m (prototype) instead of reject station 3 m, without brush table • Special installation for flexible reject station • LoadMaster (series version 103) • Installation 100 mm higher (use of wire mesh container possible), decision upon acceptance • Services: • Installation, commissioning, training

Condition: ready for operation (used), Year of construction: 2011, controller manufacturer: SIEMENS, controller model: Sinumerik 840D CNC, laser power: 6,000 W, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 115 mm, positioning accuracy: 0 mm, overall weight: 12,000 kg, total width: 4,700 mm, total height: 2,200 mm, product length (max.): 9,300 mm, table load: 700 kg, number of axes: 3, This 3-axis TRUMPF TruLaser 3030 was manufactured in 2011. It features a working area of 3000 x 1500 mm and a laser power of approximately 5–6 kW. The machine is designed for high-performance industrial CO₂ laser cutting, providing stable and precise cutting performance for serial production. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser 3030 CO₂ laser cutting machine we have for sale. Contact us for further details. • Max. rapid traverse speed (X+Y): up to 140 m/min • Max. material thickness (mild steel): approx. 25 mm • Positioning accuracy: approx. ±0.05 mm • Load capacity: approx. 700–900 kg (depending on configuration) • General features: high-performance industrial CO₂ laser cutting system; stable and precise cutting for serial production; TRUMPF quality with long service life; suitable for steel, stainless steel and aluminium processing Lhodpfx Akjzcbuyeyeh

Condition: good (used), functionality: fully functional, Year of construction: 2010, operating hours: 24,709 h, laser type: CO₂ laser, sheet thickness (max.): 20 mm, sheet thickness steel (max.): 20 mm, sheet thickness stainless steel (max.): 12 mm, sheet thickness aluminum (max.): 8 mm, working length: 3,000 mm, working width: 1,500 mm, Equipment: documentation/manual, Trumpf TruLaser 3030 (L20) CO2 laser. Lhjdpfx Akozdiqroyeh It has been used in a single shift operation throughout its lifespan and can be inspected while in operation.

Condition: ready for operation (used), Year of construction: 2015, operating hours: 45,541 h, laser power: 3,200 W, travel distance X-axis: 3,000 mm, number of axes: 3, This 3-axis TRUMPF TruLaser 3030 L20 was manufactured in 2015. It features a powerful TruFlow 3200 CO2 laser with a laser power of 3200 W, making it suitable for various cutting applications. The machine has been utilized for 82,247 working hours, ensuring reliability and performance. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF TruLaser 3030 L20 machine we have for sale. Contact us for further details. Lsdpfsza Uuhsx Akyohh - Laser Type: TruFlow 3200 (CO2)- Laser Power: 3200 W- Working Hours (NC): 82,247 h (as of 04.05.2026)- Working Hours (Laser On): 80,633 h (as of 04.05.2026)- Working Hours (Beam On): 45,541 h (as of 04.05.2026)- Nominal Voltage: 400 V- Phase Configuration: 3~- Frequency: 50 Hz- Connected Load: 73 kVA- Control Voltage: 24 V- Main Fuse Protection: 125 A- Nitrogen Connection (N2): 30 bar- Oxygen Connection (O2): 20 bar- Compressed Air Connection: 7-10 bar- Documented Maintenance Issues (07.05.2026): White connectors degrading due to plasticizer loss; Laser power not reaching set value; Oil spray unit non-functional (not utilized); Cooling fan runtime limit reached (+500h extended); Filter mats worn out/need replacement.- Control System (Software Version): SINUMERIK 840D SL- Configuration: Standard configuration- CoolLine (Option): Not included- Cross Conveyor (Option): Not included- Fire Extinguishing System (Option): Not included- Integrated Leak Test (Option): Not included

Condition: good (used), functionality: fully functional, Year of construction: 2002, controller model: Siemens Sinumerik 840D, laser type: CO₂ laser, laser power: 3,200 W, punching force: 22 t, Standard equipment: Machine - Working area 3050 x 1550 mm - Hi-Las high-pressure cutting - Laser cutting head with 5'' lens - Quick-change device for cutting head - Programmable cutting gas selection/pressure adjustment - Capacitive height control APC - Function: ContourLas - Slag cone detection - Compact dust extractor - Tank heater - Automatic tool changer with 19 stations (21 – clamping jaws) - 2 clamping jaws - Rotation of all tools - NC-controlled digital, maintenance-free three-phase drives - Automatic re-positioning - Tool length compensation - Rapid shutdown of the hydraulics - Automatic shutdown - Automatic indexing tables, each 500 x 500 mm - Sensors for both indexing tables - Punch slug extraction - Forming capability - Programmable punch tool lubrication - Programmable pressure foot - Adaptive stroke length control Lhodpfjza Eyhex Akyeh - Safety devices - RJ 45 network connection - 3.5'' floppy disk drive + Laser TLF 3200 + SortMaster Box incl. 4 containers + GripMaster, adjustable + Scissor lift table + Re-positioning cylinder + Rotoscanner + HZB SheetMaster + SortMaster Pallet + SheetMaster incl. C-frame + Modular suction plate + additional clamping jaws, total of 4 + Chip conveyor with tilting container + Bulging detection

Condition: good (used), functionality: fully functional, Year of construction: 2009, controller model: Siemens Sinumerik 840D, laser type: CO₂ laser, laser power: 3,200 W, punching force: 22 t, Standard equipment: Machine - Working area 3050 x 1550 mm Lodpoza Eu Esfx Akyehh - Hi-Las high-pressure cutting - Cutting head quick-change system - Programmable cutting gas selection/pressure adjustment - Capacitive height control APC - Function: ContourLas - Slag cone detection - Compact dust extraction system - Tank heating - Automatic tool changer with 19 stations (21 – clamping jaws) - 2 clamping jaws - Rotation of all tools - NC-controlled, digitally operated, maintenance-free three-phase drives - Automatic repositioning - Tool length compensation - Rapid shutdown of the hydraulics - Automatic shutdown - Automatic indexing slides, each 500 x 500 mm - Sensors for both indexing slides - Slug extraction - Forming capability - Programmable stamping tool lubrication - Programmable clamping device - Adaptive stroke length control - Safety devices - RJ 45 network connection - 3.5'' floppy disk drive + 5'' cutting head + 9" cutting head + FocusLine + MultiTool function + Thread forming function + Signing/quick beading function + Deburring and rolling technology function + Softpunch function + Additional clamping jaw + Repositioning cylinder + Vibration-damped installation + Blow-out device for small parts + Chip conveyor with tilting container

Condition: good (used), functionality: fully functional, Year of construction: 2014, control type: CNC control, laser type: fiber laser, laser power: 4,000 W, sheet thickness steel (max.): 20 mm, sheet thickness aluminum (max.): 20 mm, sheet thickness copper (max.): 6 mm, workpiece weight (max.): 900 kg, Equipment: CE marking, cooling unit, documentation/manual, dust extraction, safety light barrier, CNC laser cutting machine TruLaser 3030 Fiber (L49) 4000 Watt X working area max.: 3000 mm Y working area max.: 1500 mm Z working area max.: 115 mm Control system: Siemens Sinumerik 840D SL Laser power: 4000 Watt Operating hours: 59821 hours Laser beam on: 36350 hours Standard equipment: Machine - Enclosed machine frame - Integrated cabinet with roller shutter - Automatic pallet changer in longitudinal direction - Torque drive in combination with linear direct drives - Enclosed beam guidance via fiber optic cable - Cooling unit - Integrated control cabinets with interior lighting - Longitudinal conveyor belt - Working area lighting - Positioning laser diode - Spray device - PierceLine - FocusLine - NitroLine - PlasmaLine - Microweld - Automatic nozzle cleaning TRUMPF Laser - Integrated solid-state laser TruDisk 3001 with 1 fiber optic cable outlet - Excitation via pump diodes - Laser power control Cutting head - Universal cutting unit - Single cutting head strategy - Protective glass against lens contamination - Condition monitoring of the protective glass - ControlLine: Height control and sheet edge detection Control system - Simple workshop programming - Fast reproduction - Control system Sinumerik 840D SL - 17" touch color screen - Integrated technology data - Automatic shutdown - Programmable cutting gas/pressure selection - FastLine Lhsdpfx Aksza Daaoyjh - FlyLine - AdjustLine - Teleservice via the internet Data transmission - USB interface - RJ-45 network connection Safety - CE marking - Light barriers - Multi-chamber extraction system - Compact dust extraction system - Machine enclosure with certified viewing window door on the right - Sliding roof + Nozzle changer

Condition: used, functionality: fully functional, Year of construction: 2022, laser power: 8,000 W, Equipment: CE marking, cooling unit, dust extraction, safety light barrier, TRUMPF TruLaser 5040 L76 8kW TruDisk 8001 8kW SmartBeam Control Highspeed Eco cutting package Compressed-air cutting Cutting package for thick sheets Machine ambient temperature up to 45 °C Technical data: Laser-specific data - TruDisk 8001 Maximum laser power 8000 W Maximum sheet thickness, mild steel 25 mm Maximum sheet thickness, mild steel 32 mm Maximum sheet thickness, stainless steel 40 mm Maximum sheet thickness, aluminum 25 mm Maximum sheet thickness, copper 10 mm Maximum sheet thickness, brass 10 mm Lhsdpszcdfbjfx Akyjh Axis data - Maximum axis speed Simultaneous 280 m/min Working range, workpiece size - Nominal working range: X axis 4000 mm Y axis 2000 mm Z axis 116 mm

Year of construction: 2007, condition: ready for operation (used), Features: 1) KUKA KR 30 HA industrial robot, max. reach: 2033mm, rated payload: 30kg, max. additional load arm + wrist: 35kg, max. total load: 65kg, number of axes: 6, position repeatability: +/-0.05mm, path repeatability: +/-0.16mm, operating temperature: 10-55°C, protection class: IP64, IP65 (central hand), connected load: 7.3kVA, robot installation area: 850x950mm, weight: 665kg, 2) Trumpf TruDisk 8002 (6000) laser source, connected load: 39/40kVA, laser type: ND:YAG laser, weight: 2t, 3) KLH L 22 cooling unit, rated voltage: 3x 400V, refrigerant: R407c, refrigerant charge: 18kg, permissible operating pressure: 25bar, max. operating current: 31A, 4) filter unit. An on-site inspection is possible. Ledey U Nrfspfx Akyshh
