Used Wmw Gotha Swu 250 for sale (11,330)

Condition: used, Year of construction: 1965, Technical details: grinding length: 250 mm centre height over plate: 120 mm workpiece length - max.: 600 mm grinding spindle - swivable: 350 ° grinding head adjustable: 230 - 250 mm grinding diameter: 200 mm spindle revolutions per minute : 2200/3500/5200 U/min work table:: 120 × 950 mm table movement: 500 mm table - inclinable: 45 Grad dimensions of grinding wheel: 160 mm total power requirement: 0,5 kW weight of the machine ca.: 0,65 t dimension machine approx.LxWxH: 1.5 × 1.2× 1.65 m Pjdpez E Hdzefx Anyerb The SWU 250 is designed for sharpening and grinding various types of tools. Thanks to the adjustable tool holders and the swivelling grinding head, different tool geometries can be machined. *

Condition: used, Technical details: Prsdpfx Anou Ng Npeyeb grinding length: 300 mm grinding spindle - swivable: 350 ° grinding head adjustable: senkrecht: 250 mm adjustment of spindle-head: quer: 230 mm grinding head adjustable: neigbar +/-15° ° grinding diameter: Ø 250 mm spindle revolutions per minute : 2200 - 3500 - 5200 U/min work table:: B:120 x L: 950 mm table movement: Obertisch schräg: recht/links 45° mm table movement: größter Tischweg: 500 manuell mm surface of magnetic-table: 305 x 130 x 100 mm dimensions of grinding wheel: Topfscheibe 125 x 20 Ø 32mm mm total power requirement: 1,8 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,6 x 1,3 x 1,7 m dimensions of hydaulic: 600 x 550 x 870 mm Accessories: Universal clamping head cone MK5 Drill grinding holder Ø 10mm *

Condition: used, Year of construction: 1979, Technical details: pressure: 250 t slide stroke: 40-160 mm throat: 545 mm Psdpfx Aju Nfinsnyerb ram adjustment: 110 mm Table dimensions: 1250x800x100 mm biggest distance between table & ram: 670 mm drawing capacity: 16 to table height over floor: 1000 mm surface area of ram: 900x670x100 mm distance between columns: 500x400 mm total power requirement: 23 kW weight of the machine ca.: 16,6 t dimensions of machine: 2,8x1,4x3,7 m dimensions electric cabinet LxWxH: 1,15x0,6x2,1 m Ejector and counter holder force: 16t Table size with 4x T-slots parallel running (1250x800x100mm) Ram plate with 4x T-slots radially running Data at bottom dead center UT: largest stroke: 510mm smallest stroke: 570mm Accessories: - Steel plate 1170x860x80mm *

Condition: good (used), Universal tool grinding machine Stock number: 3136 Manufacturer: WMW (Gotha) Year of manufacture: 1976 Type: SWU 250-I Machine number: 201/76 Working area Maximum workpiece length: 600 mm Maximum workpiece diameter: 250 mm Maximum disc cutter diameter: 360 mm Maximum grinding length: 450 mm Table Table travel, longitudinal, manual: 500 mm Table travel, longitudinal, automatic: - Table swivel: 0-90° Working surface: 120 x 950 mm Taper in the universal chuck: MK 5 Taper in the tailstock: MK 2 Grinding spindle Pjdszx D U Topfx Anyjrb Grinding spindle head height adjustment: 250 mm Cross travel: 230 mm Rotatable: 350° Tiltable: 15° Maximum disc diameter: 160 mm Grinding spindle speeds: 2200/3500/5200 rpm Power consumption: 1.8 kW Condition: good Accessories/Equipment: extensive accessories – see pictures Dimensions and weights Space requirement: 1,300 x 2,000 mm Machine weight: 0.9 t

Condition: used, Year of construction: 1981, Technical details: pressure: 250 t slide stroke: 36...126 mm throat: 400 mm ram adjustment: 110 mm Prjdpfxsu Nfkle Anyeb surface area of ram: 630 x 500 x 100 mm dayligth: 400 mm Table dimensions: 1000 x 750 x 100 mm table height over floor: 1000 mm total power requirement: 23,0 kW weight of the machine ca.: 13,5 t dimensions electric cabinet LxWxH: 1,1 x 0,7 x 1,3 m dimension machine xH: 3,0 x 1,3 x 3,3 m further details: - control via 2 hand control console or with foot pedal - foot plates Ø 220mm accessory: - column punch device *

Condition: good (used), Year of construction: 1982, number of straightening rollers: 13, straightening roller diameter: 145 mm, Year of construction / YOM: 1982/2024 Sheet width: 2000 mm Sheet thickness - max.: 10 mm Sheet thickness - min.: 3 mm Number of straightening rollers: 13 rollers Straightening roller diameter: 145 mm Straightening speed: 16 m/min Bundle length: 2330 mm Center distance between straightening rollers: 150 mm Support roller diameter: 290 mm Main drive motor: 30 kW Weight: 32 t Additional information: Prodpfx Anez Hcbreyeb - Number of support rollers: 21/24 - Number of supports (top/bottom): 3 /3 - Traverse lift speed: 0.71 mm/sec - Traverse lift stroke: -18 mm to +42 mm - Max. tilting of lower traverse: 8 mm

Condition: used, Technical details: pressure: 250 t stroke: Dauerlauf-Leerlauf 40 mm slide stroke: verst./adjust. 36 - 126 mm adjustability of Ram: 110 mm clamping surface ram: 630 x 500 (lxb) mm clamping surface area: 1000 x 750 x 100 mm distance table/ram: 400- 526 mm passage opening in table: 400 x 360 mm operating pressure: 0,6 MPa MPa ejector path: 63 mm throat: 400 mm total power requirement: ca. 20,0 kW dimensions electric cabinet LxWxH: 1,2x0,65x2,1 m Pjdpfx Aneu N Ddweyerb dimension machine xH: 2,9x1,2x3,4 m - two hand control - operation panel accessory: - foot plate 2200x1500x40mm *

Condition: good (used), Year of construction: 1975, Pressure: 250 t Throat: 400 mm Psdpfjz Hbcusx Anyjrb Stroke: 30...140 mm Table size: 1000 x 750 mm Passage opening in table: 360 x 400 mm Ram area: 630 x 500 mm Ram adjustment: 110 mm Total power requirement: 18 kW Machine weight approx.: 16 t

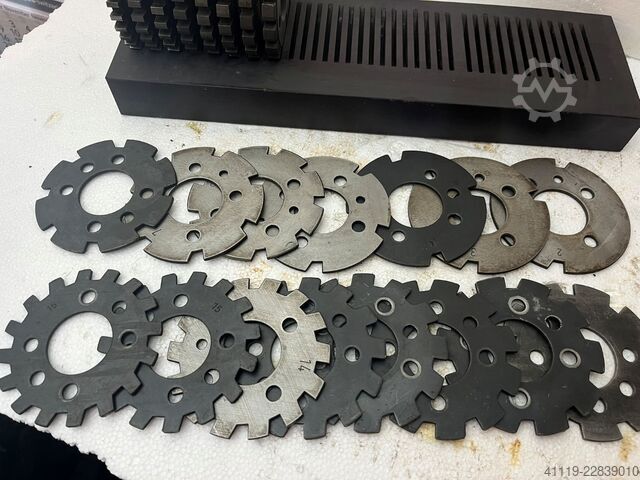

Condition: good (used), Various accessories for the tool grinding machine SWU 250, manufactured by Gotha or Königsee, are for sale. The images will be added gradually. Individual sales are possible. Inquiries about specific parts can be made. Predpfez E U Dcox Anyeb Price proposals are welcome.

Condition: good (used), Year of construction: 1969, max. sheet width: 2500 mm Convexity length of rollers: 2700 mm max. sheet thickness (St 50): 32 mm max. sheet thickness (St 34): 39 mm min. sheet thickness (St 50): 8 mm number of straightening rollers: 7 rollers number of driven straightening rollers: 5 rollers diameter of straightening rollers: 290 mm diameter of input/output straightening rollers: 345 mm number of support rollers: 13 diameter of support rollers: 288 mm stroke of upper beam: 120 mm Straightening speed: 16 m / min Podpsz Hcb Sefx Anyerb Rated power of main drive: 90 kW Total load: 138 kW

Condition: good (used), Year of construction: 1994, Pressure: 250 t Throat depth: 360 mm Psdpfez Hbd Sex Anyjrb Table size: 1250 x 630 mm Table diameter: 250 mm Ram clamping surface: 850 x 450 mm Installation height: 800 mm Piston stroke: up to 500 mm Piston diameter: 400/360 mm Ram speed downward: 200 mm/sec Ram speed upward: 110 mm/sec Total power requirement: 20.5 kW Machine weight approx.: 8 t

Condition: used, Year of construction: 1980, number of straightening rollers: 16, working width: 1,250 mm, sheet thickness (max.): 12 mm, overall weight: 24,825 kg, Manufactured by BLEMA GOTHA (Germany) Max sheet thickness, mm 12,5 Max sheet width, mm 1250 Number of straightening rollers: 16 Straightening speed, m/min 16 Prjdpfx Anezap Rweyjb Motor capacity, kW 54 Machine weight, kg 24825 Sheet leveling machine BLEMA GOTHA UBR 12,5 x 1250 / 1-16 The WMW UBR 12.5 x 1250/1-16 is an industrial multi-roller sheet straightening machine. Machine is complete and could be prepared for immediate shipment.

Condition: good (used), Year of construction: 1970, Max. sheet width: 2500 mm Max. sheet thickness: 9 mm Feed speed: 11 m/min Main drive motor: 44 kW Psdpfx Ajz E H Adjnyjrb Roll gap adjustment motor: 3.5 kW Swivel drive motor: 2.6 kW Oil pump motor: 0.65 kW Total connected load: 93 kW Machine weight: 41,700 kg

Condition: excellent (used), functionality: fully functional, WMW Heckert ZFWVG 250X800 No. 262122/42 Long thread and spline milling machine, also for gear hobbing. Prsdpfozxqbyex Anyeb (Thread milling and spline shaft hobbing machine) Max. workpiece diameter: 250 mm (the machine can swing up to 500 mm over the bed/support) Milling length (Z-axis): 800 mm Tailstock height above bed: 260 mm Spindle diameter (bore): 102 mm Max. module: Up to module 10 / 18 (depending on the specific head configuration) Spindle speed: 45 – 560 rpm Total power consumption: 9.5 kW Machine weight: Approx. 3,400 kg

Condition: excellent (used), functionality: fully functional, Description WMW ZFWVG 250 x 800 Thread Milling Machine Thread Milling Specification: Workpiece diameter over: - Bed: 500 mm - Saddle: 250 mm Milling length: 800 mm Max. module: 7 Centre height over bed: 260 mm Workpiece spindle bore: 102 mm Workpiece turning speeds: 0.0034 – 2.65 rpm Feed rolls: 0.027 – 5.66 mm/rev Longitudinal feeds, infinitely variable: 0.3 – 198 mm/min Main drive: 4.0 kW Pjdpfxjy Rgl Ue Anyerb Electrical voltage/frequency: 380 / 50 V/Hz Total power requirement: 9.5 kW Dimensions: 3000x2500x1600 mm Total weight: 3300 kg

Condition: excellent (used), functionality: fully functional, Horizontal Gear Hobbing Machine Manufacturer: WMW HECKERT Model: ZFWVG 250x2000 Psdpfx Aneyr S Upjysrb VEB Fritz Heckert ZFWVG 250×2000 Max. workpiece length: 2,000 mm Max. workpiece diameter: 250 mm Accessories: second milling head, hobs for various modules, steadies, clamping devices, etc.

Condition: used, Year of construction: 1971, Technical details: bore capacity in steel (diameter): 16 mm throat: 250 mm bore stroke: 125 mm spindle taper MT: MK 2 spindle speed:: 350 - 2000 / 8step U/min table clamping surface:: 280 x 355 mm table rotating: ja ° drill table adjustment: 520 vertical mm distance table - lower edge spindle: max. 600 mm column diameter: 110 mm Pjdpfsu Idhmox Anyorb total power requirement: 1,1 kW weight of the machine ca.: 272 kg dimension machine xH: 0,6 x 0,5 x 1,8 m Equipment: -Drill chuck 13 mm -twist drill 10 mm with 45° countersunk cut -machine vice *

Condition: used, functionality: fully functional, grinding length: 10,000 mm, grinding width: 1,250 mm, FRITZ HECKERT SFBP 1250/10000 – Long-Bed Surface / Guideway Grinding Machine – 10,000 × 1,250 mm METALEX offers for sale a large industrial FRITZ HECKERT SFBP 1250/10000 surface grinding machine, designed for the precision grinding of very long and heavy workpieces. The machine has been used in our own workshop primarily for grinding machine tool beds and guideways, especially POREBA lathe beds during complete overhauls carried out by METALEX. With this machine design, the workpiece remains stationary during the grinding process, while the grinding unit travels longitudinally along the machine. This makes the machine particularly suitable for machining very long and heavy components without having to move the workpiece during grinding. Predpfx Anezzcpzoyjb Technical data and capabilities Manufacturer: FRITZ HECKERT / VEB Werkzeugmaschinenfabrik Type: SFBP 1250/10000 Maximum grinding length: approx. 10,000 mm Maximum grinding width: approx. 1,250 mm Heavy-duty, very rigid industrial construction Stationary workpiece during the grinding process Longitudinal movement of the grinding unit Suitable for very long and heavy workpieces Particularly suitable for grinding machine beds, guideways, machine frames and other long flat surfaces Very good grinding performance and surface quality The machine has been used by METALEX for our own production and machine rebuilding work. Among other applications, we have used it for precision grinding of POREBA lathe beds as part of our complete machine overhaul projects. The machine is located in our workshop in Bydgoszcz, Poland. The machine can be inspected at our facility in Bydgoszcz. Further technical information can be provided upon request. Details regarding dismantling and loading can also be discussed with interested buyers. Location: Koronowo, Poland Price: On request / negotiable

Condition: used, Year of construction: 1978, x-travel 820/850 mm y-travel 300/330 mm z-travel 485/505 mm Podpfjxxb Htjx Anysrb weight of the machine ca. 1,8 t dimensions of the machine ca. 1670 x 1620 x 2500 m Further techniscal detals please consider pictures

Condition: used, functionality: fully functional, Used radial drill 40x1250 WMW overhauled according to standards. Pjdpfx Ajzky Imenysrb

Condition: used, Year of construction: 2015, Technical details: weight of the machine ca.: 4 t Pedpfx Ansl Ha Ubeysrb

Condition: excellent (used), Year of construction: 1980, Horizontal gear hobbing and threading machine for gears, splined shafts, worm screws, threads, and pinions up to 5 meters in length, complete with 3 milling heads models APFW, APGS, APG, set of gears, various steadies, and indexing device. Prjdpfx Aoyba Rwenyob

Condition: good (used), Year of construction: 1985, machine/vehicle number: 1076-85, Offer 24303 Technical data: - Table size approx. 630 x 340 mm - Working range of the axes - X (longitudinal) approx. 400 mm - Y (transverse) approx. 220 mm - Z (vertical) approx. 400 mm - max. distance milling spindle - table surface 400 mm - Tool holder SK 40 - Work spindle speeds adjustable in 16 steps 45 - 2240 rpm - Mot table feeds X ; Y ; Z 6.3 - 1250 mm/min - Drive 400 V / 8.5 kW - Space requirement approx. W 1450 x H 1900 x D 1450 mm - Weight approx. 1600 kg - with: - 3 axes digital readout HEIDENHAIN - Vertical milling head tiltable - Horizontal spindle counter holder Prjdet Dxwgopfx Anyjb - Machine vice

Condition: excellent (used), Year of construction: 1988, Drilling capacity in steel (diameter) 40 mm Overhang 1,250 mm Spindle mount MK 5 Podpfjzgdfbsx Anyerb Drilling spindle stroke 355 mm Speed range 20 – 1200 rpm Machine weight approx. 3.0 t

Condition: used, Year of construction: 2001, Technical details: pressure: 250 t throat: 360 mm distance table/ram: 800 mm max. ram stroke: 500 mm ram speed - reverse: 390 mm/sec. ram speed - forward: 450 mm/sec. hydraulic-pressure: 280 bar connected load: 43 kW work speed: 11....50 mm/s operating pressure: 20 MPa total power requirement: 20,5 kW Pjdpfx Asxna Uzjnysrb weight of the machine ca.: 17 t dimension machine xH: 3,9 x 1,9 x 4,0 m
