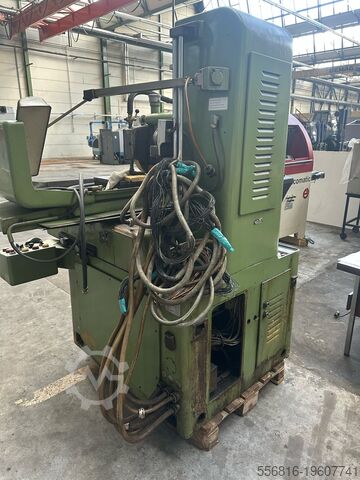

FLAT GRINDING MACHINE

MATRA 600x300

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Gedpfx Aoqzkdmja Ijil

Condition: used, Year of construction: 1969, grinding length 500 mm grinding width 200 mm workpiece height 250 mm total power requirement 5,5 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m J U N G Horizontal High Precision Surface- and Profile Grinding Machine Model HF 50 RD, Year 1969, partially reconditioned in 2021 Serial-no. 4082 _____ Grinding length max. 500 mm Grinding width max. 200 mm Table size 600 x 200 mm Grinding height under grinding wheel approx. 250 mm Table cross travel approx.. 230 mm Table slide cross stroke 0,2 - 8 mm/table stroke Table longitudinal travel max.. 550 mm Table speed longitudinal 1 – 20 m/min. Measurement of grinding wheel 225 x 25 x 51 mm Grinding wheel speed infinitely adjustable 1.000 - 4.500 rpm Vertical feed 0.001 - 0.01 mm/stroke Grinding spindle drive infinitely variable load 0,4 – 1,5 kW Total electrical load 5,5 kW - 380 V – 50 cycles Weight approx. 2.500 kg Accessories/Special Features: • Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc. • Set up switches for plunge-in or normal pendular-grinding with automatic infeed • Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)with automatic stop of infeed by contact-Gauge. • motorized rapid feed of grinding head up/down • Manual straight grinding wheel-dressing device mounted above the grinding wheel • Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm • separate converter cabinet for infinitely variable speed regulation and with respective display of cutting speed in m/sec. Gisdpfet Hwziex Aa Isl • Wet grinding facility including coolant tank and bandfilter cleaning device, separate standing, • Including 3 separate flanges, some grinding wheels, service tools, etc. Condition : good – can be inspected here under power, partially reconditioned by a JUNG Specialist (table pistons, lubrication, infeed system, Dresser, covers, etc.) Delivery : ex stock – as inspected Payment : net– after completion of contract

Condition: used, Blow energy: 11000 kg/m Max. stroke: 900 mm Daylight between guides: 750 mm Length of die seat in ram: 750 mm Max. stroke rate: 90 s.p.m. Die seat length in die holder: 1050 mm Min. die thickness: 350 mm Max. upper die weight: 1100 kg Gisdevam Ebjpfx Aa Isl Operating height: 780 mm Anvil weight: 75000 kg Weight of machine approx.: 103000 kg

Condition: good (used), Magnetic table 455 x 170 mm Gisdpfx Aetu Il Tsa Isl digital display water tank Honing device Wet sanding device

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm Gsdpfjtv Iklex Aa Ieil max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t dimensions of the machine ca. 3,2 x 1 x 2,75 m cube table 500 x 500 x 500 mm

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm Gsdpou Sblwjfx Aa Ioil spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant

Condition: used, BROACHING MACHINE Godjt Hr Dfepfx Aa Ijil

Year of construction: 1989, condition: ready for operation (used), Table dimensions X/Y: 600mm/200mm, grinding dimensions X/Y: 600mm/250mm, magnet dimensions X/Y: 600mm/200mm, grinding wheel diameter: 225mm, grinding wheel width: 25mm, grinding wheel bore: 51mm, spindle center-to-table distance: 350mm (+/-50mm), table feed: 20m/min, creep speed: 0mm/500mm/min, speed: 4200rpm, machine dimensions X/Y/Z: approx. 2700mm/2100mm/2100mm, weight: approx. 2500kg. On-site inspection is possible. Gedpfov Exrwjx Aa Isil

Condition: ready for operation (used), Year of construction: 1989, functionality: limited functionality, machine/vehicle number: 47107/000, grinding length: 600 mm, grinding width: 250 mm, total height: 1,920 mm, total length: 2,800 mm, total width: 1,770 mm, feed length X-axis: 630 mm, feed length Y-axis: 400 mm, feed length Z-axis: 250 mm, table length: 900 mm, table load: 300 kg, table width: 200 mm, power: 85 kW (115.57 HP), input voltage: 400 V, Equipment: documentation/manual, Elb grinding machine, in working order. Everything has been replaced by a CNC. Machine is functional but dismantled and therefore cannot be tested on site. Gijdsu It R Rspfx Aa Ijl

Condition: excellent (used), Year of construction: 2008, Table size 600 x 300 mm Max. Grinding area 600 x 300 mm Dimensions of grinding wheel 406 x 50 x 127 mm Min. / max. distance table / spindle center 500 mm Table speed, hydraulic infinitely variable 5 - 25 m/min. cross feed 0,1 - 20 mm Cross feed 900 mm/min. Handwheel, transverse 1 revolution 5 mm 1 graduation mark 0.02 mm Automatic vertical infeed 0.001 - 0.999 mm/time Handwheel, vertical 1 revolution 2 mm 1 graduation mark 0.01 mm Euei3ccb with the AD 5 (automatic infeed) 0.005 mm Grinding motor speeds 1450 / 2900 rpm. grinding motor 1,5 / 3,7 kW hydraulic pump motor 0,75 kW drive motor , transverse 1,1 kW Drive motor , vertical 1,1 kW Machine dimensions L x W x H approx. 2300 x 1800 x 2100 mm Weight 1700 kg Accessories / Special features: - 2-axis digital display - Automatic vertical infeed with spark-out and subsequent upward movement - Electro-magnetic clamping plate L x W 600 x 300 mm - Manual grinding wheel dresser - Grinding wheel speed, 2 steps - 1 pc. grinding wheel with flange - Control panel - illumination - Coolant system with belt filter and magnetic separator - Machine feet - CE conform Godpfoizka Iox Aa Ieil Siegfried Volz Machine Tools Rüschebrinkstr. 11-153 D - 44143 Dortmund - Wambel
