Horizontal Machining Centre

Mazak HCN-6800

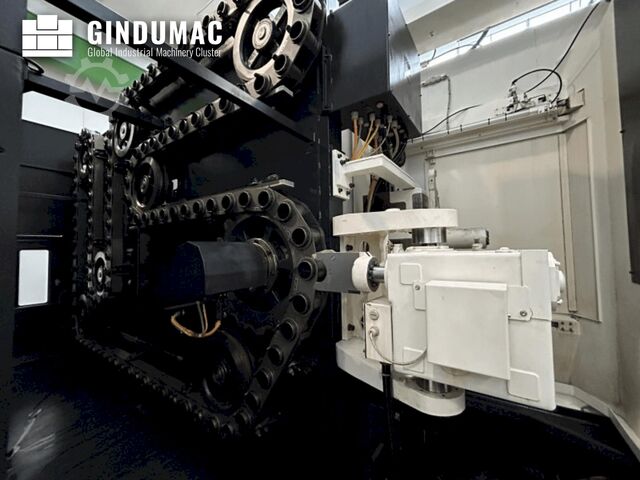

Condition: excellent (used), Year of construction: 2019, Mazatrol Smooth G Travel paths X-axis: 1,050 mm Y-axis: 900 mm Nsdewlg Hzopfx Ah Djli Z-axis: 980 mm Pallet changer – Palletech 6 pallets Pallet size: 630 x 630 mm Setup station NC rotary table 360,000 positions Milling spindle Drive power 30 kW Max. spindle speed 8,000 rpm Tool magazine 160 tool positions BT-40 Other options Chip conveyor 70 bar high-pressure pump Separate tank with filter

Condition: used, Year of construction: 2010, x-travel 730 mm y-travel 730 mm z-travel 730 mm control Matrix Nexus Mazatrol Main spindle: turning speed range - main spindle 35 - 18.000 min/-1 power capacity - milling spindle 35 / 26 kW tool taper ISO 40 DIN 69871A transmission ratio 2 pallet changer: numbers of pallets 6 (5+1) size of pallet 500 x 500 mm max. workpiece weight 700 kg max. workpiecediameter 800 mm max. workpiece height 1.000 mm change time of pallets 7 sec B-axis (table) 0,001 ° Tool-Presetter: Nledjup H Drepfx Ah Dei number of toolpositions 160 pos. tool taper ISO 40 DIN 69871A max. tool diameter 95 mm max. tool-dia with free toolbox 150 mm max. tool length 420 mm max. tool weight 12 kg change-time tool to tool 2,7 / 3,2 sec feeds: rapid traverse 60 m/min feed speeds max. 60.000 mm/min total power requirement 78,5 kVA weight of the machine ca. 16,4 t dimensions of the machine ca. 7,5 x 3,5 x 3,0 m CNC - MachiningCenter Horizontal MAZAK - Nexus 5000 II - palletchanger 6(5+1) pos. - WITHOUT tools

Year of construction: 2006, condition: ready for operation (used), A Mazak CNC 5-axis turning and milling center with counter spindle is available. Swing diameter: 820mm, machining diameter: 820mm, machining length: 1500mm, max. workpiece weight in chuck/between centers: 650kg/150kg, main spindle speed: 1600rpm, spindle bore: 185mm, power: 30kW/40kW, tailstock force: 15kN, quill stroke: 1466mm, tool holder: BT50, spindle speed: 10000rpm, travel X/Y/Z: 870mm/500mm/1600mm, rapid traverse: 40m/min. Machine dimensions X/Y/Z: approx. 6500mm/3700mm/3200mm, weight: approx. 26000kg, control: Mazatrol Matrix. Documentation available. An on-site inspection is possible. The machine is located in China. Nsdoxf Ikljpfx Ah Deli

Condition: used, MAZAK Integrex 100 III ST CNC: MAZATROL 640 MT PRO Swing over Cross Slide: 545 mm Maximum Machining Diameter (Milling Head): 545 mm Nsdpfx Ajxl Eq Ash Dsli Maximum Machining Diameter (Lower Turret): 400 mm Maximum Machining Length: 753 mm X-Axis Travel: 410 mm Z-Axis Travel: 805 mm Y-Axis Travel: 140 mm X2-Axis Travel: 220 mm Z2-Axis Travel: 780 mm W-Axis Travel: 795 mm Rapid Traverse (X/Z-Axis): 30/33 m/min Rapid Traverse (X2/Z2-Axis): 30/33 m/min Rapid Traverse (Y-Axis): 26 m/min Rapid Traverse (W-Axis): 30 m/min Main Spindle Bore Diameter: 51 mm Sub Spindle Bore Diameter: 51 mm Main Spindle Speed Range: 35 – 6,000 rpm Sub Spindle Speed Range: 35 – 6,000 rpm Main Spindle Motor Power: 11 kW Sub Spindle Motor Power: 11 kW Main Spindle Maximum Torque: 16.4 kgf·m Sub Spindle Maximum Torque: 16.4 kgf·m Tool Magazine: 40 tools, KM63 Milling Spindle Speed: 15–12,000 rpm Lower Turret Stations: 8 C-Axis on Main Spindle C-Axis on Sub Spindle C-Axis Indexing: 0.001 degrees Driven Tools Main Spindle Chuck: KITAGAWA B-206, Ø170 mm Sub Spindle Chuck: KITAGAWA B-206, Ø170 mm Tool Presetter Chip Conveyor Machine Weight: 7,600 kg

Condition: ready for operation (used), Year of construction: 2012, operating hours: 17,547 h, Main Drive Spindle speed range 4000 Tool taper HSK-63 Number of axis 7 Movement X-Axis Movement 615 mm Y-Axis Movement 250 mm Z-Axis Movement 1585 mm V-Axis Movement 230 mm W-Axis Movement 1539 mm 1-AXIS Movement 30-210 Tools Slots in storage 72 Nlsdpfxexa H S Ro Ah Doi Media Chip conveyor Yes Additional Equipment Mist filter unit High pressure cooling (14 bar) Work space rinse cleaning (2.7 bar/60 l) RMP600-Radio/Radio probe Preparation for 70 bar cooling through spindle Programmable overload detector C-axis on second spindle MO321 - Gear milling without tool TE810 - Preparation for Multi and Flash tools NO117 - Tool edge control for 5-axis continuous / Axes movements: X / Y / Z / X2 / Z2 615 / 250 / 1585 / 230 / 1388 mm / W 1539 mm / C-axis indexing 0.0001° This 7-axis Mazak Integrex i-300ST-1500U lathe was manufactured in 2012. It features a main spindle bar passage of 80mm, a tool changer with a capacity of 72 tools, and a milling spindle speed of 12,000 rpm. Additional highlights include a high-pressure cooling system at 14 bar, a chip conveyor, and a mist filter unit. Ideal for prototype production, the machine includes tooling, chucks, and jaws. For more information about this lathe, please reach out to us. Application Types Turning

Condition: ready for operation (used), Year of construction: 2006, operating hours: 20,695 h, Control Unit Brand MAZATROL Model Matrix Movement X-Axis Movement 630 Y-Axis Movement 230 Nedjxbumfopfx Ah Djli Z-Axis Movement 1585 W-Axis Movement 1546 Additional Equipment Options Screen: Picture available This 5-axis Mazak Integrex 400 IV was manufactured in 2006. It features a Mazatrol Matrix control, a 12-inch chuck, and a steady rest supporting 70-230mm. The machine offers a milling spindle speed of 12000rpm and a turning spindle speed of 2800rpm. If you are looking to get high-quality turn-mill capabilities, consider the Mazak Integrex 400 IV machine we have for sale. Contact us for more information about this machine. Application Types Turning

Condition: used, Year of construction: 2018, This machine will soon be in our warehouse! X- 350 mm Y- 550 mm Z- 510 mm A-axis -120° to +30° Nsdpfxoxl Rkze Ah Deli C-axis, table's rotation movement: ±360° Year: 2018-08 Working Time: 7190H Spindle motor: AC 11 kW (40% ED) Rapid feed X, Y, and Z axis: 30 m/min Tool magazine: 30 places Spindle taper: ISO 40 Spindle motor: AC 11 kW (40% ED) Spindle bearing inner/outer diameter: Ø 70 / 110 mm Speed range: 35-12000 rpm Max torque: 65 Nm (40% ED) Floor area of standard machine: approximately 1900 x 3060 mm Height of standard machine: approximately 2857 mm Weight: approximately 7000 kg Total circuit breaker: 37 kVA

Condition: ready for operation (used), Year of construction: 2015, Control Unit Brand MAZATROL Model Matrix 2 Movement Z-Axis Movement 1585 mm Y-Axis Movement 260 mm Nlsdpfjxyay Ijx Ah Doi This 5-axis Mazak Integrex i-400 ST was manufactured in 2015. A robust turn-mill centre, it features a main spindle power of 30 kW and sub spindle power of 26 kW, with bar capacities of 102 mm and 80 mm respectively. It includes a high-pressure system at 70 bar, Matrix 2 CNC control, and additional equipment like an automatic door and robot interface. If you are looking to get high-quality turning and milling capabilities, consider the Mazak Integrex i-400 ST machine we have for sale. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 2012, Turning length: 505 mm Turning diameter: 360 mm Spindle bore: 76 mm Max. spindle speed: 3500 rpm Nlodpfx Ahsxqxg Uo Doi Turret: 12 positions, driven tools Control: Fanuc 32I

Year of construction: 2018, condition: ready for operation (used), Control Unit Brand MAZATROL Model Mazatrol SmoothG CNC Main Drive Number of spindles 2 Spindle speed range 5000 Movement X-Axis Movement 234 mm Nedjxya Aiopfx Ah Doli Y-Axis Movement 100 mm Z-Axis Movement 625 mm W-Axis Movement 585 mm Workpiece Workpiece drm 695 mm Turret Number of tool slots 12 This 4-axis Mazak QUICK TURN COMPACT 200 MSY L was manufactured in 2018. It features a maximum swing of 695 mm and a machining diameter of 380 mm. Equipped with a Mazatrol SmoothG CNC control system, it ensures precision and efficiency. The main spindle supports up to 5000 rpm, while the second spindle reaches 6000 rpm. A great opportunity to buy this Mazak QUICK TURN COMPACT 200 MSY L lathe. Contact us for further details. Application Types Turning
