Turn-Mill Centre

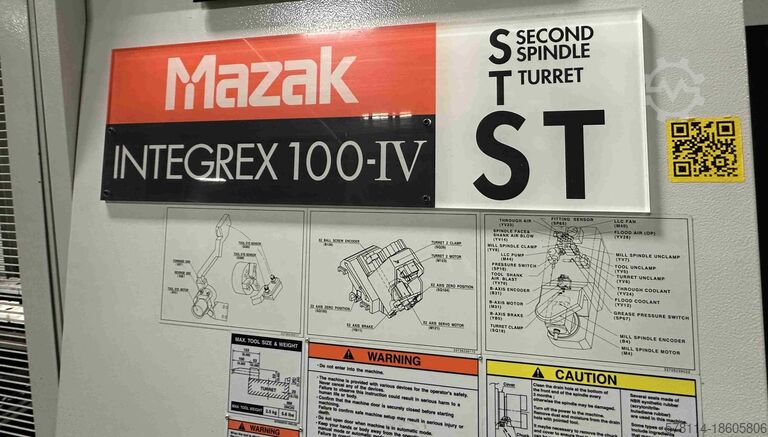

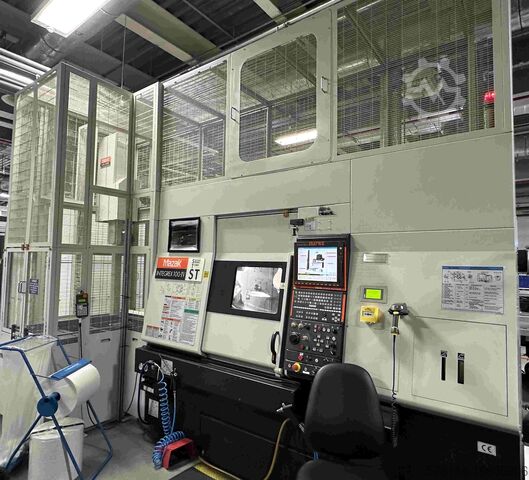

Mazak Integrex 100 IV ST

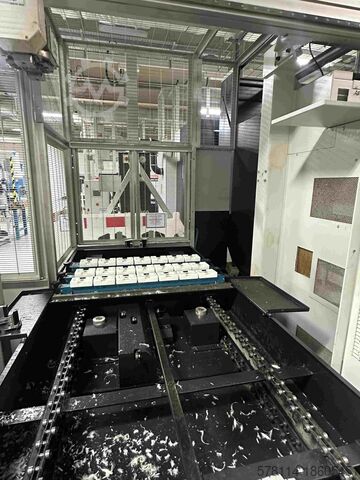

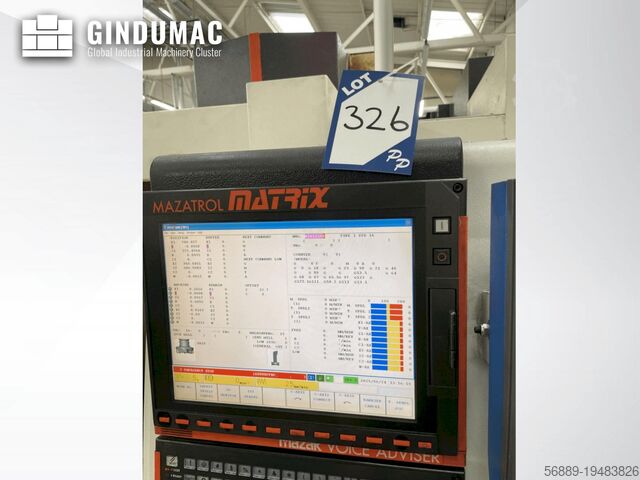

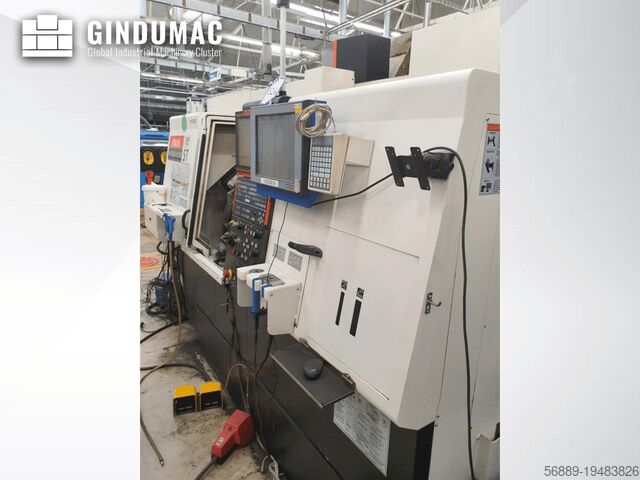

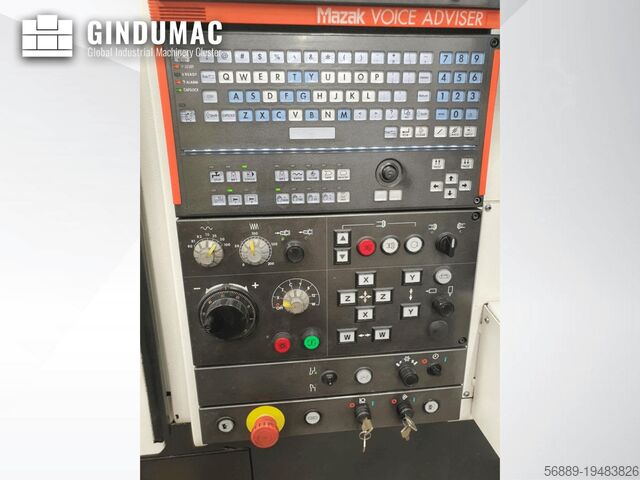

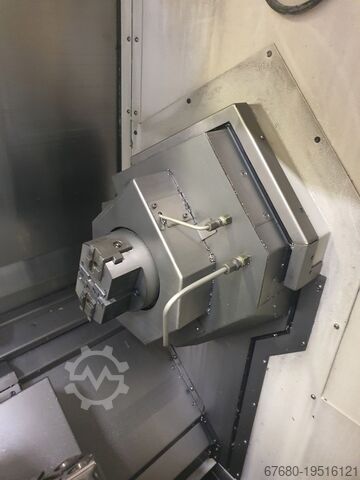

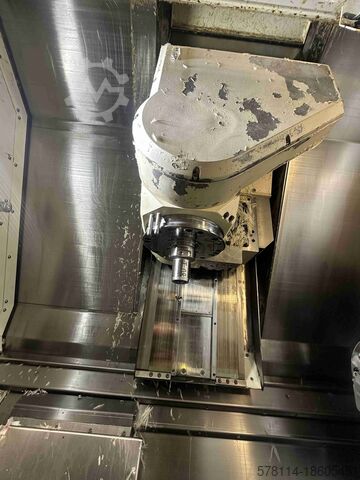

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 61 [mm] - Max. turning diameter : 400 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 11 [kW] - Spindle speeds : 6000 [rpm] - C axis indexing precision : 0.001 [°] - Travel : 795 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/805 [mm] - Y stroke : 140 [mm] - B Axis stroke : 225 [°] - B axis indexing precision : 0.001 [°] - Tool type : CAT 40 - Spindle speeds : 12000 [rpm] - Spindle power : 6.6 [kW] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 20 LOWER TURRET - Number of positions : 9 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3075 X 2330 [mm] - Machine height : 2450 [mm] Bodpfxeuhal Se Abmjlp - Machine weight : 7500 [kg] MACHINE HOURS - Number of hours under power : 75434 [h] - Number of working hours : 49153 [h] EQUIPMENT - CNC : Mazatrol MATRIX - Interactive programming - 3 colors status lamp - Coolant tank * Coolant through spindle - Chips conveyor - Oil mist extractor : ELBARON - Tool probe - Tool breakage detection - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD - Electric transformer

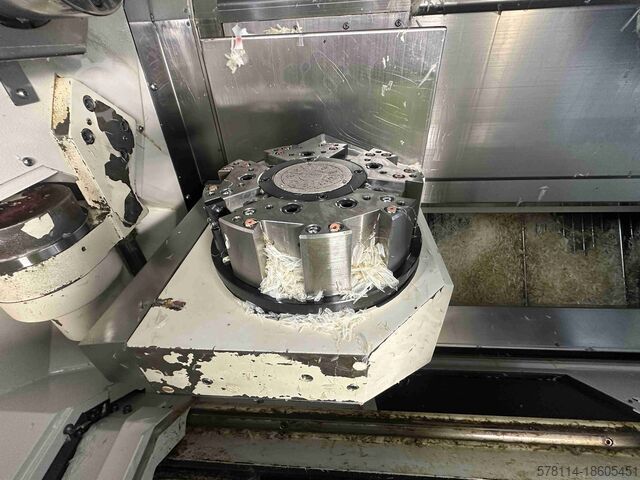

Condition: excellent (used), Year of construction: 2010, 412mm max. machining diameter, maximun turning length 753mm, 225 degree movement on B axis, 15HP spindle motor power, Blodpjwxw A Hjfx Abmsp 6,000rpm spindle speed, 6,000 rpm sub spindle speed, 52mm bar capacity, milling speed 12,000rpm C axis & Milling, 9 station lower turret. Swarf conveyor, tool setter, Coolant, Interlocked guards, Swivelling Universal Head., C Axis (0.001deg), Mazatrol Matrix control

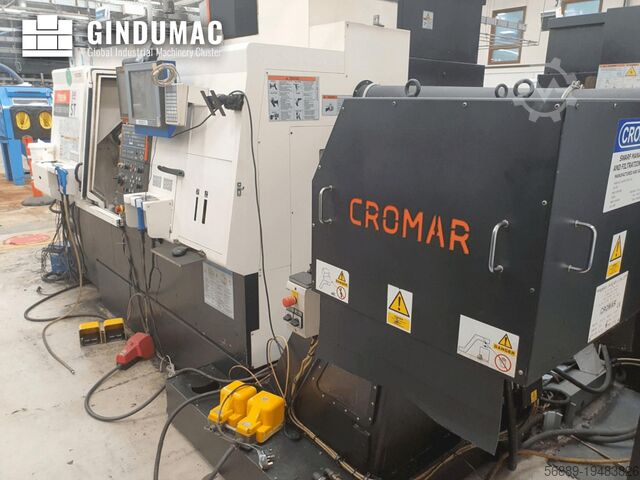

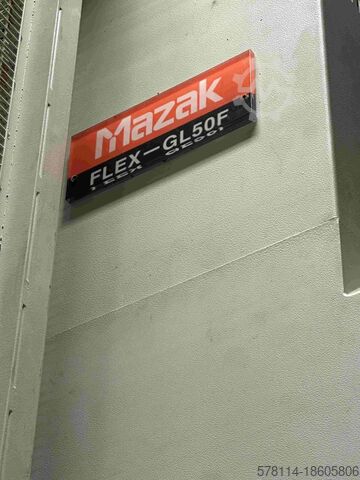

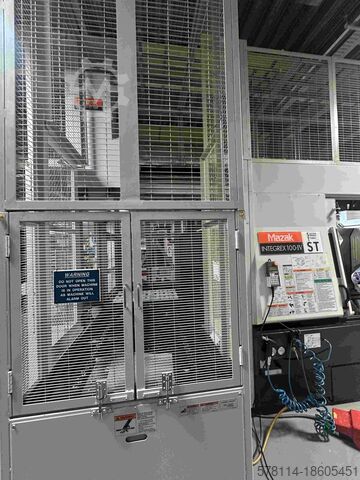

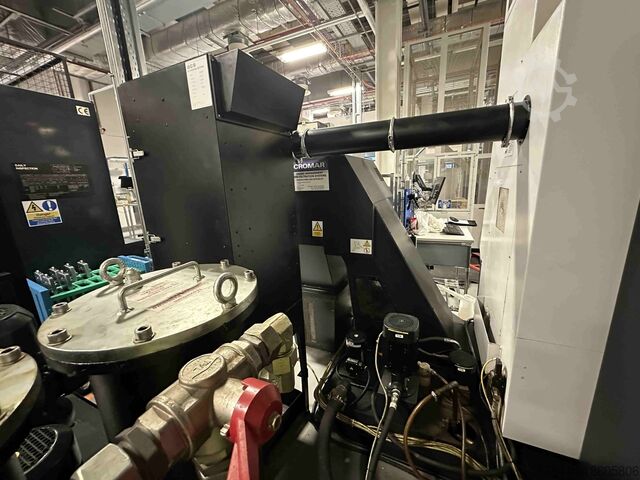

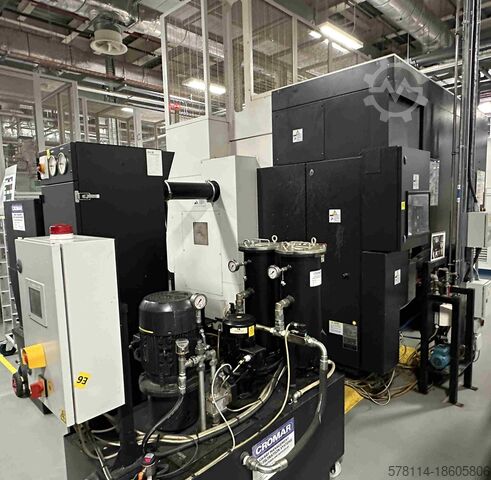

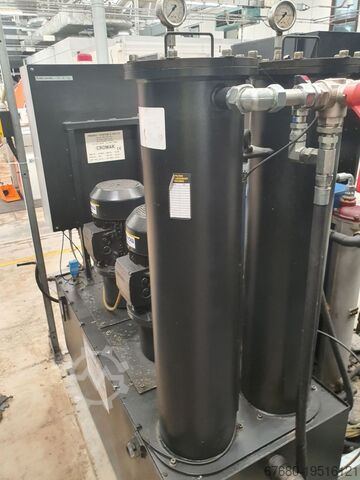

Condition: excellent (used), Year of construction: 2008, operating hours: 24,462 h, functionality: fully functional, turning length: 753 mm, turning diameter: 545 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, spindle bore: 52 mm, travel distance X-axis: 410 mm, travel distance Y-axis: 140 mm, travel distance Z-axis: 805 mm, rotational speed (max.): 12,000 rpm, type of input current: three-phase, bar passage: 52 mm, total height: 2,140 mm, total length: 3,100 mm, total width: 2,340 mm, bar diameter (max.): 52 mm, spindle nose: Capto C6, overall weight: 8,200 kg, Equipment: rotational speed infinitely variable, Mazak Integrex 100-IVST CNC Mill/Turn Lathe Blsdpev D H Drefx Abmop Machine Type: CNC Mill-Turn Lathe with Automation Year: 2008 Control: Mazatrol Matrix Production Hours: 24462hrs Condition: Excellent Includes GL50F Gantry Loader Automatic Door Selection of Tool Holders Cromar Swarf Conveyor MMS 1000 Filter System Cromar Coolant Filtration Sump Pump Fire Suppression 70 Bar High Pressure Coolant Technical Specifications Max Turning Diameter: 545mm Max Turning Length: 753mm Bar Passage: 52mm Main Spindle Drive: 11kW Main Spindle Speed: 6000rpm Spindle Nose: A2-5 Sub Spindle Drive: 11kW Sub Spindle Speed: 6000rpm Counter Spindle C Axis: 0.001° indexing Milling Spindle Drive: 5.5kW Milling Spindle Speed: 12000rpm B Axis: 225° Spindle Taper: Capto C6 X1-Axis Travel: 410 mm Y1-Axis Travel: 140 mm Z1-Axis Travel: 805 mm X2-Axis Travel: 220 mm Z2-Axis Travel: 780 mm W-Axis Travel: 790 mm ATC Stations: 40 Max Tool Length: 200mm Max Tool Diameter: 90mm Max Tool Weight: 39.2N Lower Turret: 9 Stations Coolant: 70 Bar High Pressure Coolant Machine Dimensions(excluding GL50F): 3100 x 2340 x 2140mm Machine Weight: 8,200kg GL50F Gantry Loader Specifications Cylinder Diameter: 56mm Cylinder Stroke: 33mm Max Pressure: 0.99MPa Max Loading Capacity: 49N x 2(5kgf) Loading/Offloading Conveyor Front & Rear Entry

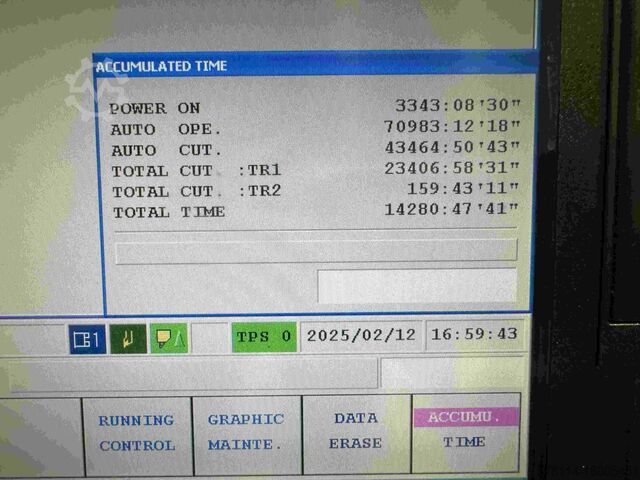

Condition: excellent (used), Year of construction: 2006, operating hours: 43,464 h, functionality: fully functional, turning length: 753 mm, turning diameter: 545 mm, spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, spindle bore: 52 mm, travel distance X-axis: 410 mm, travel distance Y-axis: 140 mm, travel distance Z-axis: 805 mm, rotational speed (min.): 12,000 rpm, type of input current: three-phase, bar passage: 52 mm, total height: 2,140 mm, total length: 3,100 mm, total width: 2,340 mm, bar diameter (max.): 52 mm, spindle nose: Capto C6, overall weight: 8,200 kg, Equipment: rotational speed infinitely variable, Mazak Integrex 100-IVST CNC Mill/Turn Lathe Machine Type: CNC Mill-Turn Lathe with Automation Year: 2006 Control: Mazatrol Matrix Production Hours: 43464hrs Condition: Excellent (New Sub Spindle Fitted in 2025) Includes GL50F Gantry Loader Automatic Door Selection of Tool Holders Cromar Swarf Conveyor Bledpfx Aov D Hpnsbmep MMS 1000 Filter System Cromar Coolant Filtration Sump Pump Fire Suppression 70 Bar High Pressure Coolant Technical Specifications Max Turning Diameter: 545mm Max Turning Length: 753mm Bar Passage: 52mm Main Spindle Drive: 11kW Main Spindle Speed: 6000rpm Spindle Nose: A2-5 Sub Spindle Drive: 11kW Sub Spindle Speed: 6000rpm Counter Spindle C Axis: 0.001° indexing Milling Spindle Drive: 5.5kW Milling Spindle Speed: 12000rpm B Axis: 225° Spindle Taper: Capto C6 X1-Axis Travel: 410 mm Y1-Axis Travel: 140 mm Z1-Axis Travel: 805 mm X2-Axis Travel: 220 mm Z2-Axis Travel: 780 mm W-Axis Travel: 790 mm ATC Stations: 40 Max Tool Length: 200mm Max Tool Diameter: 90mm Max Tool Weight: 39.2N Lower Turret: 9 Stations Coolant: 70 Bar High Pressure Coolant Machine Dimensions(excluding GL50F): 3100 x 2340 x 2140mm Machine Weight: 8,200kg GL50F Gantry Loader Specifications Cylinder Diameter: 56mm Cylinder Stroke: 33mm Max Pressure: 0.99MPa Max Loading Capacity: 49N x 2(5kgf) Loading/Offloading Conveyor Front & Rear Entry
