CNC-Turning & Milling Centers

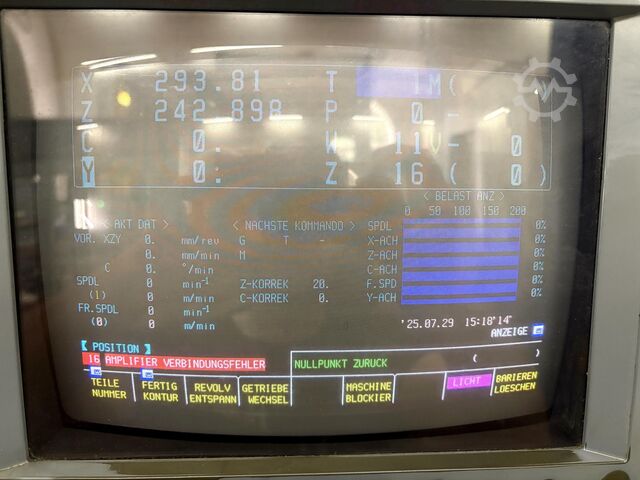

MAZAK INTEGREX 35

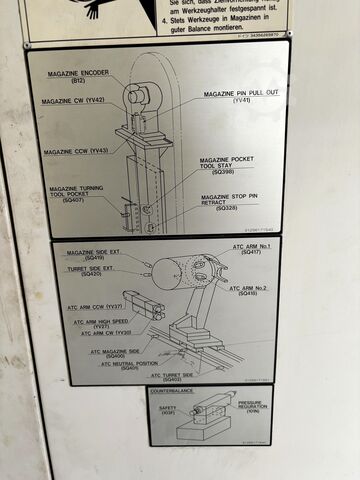

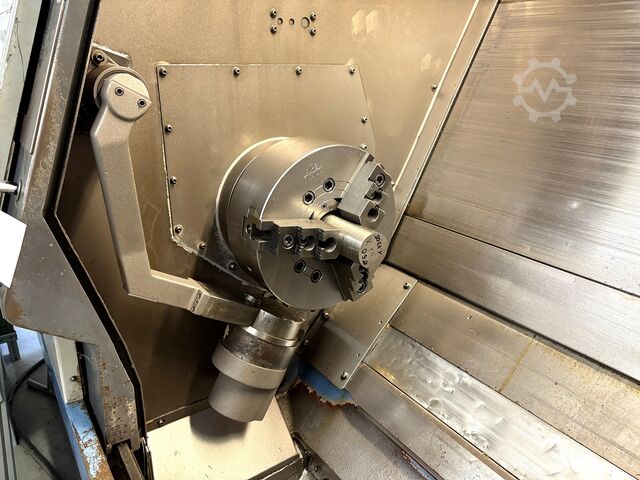

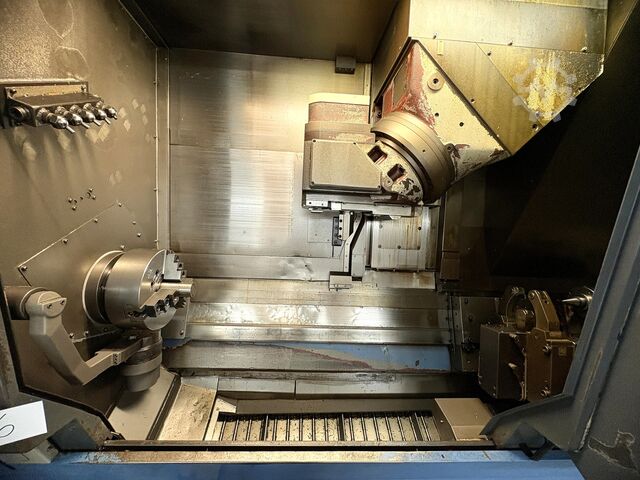

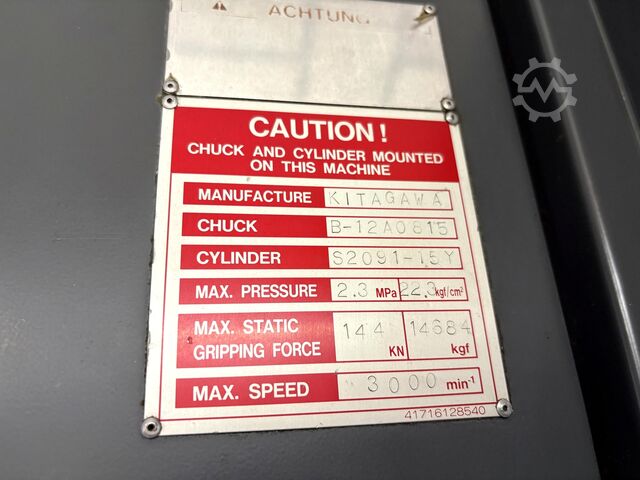

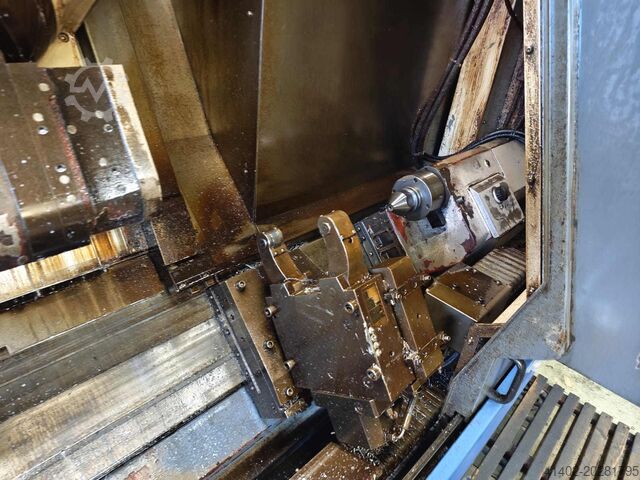

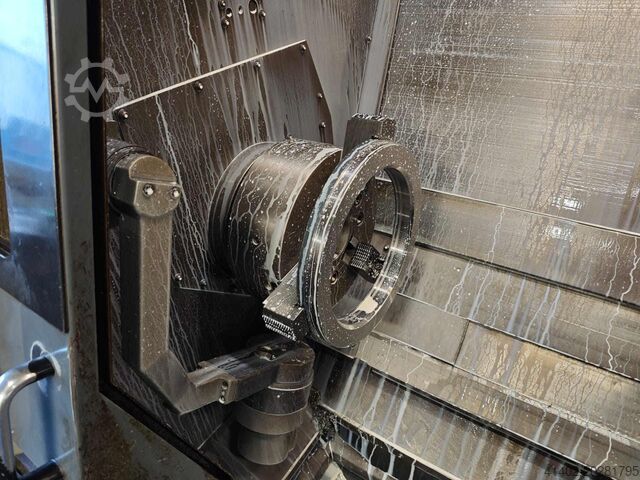

Condition: good (used), Year of construction: 1998, Mazak Integrex 35 turning/milling center, year of manufacture 1998, Mazak T Plus control, turning length 1500 mm, max. turning diameter 575 mm, Y axis, B axis infinitely swiveling, 40-position chain magazine, turning tool holder KM 63, milling tool holder SK 40, tailstock, steady rest, chip conveyor, Kitagawa three-jaw chuck B 12. Gsdpfx Aaexm Trdo Ijbg

Condition: used, Year of construction: 2008, Swing over bed 923,8 mm Swing over cross slide 755 mm Max. turning diameter 356 mm Max. turning length 510 mm X/Z-axis movement 260/590 mm Turret w/12 stations Spindle speeds 5000 rpm Gbsdpfju Sn Hzex Aa Ieg Spindle bore 73 mm Control: MSX-850 III Equipped with: Collet chuck w/collets Chip conveyor 3 standard tool holders No Gantry loader incl.

Condition: not inspected (used), Year of construction: 1996, functionality: unexamined, machine/vehicle number: 125853, spindle speed (max.): 3,000 rpm, overall weight: 7,300 kg, controller model: MAZATROL T PLUS, Equipment: documentation/manual, No reserve price – guaranteed sale to the highest bidder! Loading can take place on 08/09/2025 or 09/09/2025. TECHNICAL DETAILS Work Area Maximum swing: 575 mm diameter Swing over cross slide: 470 mm diameter Standard chuck size: 305 mm Distance between centers: 1,527 mm Height of spindle center: 310 mm Max. load capacity with chuck work: 250 kgf Gjdpfx Aew Hrvwja Iebg Max. load capacity between centers: 1,000 kgf Max. speed of KITAGAWA power chuck: 3,000 rpm Control: MAZATROL T PLUS MACHINE DETAILS Dimensions & Weight Dimensions (L x W): 6,000 x 2,450 mm Machine weight: 7,300 kg Main motor: AC 22/30 kW (continuous/30-minute operation) Total electrical capacity: 63.6 kVA (30-minute operation) / 51.9 kVA (continuous operation) EQUIPMENT Delivered with technical documentation

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 770 mm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, table width: 1,000 mm, table length: 4,150 mm, table load: 4,000 kg, Magnum: powerful machining in machine construction and tool making Sk50 with extremely powerful spindel 50kw Glas scales in X/Y/Z Chip conveyor and coolant system X - Travel: 3500mm Y - Travel: 1000mm Z - Travel: 770mm Table Length: 4150mm Table Width: 1000mm Table load: 4000 Feed rate X-Axis: 30000mm/min. Feed rate Y-Axis: 30000mm/min. Feed rate Z-Axis: 30000mm/min. Spindle Taper: 50ISO/Bt/Mk Power on spindle: 50kW Speeds / ranges: 4500Rpm ATC / revolver: 50 Number of controlled axis:3 Chip conveyor: yes Coolantsystem: yes Gbodewycmmopfx Aa Ijg Length: 8000mm Width: 5000mm Height: 3700mm Weight: 30000kg

Year of construction: 1988, condition: ready for operation (used), Travel X/Y/Z: 1500mm/800mm/660mm, spindle speed: 10000rpm, table dimensions X/Y: 1740mm/750mm, tool capacity: 30, taper type: BT50, control: Mazatrol M-32, weight: approx. 11000kg. Gbedpfjtpp H Nox Aa Ijg

Condition: good (used), Year of construction: 2003, X 1740mm, Y 766mm, Z 660mm Gbodpfxewyblzs Aa Isg 10000 rpm Parts shown by hand not come.

Condition: used, Year of construction: 1996, x-travel 1500 mm y-travel 650 mm z-travel 650 mm size of pallet 1740 x 650 mm spindle taper SK 50 spindle turning speed range 25 - 6000 U/min feeds longditudinal/cross/vertical max. 8 mm/min rapid traverse longitudinal and cross 26 m/min rapid traverse vertical 20 m/min spindle throat 665 mm distance spindle nose and table 200 / 850 mm drilling in full material 50 mmø threading M 45 ATC 60 Pos tool diameter 125 mm wotkpiece diameter with 2 vacant positions 260 mm workpiece length 400 mm weight of tools max. 20 kg spindle drive 18,5 kW max. torque on the spindle max. 758 Nm Accessories: chip conveyor, coolant Gbedpjtqqtksfx Aa Ijg

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 585 mm, workpiece weight (max.): 4,000 kg, table width: 1,000 mm, table length: 2,240 mm, table load: 4,000 kg, overall weight: 25,000 kg, spindle speed (max.): 6,000 rpm, spindle nose: BT50, number of spindles: 1, number of slots in tool magazine: 30, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This machine was decommissioned from production while operational and was replaced due to the purchase of a new machine. Unfortunately, the machine cannot be viewed running anymore, but it is displayed in our stock. ATTENTION! The displayed images are both from us and previously from our customer. Additional information: Max. weight on the table: 4,000 kg Chip conveyor Renishaw MP10 workpiece probe Custom-made machine table for easy clamping of workpieces Total weight: approx. 25,000 kg Gbodjwvkcnopfx Aa Iog Transport dimensions: 1 Colli MAZAK machine, 620x319x307 cm, weight approx. 19,000 kg 1 Colli coolant tank, 3x1.1x0.7 m, weight 210 kg 1 Colli magazine, 5x1x1.9 m, weight approx. 1,450 kg 1 Colli chip conveyor, 4x1x1.6 m, weight 220 kg

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, table width: 600 mm, table height: 560 mm, table length: 1,200 mm, table load: 900 kg, spindle speed (max.): 12,000 rpm, Machine with just revised spindle, never used after Connected to power and available for inspections and tests Lubrication through spindle Gsdporb Amlsfx Aa Iebg 30 Tools Heidenhain 530
