Vertical machining center

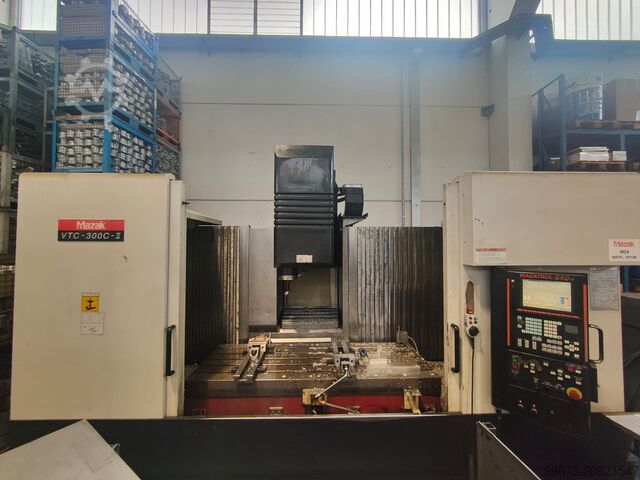

MAZAK VTC 300 C II

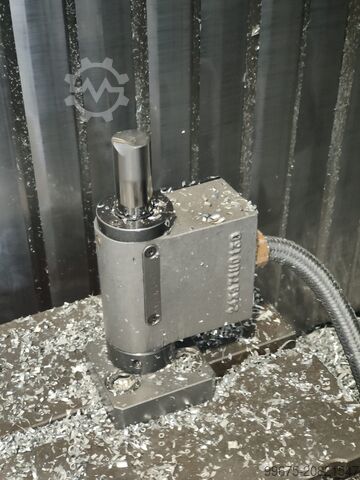

Condition: used, Year of construction: 2006, Control MAZATROL 640M x-travel 1.740 mm y-travel 760 mm z-travel 660 mm table dimensions 2.000 x 760 mm max. table load 1.400 kg spindle tunring speed 12.000 U/min tool taper SK 40 number of tool places 30 Pos. weight approx. 11.500 kg Number of working hours ca. 2.770 h Condition: used Technical features & accessories: - 3D probe Accessories, tools, and clamping devices shown are included in the scope of Knedpfx Ahoz S N I Djiec delivery only if this is explicitly stated in the additional information. Subject to changes and errors in technical data and specifications; prior sale reserved!

Year of construction: 1988, condition: ready for operation (used), Travel X/Y/Z: 1500mm/800mm/660mm, spindle speed: 10000rpm, table dimensions X/Y: 1740mm/750mm, tool capacity: 30, taper type: BT50, control: Mazatrol M-32, weight: approx. 11000kg. Ksdpotpp H Nofx Ahisnc

Condition: used, Year of construction: 2014, x-travel 1740 mm y-travel 760 mm z-travel 660 mm Control PC-Fusion-640M spindle taper SK 40 spindle turning speed range 40 - 12.000 U/min spindle motor 30 kW distance spindle centre table top edge 180 - 840 mm table load 1400 Kg distance spindle center to column 830 mm rapid travel x/y/z 36 m/min table width 760 mm table length 2000 mm 5-T-slots - width x distance 18 x 125 mm table height over floor 825 mm tool change unit 30 tool changing time 4,7 sec wotkpiece diameter with 2 vacant positions 110 mm workpiece diameter at full load 80 mm max. tool weight 8 kg tool length - max. 350 mm air pressure - required 5 - 9 bar Air volume 140 l/min electrics - voltage/frequency 400 / 50 V/Hz coolant tank 360 l high-performance coolant system 15 bar total power requirement 22 kW weight of the machine ca. 11 t dimensions of the machine ca. 4,5 x 3,5 x 3,1 m Standard Equipment / Included Accessories - Through-Spindle High-Pressure Coolant System (15 bar) - Manual Pulse Generator (MPG) - Hinged Belt Chip Conveyor, Right-Hand Side Discharge - Torque-Controlled Chip Breaking Drilling Cycle - Performance Software Package Performance Software Package Includes - 600 User Variables - MAZAK Tornado Boring & Tapping Cycle (EIA/ISO) - Synchronous Tapping - EIA/ISO Program Input - Extended EIA/ISO Functions Knsdpfxszz Afij Ahisc - G93 Inverse Time Feed - G37 Automatic Tool Length Measurement - Sequence Number Comparison Stop Function - G0 Inclination Constant - Additional Work Coordinate Systems (G54.1) - Thread Cutting Function General Machine Features Adaptive Feed Control (AFC) The Adaptive Feed Control system continuously monitors spindle motor load and feed axis servo load. If a significant deviation from the programmed load is detected, the feed rate is automatically adjusted to maintain optimum cutting conditions, improve productivity and protect the cutting tool. - MAZAK Standard Machine Colour Safety Equipment - Operator Safety Door with Interlock Switch - Fully Enclosed Splash Guard - Integrated Work Area Lighting - CE Conforming Machine Coolant System Through-Spindle Coolant (TSC) - Through-spindle coolant system - Pump pressure: 5 bar Complete coolant system including pumps, valves, piping and coolant nozzles for efficient machining and reliable chip evacuation. Measuring System Automatic Tool Length Measurement Automatic measurement of small-diameter tools without operator intervention. Chip Disposal Machine prepared for side-mounted chip conveyor CNC Control - MAZATROL PC Fusion CNC 640M - 10.4" Colour LCD Display - Relocation Detector MAZAK Tornado Boring & Tapping Cycle (MAZATROL) Helical interpolation allows boring and tapping operations over a wide range of diameters using a single tool, significantly reducing programming time and machining time while increasing flexibility. Background Tool Path Verification Tool paths can be verified in the background while another NC program is being executed in automatic mode. Machining Navigation – Prediction Prior to machining, the control predicts machining time, spindle load and other operating parameters, allowing programs to be optimized for maximum productivity. Machining Navigation – Monitoring Real-time display of machining conditions and machine loads with continuous feedback for process optimisation. Machining Navig...

Condition: ready for operation (used), Year of construction: 2012, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, controller manufacturer: MAZATROL, controller model: 640 M, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 30, number of axes: 3, This 3-axis Mazak VTC 300C II was manufactured in 2012. It features a spindle speed of 12,000 RPM and a tool capacity of 30 tools in the automatic tool changer. The machine has a generous travel of 1740 mm in the X-axis, 760 mm in the Y-axis, and 660 mm in the Z-axis. If you are looking to get high-quality machining capabilities, consider the Mazak VTC 300C II vertical machining centre we have for sale. Contact us for further details. • Tool setter • 30 tools in ATC Knedpfoztdzisx Ahijc Technical Specification Taper Size SK 40

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 175849, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 840 mm, controller model: PC Fusion 640 M, total height: 4,450 mm, total length: 3,300 mm, total width: 2,900 mm, overall weight: 11,500 kg, spindle speed (max.): 12,000 rpm, 3-Axis Machining Center MAZAK - VTC 300C-II Manufacturer: MAZAK Model: VTC 300C-II Control: PC Fusion 640M Year of manufacture: 2005 Internal coolant supply (IKZ): 15 bar Table length: 2000 mm Table width: 760 mm Feed rate X-axis: 36,000 mm/min Feed rate Y-axis: 36,000 mm/min Feed rate Z-axis: 36,000 mm/min Tool holder: SK 40 Spindle power: 15 kW Spindle speed: 12,000 rpm Tool changer: 30 positions Internal coolant: Yes Number of controlled axes: 3 Chip conveyor: Yes Knodpfxoyanuhe Ahisc Cooling unit: Yes Length: 4450 mm Width: 3300 mm Height: 2900 mm Can be inspected under power.

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Technical Information for Mazak Corporation Mazak VTC-300C II: Model: Mazak VTC-300C II Machine type: Vertical CNC Machining Center Year of manufacture: 2003 Serial number: 162107 Accessories: Chip conveyor included Connected load: 28 kW Typical technical data for the Mazak VTC-300C II: Control: Mazatrol Fusion 640M / Mazatrol PC Fusion CNC Travel distances: X-axis: approx. 1,740 mm, Y-axis: approx. 760 mm, Z-axis: approx. 660 mm Table size: approx. 2,000 × 760 mm Table load capacity: up to approx. 1,400–1,500 kg Spindle taper: CAT 40 / BT40 Spindle speed: typically 10,000 rpm Main spindle power: approx. 18.5–22 kW Tool changer: 30 positions Rapid traverse: approx. 36 m/min Coolant system: included Machine weight: approx. 11,000–13,000 kg The machine is part of Mazak’s large VTC series and is particularly suited for: Large aluminum parts Steel machining Automotive production Fixture and series manufacturing Kedsy St E Rjpfx Ahionc

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, controller model: Mazatrol 640M, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS X-axis: 1,740 mm Y-axis: 760 mm Z-axis: 660 mm Rapid traverse X-axis: 36 m/min Rapid traverse Y-axis: 36 m/min Rapid traverse Z-axis: 36 m/min Table size: 2,000 x 760 mm Table load capacity: 1,400 kg Distance from table surface to spindle nose: 160 mm - 840 mm Spindle speed: 12,000 rpm Main drive power (5 min): 18.5 kW Main drive power (30 min): 11 kW Tool Changer Number of tool stations: 30 Spindle taper: SK 40 Max. tool diameter: 80 mm Max. tool diameter with free adjacent stations: 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg Knodjya Dh Rspfx Ahijc MACHINE DETAILS Control: Mazatrol 640M Interfaces: RS232, LAN, Floppy drive Dimensions & Weight Dimensions (L x W x H): 4,435 x 3,300 x 3,442 mm Machine weight: 11,500 kg Operating Hours as of 23.05.2025 Operating hours: 6,585 h Cutting hours: 8,300 h Auto cutting hours: 8,374 h EQUIPMENT Documentation/manual Chip conveyor Relocation detector Automatic tool length measurement system Preparation for partition wall for pendulum machining 4th axis Electronic handwheel EIA / ISO programming Synchronous tapping Through-spindle coolant, 5 bar
