MULTI AXIS TOWER

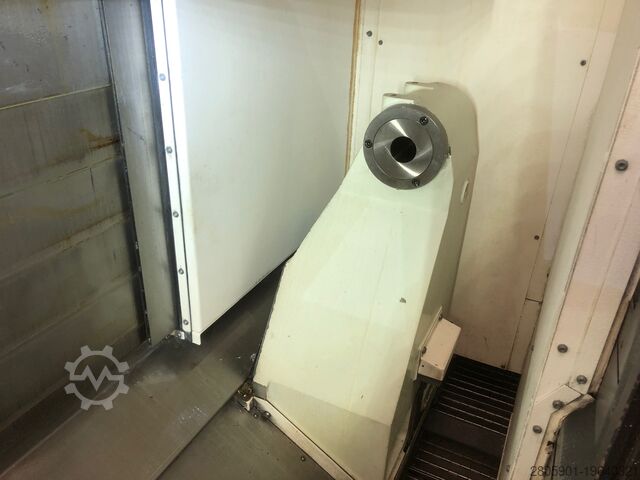

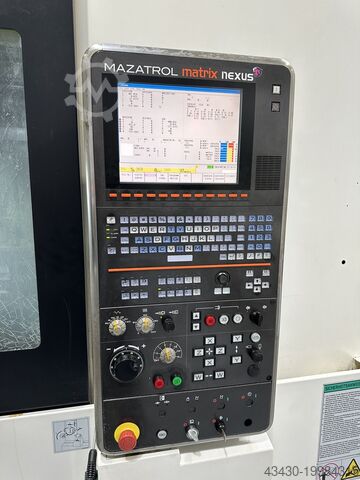

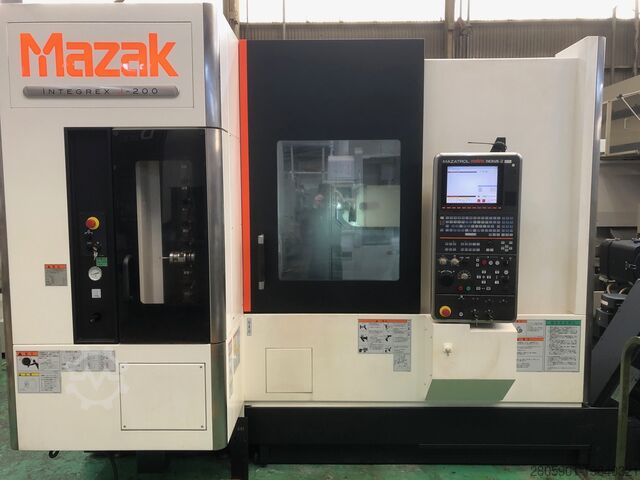

MAZAK INTEGREX J 200

Condition: excellent (used), Year of construction: 2018, mazak j-200s technical dataFor this search query, no AI-generated overview is availableCurrently, an AI-generated overview cannot be provided. Please try again later.AI overview +6 The Mazak INTEGREX j-200S is a compact 5-axis multitasking machine with sub-spindle (S) for complex turning and milling operations. Key features include an 8-inch main chuck, a maximum machining diameter of {\(\emptyset 500\text{\ mm}\)}, and a machining length of up to {\(910\text{\ mm}\)}. The B-axis offers a swivel range from {\(-30^{\circ }\)} to {\(+190^{\circ }\)}. Main technical data (Integrex j-200S): Machining capacity:Max. swing diameter: {\(530\text{\ mm}\)}Max. machining diameter: {\(\emptyset 500\text{\ mm}\)}Max. machining length: {\(910\text{\ mm}\)}Main spindle & sub-spindle:Chuck size (main & sub-spindle): 8 inchesMain spindle speed: {\(5,000\text{\ min}^{-1}\)}Main spindle power (40% duty cycle): {\(18.5\text{\ kW}\)}Milling spindle (B-axis):Speed: {\(12,000\text{\ min}^{-1}\)} (typical for the j-series, may vary with optional configurations)Swivel range: {\(-30^{\circ }\)} to {\(+190^{\circ }\)} (or a total range of 220°)Tool interface: KM63 or CAPTO C6Axes & capacity:Y-axis travel: {\(200\text{\ mm}\)} ({\(\pm 100\text{\ mm}\)})X/Z axes: {\(450\text{\ mm}\)} / {\(1119\text{\ mm}\)}Tool magazine: 20–36 tools (depending on configuration)Control: MAZATROL SmoothG or Matrix Nexus 2 The machine features a full C-axis for both spindles and an automatic tool changer, making it suitable for highly productive applications in a compact design. Redpfoyfgdlox Afcep

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Rjdswidp Ispfx Afcsp

Year of construction: 2023, condition: ready for operation (used), number of axes: 5, This 5-axis Mazak INTEGREX j-200S was manufactured in 2023. Ideal for complex machining tasks, it offers precision and versatility in a compact design. Consider the opportunity to buy this Mazak INTEGREX j-200S. Contact us for more information. Additional equipment • 36 tool change • Includes tailstock function Machine Benefits Technical Machine Benefits Rsdpfjyaqvujx Afcsp • The machine has a 36 mm tool • A 12 to 15 bar flushing system • Tailstock function • Cooling water cooling • Bar puller function • Milling spindle 12000 rpm • Main and counter spindle • 1 degree swivel b-axis Extra Information OPM probe tool measurement Optional: Capto C6 tool holders

Condition: used, Year of construction: 2011, Mazak HC Nexus 5000-II Mazatrol Matrix Nexus Year: July 2011 Rodpev Tvh Sofx Afcop Pallet Size: 500 x 500 mm Movement: - X: 730 mm - Y: 730 mm - Z: 740 mm Spindle Speed: 12,000 rpm Tool Changer: 40 positions Chip Conveyor: Chrome

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Rodpsd Tm D Eefx Afcsp Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Redpfxjhrihys Afcjp

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, turning diameter over cross slide: 600 mm, spindle bore: 90 mm, turning diameter: 570 mm, turning length: 3,000 mm, quill stroke: 220 mm, quill diameter: 80 mm, total length: 4,900 mm, total width: 1,300 mm, spindle speed (max.): 1,600 rpm, spindle speed (min.): 28 rpm, bed width: 380 mm, Turning diameter in gap: 720 mm, overall weight: 4,500 kg, . Height of centers mm 300 . Distance between centers mm 3000 . Width of the bench mm 380 . Rotating diameter on the bench mm 600 . Rotating diameter on the natural recess mm 720 . Turning diameter on the transverse carriage mm 570 . Length of the natural recess mm 360 . Maximum spindle speed G/1’ 28/1600 . Spindle nose type D1 8” Redpsvi Ez Tefx Afcsp . Spindle hole diameter mm 90 . Tailstock quill stroke mm 220 . Tailstock quill diameter mm 80 . Tailstock quill length mm 370 . Tailstock morse taper N 6 . Transverse carriage stroke mm 360 . Tool carriage stroke mm 180 . Mobile steady rest (Max. turning diam.) mm 220 . Fixed steady rest (Max. turning diam.) mm 270 . Main motor power Kw 11 . N. standard threads N 254 . Standard threads min/max (metric) fil x 1” 1/56 . Standard threads min/max (witworth) mm 0.5/28 . Standard threads min/max (module) Mod. 0.5/28 . Threads min/max (diametric pitch) d.p 1/56 . Longitudinal feeds min/max mm 0.08/3 . Transversal feeds min/max mm 0.04/1.5 . Length of carriage support on the bench mm 600 . Length of transversal carriage mm 600 . Net weight kg 4500 . Dimensions mm 4900 x 1300

Condition: ready for operation (used), Year of construction: 1991, machine/vehicle number: MS 25E19111, Number of spindles: 6 Spindle bore: 27 mm Turning length: 59 mm Hexagonal material: 24 mm Square material: 18 mm Cross slide travel: 36 mm Longitudinal slide travel: 85 mm Spindle speeds: 366 - 5020 rpm Torque: 95 Nm Control: INDEX Total power requirement: 20 kW - 6 cross slides - 6 longitudinal slides - Multi-edge device - Thread cutting device - Hydraulic pick-up device - Workpiece conveyor belt - Bar loading magazine, IEMCA, type PRA 40/35/P Rsdpfxov Raatj Afcop

Condition: good (used), Year of construction: 1997, Also available CONQUEST T51 model Rjdpfx Afjvtrc Secsp The used HARDINGE CONQUEST T42L 3-axis motorized CNC lathe is a robust and precise medium-sized inclined bed numerical control lathe, turning length approximately 700mm, bar passage 42m, automatic turret with 12 positions with motorized tools, FANUC 18-T CNC with color LCD and RS232 serial interface for data transfer 5″ ASA spindle maximum revolutions: 4,200 rpm continuous C-axis 20HP spindle power X-axis travel: 172mm Z-axis travel: 575mm machine weight 4,000 Kg. Complete with 210mm AUTOBLOCK hydraulic chuck, tool presetting, programmable tailstock, 2 motorized tool holders (1 axial and 1 radial), chip evacuator, set of fixed and manual tool holders and backup disk; Year of construction 1997; machine compliant with “CE” standards, in excellent condition.

Condition: used, Cnc multispindle lathe TORNOS MULTIDECO 26/6 Rjdpfxsuhaqhj Afcep
