CNC lathe

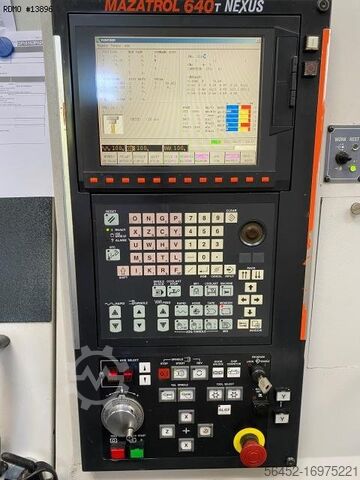

MAZAK QT NEXUS 300MY/1500

Condition: excellent (used), New 2008 Swing over bed - 600 (Ø 23.62) Diameter × length - Ø 300 × 600 (Ø 11.81 × 23.62) Max. diameter - Ø 380 (Ø 14.96) Max. travel range of Z/X axis - 600 / 240 (23.62 / 9.44); Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm; X-axis: FANUC 2.8 kW (4 HP) /3000 rpm Diameter of spindle bore/Draw bar bore - STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03) Spindle speed - STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm Chuck diameter - STD: Ø 8” ; OPT: Ø 10” Hydraulic Tailstock – travel 465 (18.3) MT. No.4 VDI Tool stations - OPT: 8 STD: 10 Hsdsrfx Tnopfx Ahuong Coolant Chip conveyor Power requirement - 208-220 volts / 100 Amps / 3 Phases / 60 Cycles Floor area (L × W × H) - 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51) Gross weight (approx.) - 5200 kg (11440 Ibs)

Year of construction: 2021, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER and LOADING/UNLOADING SYSTEM Hnodpfx Ahjwwxuzjuog X-AXIS TRAVEL: 4064 mm Y-AXIS TRAVEL: 2032 mm Z-AXIS TRAVEL: 70 mm WORKING AREA: 4000 x 2000 mm ADMITTED LOAD ON TABLE: 1270 Kg SOURCE: FIBER 6000 ; 6000 W CONTROL UNIT: ByVISION ACCESSORIES: PORTABLE HANDWHEEL ; FUME EXHAUSTER NOTE: WITH SYSTEM ANTIL SPA 4020 yom 2021

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, working width: 600 mm, input voltage: 400 V, overall weight: 3,560 kg, workpiece height (max.): 170 mm, The fast deburring machine for deburring, rounding and finishing steel cut parts up to 600 mm wide. This Q-Fin deburring and finishing machine was developed especially for applying a large radius of up to 2 mm on steel sheet. With the SER600 Super Edge Rounder from Q-Fin it is possible to deburr, grind, edge break, round off, remove slag, remove oxide skin or apply a line finish to sheet metal up to 600 mm wide. A combination of these operations is also possible. The throughput of the SER600 is 3 to 5 times higher than comparable machines. This new 2024 machine is equipped with magnetic support, making it suitable for processing steel cut parts and other magnetic materials. This machine is equipped with as many as 5 machining stations. Easy operation through an HMI touch screen on the front of the machine. The first station of the SER600 consists of a grinding unit. The grinding belt of this unit removes burrs and/or burn-in points from the product surface. If you have no burrs, you can leave the grinding belt off or remove them. It is also possible to apply a line finish to your product with a finer grinding belt or finish with a scotch-brite belt. The second and the third station consists of the disc brush unit containing 4 oscillating disc brushes. The fourth and the fifth station consists of 2 round brushes, rotating counterclockwise and clockwise. With the brushes you remove the sharp edges of the product by breaking the edges or, by the unique combination of two brush systems, edge round them with a radius up to R=3 mm. The installation of special brushes makes this SER600 with magnetic system also very suitable to remove the oxide skin of steel products or slag from plasma cut products. We sell the combination with a WES6000 wet working grinding dust extraction system as 'SER600 Set'. Hnodpfxol Dw D Eo Ahueg The WES6000 was developed by Q-Fin to extract grinding dust safely and without pressure loss. This fully stainless steel extraction system is a wet-acting system that extracts grinding dust from stainless steel, steel and aluminum, eliminating the risk of fire and explosion. According to Q-Fin, it is the safest, easiest and most durable way to extract grinding dust. No more grinding dust in the air and/or work environment with the WES6000. At this moment we have two SER600 machines in stock: 1x new (built year 2025) 1x used for only a few months; as new. built year 2024. Both machines can be viewed by appointment in Bergeijk. Both machines have a 1 year warranty on construction and all non-wearing parts. We can also provide on-site installation of the SER600 + WES6000) including training for the operators. - Connected load SER600 machine: 400 V, 50 Hz, 32 A, 16 kW - Dimensions: 3640 x 1585 x 2085 mm (L x W x H) - Weight: 3560 kg

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Hnsdpfx Ahjd Tm D Eeujg Good condition

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Hsdpfx Ahohrihyjusng

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm spindle max 8000 Toolchanger ATC: 20 pos Hnodpfx Ashpq U Uohueg tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m height 2,8m free loaded on truck EXW 01360 LOYETTES

Condition: like new (used), Year of construction: 2021, Fabric cutting machine Lectra VIRGA.FA.CUT.MOTIF-E, year 11/2021, useful width 1.70 cm. Single cut, specific machine for cutting lines, squares and panels. Hours worked 86. Connected machine available for any tests. Hnodpjvva Uujfx Ahueg

Condition: used, Year of construction: 2011, Mazak HC Nexus 5000-II Mazatrol Matrix Nexus Year: July 2011 Pallet Size: 500 x 500 mm Movement: - X: 730 mm - Y: 730 mm - Z: 740 mm Spindle Speed: 12,000 rpm Hnedpfxjv Tvh Sj Ahujg Tool Changer: 40 positions Chip Conveyor: Chrome

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 155436, Positioning B-axis with minimum increment 0.001 degrees Bar Feeder Interface Automatic part pick-up Synchronized tapping for live tools Coolant through milling head 15 bar Rear belt chip conveyor Hedpfxowb Epas Ahueng

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Hnodpswidp Ijfx Ahueg
