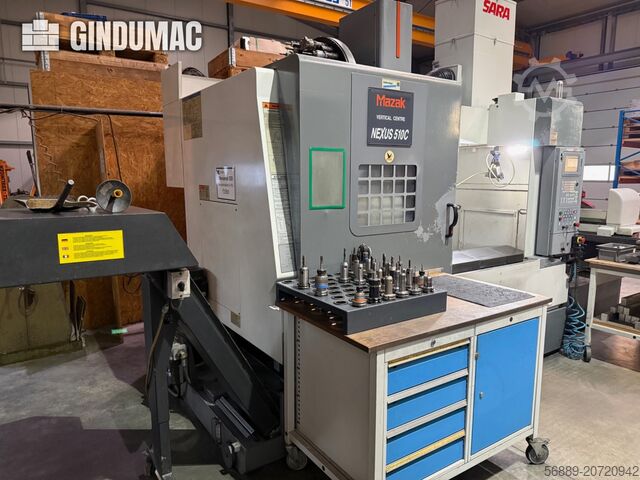

2005 Mazak VCN 510C

Mazak VCN 510C

Condition: ready for operation (used), Year of construction: 2003, General Data Machine weight 6000 kg Main Drive Number of axis 3 Spindle Speed 12000 RPM Tool taper SK 40 Fedpex Enlrofx Ah Iepr Movement X-Axis Movement 1050 mm Z-Axis Movement 500 mm Y-Axis Movement 500 mm This 3-axis Mazak VCN 510C was manufactured in 2003. It features a spindle speed of 12,000 rpm with an SK40 taper and a tool magazine with 30 positions. The table size is approximately 1300 × 550 mm, and it includes a cooling system with 15 bar internal pressure. Consider the opportunity to buy this Mazak VCN 510C vertical machining centre. Contact us for more information. Application Types Milling

Condition: good (used), Year of construction: 2010, Heidenhain 530 Control, Traverses X Y Z: 1050 X 510 X 510mm, Table 1300 X 550mm, Distance From Spindle Nose To Table 150 ~ 660mm, Fedpfjucdvqox Ah Iepr Maximum Workpiece Weight 1200kg, Spindle Speed 0 – 12000rpm, Spindle Taper DIN40, Spindle Motor 11kW, 30 Station ATC, Swarf Conveyor, Coolant, Low Volt Light ,

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Mazatrol Matrix, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel X-axis: 1,050 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Rapid traverse X-axis: 36 m/min Rapid traverse Y-axis: 36 m/min Fpjdpfexywhvex Ah Isr Rapid traverse Z-axis: 36 m/min Table size: 1,300 x 550 mm Main spindle speed: 12,000 rpm Number of tool stations: 30 Spindle taper: SK 40 MACHINE DETAILS Control: Mazatrol Matrix Motor power: 11 kW EQUIPMENT Through-spindle coolant 5 bar Electronic handwheel Chip conveyor

Condition: used, Year of construction: 2005, Mazak VC Nexus 510C Mazatrol 640M Nexus Year of manufacture: 2005 Table: 1300 x 550 mm X: 1050 mm Y: 510 mm Z: 510 mm 12,000 RPM/18.5 kW spindle: ISO-40 ATC: 30 positions tool measure, CTS 15 bar Fedpfxexqltzj Ah Ispr Performance CNC optional package YOM: 2005 Table: 1300 x 550 mm Y: 510 mm X: 1050 mm Spindle: ISO-40 Z: 510 mm ATC: 30 positions

Condition: used, Year of construction: 2006, x-travel 1050 mm y-travel 510 mm z-travel 510 mm control Fusion 640 M Nexus spindle taper DIN 69871/SK40 Feed speed 8000 mm/min. turning speed range 35 - 12.000 U/min rapid travel x/y/z 36 m/min distance spindle /table max. 660 mm distance spindle /table min. 150 mm no. of tools in the magazine 30 Stück tool taper CAT 40 Tool diameter 80 mm wotkpiece diameter with 2 vacant positions max. 125 mm max. tool weight 8 kg max. tool length 350 mm table length 1300 mm table width 550 mm number of T-slots 3 T-slot - width 18 mm T-slot - distance 100 mm max. table load 1200 kg table height over floor 850 mm coolant tank 250 l coolant pump 4,5 bar internal coolant system feed 15 bar coolant capacity 271 l/min required air pressure 700 l/min spindle drive 18,5 connected load frequency 400 V connected load 36,6 kVA frequency 50 Hz Needed pneumatic pressure 5 (bei 200 l/min) bar weight of the machine ca. 6,9 t dimensions of the machine ca. 2,90 x 2,84 x 2,81 m Including special accessories: -Cooling through the spindle (15 bar) -Chip conveyor, hinged belt on the left side -Torque-dependent drilling cycle (Mazatrol) -Automatic determination of drilling depth increments after torque detection. (preferably in combination with HSS tool) -Interface set Contents: - Interface for keyboard - Interface for mouse Fodpfx Ahsxp Rywj Iopr - Interface for printer Retrofitting not possible Machine color gray / black -CNC Performance Option Package Package contents: - Shared variables (600 pairs) - MAZAK Tornado thread tapping (EIA/ISO) - Synchronous thread cutting - EIA/ISO input function - EIA/ISO special function Spiral interpolation (G02.1, G03.1), 3D tool correction (G40-G42) Scaling (G50, G51) etc. - EIA/ISO, Constant feed (G93) When using this function, the feed rate remains constant for straight and curved combinations on the contour. - EIA/ISO tool length measurement (G37) - EIA/ISO, programme unit stop function Programme sequence is automatically stopped at a specified programme unit. - MAZACC-2D (Mazatrol & EIA/ISO) Precision control function for precise vector interpolation and optimal acceleration and deceleration at edges and radii. This enables improved two-dimensional shape accuracy. - Additional workpiece coordinate system (G54.1 P1 - 48) 48 pairs - Spiral machining function (G33) for boring head machining (e.g. with d'Andrea tool) - Used machine without warranty - - All dimensions, weight and performance data are non-binding

Condition: excellent (used), Year of construction: 2007, operating hours: 2,770 h, machine/vehicle number: 199581, Mazak Vertical Centre Nexus 510C-II (2007) 4th axis Serial number: 199581 Low working hours: 2770 Matrix Nexus control Kitagawa 4th axis EIA/Mazatrol Control Mazatrol tool length measuring system Through coolant CAT40 tooling 12,000 rpm main spindle Full set of manuals Fjdpfsv D E Iiox Ah Ijpr This item is physically in stock and can be seen in full working order, at our showroom. Delivery and installation can be arranged at extra costs.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 34,200 h, General Data Machine weight 7100 kg Control Unit Fjdox D Eguspfx Ah Ijpr Brand MAZATROL Model MATRIX NEXUS Main Drive Number of axis 4 Movement X-Axis Movement 1050 mm Y-Axis Movement 510 mm Z-Axis Movement 510 mm Table Table load 1200 kg Tools Number of index 30 This 4-axis Mazak NEXUS VCN 510C-II was manufactured in 2007. It features a Mazatrol Matrix NEXUS CNC control, X-axis travel of 1050 mm, Y-axis travel of 510 mm, Z-axis travel of 510 mm, and a 4th axis KITAGAWA rotary table. The machine has a table size of 1300 × 550 mm and can handle a maximum load of 1200 kg. Consider the opportunity to buy this Mazak NEXUS VCN 510C-II vertical machining centre. Contact us for more information. Application Types Milling
