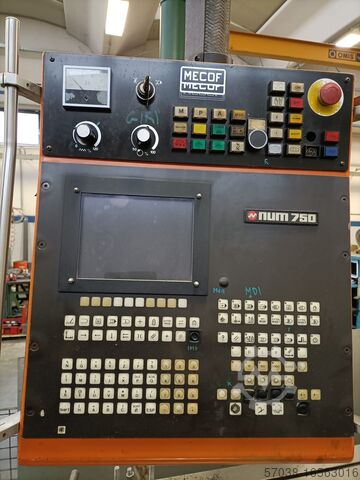

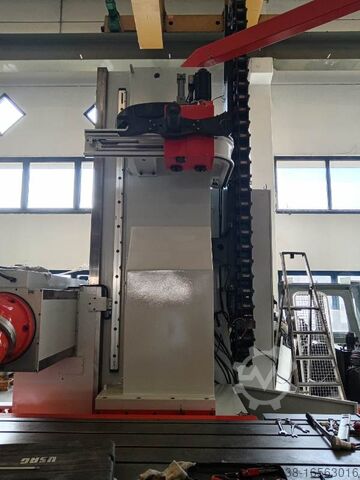

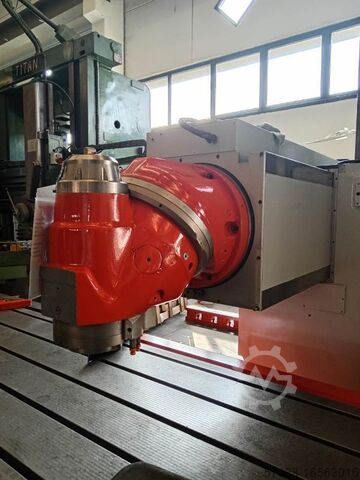

Travelling column milling machine

MECOF CS 90

Condition: used, Year of construction: 2008, x-travel 12.000 mm y-travel 1.500 mm z-travel 3.500 mm Gtjdpfexvdunex Ac Aet feed 20.000 m/min Tool adapter DIN 69871 A50/HSK63

Condition: excellent (used), Polish production Rafamet lathe for sale, efficient machine in good condition after employing electrics and management by Rafamet. The machine worked until the very end, currently disassembled loading machine. Technical data Track width (for normal version) - 1435 mm Track width (for special execution) - 1524 or 1676 mm Wheel diameter - 800-1500 mm The minimum distance between the axes of the sets - 1500 mm Maximum axle clamping on the rails - 25 tons Rotation of drive rollers (stepless) - 15-82 rpm Circumferential speed of drive rollers - 7.5-43 mm/min Feeds of copying supports (stepless) - 0.95-34 mm / min Travel of external jacks - 540 mm/min Travel of hydraulic jacks - 410 mm/min Slide travel - 2300 mm/min Sliding rail travel - 9000 mm/min Weight including standard equipment 25 200 kg Godpsmidwcefx Ac Ajtt Installed power 83kW (after modernization 58kW)

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 120 mm, travel distance W-axis: 450 mm, For sale: Hauser coordinate grinding machine, model S35-400 The machine is in excellent condition and underwent a partial overhaul in 2024 for €15,000. The machine is equipped with 6 high-quality grinding motors, a face motor, and turbines. TECHNICAL DATA Distance between column and spindle: 365 mm Clearance between table and spindle: 485 mm Main spindle diameter: 100 mm X-axis: 500 mm Y-axis: 350 mm Z-axis: 120 mm W-axis: 450 mm U-axis: 5.5 mm Maximum taper grinding: 16° Table size: 600 x 380 mm T-slots: 6 units, 10 mm width, 50 mm spacing Table load capacity: 300 kg Speeds and Tool Holders Speed 22S: 4,500 - 22,500 rpm 45S/45ST: E19 Speed 45S/45ST: 9,000 - 45,000 rpm 80S: F6 Speed 80S: 40,000 - 80,000 rpm T10/T16: Ø 3 mm Speed T10/T16: 100,000 / 160,000 rpm Slot grinding attachment: 2,900 - 34,500 rpm Planetary movement: 5 - 250 rpm C-axis: 0 - 5 rpm X/Y feed: 0 - 1,200 mm/min W-axis feed: 900 mm/min Z-axis feed: 0.5 - 12,000 mm/min Gjdowtqthjpfx Ac Astt MACHINE DETAILS Digital measuring accuracy: 0.001 mm Base deviation: 0.003 mm Power: 7.5 kW Compressed air requirement: 20 m³ System pressure: 5 bar Footprint: 3.5 x 4.4 m Machine height: 3.5 m Connection value: 8.3 kVA Weight: 3.1 t EQUIPMENT - Slot grinding attachment - Rotary table, 300 mm diameter - Swivel table, 200 mm diameter - Coolant system - Extraction unit - Very high-quality accessories included Transportation and loading can be arranged across Europe at extra cost upon request. Prices plus VAT. Viewing by appointment is possible. Contact us—our team is happy to assist you. Trade-in or exchange possible! MACHINE PROCUREMENT / SALES PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Year of construction: 2000, condition: like new (used), Retrofitted: 2024/2025 Gtjdpfou Im Rwex Ac Aet Numerical control: HEIDENHAIN TNC-426 Technical features Dimensions Table dimensions: 3600 x 1000 mmNumber of T slots: 7T slots dimensions: 22 mm Traverses of axis X axis traverse: 2700 mmY axis traverse: 1000 mmZ axis traverse: 1000 mm Milling head Head type: Universal Auto-indexing BIRA – B body (every 1º) and C body (every 2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871-B) / Pull stud: DIN 69872-BSpeed range: 60 - 2000 rpmSpindle power: 22 kW Feedrates Feedrate (X / Y-Z): 5000 mm/minRapid feedrate (X / Y-Z): 10000 mm/min Weight and dimensions Maximum weight on table: UndeterminedMachine weight approx.: 30000 kgMachine dimensions approx.: 7900 x 6250 x 3640 mm Accesories GuardingAutomatic tool changer: ATC30Chip conveyor: rear longitudinalExternal coolant through spindle (B form)Electronic handwheel: New HR-510 Sales conditions Warranty: YesSale price (Ex Work): On request View all technical features

Condition: used, SCHULER TYPE 315-400 Gedpfx Acjrgp N Hj Astt PRESSURE: 315t LENGTH OF STROKE: 30-160mm STROKES PER MIN: 36

Year of construction: 2001, condition: like new (used), Retrofitted: 2024 Gtsdpfx Aeugbrqsc Aot Numerical control: HEIDENHAIN TNC426 Technical features Dimensions Table dimensions: 6000 x 1000 mmNumber of T slots: 7T slots dimensions: 22 mm Traverses of axis Longitudinal traverse X: 5040 mmVertical traverse Y: 1000 mmTransversal traverse Z: 1500 mm Milling head Head type: Fixed frontalTool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871)   /   Pull stud: DIN 69872-BSpeed range: 60 - 3000 rpmSpindle power: 22/30 kW Feedrates Feedrate: 5000 mm/minRapid feedrate (X / Y,Z): 10000 mm/min Weight and dimensions Maximum weight on table: No restrictionsMachine weight approx.: 43000 kgMachine dimensions approx.: 11560 x 6150 x 3538 mm Accesories Guarding (Option: pendular guarding)Automatic tool changer: AH40Chip conveyor: 2 longitudinalElectronic handwheel: HR-410External coolant Sales conditions Warranty: 6 months mechanical partsSale price (Ex Work): On request View all technical features

Condition: used, functionality: fully functional, KUKA & ABB Axes – Various Lengths & Load Capacities Available! We offer a wide selection of linear and auxiliary axes from the brands KUKA and ABB – ideal for expanding existing robotic systems or implementing new automation projects. Godpfx Aexxki Doc Aett Available Models • KUKA axes for KRC2 and KRC4 • ABB axes for IRC5 Variants • Various lengths • Different load capacity classes • Optional with or without motor/gearbox Condition & Quality • Industrial standard, tested & fully functional • Immediately available (depending on model) Ideal for: • Automation • Material handling • Welding • Pick & place • Special solutions — Enquire now! Simply send us your required length, load capacity, or controller specification – we will prepare a tailored offer for you.

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Gjdjvk E Nmspfx Ac Aott Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: used, WIDTH 1250 MM DEPTH 1700 MM HEIGHT 5000 MM (3000 + 2000) Gsdpfet Hrymsx Ac Astt NR 20 T-SLOTS

Condition: used, Year of construction: 1974, operating hours: 10,000 h, functionality: fully functional, machine/vehicle number: 8002/6410, drilling depth: 1,000 mm, drill diameter: 30 mm, type of input current: three-phase, spindle motor power: 21 W, table length: 1,000 mm, input voltage: 550 V, mount diameter: 160 mm, number of spindles: 1, drilling capacity: 1,000 mm, quill diameter: 30 mm, Equipment: rotational speed infinitely variable, Deep hole drilling machine for up to 1000 mm and 30 mm diameter, used for drilling aluminium, regularly serviced, includes a significant quantity of drills. Machine is fully operational and in continuous use. Siemens control, Simatic PANEL, documentation available. Gtodpfx Aox Ehg Tsc Ajt
