Circular saw for light metal & aluminium

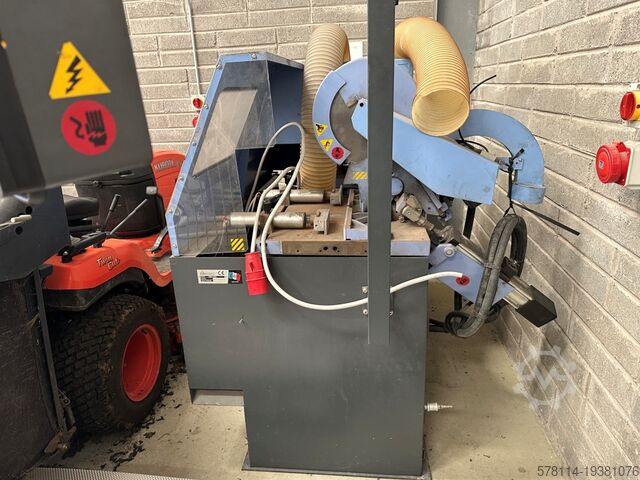

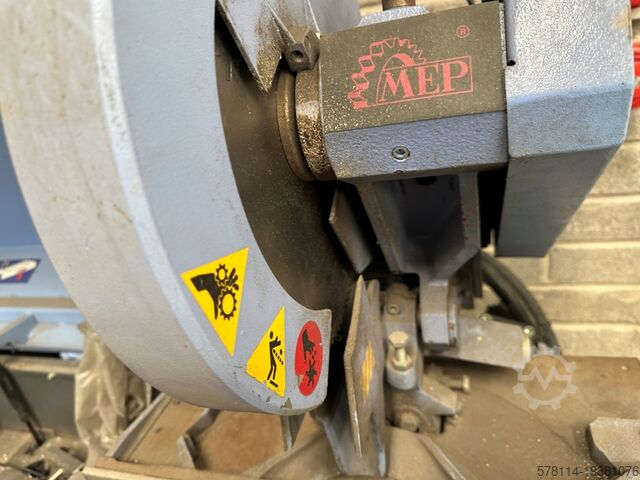

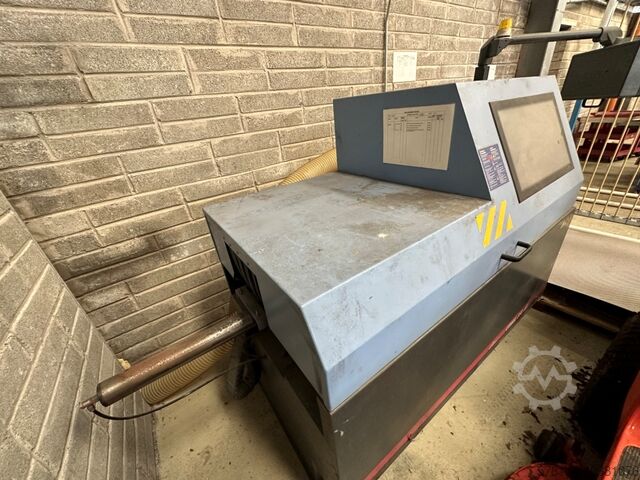

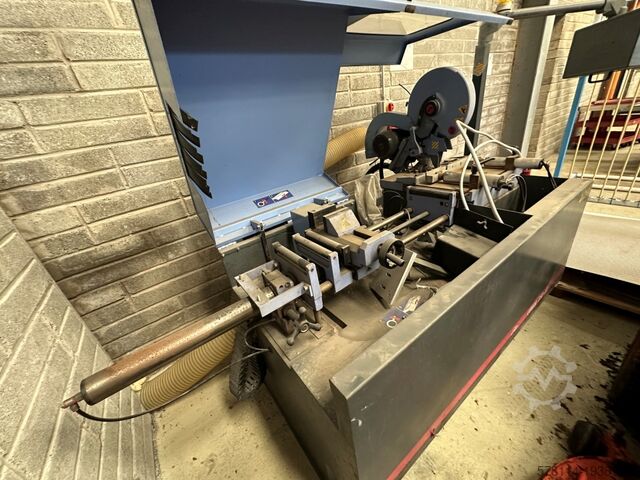

MEP COBRA 350AX

Condition: used, functionality: fully functional, saw blade diameter: 350 mm, total length: 2,720 mm, total height: 1,740 mm, total width: 1,460 mm, overall weight: 560 kg, Automatic Metal Circular Saw MEP COBRA AX • Cutting angles: 90°, 45° left, 45° right • Cutting capacity (90°, round tube): 105 mm • Cutting capacity (90°, rectangular tube): 180×70 mm • Cutting capacity (45°, round tube): 105 mm • Cutting capacity (45°, square tube): 95 mm • Cutting capacity (45°, rectangular tube): 135×60 mm • Saw blade diameter: 350 mm • Saw blade bore: 32 mm • Automatic lubrication • Operation modes: manual or automatic • Pneumatic material feed • Total power requirement: 2.29 kW • Dimensions (L x W x H): approx. 2720 x 1460 x 1740 mm • Machine weight: approx. 560 kg Description: For sale is a bandsaw / metal bandsaw in good used condition. The machine operates flawlessly and is ready for immediate use. Upon request, we can provide a video demonstrating the machine in operation. Location: D-89350 Dürrlauingen Price: €1,450 EXW Gedey Rmcaopfx Ahtobr The saw is sold under the margin scheme according to § 25a UStG – therefore, VAT will not be shown separately. Delivery can be arranged within a radius of up to 400 km by agreement. If you are interested or have any questions, please feel free to get in touch. Viewing by appointment is possible.

Year of construction: 1990, condition: used, machine/vehicle number: 102-014-3150, disk of circular saw-Ø: 400 mm cutting area at 90° round: 130 mm cutting area at 90° square: 210 x 80 mm cutting area in mitre at 45° round: 130 mm Gbodpfedbp Eqox Ahtjr cutting area in mitre at 45° square: 160 x 80 mm cutting speed: 11/22 m/min space needed: 2650 x 1450 x 1980 mm weight: ca. 1100 kg

Condition: ready for operation (used), Fully hydraulic automatic circular saw for workshop and production. The material is clamped by a hydraulic vices. The control offers simple machine operation. The length can be adjusted via a vernier with 0.1 mm resolution. The piece count adjustment Gedpeiuz Smefx Ahtobr The piece count is set by a piece count counter which switches off the machine when the piece count is reached. The material feed is carried out via a hydraulic cylinder and ensures the highest cutting accuracy. If you have any questions or need a different cutting range, just give us a call. We would be pleased to show and demonstrate the machines to you. Technical data: Bandsaws KASTO Machine type GKS AU Technical data: Drive power Drive power saw gear. 1,6/2,5 KW Cutting speed 14/28 m/min Cutting range round: 140 mm Cutting range flat: 160x90 mm Saw feed hydraulics Hydraulic Saw blade dimension 425 mm Hydraulic material feed 600 mm Material support. 1050 mm Machine dimensions Length/width 2575x2700 mm Height 1900 mm Weight of the machine 1350 kg Year of manufacture 1987

Condition: good (used), Metal band saw, fully automatic, band saw machine, band saw, vertical band saw, horizontal band saw, hydraulic horizontal band saw machine, automatic band saw, automatic metal band saw -Manufacturer: MEP, Horizontal band saw, Automatic band saw -Drive: 4.4/5.7 kW -Cutting data flat 90°: 320 x 200 mm -Cutting data for 90° square: 250 mm -Cutting data flat 45°: 240 x 200 mm Godpfx Ahsy Hu H Eetebr -Cutting data for 45° square: 210 mm -Saw blade speed: 2x speeds -Saw blade: 3150 mm -Coolant system -Transport dimensions: 3 meters -Weight: 1300 kg

Condition: used, Year of construction: 1991, saw blade diameter 400 mm cutting diameter 130 mm capacity 90 degrees: square 120 x 120 mm capacity 90 degrees: flat 220 x 80 mm feed length 600 mm feed length: multiple 1800 mm cutting speed 10/13/15/20/26/30 m/min mitre joint cuts -/+ degrees 60 total power requirement 5,5 kW Gbedpfx Asv Hhrvehtor weight of the machine ca. 1,8 t dimensions of machine L x W x H 2,60 x 1,21 x 1,98 m - mitre cutting +/- 60 ° with DRO - Accessories: new sawblade 400 mmø, coolant

Condition: used, Year of construction: 1991, machine/vehicle number: 113307651086088, functionality: fully functional, cutting height (max.): 260 mm, total height: 2,100 mm, total length: 2,200 mm, total width: 2,100 mm, saw band length: 4,115 mm, saw band width: 38 mm, The Kasto SSB 260 VA is a fully automatic bandsaw machine designed for precise serial cuts of solid material, pipes, and profiles. It stands out for its compact design and high cutting accuracy. The machine features hydraulic workpiece clamping, automatic feed, and a coolant system. Additionally, a chip conveyor is integrated to increase efficiency. Cutting range round: 10 – 260 mm Cutting range square: 260 x 260 mm Smallest cut-off length: 5 mm Single feed: 600 mm Multiple feed: max. 5,400 mm Cutting speed: 15 – 125 m/min (stepless) Gbjdpfx Ahewqw Tvetor Saw blade dimensions: 4,115 x 38 x 1.3 mm Drive power: 4 / 6.5 kW Machine weight: 2,110 kg Machine dimensions (LxWxH): approx. 2,160 x 2,080 x 2,015 mm

Condition: new, saw blade diameter 400 mm capacity 90 degrees: round 135 mm Gsdpfjvn U Hvjx Ahtjbr capacity 90 degrees: square 130 mm 200 x 80 mm saw blade turning speeds U/min total power requirement kW weight of the machine ca. 1,2 t dimensions of the machine ca. 2,0 x 1,8 x 1,95 m Automatic circular saw with - Feed type RB 1500 - Roller conveyor 1500mm Good condition

Condition: good (used), Year of construction: 2004, functionality: fully functional, cutting height (max.): 200 mm, cutting width (max.): 250 mm, total height: 1,750 mm, total length: 2,500 mm, total width: 2,300 mm, overall weight: 2,500 kg, For sale is a fully functional KASTO twin AE3 – a robust horizontal bandsaw machine for the reliable and economical cutting of solid and profile materials in general mechanical engineering, as well as in series and single-piece production. With a maximum material width of approximately 250 mm and a clamping height of approximately 200 mm, the machine is suitable for clean cutting of a wide variety of materials and cross-sections. The well-thought-out design, with a feed length of approximately 2200 mm and a material discharge length of approximately 1600 mm, ensures a comfortable and efficient material flow. The machine is complemented by two discharge roller conveyors, each with a length of approximately 1000 mm, resulting in a total material discharge length of approximately 4000 mm – ideal for the safe handling of even longer workpieces. The compact design, with dimensions of 2500 x 2300 x 1750 mm and a weight of approximately 2500 kg, offers high stability and smooth operation, which has a positive effect on cutting quality and service life. The scope of delivery also includes approximately 8 spare saw blades, which enable immediate and uninterrupted use of the machine. Overall, this is a reliable and versatile bandsaw machine that combines precision, performance, and efficiency in industrial production. --- Optional accessories A conveyor belt in lengths of 310 cm and 420 cm can be purchased separately to optimize material flow and provide comfortable handling of the cut material. --- You are welcome to inspect the machine in our workshop while it is running. If you are interested, we will gladly send you demonstration videos of the machine. Upon request, we offer delivery and commissioning of the machine as part of a comprehensive, hassle-free package. You are in the best hands with us – professional, reliable, and with a passion for machines! Gbodpfx Ajzk Hd Ushtjr PS CNC Service Germany GmbH & Co. KG

Condition: used, Year of construction: 2001, saw blade diameter 350 mm 190 mm speeds 15 / 30 / 45 / 90 U/min Gbodpjyvvpmefx Ahtor power requirement 1,8 / 2,6 kW kW

Condition: excellent (used), Year of construction: 2004, 1 used, very well-maintained fully hydraulic circular cold saw automatic with flat vertical guides Max. saw blade diameter: 325 mm Cutting capacity at 90°: - Round: 100 mm - Square: 85 x 85 mm - Rectangle, flat: 165 x 85 mm Infinitely variable speed range: 20 - 100 rpm Max. saw blade dimensions: 325 x 3.0 x 40 mm Single stroke feed: up to max. 550 mm Multiple stroke feed: for lengths over 550 mm Working height: 930 mm Drive power: 3 kW / 400 V Machine dimensions (L x W x H): 2150 x 1450 x 1950 mm Weight: approx. 650 kg Accessories / Special Features: • Fully hydraulic design • Fully automatic operation, single cuts also possible Gsdpfx Ahoy E Uk Iotobr • Vise feed • 90° cutting angle • Infinitely variable speed range 20 - 100 rpm • Length setting via programming on the control panel • Cutting speed and feed can be continuously adjusted on the control panel during operation • Single and multiple stroke feed • Adjustable flat vertical guides • Coolant system • Micro-spray system • 1 used saw blade included • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany
