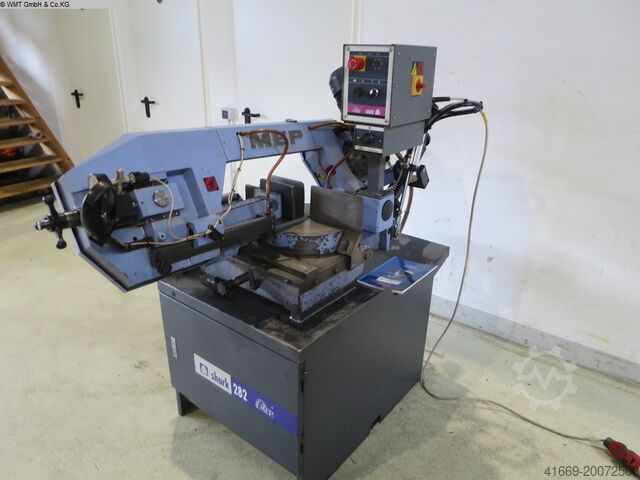

Bandsaw - Horizontal

MEP SHARK 282 CCS

Condition: new, Model Name Chsdpfegvkbcjx Abwoc Shark 282 CCS

Condition: new, cutting diameter 250 mm saw band length 2950x27x0,9 mm table height mm band speed 36/72 m/min total power requirement 1,8 kW weight of the machine ca. 440 kg dimensions of the machine ca. m Basic equipment: Chodpfx Aofg E H Nebwec Vice with quick adjustment and adjustable guide bars Hydraulic band tensioning device with tensioning pressure display Base frame with removable coolant tray Chip clearing brush Precision stops set for cuts of: 0°, 45° and 60° left and 45° right Turntable for double miter cuts Electric coolant device 48 V (A micro spray device can be installed)

Condition: new, Year of construction: 2024, * manual cutting cycle * autom. cut: (via selector switch) with infinitely variable adjustment of the lowering speed and adjustment of the cutting pressure via compensation spring * Sturdy, torsion-resistant and low-vibration saw frame made of cast steel * large, easily adjustable and mounted turntable, centered by central axis bolts with indexing at 0° / 45° / 60° and internal table clamping for intermediate angles Cedpfjftmxvjx Abwshc * Vise with quick adjustment * HM band guides for highest cutting precision * hydraulic unit for saw blade tensioning and monitoring with display on manometer * clearly arranged control panel with all control elements * Base frame, coolant trough, coolant pump, chip brush * cutting diameter 250 mm * Cutting width 280 mm * saw blade dimensions 2950 x 27 x 0.9 mm * Vise opening max. 285 mm * belt speed 36 / 72 m/min * Cutting range at 90 degrees: round 250 mm * Cutting range at 90 degrees: square 220 mm * Cutting range at 90 degrees: flat 280 x 220 mm * Cutting range at 60 degrees: round 120 mm * Cutting range at 60 degrees: flat 140 x 80 mm * Cutting range at 60 degrees: square 80 mm * Cutting range at 45 degrees: around 200 mm * Cutting range at 45 degrees: flat left 220 x 200 / right mm * Cutting range at 45 degrees: square left 200 / right 170 mm * Machine weight approx. 0.4 t * Space requirement approx. 1.8 x 1.3 x 1.8 m

Condition: as good as new (ex-display), Year of construction: 2023, saw band length: 2,950 mm, saw band width: 27 mm, type of input current: DC, cutting capacity: 285 mm, cutting range round at 45°: 230 mm, cutting range round at 90°: 250 mm, Title MEP SHARK 282 CCS [with semi-automatic lowering] Article number SH282CCS Cjdpfxow N N Als Abwehc Motor power 1.5/1.8 kW Belt opening 285 mm Belt dimensions 2950x27x0.9 mm Weight 440 kg Speed 36/72 m/min. Cutting surface 0° 250 / 220x220 / 280x220 Cutting surface 45° right 230 / 200x200 / 220x200 Cutting surface 45° left 200 / 170x170 / 200x140 Cutting surface 60° right 120 / 80x80 / 140x80 Cutting surface 60° left Description MEP sawing machine: Basic equipment: Vice with quick adjustment and adjustable guide rails Hydraulic band clamping device with clamping pressure indicator Underframe with removable coolant tray Chip clearing brush Adjusted precision stops for cuts of 0°, 45° and 60° left and 45° right Length stop for cuts of the same length Material support arm, simultaneous connection option for roller conveyor/loading side Turntable for double mitre cuts Machine is designed for pallet truck/forklift transport M2 bi-metal band saw blade for solid and profiled material Tools and operating instructions Electrical equipment: Control panel labeled cable connections Control lamp for operational readiness Main safety switch Emergency stop button Speed changeover switch Thermomagnetic protection Undervoltage release Control handle IP 55 protected Phase comparator Low voltage system 24 Volt Electrical coolant system 48 V (attachment of a micro-spraying device possible) Motor 1.5/1.8 KW 2 speeds 36/72 m/min. Vice opening 285 Saw band 2950 x 27 x 0.9 Weight 440 kg

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: round 230 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 110 mm vice 285 mm turning speed range: 36/72 m/min saw band length 2.950 x 27 x 0,9 mm total power requirement 1,5/1,8 kW weight of the machine ca. 440 kg. dimensions of the machine ca. 1620 x 1360 mtr. Equipment: - robust electro-hydraulic band saw (INDUSTRY) - large bearing-mounted rotary table * for miter cuts from 45° right to 60° left - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut - manual cutting function selectable - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right Codpfxoxabpws Abwohc - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base frame with forklift pockets - operating instructions in German SPECIAL ACCESSORIES INCLUDED: - MEP LubeCut micro dosing device

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: round 230 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 110 mm vice 285 mm turning speed range: 36/72 m/min saw band length 2.950 x 27 x 0,9 mm total power requirement 1,5/1,8 kW weight of the machine ca. 440 kg. dimensions of the machine ca. 1620 x 1360 mm Equipment: - robust electro-hydraulic band saw (INDUSTRY) - large bearing-mounted rotary table Chsdpfx Asxaarksbwec * for miter cuts from 45° right to 60° left - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut - manual cutting function selectable - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base frame with forklift pockets - coolant system - operating instructions in German
