Bandsaw - Horizontal

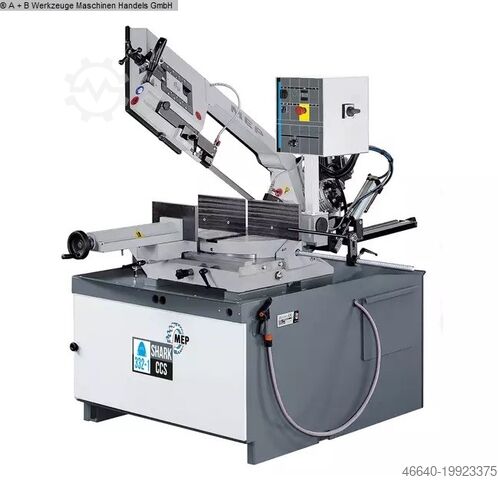

MEP SHARK 332-1 CCS

Condition: new, Model Name Shark 332-1 CCS Nlodjgvquwjpfx Afxjh

Condition: new, MEP SHARK 332-1 CCS metal band saw with semi-automatic lowering. MEP authorized dealer - please send us your inquiry! Motor power 1.5/1.8 kW Bench opening 335 mm Blade dimensions 3650 x 27 x 0.9 mm Weight 640 kg Speed 40/80 m/min. Cutting area 0° 300 / 260x260 / 330x260 Cutting area 45° right 260 / 250x250 / 270x200 Cutting area 45° left 200 / 180x180 / 200x160 Cutting area 60° right 180 / 170x170 / 170x170 Cutting area 60° left Description of the MEP sawing machine: Functioning in CCS version: After the material has been advanced and the vices have been closed, the cutting process begins. The lowering is controlled by the saw's own weight, balanced by a spring and regulated by a hydraulic brake cylinder. Once the cut is complete, the saw arm is manually raised to the required position for feeding the material. Electrical control panel (marked cable connections, operational readiness indicator light, main safety switch provided with padlock, switch or speed selector, emergency stop, thermal magnet protection, 24-volt low-voltage system) Electronic blade tension converter with on-screen display. Manual vice with quick-lock mechanism Base frame with coolant tray and chip drawer, which can be replaced with a motorized chip conveyor (accessory). Electric coolant pump for cooling and lubricating the saw blade. Chip removal brush Adjustable precision stops for making cuts of consistent length. Nlodpfxocgbt Rs Afxoh The machine is designed for pallet truck transport. Bimetal saw blade for solid and profile material Tools and operating instructions Motor 1.5/1.8 kW 2 speeds 40/80 m/min. Vice opening 335 mm Saw blade 3650 x 27 x 0.9 Weight 640 kg See image for cutting data For further technical data, please refer to the attached PDF document.

Condition: new, cutting diameter 300 mm Nledpfjxaaqtex Afxeh capacity 90 degrees: flat 330 x 260 mm capacity 90 degrees: square 260 x 260 mm capacity 45 degrees: flat 270 x 200 mm capacity 45 degrees: round 250 mm capacity 45 degrees: square 250 x 250 mm capacity 60 degrees: flat 170 x 170 mm capacity 60 degrees: square 170 x 170 mm capacity 60 degrees: round 180 mm turning speed range: 40 / 80 m/min saw band length 3650 x 27 x 0,9 mm weight of the machine ca. 640 kg Equipment: - robust electro-hydraulic band saw (INDUSTRY) - large bearing-mounted rotary table * for miter cuts from 45° right to 60° left - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut - manual cutting function selectable - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base frame with forklift pockets - coolant system - operating instructions in German
