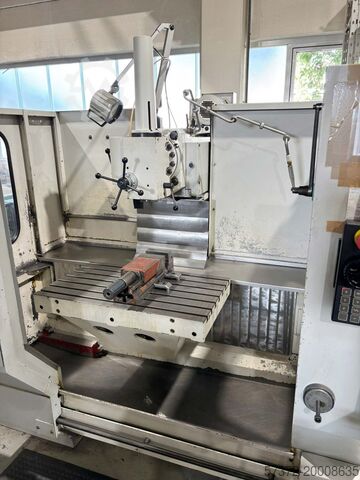

CNC Milling Machine

Mikron WF 31D

Condition: as good as new (ex-display), Year of construction: 1999, functionality: fully functional, WE OFFER MIKRON CNC AN VERY EXCELLENT OPORTUNETEY TO BUY AN NEW CONDITION MACHINE Chjdpfx Abovnz Exewjc MACHINE IS BRAND NEW CONDITION- NEWER USED FOR ANY WORK.

Condition: used, Year of construction: 1989, machine/vehicle number: 6766, x-travel:560 mm y-travel:500 mm z-travel:400 mm table-size:900 x 530 mm Cjdpfx Aecxxpqobwohc control:Heidenhain TNC 355 B/Q tool taper:ISO 40 / M 16 turning speed range:40 - 4000 U/min rapid traverse X-axis:6 m/min rapid traverse Y-axis:6 m/min rapid traverse Z-axis:5 m/min feeds x/y/z -stepless:2 - 3000 mm/min total power requirement:9 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,6 x 1,8 x 2,2 m

Condition: good (used), Mikron WF31D Precision milling and drilling machine Machine with chip and splash guard cabin Equipped with a Heidenhain TNC355 control system Technical specification The WF 31 D is a precision milling and drilling machine for series production and CNC training. Driven by an automatically shiftable stepped gearbox and Poly-V-belt. Vertical spindle can be extended by 90 mm; changeover from vertical to horizontal machining possible. Recirculating ball screws with DC drives enable simultaneous feed movements. Guides are protected against dust, chips and coolant. Technical data Manufacturer: Mikron Codpfxjwiucfj Abwjhc Type WF31D Control: Heidenhain TNC 355 Longitudinal movement (X): 560 mm Transverse movement (Y): 500 mm Vertical movement (Z): 400 mm. Drive power: 3.3/4.0 kW Speed range: 40-4000 rpm. Feed speed: 2-3000 mm/min Rapid traverse speed X/Y: 6000 mm/min, Z: 5000 mm/min. Electrical equipment Total installed rated power: 10.0 kW installed effective power: 7.3 kW. Operating voltage: 3 x 380 V - 50/60 Hz Protection class: IP 54. Max. permissible ambient temperature: +35 °C Relative humidity: 75 %. Dimensions and weights Width 2450mm Length 2800mm Height 2000mm Net weight of the machine: approx. 2570 kg. Further articles - new and used - can be found in our store! International shipping costs on request!
