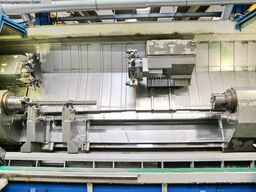

CNC Lathe

NILES SIMMONS N 30/3LT - 3500

turning diameter max. 750 mm
turning length 3.500 mm
Gsdszluhwjpfx Ahzeud
turning length Standard: 3.071 mm
control Sinumerik 840 D Siemens
Working height 1.300 mm
x-travel 435 mm
z-travel 3.071 mm
max. workpiece weight between centers 2.000 kg
turning speed range - main spindle 10 - 3.000 min/-1
power capacity - main spindel 61,2 / 195 kW
max. Torque 779 Nm
spindle head A 11 DIN 55026
spindle diameter in front bearing 180 mm
Spindle speed range subspindle 10 - 3.000 min/-1
power capacity - Sub spindle 73 / 233 kW
max. Torque 932 Nm
spindle head A 11 DIN 55026
spindle diameter in front bearing 180 mm
U-axis min. -5 - max. 430 mm
w-axis min. 276 - max. 3.347 mm
tool taper VDI 50
number of toolpositions 12 pos.
Number of driven toolspositions 12 pos.
Spindle speed - driven tool stations max. 3.000 min -1
power capacity - driven tool-stations 9,7 kW
Torque 50 / 31 Nm
x-axis Y0: min. -25 - max. 410 mm
x-axis Y+55: min 70 - max. 505 mm
x-axis Y-55: min -120 - max. 315 mm
y-axis -55 - +55 mm
z-axis min. 676 - 3.747 mm
tool taper VDI 50
number of toolpositions 12 pos.
Number of driven toolspositions 12 pos.
Spindle speed - driven tool stations max. 3.000 min -1
power capacity - driven tool-stations 9,7 kW
Torque 50 / 31 Nm
feed speeds X: 0,1 - 18.000 mm/min
feed speeds Z: 0,1 - 30.000 mm/min
rapid power traverse in X-and Z direction 18 / 30 m/min
Feed force 15 kN
total power requirement 85 kVA
weight of the machine ca. 16,0 t
dimensions of the machine ca. 9,0 x 4,0 x 3,3 m
CNC Lathe
NILES SIMMONS - N 30/3LT - 3500

- Extensive accessory package
- NOT INCLUDED: Tools on the turrets!
