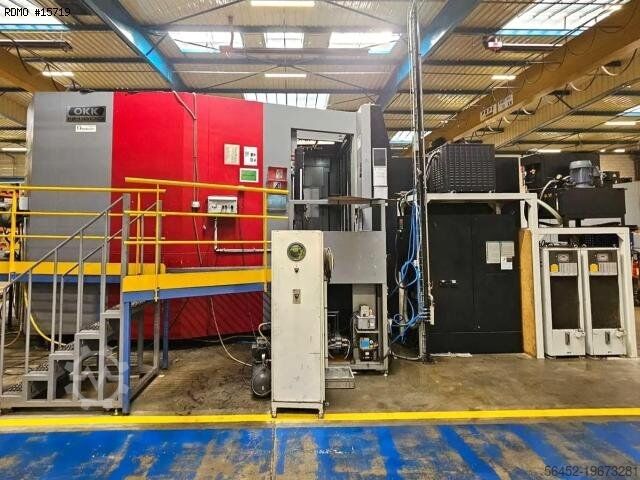

Horizontal machining center
OKK HM1600

Condition

Used

Location

Contamine-sur-Arve France

Show map

Machine data

Machine type:: Horizontal machining center

Manufacturer:: OKK

Model:: HM1600

Condition:: used

Price & Location

Location:: Contamine sur Arve, France

Call

Details about the offer

Listing ID:: A196-73281

Reference number:: 15719

Update:: 02.09.2025

Description

TECHNICAL DETAILS
- Number of axes : 4
MILLING SPINDLE
- Tool holder type : BT50
- Spindle power : 40 [kW]
- Spindle speeds : 12000 [rpm]
- Gearbox
- Speed ranges : 2
LINEAR AXES
- Travels on X/Y/Z axes : 2400/1650/1750 [mm]
- Rapid traverses rates (X/Y/Z) : 42 [m/min]
- Cutting feed rates (X/Y/Z) : 20 [m/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]

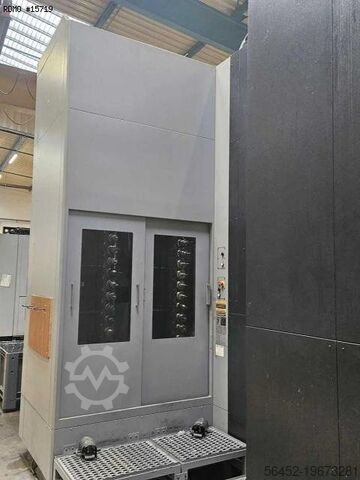

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 116
- Tool exchange time : 3.8 [sec]

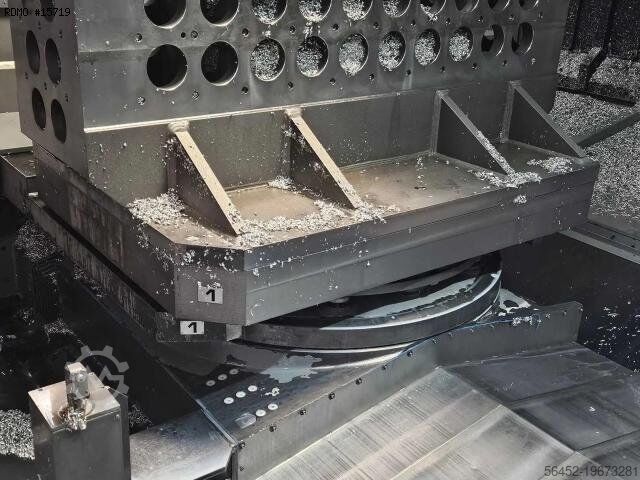

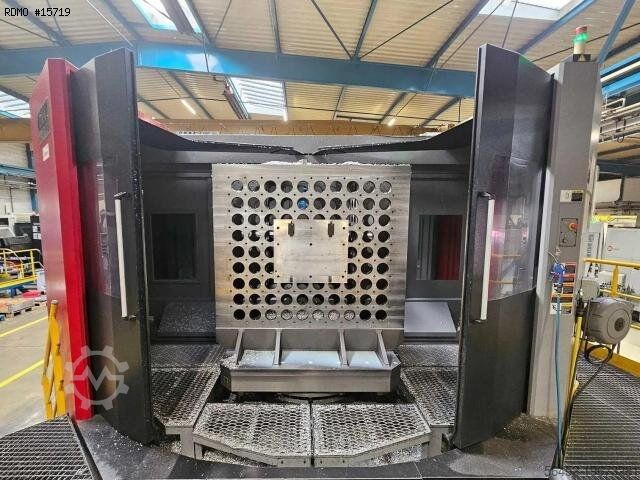

PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 1600 x 1250 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 5000 [kg]
- Distance table center / spindle nose (min./max.) : 100 - 1750 [mm]
- Maximum workpiece diameter : 2500 [mm]
- Maximum workpiece height : 1850 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 86 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 9.485 x 6.155 [mm]
- Machine height : 4.370 [mm]
- Machine weight : 50000 [kg]
MACHINE HOURS
- Number of working hours : 15446 [h]

EQUIPMENT

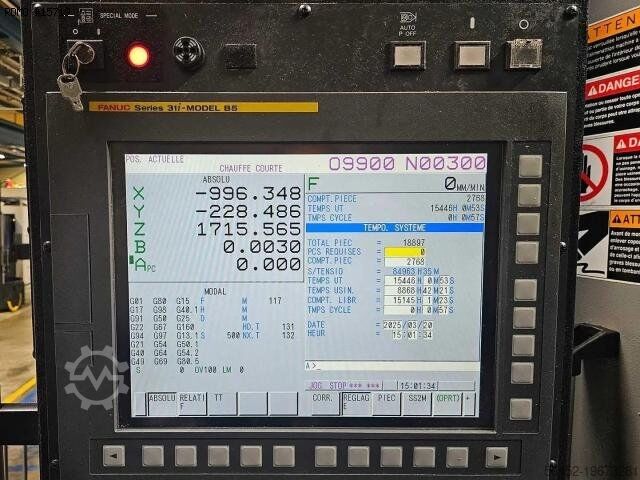

- CNC : Fanuc 31i-model B5
Interface : Ethernet / RS232 / USB / PCMCIA
- SOFT SCALE II
- Electronic handwheel
- Rigid tapping
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 70 [bars]
* Coolant through spindle
* with paper filtering unit
* with cooling unit for coolant
* With washing gun
* With cabin washing
- Chips conveyor
- Spindle cooling unit
- Tool probe
- Workpiece probe : Renishaw RMP60
- Tool breakage detection : SOFT AC
Dcjdpfx Aow Ephbeh Ssb
- Pallets number : 2
- Milling vice
- Tool-holders
