Turn-Mill Centre

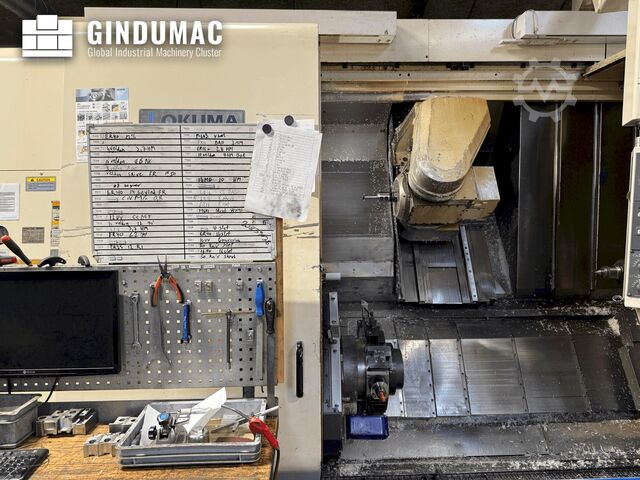

Okuma MacTurn 350

Condition: good (used), Year of construction: 2009, functionality: fully functional, turning length: 1,500 mm, turning diameter: 550 mm, spindle motor power: 22,000 W, spindle speed (min.): 3,800 rpm, spindle bore: 80 mm, power: 22 kW (29.91 HP), Equipment: rotational speed infinitely variable, Okuma Macturn 350 2SW-1500 Big Bore main spindle, machine type CNC turning-milling center Make / manufacturer Okuma Okuma Model / type MacTurn 350 2SW1500 BigBore Year of manufacture 2008 / 2009 Control OSP P 200 L IGF One Touch Advanced + CAS Spindle turning time 6437 h Technical data Max. turning diameter: 550 mm Max. turning length: 1,500 mm Travel path of upper turret (milling spindle): X-axis: 505 mm/190 mm/1670 mm Y-axis: 190 mm (+95 /-95) Z-axis: 1670 mm W-axis: 1680 mm Travel path of lower turret: X/Z 210 mm/ 1670 mm Main spindle “Big Bore” version Spindle motor main spindle 22 kW, 412 Nm Max. speed main spindle 3800 rpm Spindle nose main spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm C-axis 0.001 ° Counter spindle “Super Big Bore” version Spindle motor counter spindle 22 kW, 412 Nm Max. speed counter spindle 3300 rpm Spindle end counter spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm Milling spindle Spindle motor milling spindle: 11 kW Max. speed milling spindle: 12000 rpm Tool holder: HSK 63 B-axis: 0.001° Tool magazine: 44 stations Lower turret Tool positions: 12 Tool holder: VDI-40, Driven tool stations: 12 positions Max. power of driven tools: 7.5 kW Max. speed of driven tools 4500 rpm Machine weight: approx. 15,000 kg Space requirement 6000 x 3500 x 3000 cm Other features - High pressure cooling 40 bar - Chip conveyor Interlit ISF 614 - Heavy crane filter Interlit SBP 4 - Touch Setter - Helical Cutting - 4 Extra M-Code Set - 2x hydraulic power chuck SMW BH-D 315-95 diam. 250 mm - DNC- T1 interface - RS 232 C interface - Chuck blow-off function main counter spindle - TAS -S + TAC-C Status report after commissioning in Bergisch Gladbach Geometry measurement results Reverse play XA - axis 0.015 mm Reverse play XB - axis 0.015 mm Reverse play ZA - axis 0.020 mm Reverse play ZB - axis 0.020 mm Reverse play Y - axis 0.010 mm XA - axis measured with measuring mandrel at 300 mm 0.02, YA at 300 mm 0.007in T1,T2, T3 B-axis: alignment and function good M-drive lower turret: tested and good Milling spindle: tested up to 6000 rpm, no abnormalities Main/counter spindle tested , no abnormalities High pressure pumps function well, no abnormalities Accessories - 2 x hydraulic crane chuck SMW - pallet with 16 driven tool holders, 10 HSK 63 holders, 3 VDI 40 holders - lifting hook on the front Dodsvta Rdopfx Aghjku - all original axle locks Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, a tour of our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

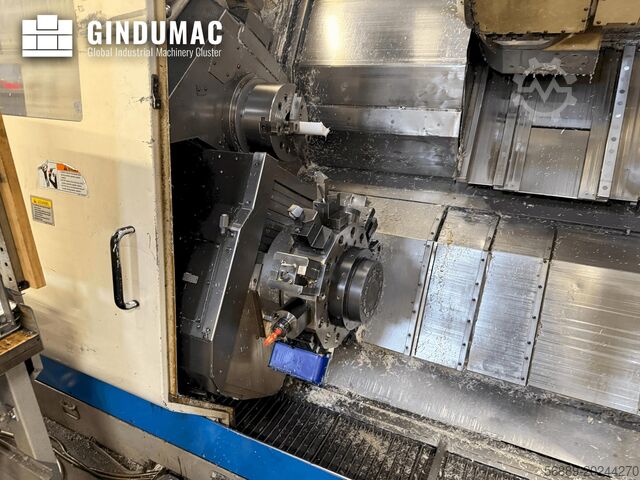

Condition: used, Year of construction: 2004, Max. turning length 1500 mm Spindle speeds (main spindle) 38-5000 rpm Spindle bore main spindle/subspindle 70/52 mm Spindle speeds (subspindle) 50-6000 rpm Spindle bore (subspindle) 80 mm Spindle speed on mill-spindle (B-axis) 200-6000 rpm (HSK 63) Max. turning diameter 550 mm Tool changer w/76 stations (extra tool magazine on the back of the machine) B-axis indexing 0,001 deg. Y-axis movement 190 mm (+95/-95 mm) Upper turret w/12 stations (HSK 63) & rotating tool stations 6000 rpm Lower turret w/12 stations (VDI) & rotating tool stations 5000 rpm Control: Dodpfx Asntkiyeghjku OSP-E100L Equipped with: Hydraulic chuck on main & subspindle (Rota 250 mm) Chipconveyor w/chip tray Air blowing on both spindles Automatic measuring incl. wireless High pressure coolant through spindles Touch setter OBS !! - The shown robot on photos is not included.
