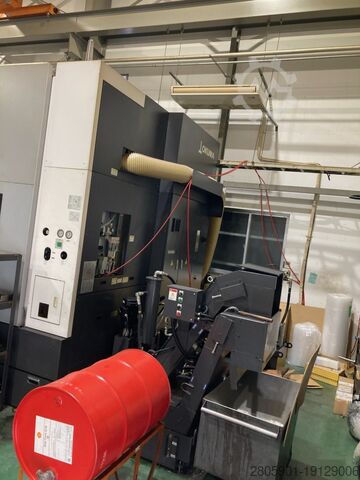

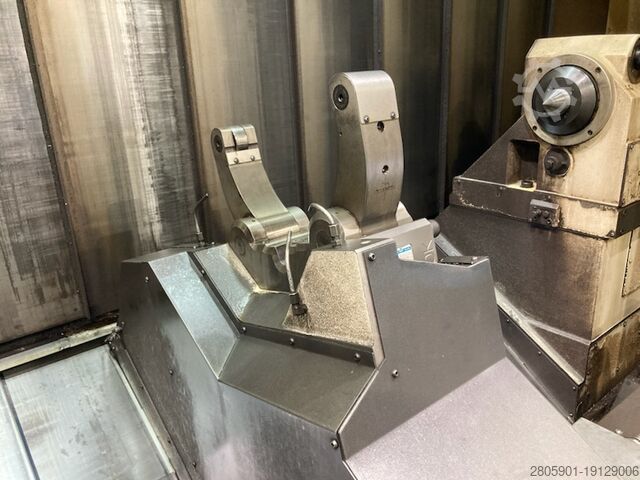

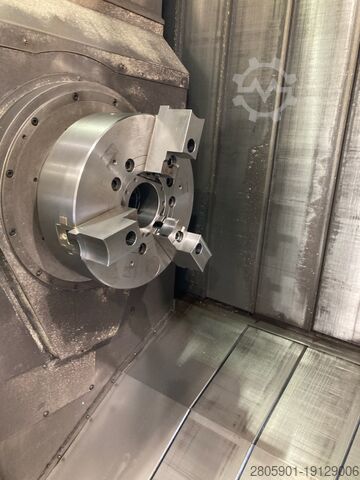

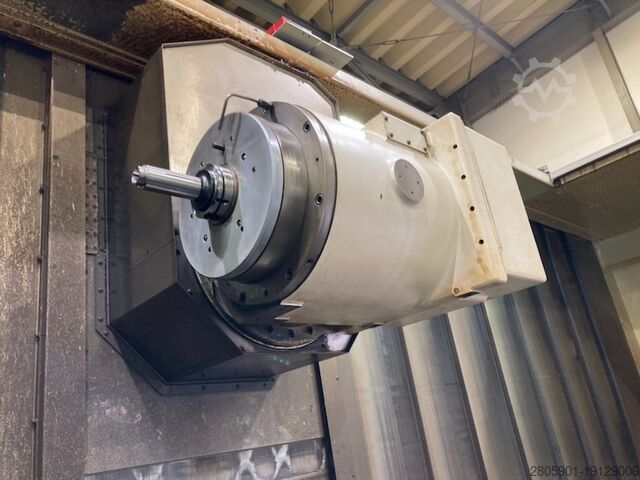

Multitasking Machine

OKUMA MULTUS B750 C3000　

Condition: used, Technical details: Kjdpfx Aow Rz U Aec Hjnf faceplate diameter: 5000 mm swing diameter: 6100 mm turning height: 2400 mm ram stroke each side: 1490 mm ram head dimension: 340 x 340 mm max. workpiece weight: 100.000 kg total power requirement: 100 kW weight of the machine ca.: 155 t faceplate turning speed range: 0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D *

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of conversion: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor: Siemens: 68 kW Spindle speed: Step 1: 3 - 202 rpm Step 2: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (support sleeve □ 520 mm / travel 1,200 mm + W axis 1,200 mm) Adapter: SK60 (SK50) Face slide: yes Milling head: 2 pieces Prepared for CNC rotary table (4th axis) Knedpfx Acoqc Umgj Hef Without rotary table and plate field (sold separately) Full documentation Self-weight: approx. 140 tons Video available!

Condition: excellent (used), FANUC Professional 6 Control Working travels 900 x 900 x 1020 mm Tool changer with 136 Positions Spindle speeds -10'000 rpm Spindle taper HSK100 2 paletts 630 x 630 mm B-axis 0.001° Palett changer FASTEMS FPC1500 Cooling through spindle 3D measuring taper Kjdjx A E Enjpfx Ac Hjnf Tool breakage control device Tool lenght measuring device Chip conveyor Misc. accessories MARCELS MASCHINEN AG

Condition: excellent (used), Year of construction: 2010, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, controller model: Siemens 840D sl, spindle speed (max.): 9,000 rpm, operating hours of spindle: 10,590 h, spindle motor power: 65,000 W, SLIDE Working travels in X- / Y'- / Z-axis [mm] 800 / 950 / 1020 B-axis 360° A-axis -185°/+45° Max. speeds in X- / Y'- / Z-axis [m/min] 90 / 50 / 90 Max. acceleration in X- / Y'- / Z-axis [m / s2] 8.5 / 4.5 / 14 Max. feed force in X- / Y'- / Z-axis [kN] 8 / 8 / 12 MAIN SPINDLE Tool interface for short hollow taper tools acc. to ISO 12164-1 HSKA100 Diameter at front bearing of spindle bearing [mm] 110 Speed nmax [rpm] 9000 Max. drive power at 100% / 40% duty cycle [kW] 54 / 65 Max. spindle torque at 100% / 40% duty cycle [Nm] 470 / 575 PART Table diameter [mm] 770 Ksdpfx Aexrcurec Hjnf Table load [kg] (with / without pallet) 700 / 800 Interference diameter [mm] 900 EQUIPMENT LEVELS Automatic pallet changer 2-fold Pallet size [mm] 630 x 630 Pallet change time [s] 13.0 Tool magazine expansion TM180 (HSK-A100)

Year of construction: 1987, condition: ready for operation (used), A CNC travelling column boring and milling machine Schiess is available. Travel X/Y/Z: 10500mm/5000mm/1200mm, quill stroke: 1250mm, quill diameter: 225mm, speed: 750rpm, spindle power: 100kW, spindle torque: 18000Nm, tool holder: SK50/SK60. Machine dimensions: approx. 17000mm/11000mm/8400mm, controls: Siemens 850M. Without platen field. Documentation available. An on-site inspection is possible. Kodpfx Acjxrf Ibj Henf

Condition: good (used), Year of construction: 1998, functionality: fully functional, workpiece weight (max.): 10,000 kg, FMS with Pietro Charnaghi AC 16 TM and Colgar Prog 213 TR 120-90 Both Siemens Sinumerk controller 7 stk. Palett Ø1300mm Ksdpfewma H Rsx Ac Hjnf

Condition: used, Year of construction: 1987, functionality: fully functional, turning height: 3,000 mm, workpiece weight (max.): 50,000 kg, turning diameter: 4,000 mm, Technical data Siemens Sinumerik 840 DSL control system Main dimensions and travels Face plate diameter 3,500 mm Rotation diameter (max.) 4,000 mm Workpiece height (max.) 3,000 mm Total height of the machine 7,250 mm Maximum workpiece weight 50,000 kg Table base Y Horizontal table displacement 2,000 mm Cross beam Knodpfx Aju R D Tnjc Hef Vertical adjustment of the crossbeam in 50 steps 1,500 mm Crossbeam support (right) Horizontal adjustment of support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool positions Cross beam support (left) Horizontal adjustment of support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool changer without side support (right) Main drive: Power of the main motor 100 kW Speed range of the faceplate 1-100 rpm. Maximum torque on the face plate 100 kNm Drilling and milling drive vertical support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Without drilling and milling drive side support Total weight Connection values of the machine Machine connection voltage 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW

Condition: used, Year of construction: 1995, functionality: fully functional, Technical data Control system Siemens Sinumerik 840 Dsl Main dimensions and travels Face plate diameter 3,600 mm Rotation diameter (max.) 4,200 mm Workpiece height (max.) 4,800 mm Total height of the machine 8,700 mm Maximum workpiece weight 80,000 kg. Table base Y Horizontal table displacement 2,000 mm Cross beam Vertical adjustment of the cross beam in 100 mm steps 2,800 mm Crossbeam support (right) Horizontal adjustment of support - 1,800 to + 2,200 mm Vertical adjustment of the chisel slide 1,500 mm Cross-section of the chisel slide 240x240 mm Tool positions 20 pcs. Without vertical support (left) Lateral support (right) Vertical adjustment of support 2,800 mm Horizontal displacement of the chisel slide 1,000 mm Cross-section of the chisel slide 240x240 mm Turning diameter max./min. 4500/2500 mm Tool changer Main drive: Power of the main motor 105 kW Speed range of the faceplate 0.4-90 rpm Maximum torque on the faceplate Drilling and routing drive Vertical support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Side support drilling and milling drive: Power of the drive motor 22.5 kW Maximum torque 900 Nm Connection values of the machine Machine connection voltage 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Kedeu R Imlepfx Ac Honf Tool measuring probe RENISHAW

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, machine/vehicle number: S2910555210188, travel distance X-axis: 800 mm, travel distance Y-axis: 1,020 mm, travel distance Z-axis: 970 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 640, spindle speed (max.): 30,000 rpm, coolant supply: 80 bar, number of slots in tool magazine: 326, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful Motorized spindle with 30,000 rpm | HSK-63 - TM200 with 200 tool pockets - IKZ 80bar Basic machine G550 AB generation 2 Travel path of the X-axis 800 mm Travel path of the Y'-axis 1020 mm Travel path of the Z-axis 970 mm Knedsx Evykepfx Ac Hof Power supply 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector: 800 m³ Machine control HEIDENHAIN TNC 640 with machine control panel GROB4Pilot Swivel axis calibration GSC Classic Interface (software and hardware) for connection of an automation system - standard interface version 1.7 (GROB) Time-controlled start of warm-up program - programmable at the HMI Collision monitoring DCM Collision, version 1 (HEIDENHAIN) Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B'-axis) Pallet guide element at rotary table Motorized spindle HSK-A 63 30,000 rpm, 48/63 Nm, 40/53 kW, oil-air lubrication GROB spindle diagnostics GSD Double disk-type tool magazine HSK-A 63 for extra-long tools with 126 pockets in total Additional tool magazine TM200 HSK-A 63 with 200 tool pockets Tool cleaning device Tool coding, system BIS-M (BALLUFF) Laser measurement system LaserControl NT LC50-DIGILOG for milling tools Scraper-type conveyor for larger quantities for aluminum chips, discharge height 1,600 mm High-pressure cutting fluid system (10-80 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Changeable cutting fluid pressure increase for the motorspindle nozzles Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Volume cutting package with detection element and flushing function Flushing unit (Z-axis) Machine accuracy package 1 Radio touch probe RMP600 (RENISHAW) Remote machine diagnostics with access control switch 12-month warranty

Condition: used, Year of construction: 1998, SIEMENS Sinumerik 840D control system Technical data: Working range - max. circulation and turning diameter 2,000 mm - Max. turning height 2,000 mm - Face plate diameter 1,600 mm - max. face plate load 11,200 kg - Chisel slide travel (vertical) 1,400 mm Smallest plunger plunge diameter 330 mm ram cross-section 250 x 210 mm - Drive power of the main motor 71 kW - Crossbeam adjustment 1,170 mm - Cross beam support from the center of the face plate to the right 1,170 mm - From the center of the face plate to the left 25 mm Speed of the faceplate: - Number of gear stages 2 - 1 stage 3.15-80 min-1 - 2 stage 12.5-315 min-1 - Hydrostatically guided ram and support Page -2- Feed rate - X and Z 0.1 2000 mm/min Ksdpfju R Dlkjx Ac Henf - Rapid traverse X and Z 6,000 mm/min - Weight approx. 24,000 kg - Voltage 400 V 50 Hz - Connected load 175 kW - Space requirement L = 10,000 mm W = 6,000 mm H = 5,850 mm Accessories: - 2 chip conveyors - Housing - 2 tool changers each - 1 each for turning tools and - 1 each for driven tools - Cooling system incl. tank and pump - Driven spindle Dimensions: - Weight of the machine 22 to. - Machine dimensions L/W/H approx. 10,000x6,000x 5,800 mm
