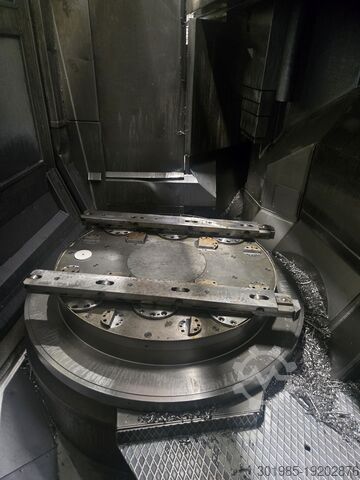

Vertical turret lathe

Pietro Carnaghi - Colgar - FMS AC 16 TM - PROG 213 TR 120-90

Condition: ready for operation (used), Year of construction: 2017, turning length: 3,000 mm, turning diameter: 1,050 mm, spindle speed (max.): 1,500 rpm, chuck outer diameter: 375 mm, Multitasking Machine OKUMA MULTUS B750 C3000 YEAR2017 OSP-P300SA 15" chuck Fpjdpfxswi Ezrj Agmsb Max Machining dia:1050mm Length:3000mm

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, Vertical Turret Lathe - Double Column / Brand: SCHIESS BRIGHTON Type: Vertimaster / Year of construction: 2009 The machine can be inspected by appointment. Condition: Fully functional / operational. TECHNICAL DATA: Working area and traverse: - Max. Machining- / Swing diameter: 9.000 mm - Processing height max.: 6.000 mm - Faceplate diameter: 6.000 mm - Passage width between racks/pillars: 8.300 mm Power and torque: - Main drive: 240 KW - Max. Torque on the face plate: 250 kN m - Max. Workpiece weight: 150 tons Boring and milling device: Fpsdoxgv Egopfx Agmeb - Power max.: 63 kW - Speed max.: 2.500 rpm - Torque max.: 2.200 Nm Support: - Cross section: 520 x 420 mm - Injection diameter min.: 750 mm - Cutting power at 6 m Diameter max.: 75 kN EQUIPMENT: - CNC-Control: SIEMENS Sinumerik 840D - Tool holder: SK 50 - Operating platform - Chip conveyor - Documentation - Additional excellent accessories ... There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale. Detailed technical data sheet and information on equipment available on request.

Condition: good (used), Year of construction: 2003, travel distance X-axis: 13,000 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 30,000 rpm, distance between stands: 6,500 mm, spindle nose: HSK A63, X-axis: 13.000 mm Y-axis: 4.500 mm Z-axis: 1.000 mm Distance between columns: 6.500 mm C-axis: 190º A-axis: 110º Positioning speed XYZ: 15.000 mm/min. Fodpfx Agstt I Sfomepb Positioning speed AC: 10 tpm CNC Controller: Siemens 840D Spindle nose: HSK A63 Spindle speed: 30.000 rpm Spindle power: 20 kW Toolchanger: 20 Pockets Torrestool tables: 16x X-axis: 11.500 mm Y-axis: 3.500 mm Z-axis: 750 mm Country of origin: Spain Machine size LxWxH: 19.000 x 11.000 x 6770 mm Machine weight: 70.000 kg The Torresmill Gantry is a 5-axis CNC milling and drilling machine, specially designed to work on aeronautical materials (Composite, Aluminum, Titanium, Steel, ...). The Torresmill gantry is perfectly combined with the Torrestool universal clamping device, guaranteeing flexibility and process time.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 56,089 h, Swing diameter over bed/cross slide: 820mm/550mm, distance between centers: 2666mm, max. turning diameter: 610mm, max. workpiece length: 2500mm, travel X/Z: 410mm/2560mm, travel Y: -80mm/100mm, max. workpiece weight without/with tailstock: 500kg/1500kg, tool positions: 12, rapid traverse X/Z/Y: 24m/30m/12m/min, feed force X/Z/Y: 17kN/20kN/17kN. Machine dimensions X/Y/Z: approx. 5500mm/2250mm/2550mm, weight: approx. 15000kg, operating hours: approx. 56089. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026. Fsdpfjw Dfhuex Agmspb

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of retrofit: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor Siemens: 68 kW Spindle speeds: I gear: 3 - 202 rpm Fedpeqc Umgofx Agmopb II gear: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (supporting sleeve □ 520 mm/travel 1200 mm + W axis 1200 mm) Mount: SK60 (SK50) Facing slide: yes Milling head: 2 units Prepared for CNC rotary table (4th axis) Without rotary table and clamping field (available separately) Full documentation Net weight: approx. 140 tons Video available!

Condition: excellent (used), FANUC Professional 6 Control Working travels 900 x 900 x 1020 mm Tool changer with 136 Positions Spindle speeds -10'000 rpm Spindle taper HSK100 2 paletts 630 x 630 mm B-axis 0.001° Palett changer FASTEMS FPC1500 Cooling through spindle 3D measuring taper Tool breakage control device Tool lenght measuring device Chip conveyor Misc. accessories MARCELS MASCHINEN AG Fpjdpfxex A E Eno Agmsb

Condition: excellent (used), Year of construction: 2010, travel distance X-axis: 800 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,020 mm, controller model: Siemens 840D sl, spindle speed (max.): 9,000 rpm, operating hours of spindle: 10,590 h, spindle motor power: 65,000 W, SLIDE Working travels in X- / Y'- / Z-axis [mm] 800 / 950 / 1020 B-axis 360° A-axis -185°/+45° Max. speeds in X- / Y'- / Z-axis [m/min] 90 / 50 / 90 Fodpfoxrcursx Agmepb Max. acceleration in X- / Y'- / Z-axis [m / s2] 8.5 / 4.5 / 14 Max. feed force in X- / Y'- / Z-axis [kN] 8 / 8 / 12 MAIN SPINDLE Tool interface for short hollow taper tools acc. to ISO 12164-1 HSKA100 Diameter at front bearing of spindle bearing [mm] 110 Speed nmax [rpm] 9000 Max. drive power at 100% / 40% duty cycle [kW] 54 / 65 Max. spindle torque at 100% / 40% duty cycle [Nm] 470 / 575 PART Table diameter [mm] 770 Table load [kg] (with / without pallet) 700 / 800 Interference diameter [mm] 900 EQUIPMENT LEVELS Automatic pallet changer 2-fold Pallet size [mm] 630 x 630 Pallet change time [s] 13.0 Tool magazine expansion TM180 (HSK-A100)

Year of construction: 1987, condition: ready for operation (used), A CNC travelling column boring and milling machine Schiess is available. Travel X/Y/Z: 10500mm/5000mm/1200mm, quill stroke: 1250mm, quill diameter: 225mm, speed: 750rpm, spindle power: 100kW, spindle torque: 18000Nm, tool holder: SK50/SK60. Machine dimensions: approx. 17000mm/11000mm/8400mm, controls: Siemens 850M. Without platen field. Documentation available. An on-site inspection is possible. Fedexrf Ibjpfx Agmjpb

Condition: used, Year of construction: 1999, Pallet size 800 x 800 mm X/Y/Z - 1250/1000/850 mm Spindle taper BT 50 Spindle speeds 5000 rpm Tool changer w/80 stations Fedpfx Agjv Rntujmspb Control: Fanuc 18 i-M Equipped with: 2 pcs. pallets

Condition: used, Year of construction: 2005, functionality: fully functional, turning length: 1,500 mm, spindle speed (max.): 4,000 rpm, rotational speed (max.): 4,000 rpm, overall weight: 14,400 kg, Mazak Integrex 300 3 ST Control -Mazatrol 640 mt pro 2 Spindles 1500mm No CE 2005/05 Fpedpfsx Rkvqsx Agmsb in very good condition Turret lathe.....10 tool ATC.....40 tool Maximum Swing 33.5″ 850.9 mm Maximum Swing (Y-axis use) 26″ – 33.5″ 660.4 mm – 850.9 mm Maximum Swing over Cross Slide 33.5″ 850.9 mm Maximum Swing over Lower Turret 16.5″ 419.1 mm Located in Israel under power and ready for inspect . This CNC made in Japan and definitely needs a permit of MATI
