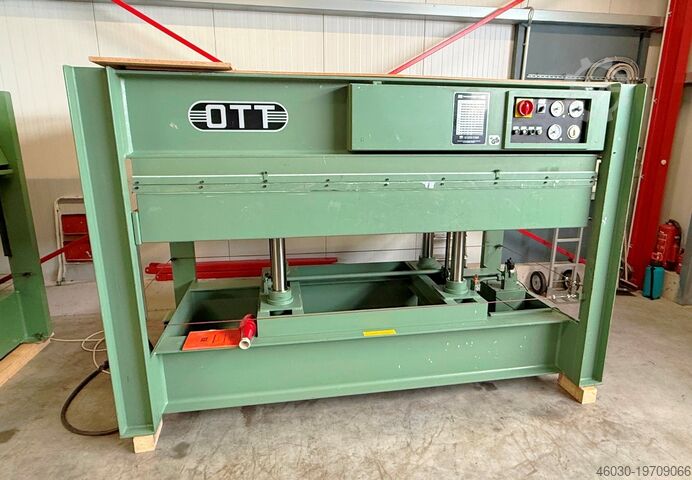

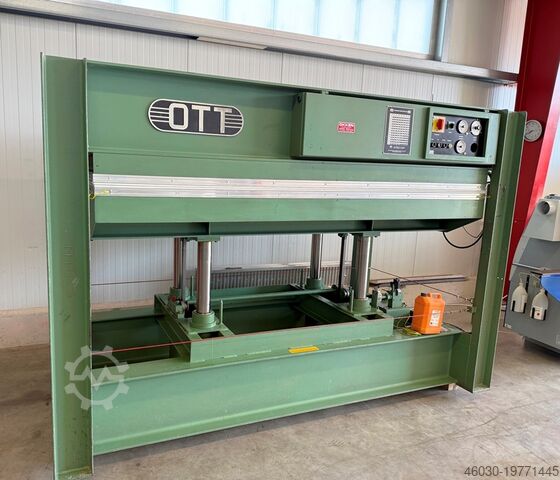

Veneer press

OTT JU 2513

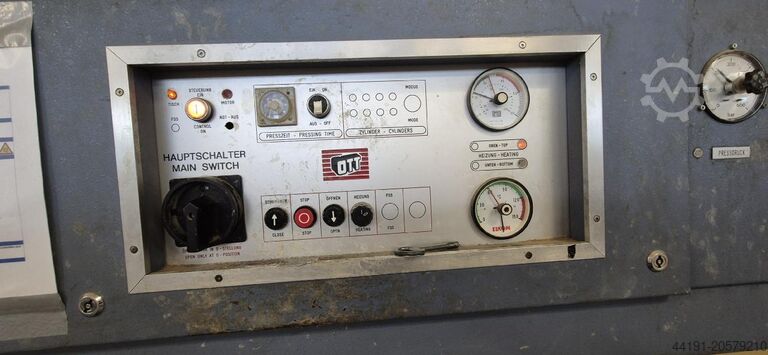

Condition: excellent (used), Year of construction: 1991, Hydraulic veneer press with electric heating plates Under-piston design BUSSE electric heating plates Central control panel with all operating elements Analog temperature display for both heating plates Pressing pressure infinitely adjustable via pressure switch Main switch Two-stage hydraulic pump with automatic changeover valve from low to high pressure Safety pull cord Rack compensation CE conformity Pressing area: 2,500 x 1,300 mm Number of press cylinders: 4 Total pressing force: 90 t Stroke height: 400 mm Operating voltage: 3 x 400 V + N, 50 Hz Total connected load: approx. 20.3 kW Space requirement (L x W x H) approx.: 2,900 x 1,250 x 1,900 mm Godpfxeyyn Rde Ad Houa Weight: approx. 3,800 kg Request more information NEW MYLAR FILM on both heating plates NEW hydraulic cylinder seals Used machinery notice: • Technical data subject to errors and prior sale. • Prices quoted are ex works – free loaded! • The machine has been cleaned and function-tested. • All machines are sold as inspected, without any warranty claims. Buyers are welcome to inspect the machines at their location. • Special agreements are only valid in written form. (Your inquiries will only be answered with your address and telephone number!)

Year of construction: 1997, condition: good (used), - Working width (mm): 1300 Guedpfx Adsidi Ive Hsa - CSD system - Cross sanding unit - Longitudinal sanding unit - Shoe - Brush unit - Ionization

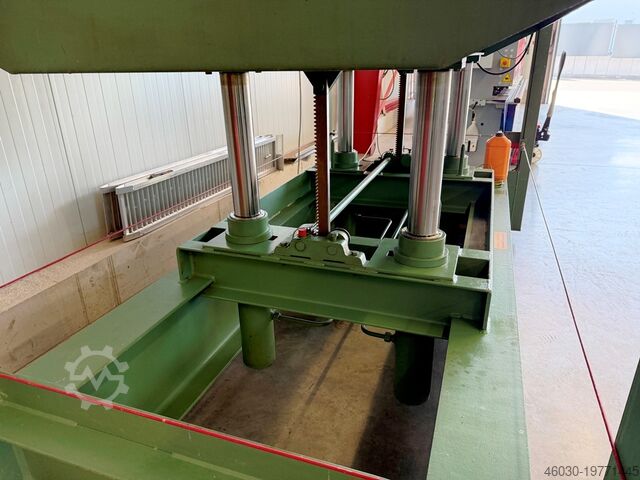

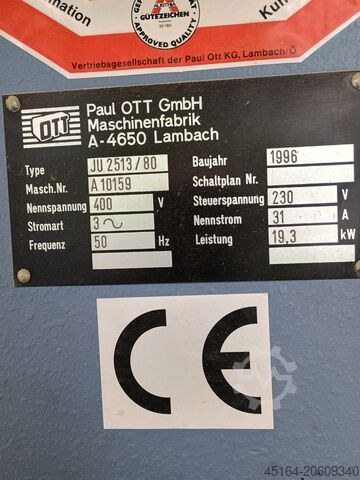

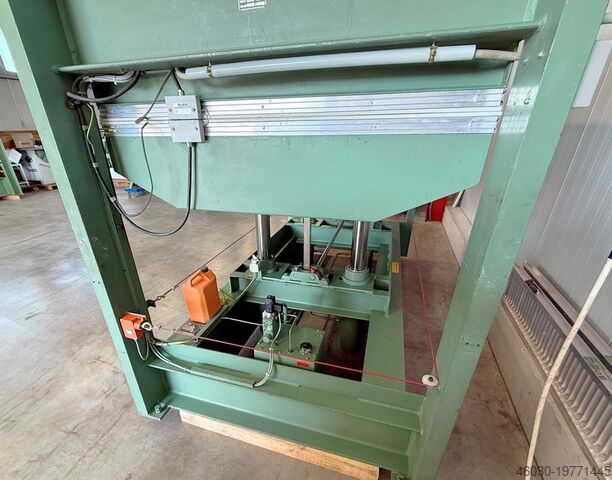

Condition: used, No. 04485 Veneer press Ott JU 2513 Used Electrically heated heating plates Hydraulic pressing pressure Aluminum heating plates Plate dimensions 2550 x 1350 mm LW BUSSE heating plates renewed in 2019 and covered with Mylar film 4 hydraulic cylinders each 90 mm diameter Total pressing pressure 90 tons Specific pressing pressure 2.8 - 4.0 kg/cm2 Button control for closing / opening / stop Emergency stop rip cord Opening width 400 mm Total power 19 kW Stable construction with 3 longitudinal beams in the upper part of the press and 2 longitudinal beams in the press table Transport dimensions approx. 2900 x 1500 x 2000 mm LWH Weight approx. 4200 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Gujdow Npbzspfx Ad Hoa Terms of payment: Prices excl. VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Year of construction: 2020, condition: ready for operation (used), A Rico compressor system consisting of two Atlas Copco compressors, two refrigerant dryers and an Atlas Copco Beko oil-water separation system is available. Screw compressor Atlas Copco GA 45 VSD+, year of manufacture: 2020, air volume flow: 9.4m³/min, operating pressure: 13bar, motor power: 45kW, motor speed: 4500rpm, machine dimensions X/Y/Z: approx. 1200mm/1100mm/2000mm, weight: approx. 860kg. Screw compressor Atlas Copco GA 45 VSD FF, year of manufacture: 2012, power: 45kW, operating pressure: 18.5bar, speed: 3000rpm. 2x refrigerant air dryers Atlas Copco FX 15, air volume flow: 15m³/min, operating overpressure: 13bar, pressure drop: approx. 0.3bar, refrigerant: R410A, refrigerant charge: 2050g, max. inlet air temperature: 60°C, machine dimensions X/Y/Z: approx. 900mm/750mm/1000mm, weight: approx. 160kg. Compressor management system Atlas Copco Equalizer 4.0/ES6-MK5, control range: 2-6 compressors. Oil-water separation system Beko ÖWAMAT 15, throughput range: 6m³-30m³/min, oil outlet: DN40, container volume: 115.5l, filling volume: 84.3l, oil collection container: 2x10l, max. operating pressure: 16bar, machine dimensions X/Y/Z: approx. 1100mm/550mm/800mm, weight: approx. 40kg. System operating hours: 8656h, controller hours: 42334h. Documentation available. An on-site inspection is possible. Gujdjxdc Uvspfx Ad Hja

Condition: as good as new (ex-display), Year of construction: 2025, Pressing area: 3000 mm x 1500 mm Operating vacuum: -0.85 bar Vacuum pump flow rate: 40 m³/h Pump power: 1.5 kW Noise level: 70 Db Heating temperature: max. 200 °C Heating power: 16 kW Machine length: 3100 mm Machine width: 1650 mm Machine height: 1750 mm Weight: 950 kg Guodpfx Adsu Egp Io Hea

Condition: used, Year of construction: 2002, functionality: fully functional, Cutting size 3,200 x 3,200 mm Guedpfx Aeyba Shjd Hoa Maximum cutting height 50 mm Main saw motor 5.5 kW Main saw blade diameter 300 mm Scoring saw motor 1.1 kW Scoring saw blade diameter 150 mm Saw carriage feed adjustable 6 - 32 m/min Program fence feed 18 m/min Number of clamping grippers: 6 pcs. Number of air cushion tables: 3 pcs. Manual angle return device for cuts 100 - 1,250 mm wide PC control based on Windows 2000

Condition: used, Supply air unit type 3072 A 7300/3650 m³/h, max. heating capacity 83 kW, hot water 90/70 °C. Exhaust air unit type 72 7000/3500 m³/h. Storage location: Nattheim. Guodpfxsw I A N As Ad Hsa

Condition: excellent (used), Wide belt 1100 mm, 2 belt roller, sanding pad, only 3280 hours, top section adjustment Guedpfxoxbntfo Ad Hea

Condition: used, Year of construction: 2001, Abrasive belt length, 1st unit: 2150 mm Max. working width: 1300 mm Number of belts: 3-belt 1st unit: Cross belt design 1st unit: Cross belt sanding shoe 1st unit: Electronic segmented shoe Abrasive belt width, 1st unit: 150 x 4800 mm Drive, 1st unit: kW 2nd unit: Longitudinal roller design 2nd unit: Steel calibrating roller Abrasive belt length, 2nd unit: 2150 mm Abrasive belt width, 2nd unit: 1350 mm Abrasive belt speed, 2nd unit: 18 m/sec 3rd unit: Shoe unit design 3rd roller: Electronic segmented pressure beam SDS Sy Sanding shoe, 3rd unit: Electronic individual segments, 32 mm width Abrasive belt length, 3rd unit: 2150 mm Abrasive belt width, 3rd unit: 1350 mm Suitable for lacquer sanding: Yes Belt blow-off: Yes Vacuum conveyor belt: Yes Feed speed, fixed: stepless 5-15 m/min Control: Touchscreen control Electr./pneum. belt oscillation: electric Infeed height: variable (lower table runs) Table stroke: electro-motor Digital table display Gedpfx Adoxzi S Ns Heua Working height or feed table height: 880 mm Location: Nattheim

Condition: used, Year of construction: 2008, machine/vehicle number: 0-411-49-1873, Technical data:- Manufacturer: Bütfering - Type: Optimat SGO 211/RC - Number of grinding units: 2 - Year of manufacture: 2008 - Working width: 1.100 mm - Grinding belt width: 1.120 mm - Grinding belt length: 1.900 mm - Workpiece thickness: 3-160 mm - Feed speed: 2,5-13 m/min. - Table height adjustment Standard equipment: - Automatic workpiece thickness adjustment - Stepless feed speed via requency converter. - 125 grinding programs can be stored - Wear-free braking system 1. Grinding unit (R) - Calibration roller - Profiled steel contact roller - Diameter 160 mm - Drive motor: 15 kW 2nd grinding unit (C) - Combination unit with roller and grinding shoe - Rubberized contact roller 65 Shore - Contact roller diameter 160 mm - Electronic link pressure bar with segment width 35 mm. - Belt speed: 12 and 21 m/s - Tolerance compensation up to 1 mm - Suitable for veneered surfaces and solid wood. - Drive motor: 11 kW Gedpsyh Hwuefx Ad Hsua - Total connected load: approx. 28 kW - Operating voltage: 400 V / 50 Hz. - Compressed air consumption at 6 bar, 20 L/min. - Belt blow-off device per pressure surge 440 L/min. - Extraction volume: approx. 2,880 m3/h/ at 20 m/s - Extraction connection: Dedusting: 1 x Ø 160 mm (grinding unit, roller) 1 x Ø 160 mm (grinding unit, shoe) Dimensions: - Length: 1,700 mm - Width: 1,850 mm - Height: 2,100 mm - Location: not in stock - Available from April 2026
