Floor type boring machine

Pama Speedram 2

Condition: good (used), travel distance X-axis: 2,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,200 mm, spindle diameter: 110 mm, table length: 1,400 mm, table width: 1,600 mm, Bench drill Gkedpeq E Ryfsfx Abped Control Heidenhain 407

Condition: good (used), Year of construction: 1979, Complete production line for Technical and Commercial Chain Manufacturer - WAFIOS / VITARI / DANIELI / IPSEN Year - 1979/1989 Gjdpfx Aeqy E I Usbpskd Factory Consists : - Welding machines 14 pieces - Bending machines 10 pieces - Bending + welding machines - 2 pieces ( Wafios KEH3 +KER3 ; Wafios KEH5 + KER5 ) - Wire drawing line 7 blocks - Danieli with spooler - Cementation furnace - Annealing furnace Lots of sapare parts

Year of construction: 1985, condition: used, spindle diameter 110 mm x-travel 900 mm y-travel 600 mm z-axis 200 mm table length 1020 mm table width 860 mm Gsdpot Hwyxefx Abpjkd taper MK 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Quick feeds for table, boring head slide, and boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load 15 kW - 380 V - 50 Hz Accessories / Special Features - BOSCH CNC Control, Model MICRO 8, in 3 axes, with monitor. Program input is either manual or via cassette, or via interface entry. - Digital display for Z Axis. - Separate switch cabinet. - Various tools. - Oil cooler for spindle lubrication.

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 1200 mm max. module 32 min. module 3 total power requirement 25 kW weight of the machine ca. 60 t dimensions of the machine ca. m Gear , min. / max. 180 / 2,500 mm Module 3 - 32 Helix angle, max. 10 - 35 ° Gear width for straight gears 1,200 mm Stroke length, approx. 100 - 1,200 mm No. of strokes 80 - 350 /min Stroke position adjustable 300 mm Stroke speed 4 - 40 mm Max. weight of workpiece, approx. 18,000 kg Min. / max. no. of teeth 16 / 576 Table size x bore 1,400 x 500 mm Grinding wheel Ø, approx. 500 mm Grinding wheel peripheral speed 34 m/s Total electrical load, approx. 45 kW - 380 V - 50 Hz Weight of machine, approx. 60,000 kg Accessories / Special Features: * Hydrostatic guides in grinding slide, table and in all other guideways. * Completely covered working area with sliding doors. * Automatic grinding process for various cycles, with settings for roughing, finishing, fine finishing and automatic dressing cycle after preset number of teeth. * Profile correction is possible via appropriate dressing, as well as additional movement of grinding slide (depth and width crowning). * Approx. 50 change gears. * Grinding slideTilt display device. * Large coolant device with band filter and oil mist exhaust. * Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit. Condition : Very good. Machine can soon be inspected in our showrooms. It is not under power at present. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Gjdpfxst Hwqqs Abpokd The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6. Grinding diagrams are available. This type and quality of machine is rarely available. Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: good (used), functionality: fully functional, Year of construction: 2011, operating hours: 73,483 h, machine/vehicle number: A0435A0050, laser hours: 44,000 h, laser power: 3,000 W, For sale: Trumpf TruLaser Cell L45, a high-precision 5-axis 3D laser cutting system, ideal for demanding applications in automotive, aerospace, and general engineering. Built in 2011, the machine is equipped with a 3000W TRUMPF laser source and offers excellent performance on complex components, tubular parts, and deep-draw metal forms. The machine is currently disassembled, professionally prepared for shipment. While on-site inspection is possible, test cutting is not available due to its current state. Key features: • TRUMPF laser source (3000W) – excellent power and reliability • Multi-axis 3D capability for intricate parts and precise detailing • High-speed and high-accuracy processing for both small batches and series production • Machine ready for international shipment, carefully disassembled Gjdpfx Ajqgcn Sebpokd • Includes full documentation and technical history from TRUMPF Machine details: • Year of manufacture: 2011 • Laser power: 3000W • Condition: Disassembled, stored securely indoors • Inspection: Available on-site (test cuts not possible in current state) • Serial number: A0435A0050 • Location: LeTheil, France • Availability: Immediately Extras & Services Offered: • We offer a complete turnkey logistics solution, including: • Professional disassembly • Loading and transport (domestic and international) • Delivery to final installation site • Reinstallation with qualified technicians • Commissioning and setup until fully operational • Optional post-installation support available on request • Attractive pricing due to current disassembled condition This is a unique opportunity to acquire a high-end Trumpf 3D laser cutting machine with full service and support, at an excellent price-performance ratio.

Condition: good (used), grinding diameter: 1,600 mm, grinding length: 6,000 mm, Manufacturer: CINCINNATI Type: 60 x 216 Year of manufacture: 1970 Covex and Concave grinding 6 steady rest included 2 steady rest hydrostatic Coolant system with magnetic filter Measuring system with 5 arms caliber: Arm 1: Working area 1300 to 1600 mm Arm 2: Working area 1000 to 1300 mm Arm 3: Working area 700 to 1000 mm Arm 4: Working area 400 to 700 mm Specifications Metric US Standard Center height 787 mm Grinding diameter Ø 1574 mm Grinding length 5800 mm Grinding stone dimensions 914 x 101.6 x 304.50 mm Gkedevvvw Eepfx Abpod Grinding stone speed 1800 rpm Dimensions (estimate) Length 15100 mm Width 5500 mm Height 3550 mm Weight 120000 kg Please note: The information on this page is correct to the best of our knowledge and belief and, where possible, has been obtained from the manufacturer. The information is given in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and terms of contract. We recommend that you check all important details.

Condition: good (used), centerless grinding machine Gjdpotrguvofx Abpjkd

Year of construction: 2013, condition: ready for operation (used), Turning length: 6000mm, orbital diameter over bed/support: 820mm/515mm, spindle bore: 128mm, speed: 1600rpm, spindle power: 46kW, center height: 400mm, bed width: 560mm, quill diameter: 125mm, quill stroke: 280mm, connected load: 62kW. Machine dimensions X/Y/Z: approx. 6500mm/2500mm/2300mm, control: Heidenhain, operating hours: approx. 9000h. Including accessories such as a steady rest. Documentation available. On-site inspection is possible. Gedpfxjvwcwuo Abpokd

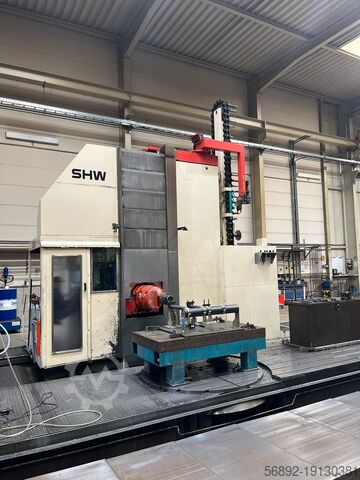

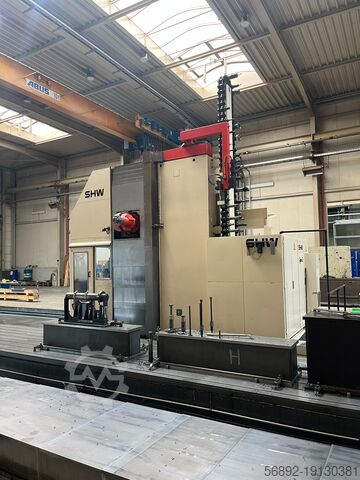

Condition: excellent (used), travel distance X-axis: 22,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,600 mm, table length: 22,000 mm, table width: 2,000 mm, rotary table diameter: 2,000 mm, Double-column milling machine Gksdpfxswi Iaqs Abpsd Technical Data Travel paths per machine • X-axis (bed): 22,000 mm • Y-axis (vertical): 2,600 mm • Z-axis (spindle carrier horizontal): 1,500 (1,200) mm Control • CNC control: Heidenhain TNC 430 Automatic tool changer • Tool robot • 90 magazine positions Universal milling head in orthogonal design • Swivel range toolholder: 360 x 1 degree • Swivel range milling head: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed: 3,200 rpm 2x chip conveyors • Discharge height above floor: 1,250 mm • Feed length: 24,000 mm Table field • Clamping area: 22,000 x 2,000 mm Rotary table • Clamping area: diameter 2,000 mm About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include, among others, spare parts supply, on-site customer service, machine overhauls as well as control system upgrades. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ _____ _____ Used machine - used milling machine - used travelling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used milling machine (alt. spelling) - used CNC milling machine - used drill-milling machine - used metal milling machine - used metal mill - used metal milling machine - used CNC milling machine - CNC milling machines - CNC milling machines - milling machine - large part machining - large part machining (alt. spelling) - large part machining - CNC large part machining - milling - shw - uf6 - uf 6 - Uniforce - SHW UF - SHW Uniforce - SHW Uniforce 6 - UFZ 6 - UFZ6L - UFZ 6 L - Heidenhain - MBM milling machine - MBM machine - column milling machine

Condition: good (used), CHARACTERISTICS Plate diameter ⌀; 3200 mm Gksdsr I Aykopfx Abpjd Maximum turning/turning diameter ⌀; 3300 mm - With upright forward; 3300 mm - With upright set back; 5600 mm Min. turning/turning diameter ⌀ - With advanced upright; 800 mm - With upright set back; 3100 mm Max turning height; 750 mm Control; FAGOR 8025 Spindle RPM (2 ranges); - 0,5 - 10 rpm - 10 - 40 rpm Motor Power; 80 hp Maximum table load; 30.000 kg
