Panel saw

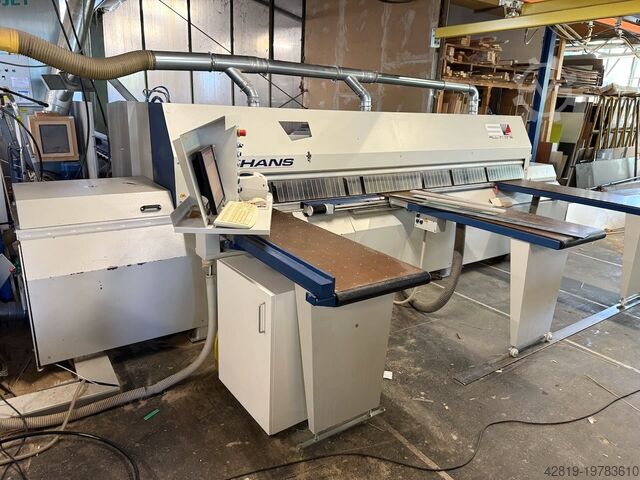

Panhans S45 All in One

Panel Dividing Saw Panhans S45, Year of Manufacture 2008

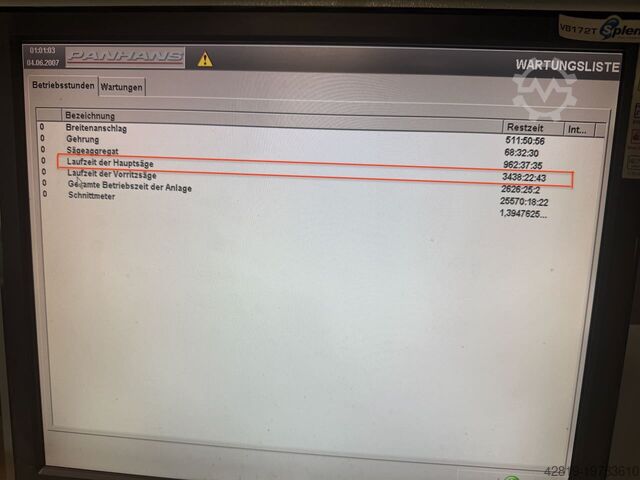

Recorded Operating Hours (Main Saw): 3,438 h

Maximum Cutting Length: 4,200 mm

Maximum Cutting Width: 4,200 mm

Saw Unit Swivel Range: 0-45°

Angle Cuts: +/- 45°

Angle Accuracy: +/- 0.01 mm

Mitre Cuts

Mitres up to 46°

Saw Blade Projection: 72 mm (at 0°, saw blade vertical)

Saw Blade Projection: 50 mm (at 45°, saw blade vertical)

Maximum Stack Height: 60 mm

Main Saw Blade: 350 x 4.4 x 30 mm

Scoring Saw Blade: 180 x 4.55/3.5 x 30 mm

Main Saw Motor: 14 kW

Scoring Saw Motor: 1.5 kW

Saw Unit Feed Motor: 1 kW

Saw Unit Feed Rate: 0-80 m/min, stepless

Saw Unit Return Feed: 100 m/min

Rip Fence (Material Pusher): 1.1 kW

Rip Fence Feed Rate, stepless: 0-25 m/min

Codpfx Asw N D S Ijgmjrh
Rip Fence Return Feed: 120 m/min

Offcut Device

Brush-sealed recesses in the pressure beam for complete panel separation.

Clamping Grippers: 8 pcs

Gripper Distances: 65/245/395/985/1605/2845 mm

Fully Automatic Side Pressure Device, stepless: 50-100 mm

Optical Sizing – sensor-operated for automatic measurement of workpieces with variable trimming cut

3 Air Cushion Tables: 600×1800 mm

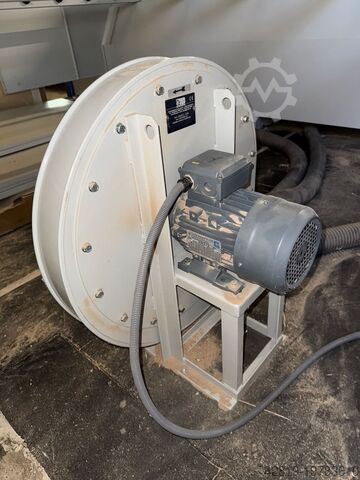

Air Supply via Blower: 2.2 kW

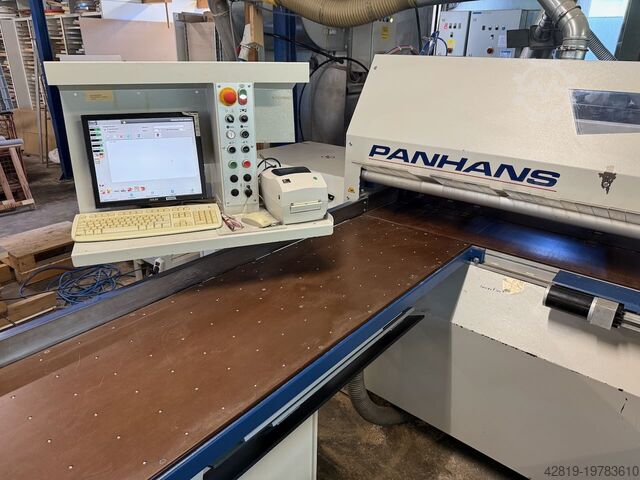

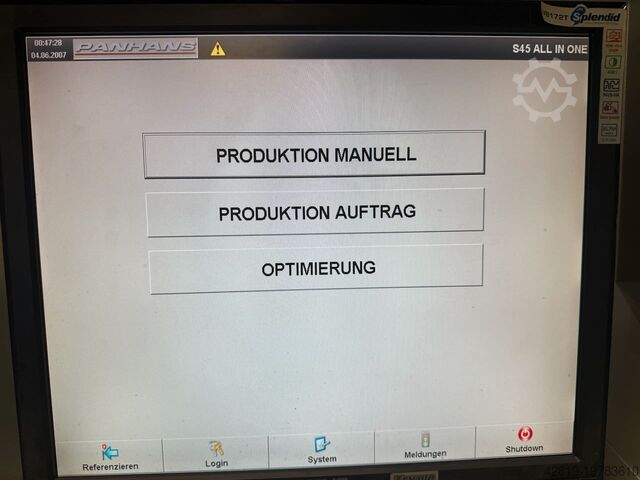

Operating System: WIN EX Embedded

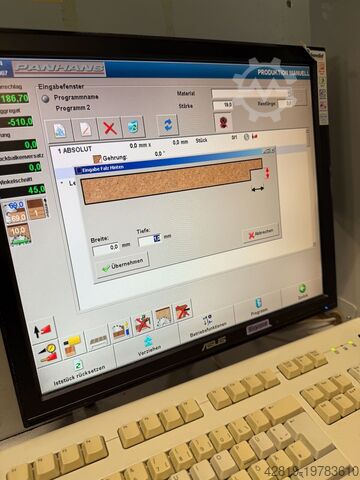

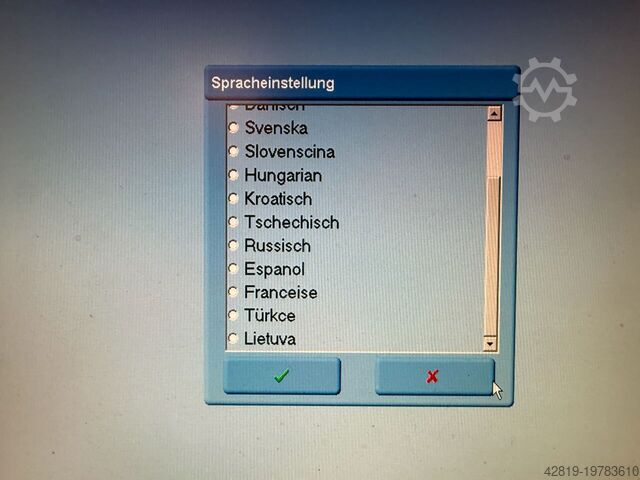

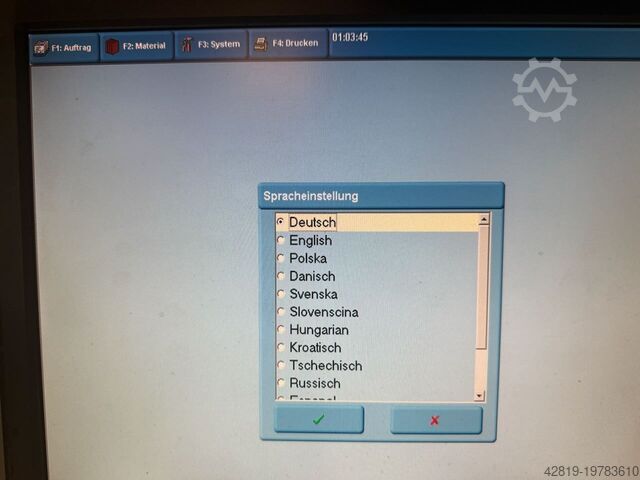

Screen Control: VGA Monitor 17”/19”

Control Functions

Production Mode: Manual

Production Mode: Order

Production Mode: Optimization PIOS PRO

Production Mode: Manual

In this mode, all programs and machine functions required for processing are entered directly in a clear menu.

Processing Options

Single Cut, Series Cut, Sensor Cut, Groove, Insertion Grooves, Rebate Front, Rebate Rear, Formatting, Cutouts, Notches

Production Mode: Order

In this mode, cutting plans generated by the PIOS PRO optimization, format cut plans, block cut plans, and angle cut plans can be executed.

Grooving Program

Convenient production of grooves, rebates, insertion grooves in single and series cuts using:

2 pre-settable groove cutting heights

Formatting Equipment

Edge trimming stops mounted directly on the grippers serve for formatting panels with projecting surface layers.

Cutout Equipment

For precise glass cutouts (e.g. doors), notches (e.g. air slots),

and for insertion grooves.

Cutting Height Adjustment

Electropneumatic, stepless

Positioning Accuracy of Cutting Height: +/- 1 mm

Label Printer

Operating Pressure: 6 bar

Operating Voltage: 400 Volt, 50 Hz

Nominal Power: 20 kW

Weight: approx. 4,000 kg

Dimensions (L x W x H): approx. 6,500 x 7,500 mm

(Subject to technical modifications and errors; prior sale reserved)
