Shear

Peddinghaus Peddicat 380

Condition: refurbished (used), SCHLATTER Welded wire mesh production line MG24 Full revamped WORKING RANGE Panel width: max. 2500 mm Ndsdpfx Aowu Tu Dsdned Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Adjustable by cutting device (0-1) Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24 WELDING MESH MACHINE MG 24.1/8C, Basic equipment including: - 1 Machine frame - 1 Upper support for press reception, continuously adjustable by hand crank - 1 Magnet supports with retaining magnets and weft wire monitoring. - 1 Row of pneumatic solenoid valves for press actuation. - 1 Installation for air and water. - 2 Pneumatic rotary drives with oil damping - Static motor torque with 5 bar compressed air: 480 Nm - Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1) - 1 Advance carriage with panel lifting device - 1 Set of tools for machine adjustment WELDING SECTION 8 Type C Transformers Rated power of each transformer: 100 kVA No-load secondary voltage: 7.1 V Rated secondary current: 14 kA 8 Thyristor contactors ES 130 12 Welding presses: 5.0 kN 12 Chain current bridge for spacing of warp wires: 50-100 mm 12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm 10 Chain current bridge for spacing of warp wires: 100-150 mm 8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm 6 Chain current bridge for spacing of warp wires: 150 - 200 mm 6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm 24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm 24 Wire clamping pliers Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, working range: 1,000 mm, For sale is a completely refurbished Schlatter radiator welding line consisting of: - Back-up ring unit (EBV) - 2-row multi-spot welding machine (hydraulic) - 2-row convector welding machine (pneumatic) Ndjdpfx Adev Edlvoned - Longitudinal seam welding machine (NFR) - Cross-seam welding machine (NQD) - Cutting shear (TS10) - Corner cutting machine (ESV) - Transverse edge closing device (QRSV) - Transport & turning device (TVW) - Nipple & spacer welding system (NIAH) - Test basin (water) Control system: Siemens S7 TIA Please note that the radiator welding line is only available in a fully refurbished condition.

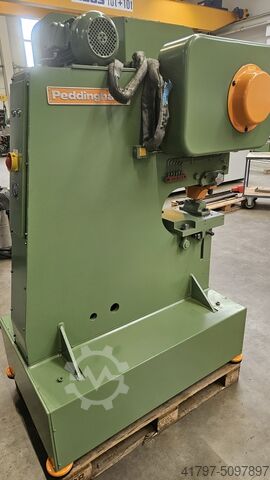

Condition: used, Max. punching force: 650 kN Ndsdpfxof Nwqls Adnsd For example, it can drill a 20 mm hole in 20 mm steel. For further performance data, see the nameplate or request. Includes a selection of punches and dies.
