Paper cutting machine

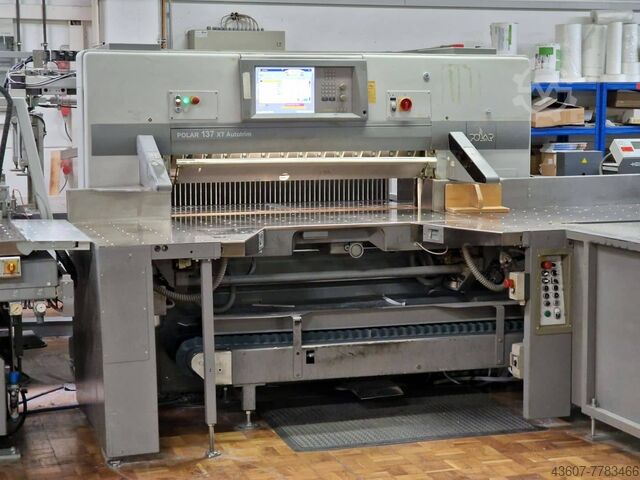

Polar 137 XT

Condition: good (used), Year of construction: 2006, machine/vehicle number: 7641227, Programs with touch screen Color Display Dcodpfx Ahjk D T Eyo Seb Chrom Airtable POLAR LW 1000-4: Paper Stack Lift Polar RA-4: Automatic Jogger Cleaned & Tested

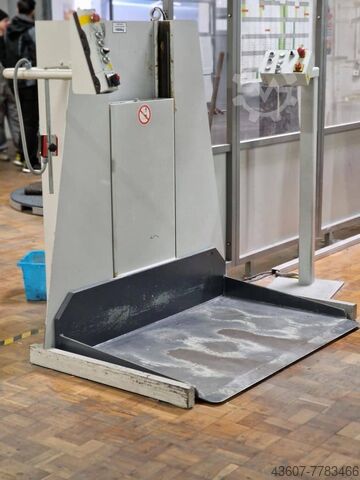

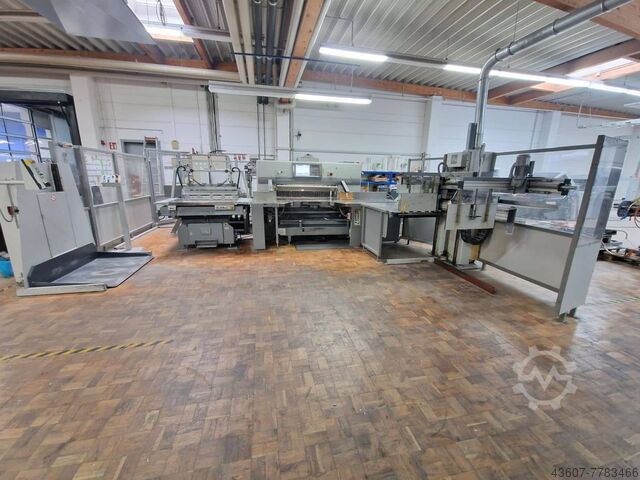

Condition: ready for operation (used), Year of construction: 2010, Large semi-automated Pace cutting system Polar 137 XT-Autotrim with pile lifter, jogging system with count scale, gripper transport system, rotary gripper, and delivery unit Year: 2010 Approx. 5.43 million cuts Workflow: The material to be cut is raised to an optimal working height using a loading lift, placed into the jogger by the operator, automatically jogged, and then transported via the Autotrans gripper system from behind the jogger to the rear table of the high-speed cutter and rotated. After cutting, the Transomat automatically stacks the layers onto a pallet, allowing continuous cutting operations. Polar Stack Lift LW 1200-4 Platform size: 80 x 126 mm Load capacity: 1200 kg Equipped with steplessly adjustable photoelectric sensors for automatic lifting and lowering. Jogger RAH-4 with air removal roller and unloading for rear-table feeding Working format up to 75 x 105 cm Unloading of the jogged cutting material occurs automatically to the rear into the STR stacking rack. The Autotrans gripper transport system then handles layer transport onto the rear table of the high-speed cutter. Sheet scale – Polar count scale Avery Weigh-Tronix For creating quantity-accurate cutting layers Gripper transport system POLAR Autoturn – clamp transporter for rear-table loading and rotary gripper Takes over the prepared cutting layer from the stack rack or buffer table Via air tables, which use air cushion for optimized material handling, the cut material is transported directly onto the rear table of the high-speed cutter and placed with precision. The cutting layer is held firmly by the grippers during transport, ensuring even pre-aligned layers remain precisely squared during movement. Cutting machine Polar 137 XT-AT with touch control Dcodpfx Ajxd U Saeh Sob And Autotrim function for automatic waste removal under the front table during cutting - Lowerable side gauge left (required for rear-table loading); also allows handling of formats with a diagonal of...

Condition: used, Year of construction: 2004, machine/vehicle number: 7441238, Schneidlinie Autotrimm PACE / Cutting Line Autotrimm Polar 137XT-AT PACE Schneidlinie Lift Rüttler Ablader / Cutting Line Lift Jogger UnloaderYear 2004 - Serial-No. 7441238 Schnittbreite / Cutting width max. 1370mm Autotrimm Programm - Duisplay / Program - Display Lufttisch - Chromtisch / Light guard - chrome table große-Luft-Seitentische / large airbed side tables Lichtschranke / Light guards Ersatzmesser / Spare knives CE-Zeichen-Zulassung / CE Certificate Elektr. Anschluss / Power supply 3 Phase 380V - 10AStapellift / Stack Lift Polar LW 1000-4 Baujahr / Year 2004 - Serial-No. 7493313 Palettengröße / Pallet size max. 800 x 1.200mm Wannengröße / Size of platform 840 x 1.270mm Hub / Stroke max. 850mm Tragkraft / Carrying capacity max. 1.000kgRüttelautomat Luftausstreichwalze / Automatic Jogger air-removing roller Polar RAH-4 Entladung zur Hintertischbeschickung / unloading for rear-table feeding Baujahr / Year 2004 - Serial-No. 7484103 Tischgröße / Size of table 900 x 1.150mm Dcedpfxeiqvbms Ah Seb Ausschiebeformat / Pusher size . 750 x 1.140mm Lagenhöhe / Height of ream min. 30mm - max. 140mmStapelregal / Piling-board shelf Polar STR-1000-4 Baujahr / Year 2006 - Serial-No. 7475003 Format min. 420 × 570mm - max. 750 × 1.140mm Größe Regalboden / Size of shelf board 900 × 1.170mm Lagenhöhe / Height of ream min. 30mm - max. 140mm Tragkraft / Carrying capacity max. 600kg Anzahl Pufferplätze / Number of buffer spaces 5Ablader / Unloader Polar TR 130ER-4- Einsatzbereich / Application for Size min. 400 x 400mm - max. 780 x 1.120mm Nutzengröße / Label size min. 105 - 148mm Lagenhöhe / Height of ream min. 40mm - max. 165mm Stapelhöhe / Pile height max 1.300mm Tragkraft / Carrying capacity max. 200kgSpäneförderband / Waste Conveyor Busch Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test
