Center Lathe

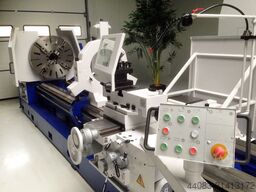

POREBA TR2-93-8M

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, spindle bore: 120 mm, turning diameter: 1,350 mm, turning diameter over bed slide: 1,350 mm, turning diameter over top slide: 1,000 mm, turning length: 5,000 mm, total length: 7,500 mm, total width: 2,130 mm, total height: 1,550 mm, rotational speed (max.): 630 rpm, rotational speed (min.): 5 rpm, workpiece weight (max.): 11,000 kg, spindle mount: MK 6, The PORĘBA TR-135B1/5M universal lathe has been comprehensively rebuilt and modernized and has technical parameters in accordance with the technical and operational documentation DTR of a new machine, WOT technical acceptance conditions and the Polish Standard and also meets EU requirements. The machine is covered by a full 12-month warranty on spare parts and electrical components. Availability: 3,5 months, starting from the order Technical data: Guodpjva Elaefx Aqvoi - distance between centers/turning length: 5000 mm - turning diameter over bed: 1350 mm - turning diameter over support: 1000 mm - turning diameter in bridge recess: 1650 mm - spindle bore diameter: 120 mm - Power feed on compound slide for machining tapers, conical parts, 1°- 90°, up to 450 mm - maximum workpiece weight between centers: 8,000 kg - maximum workpiece weight between centers + 1 steady: 10,000 kg - maximum workpiece weight between centers + 2 steadies: 11,000 kg - number of spindle speeds: 21 - range of rotational speeds (rpm): 5 - 630 - number of feeds: 80 - range of feeds (mm/rev): longitudinal: 0.07 - 10 transverse: 0.035 – 5 for upper drawer: 0.017 – 2,5 - engine power [kW]: 22/41 (1st gear / 2nd gear) - overall dimensions: total length: 7500 mm width: 2130 mm height: 1550 mm total weight: 13200 kg Standard equipment: tailstock, coolant pump, tool post, chuck cover, chip tanks Additional equipment available for price upgrade: - 3- or 4-jaw chucks, various diameters and variants - Digital readout on 2 axes with assembly and calibration - Steady rest, 40-400 mm, with rollers - Steady rest, 400-700 mm, with rollers - Steady rest, 450-900 mm, with rollers - MULTIFIX quick change tool post

Condition: ready for operation (used), functionality: fully functional, turning diameter over cross slide: 550 mm, spindle bore: 77 mm, turning diameter over bed slide: 800 mm, GURUTZPE lathe model Super AT 400/6000, 6,000 mm between points, turning on bed 820 mm, on carriage 550 mm, shaft diameter 76,5 mm, 16 speeds from 9-500rpm, has fixed rear Steady , , has 4 independent claws chuck diameter 800mm, , very good condition in general Gusdpfewd D Itox Aqvsi

Condition: excellent (used), functionality: fully functional, machine/vehicle number: 01.01.0555, turning diameter over cross slide: 850 mm, spindle bore: 102 mm, turning diameter: 1,200 mm, turning diameter over bed slide: 850 mm, turning diameter over top slide: 1,600 mm, center height: 600 mm, center width: 800 mm, spindle speed (max.): 400 rpm, type of input current: three-phase, overall weight: 15,000 kg, Gurutzpe Super BT 600 x 3000mm lathe, with dimension display and probe-based copying function, swing over bed 1180mm, swing over cross slide 850mm, swing over carriage 1570mm, distance between faceplate and carriage 620mm, spindle bore 102mm, speeds 2.8-400 rpm, 30 hp motor, four-jaw chuck with a diameter of 1000mm, bed width 800mm, tailstock spindle diameter 140mm, maximum weight on lathes between centers 10 tons with a steady rest of 12 tons, estimated weight of the lathe and accessories 15000kg, in very good condition. Guedjztz Hcepfx Aqvoi

Condition: used, Year of construction: 1972, turning diameter over bed 1440 mm turning diameter over slide rest 960 mm turning length 8200 mm faceplate 1250 mm turning diameter in the gap 1460 mm length of gap 460 mm turning speeds 1,8-400 U/min workpiece weight 22000 kg total power requirement 46 kW Machine overhauled 2004 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Guedoyutq Rspfx Aqvoi If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1970, turning diameter over bed 840 mm turning diameter over slide rest 640 mm turning length 3300 mm spindle bore 74 mm turning speeds 7,1-1400 U/min 3-jaw chuck 315 mm turning dia. in gap 920 mm length of gap 370 mm total power requirement 22 kW weight of the machine ca. 10 t dimensions of the machine ca. 8x2x1,8 m Multifix steel holder with inserts The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Godpfx Aqjyqvwreveui If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, spindle bore: 95 mm, turning diameter: 800 mm, turning diameter over bed slide: 800 mm, turning diameter over top slide: 530 mm, turning length: 4,000 mm, workpiece weight (max.): 6,000 kg, The PORĘBA TPK-80/4M universal lathe has been comprehensively rebuilt and modernized, has technical parameters in accordance with the technical and operational documentation DTR of a new machine, WOT technical acceptance conditions and the Polish Standard and also meets EU requirements. Gusdpoy N R Iwjfx Aqvoi The machine is covered by a full 12-month warranty on spare parts and electrical components. Availability: available on stock, under power, ready for inspection Technical data: - distance between centers/turning length: 4000 mm - turning diameter over bed: 800 mm - turning diameter over support: 530 mm - turning diameter in bridge recess: 1080 mm - power on compound slide - spindle bore diameter: 95 mm - maximum workpiece weight between centers: 6,000 kg - maximum workpiece weight between centers + 1 steady: 7,500 kg - maximum workpiece weight between centers + 2 steadies: 9,000 kg - number of spindle speeds: 21 - range of rotational speeds (rpm): 8 - 800 - number of feeds: 80 - range of feeds (mm/rev): longitudinal: 0.1 – 12,8 transverse: 0.05 – 6,4 - engine power: 16/22 kW (1st gear / 2nd gear) - overall dimensions: total length: 6000 mm width: 1800 mm height: 1800 mm total weight: 6200 kg Standard equipment: tailstock, coolant pump, tool post, chuck cover Additional equipment available at extra charge: - 3- or 4-jaw chucks, various diameters and variants - Digital readout on 2 axes with assembly and calibration - Steady rest, 40-400 mm, with rollers - Steady rest, 400-600 mm, with rollers - MULTIFIX quick change tool post

Condition: used, Technical details: x-Travel: 530 mm table cross travel (Y-axis): 5200 mm w-axis: - mm drilling depth in one stroke: ca. 4000 mm metrical thread cutting: 0,25 -560 M total power requirement: 35 kW bed width: 560 mm centre distance: 5700 mm centre height: 500 mm swing diameter over bed: 1000 mm Guodpfx Aqozxlv Eovji turning diameter over support: 800 mm range of feed in x - axis: 0,0063 - 4,0 mm/U range of feed in y - axis: 0,0063 - 4,0 mm/U spindle bore: 135 mm range drill spindle revolution per minute: max.1400 U/min range drill spindle revolution per minute: min. 7,1 U/min speed steps work spindle: 24 steps tailstock taper MT: MK 6 tailstock quill stroke: 300 mm dimension machine approx.LxWxH: 12,0 x 2,5 x 2,0 m The machine was retrofitted/overhauled in 2007. Special-purpose machine suitable for deep-hole drilling and/or heavy-duty turning operations. Inch thread range: 1/16 – 80 TPI 3-jaw chuck, chuck diameter: Ø 315 mm 2 steady rests Faceplate: Ø 800 mm without jaws PARAT quick-change tool holder, Type 4 3 pices Coolant system HEIDENHAIN PT 880 4-axis DRO Boring bar for deep-hole drilling Drilling head for deep-hole drilling Infinitely variable boring-bar feed Various accessories *

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, turning diameter over cross slide: 500 mm, spindle bore: 140 mm, turning diameter: 820 mm, turning diameter over bed slide: 800 mm, GURUTZPE Super AT 400/10000 lathe, with a wider bed than the standard model. This lathe has a 10,000 mm distance between centers and features a single headstock with a vortex system, designed for producing long-length spindles. It has a swing of 820 mm over the bed and 500 mm over the cross slide. The spindle bore diameter is 140 mm, and it can be equipped with a double chuck. It has 24 speeds ranging from 9-500 rpm, with a reduction gear providing speeds from 1-63 rpm. It is equipped with two steady rests and a universal 3-jaw chuck with a diameter of 630 mm. It is in very good overall condition. Gusdpfx Aqezmp Axevji

Condition: new, Year of construction: 2026, functionality: fully functional, turning diameter over cross slide: 1,260 mm, spindle bore: 130 mm, turning diameter over bed slide: 1,600 mm, total length: 6,100 mm, total width: 2,130 mm, total height: 2,300 mm, overall weight: 15,100 kg, rapid traverse Y-axis: 1,870 m/min, rapid traverse Z-axis: 3,740 m/min, workpiece weight (max.): 6,000 kg, Hardened and ground guide rail Gujdpfozzdbfox Aqvei The gears in the spindle head have a long service life and produce little noise. The spindle system is characterized by high rigidity and accuracy. A quick feed mechanism is mounted on the carriage. Thanks to the clutch in the spindle head, the lathe starts smoothly and decelerates quickly.

Condition: used, Technical details: x-Travel: 530 mm table cross travel (Y-axis): 5200 mm w-axis: - mm drilling depth in one stroke: ca. 4000 mm metrical thread cutting: 0,25 -560 M total power requirement: 35 kW bed width: 560 mm centre distance: 5700 mm centre height: 500 mm swing diameter over bed: 1000 mm turning diameter over support: 800 mm range of feed in x - axis: 0,0063 - 4,0 mm/U range of feed in y - axis: 0,0063 - 4,0 mm/U spindle bore: 135 mm range drill spindle revolution per minute: max.1400 U/min range drill spindle revolution per minute: min. 7,1 U/min speed steps work spindle: 24 steps tailstock taper MT: MK 6 tailstock quill stroke: 300 mm dimension machine approx.LxWxH: 12,0 x 2,5 x 2,0 m The machine was retrofitted/overhauled in 2007. Special-purpose machine suitable for deep-hole drilling and/or heavy-duty turning operations. Inch thread range: 1/16 – 80 TPI 3-jaw chuck, diameter: Ø 315 mm 2 steady rests Faceplate: Ø 800 mm without jaws PARAT quick-change tool holder, Type 4 3 pieces Coolant system Guodpfxozxlwcj Aqvsi HEIDENHAIN PT 880 4-axis digital readout (DRO) *
