5-axis machining center

POSMILL H 800 U

Condition: good (used), Year of construction: 2016, Posmill H 800 U, year of manufacture 2016, Heidenhain control, travel X/Y/Z 670/820/600 mm, 2-axis NC swivel rotary table, 96-position tool changer, HSK 63 spindle interface, spindle speed up to 18,000 rpm, 3D infrared probe Heidenhain, Blum laser tool measurement, rotary table Ø 800 mm. Dedpfoyvr Ifsx Ahuskk

Condition: like new (used), Year of construction: 2018, operating hours: 25,000 h, functionality: fully functional, travel distance X-axis: 2,600 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 900 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, table width: 1,100 mm, table length: 3,200 mm, number of slots in tool magazine: 60, DMG MORI DMF 260/11 LINEAR 5-AXIS MACHINING CENTER (Champion) TECHNICAL SPECIFICATIONS Brand: DMG MORI Model: DMF 260/11 Linear 5 Axis (Champion) CNC: Heidenhain iTNC 530 Table: 3200 x 1100 mm Travel X / Y / Z: 2600 x 1100 x 900 mm Table load capacity: 4000 kg Rotary table capacity: 1200 kg Machine weight: 27,750 kg (27.5 t) Taper: DIN 2080 A-50 (ISO 50) Tool magazine capacity: 60 positions Spindle speed: 10,000 rpm Blum tool measuring system Extra equipment and performed maintenance - Internal and external air and coolant supply through the spindle with M function (40/80 bar) - Upper external air cooling (chip evacuation for higher chip volume with M function) - Spindle vibration control module - Preventive maintenance up to date: oil, filter, and coolant changes performed as per manufacturer’s recommendations or based on usage - Y-axis spindle replaced at 9,256 operating hours - Belleville washers replaced at 13,903 operating hours - Mechanical tool measurement system with option for Blum laser installation (laser included) - DMG probe - 3D QuickSET - Dkjdpfx Aoytrzxohuek Coolant gun - X-axis linear drive - Basic machine dimensions: Length: 8,600 mm; Width: 5,800 mm; Height: 3,200 mm - Chip conveyor

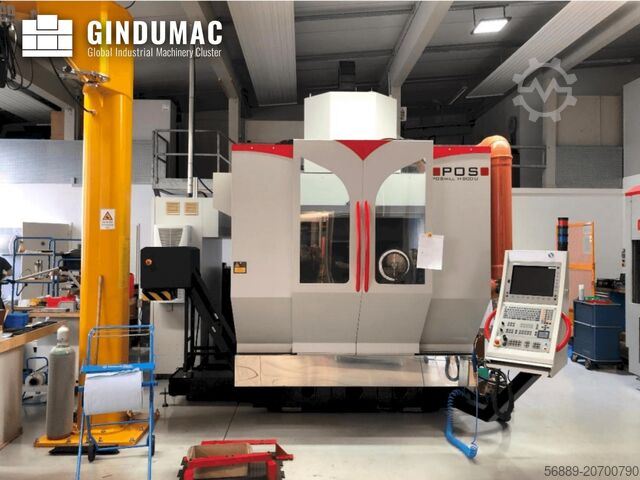

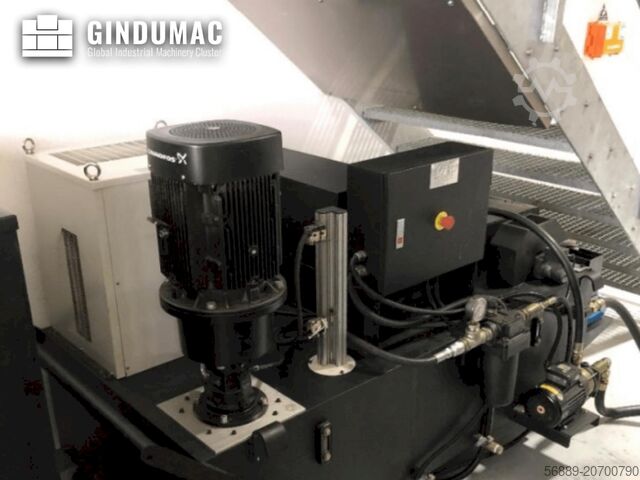

Condition: ready for operation (used), Year of construction: 2012, operating hours: 17,050 h, travel distance X-axis: 670 mm, travel distance Y-axis: 830 mm, travel distance Z-axis: 600 mm, overall weight: 20,000 kg, spindle speed (max.): 18,000 rpm, number of axes: 5, This 5-axis POSmill H 800 U was manufactured in 2012. It features a Heidenhain iTNC 530 control, a new spindle with 5,700 hours since 2021, and a robust 18,000 rpm spindle speed. The machine offers extensive travel with dimensions of 670/830/600 mm and supports 96 tool positions. Additional features include an internal coolant supply at 60 bar, a comprehensive coolant system, and a chip conveyor. Consider the opportunity to buy this POSmill H 800 U universal machining centre. Contact us for more information. Additional equipment • new spindle since 2021: only 5700 spindle hours (Wear-related spindle replacement) • Inspection under power possible Machine Benefits Dsdex D Dx Aepfx Ahuokk Technical Machine Benefits • Through-spindle air flow • Internal coolant supply: 60 bar • Coolant system with 1000l paper belt filter • Rotating viewing window • Chip flushing gun // bed flushing • Oil mist extraction • Blum tool breakage/measurement • Heidenhain 3d touch probe • Mobile electronic handwheel • Kinematics package Extra Information Spindle replacement due to wear (new spindle: 5600 hours since 2021) Production Hours: Control on: approximately 33300 hours, Spindle on: 17050 hours (new spindle 5600 hours, replaced in 2021 due to wear) Tool Positions: 96 Includes tool holders (shrink-fit chucks, collets, etc.)

Condition: ready for operation (used), Year of construction: 2018, operating hours: 12,971 h, spindle speed (max.): 18,000 rpm, travel distance X-axis: 670 mm, travel distance Y-axis: 830 mm, travel distance Z-axis: 600 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, number of axes: 5, This 5-axis POSmill H 800 U was manufactured in 2018. It features a 670x830x600 mm travel range, a swivel range of -120 to 120 degrees, and a continuous 360-degree rotary table. Equipped with an 18,000 rpm milling spindle, 96-position tool changer, and Heidenhain iTNC530 control, this universal machining centre is ideal for complex machining tasks. Consider the opportunity to buy this POSmill H 800 U universal machining centre. Contact us for more information about this machine. • Swivel range (B): -120° to +120° • Rotary table (C): 360° continuous • Tool changer: 96 positions, HSK-A63, rear-mounted with display • Measuring systems: Heidenhain linear scales (X/Y/Z) with purge air; Heidenhain rotary measuring system • POS kinematic module incl. reference ball • POS contour protection • Control cabinet cooling: active air-to-air Dksdpfx Ajydpp Ujhuok • Spindle cooler: controlled • Oil cooling for 4th/5th axes: controlled • Network and USB connections • Automatically controlled crane loading hatch • Coolant pump at the head via M-functions • Tool change safety door • Table media interfaces: 3 hydraulic connections and 1 air connection in the table center • Mobile electronic handwheel • Operating hours: 22,996 total; 12,971 program runtime Additional equipment • External chip agitator / swarf (chip) conveyor • Chip removal device with dedicated pump • Water gun (washdown) • Air at the spindle • Electromechanical oil/coolant separator • Automatic coolant level monitoring • Operating status indicator light (stack light) • Hydraulic power unit, incl. control via M-function Technical Specification Taper Size HSK 63

Condition: used, Year of construction: 2009, control HEIDENHAIN - iTNC 530 number of spindle speeds 18.000 U/min tool taper HSK-A63 5-axis simultaneous machining center | HERMLE - C 20 U equipped with ITC (80 bar), NC swivel rotary table, tool changer & pallet changer. Dkodpfx Aoyy A N Ujhuek The machine is in a well-maintained condition and can be inspected under power at any time in the Swiss factory location. The machine videos from the production plant will be shared on request. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C 20 | C20 | C-20 | C20U

Condition: excellent (used), Year of construction: 2019, 5-Axis Machining Center POS POSMILL H 800 U Control: Heidenhain iTNC 530 Year of manufacture: 2019 ATTENTION: Machine has ONLY 500 spindle hours!!! Traverses: X-axis: 670 mm Y-axis: 830 mm Z-axis: 600 mm A +120° to -120°, C 360° Table load capacity: 1,200 kg Spindle interface: HSK-63A Tool magazine: 96 positions Spindle speed: 18,000 rpm Equipment Rotary-swivel table Rotating viewing window Glass scales on all axes Handheld control unit Heidenhain touch probe Laser tool breakage detection Rotary union in the table Air connection in the table incl. M-function Coolant system Internal cooling Chip conveyor Automatic roof Extraction unit Dksdpfx Ajyk Az Dshuek Documentation General data Repeat accuracy/positioning accuracy on delivery: 0.004 mm/0.008 mm (VDI/DGQ 3441) Including tool holders with tools mounted in the tool changer (No suggestions), oil mist extraction IKZ Chip conveyor Rated power 90 kVA Full load current 125 A Max. current load 200 A 400 V 50 Hz

Condition: ready for operation (used), Year of construction: 2013, operating hours: 31,460 h, travel distance X-axis: 935 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530 HSCI, table load: 1,500 kg, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 60, number of axes: 5, This 5-axis DMG MORI DMU 85 monoBLOCK was manufactured in 2013. It features an impressive X-axis travel of 935 mm, Y-axis travel of 850 mm, and Z-axis travel of 650 mm. The machine includes a robust table size of 1,040 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 85 monoBLOCK vertical machining centre we have for sale. Contact us for further details. • Max feedrate: 40,000 mm/min • Table size: Ø 1,040 mm • Through-spindle coolant: 20 bar • Operating mode 4: machining process control (work with open work area door allowed) • Repairs/maintenance: • C-axis seal replaced just after warranty (improved version) • Spindle replaced (05/2021) • Machine measured last year – circular interpolation (Ballbar) within tolerance • Typical use: • Duralumin machining 80% overall • 3-axis: 50% • 5-axis: 40% (up to 10% 5-axis continuous) Additional equipment • Measuring probe: TS649 • Tool probe: Blum Laser • 3D quickSET • Electric handwheel • Rinsing gun • Chip conveyor Dedpfx Aeyt Rdrshuskk Technical Specification Taper Size HSK 63

Condition: good (used), Year of construction: 2012, Parts shown by hand not come. Technical details are shown on picture. Djdsyw Nauepfx Ahujkk

Condition: used, Year of construction: 2002, Deckel Maho DMU 50 T Dkodpfxeyrgk Ee Ahuok Milling Machine Condition: Used Year of manufacture: 2002 Technical Data Tool holder: SK 40 Tool stations: 16 positions Travel X/Y/Z: 500 mm / 400 mm / 400 mm Spindle speed range: 20 - 9000 rpm, stepless Table size: 700 mm x 500 mm rotary table Motor power: at 100% duty cycle 9 kW / at 40% duty cycle 13 kW Connection total: 17 kVA Weight: approx. 3000 kg Dimensions LxWxH: approx. 2100 mm x 1520 mm (without peripherals) / approx. 2140 mm

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, AN EXCELLENT OPORTUNETEY TO GET FULLY EQUIPED MACHINE READY TO WORK MACHINE IS STIIL WORKING IN THE PRODUCTION , WILL BE ABLE TO TOOK OUT IN MIDLLE FEBRUARY 2026-NEXT MONTH WE SELL AN NICE CONDITION HERMLE C40U FULLY EQUIPED WITH COMPLETE FULL TOLS ACCESSORIESS MACHINE IS WORKING IN PRODUCTION DAILY ORDERS. THIS IS AN VERY NICE OPORTUNETEY MACHINE WILL BE AWAILIBLE IN NEXT WEEKS FOR PICKING UP TECHNICAL DATA: x-travel 850 mm y-travel 700 mm z-travel 500 mm Control HEIDENHAIN iTNC 530 rotary table 800 mm c-axis 0.001º ( ±360º) 0 B-axis (table) º mm number of spindle speeds 18.000 U/min/rpm Dkedpfx Aeydrwhjhujk tool taper SK 40 DIN 69871 spindle drive 15 kW max. torque on the spindle 130 Nm Tools changer 38 fach/tools Internal cooling system 80 bar handwheel HR- 410 total power requirement 41 kVA weight of the machine ca. 10,5 t EQUIPMENT: MACHINE WILL COME EQUIPED WITH COMPLETE WORKING PLACE , WITH ALL COMPLETE TOOLS AND ACCESSORIESS. COMPLETE TOOLINGS COMPLETE CUTTING TOOLS COMPLETE DRAWERS TABLE WITH ALL ACCESSORIES , WHICH BELONGS TO HERMLE WORKING STATION. RENISHAW WASTE BUCKET CONVENYOR MAGNET CLAMPING UNIT
